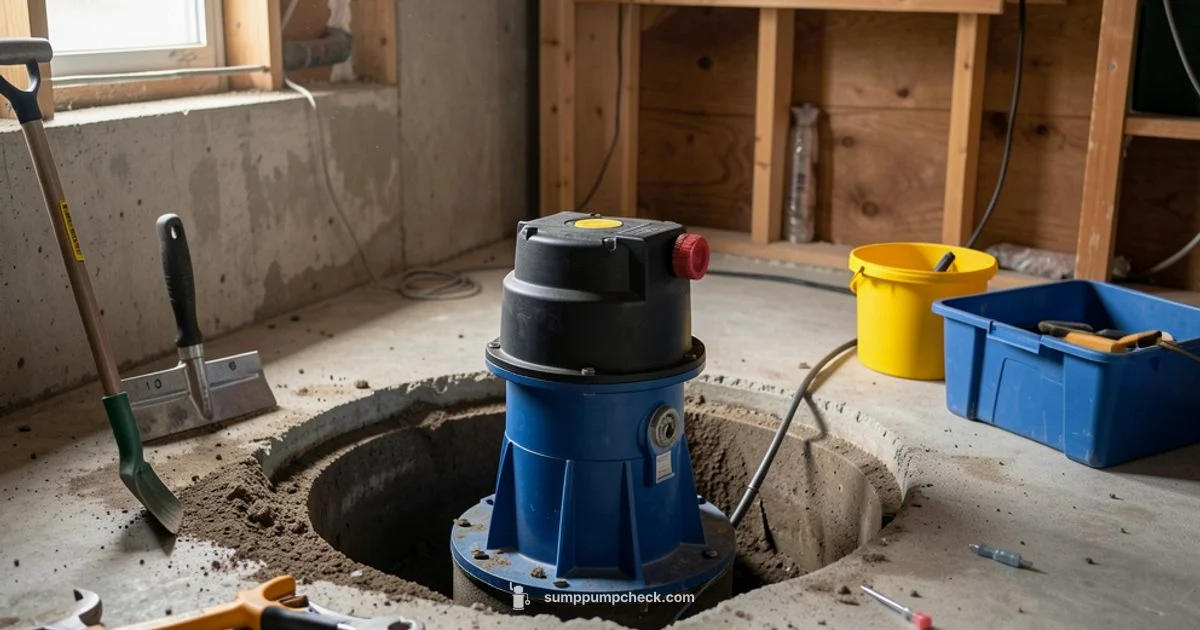

Sump Pump Drain Installation: A Practical How-To Guide
Learn how to install a sump pump drain with a reliable discharge path, appropriate PVC components, and a tested system. This step-by-step guide covers planning, materials, safety, and maintenance for durable basement drainage.
You will install a drain for your sump pump, creating a reliable outlet that discharges away from your foundation. This guide covers planning the discharge path, selecting materials, and step-by-step installation with safety checks and testing. Before starting, gather PVC pipe, connectors, sealant, a check valve if needed, and a secure exterior discharge point.
Planning the Drain Path for Sump Pump Drain Installation
Before you touch tools, map the discharge path from the sump pump to an exterior outlet. Check local codes and your home's grade to avoid directing water toward foundations or neighboring properties. Decide on the discharge point (yard drainage, vertical drain, or storm sewer where permitted). Verify electrical safety clearances and ensure the pump's power outlet is GFCI protected. According to Sump Pump Check, thorough planning is the foundation of a reliable drain installation that protects your basement and landscape. Consider any future changes like adding a backup pump or connecting to a rainwater system, and document the distances from the sump to the exterior exit. A well-planned route reduces the number of fittings and minimizes friction loss, which helps the pump operate more efficiently and quietly.
Tools & Materials
- PVC drain pipe (1.5-2 inch)(Select lengths to reach exterior discharge point without sharp bends)
- PVC cement and primer(Use appropriate primer before cement)
- PVC elbows and tees(Include 90-degree and 45-degree as needed)
- Check valve(Prevent backflow during heavy rain)
- Discharge hose adapter(Connect to sump outlet or hose)
- Shovel or trenching tool(For outdoor trenching if needed)
- Measuring tape(Accurate route planning)
- Marker or chalk(Mark pipe path and cut lines)
- Safety gear (gloves and eye protection)(Protect hands and eyes)
- Silicone sealant or gasket sealant(Optional extra sealant for stubborn joints)
Steps
Estimated time: 2-4 hours
- 1
Plan and Measure the Route
Start by measuring the horizontal distance from the sump outlet to the chosen exterior discharge point. Mark the path and plan for gentle bends rather than sharp right angles, which reduces the chance of clogs. Determine the slope required to maintain drainage flow, and calculate the total length of pipe needed, including extra for waste joints and testing. Prepare the area by clearing debris and ensuring access behind the sump. This planning creates a clear blueprint you can follow during installation and minimizes rework later.
Tip: Pro tip: Dry-fit the components first to verify alignment before gluing. - 2
Prep the Sump Outlet
Turn off the power to the sump pump at the breaker to prevent accidental starts. Disconnect the existing discharge line if you are replacing it. Clean the outlet and nearby surfaces to ensure a tight seal with the new fittings. Inspect the outlet for wear and replace any cracked adapters or damaged gaskets. Dry fit the pieces first to verify fit, then apply primer to the PVC surfaces before cementing.
Tip: Ensure the area is dry and free of dust to improve joint adhesion. - 3
Cut and Fit PVC Sections
Using a sharp pipe cutter or fine-tooth saw, cut PVC sections to the measured lengths. Dry-fit each segment before applying cement to confirm proper alignment. Use elbows and tees to create smooth bends that follow your planned path. Leave extra length at joints for adjustments and avoid over-tightening fittings to prevent cracks. After dry fitting, connect the pieces with primer and cement, wiping away excess adhesive to prevent clogs.
Tip: Leave a small amount of slack near the sump to account for seasonal movement. - 4
Seal Joints and Ensure a Watertight Connection
Apply PVC primer to all joints, then glue the fittings together firmly with solvent cement. Hold each joint steady for a few seconds to ensure a complete bond. Inspect every joint for gaps or misalignment and reseal if needed. Use silicone around irregular edges where the pipe meets the sump outlet if required by local codes. A watertight system prevents seepage and rot and reduces maintenance costs.
Tip: Let cement cure fully before testing the system. - 5
Install Exterior Discharge and Check Valve
Extend the discharge line to an exterior point away from the foundation, avoiding runoff toward sidewalks or neighbor property. Install a check valve near the sump outlet to prevent backflow during heavy rain events. Secure the pipe along the wall with brackets or straps to minimize movement and noise. If required by code, install a frost-proof outlet or a short vent to relieve pressure. The exterior portion is critical for keeping groundwater away from the home.
Tip: Follow local codes for valve placement and insulation requirements. - 6
Test the System and Adjust Flow
Power the sump and observe the new discharge line for leaks and smooth flow. If you detect backflow, recheck valve orientation and seals. Test by simulating rainfall to ensure the line drains consistently without pooling. Address any issues before finalizing the installation to prevent surprises during storms.
Tip: Test under load to ensure performance during actual rain events. - 7
Finish and Maintain the Installation
Clean the work area and replace soil or mulch disturbed during the process. Keep the discharge line clear of debris and inspect joints seasonally. Run the sump on a regular basis to verify line clearance and performance. Reassess the path if landscaping changes occur that could affect drainage. Regular maintenance reduces flood risk and extends the system life.
Tip: Schedule a yearly check to catch wear or blockages early.
FAQ
Do I need a check valve for a sump pump drain installation?
A check valve is typically recommended to stop backflow when the pump shuts off, especially in areas prone to backflow. Local codes may require it, so verify before installing.
Yes, a check valve is commonly recommended to prevent backflow and should be installed if your local codes permit.
Can I discharge sump pump water directly into the yard or street?
Discharging to the yard is often allowed when it meets local codes and directs water away from foundations, sidewalks, and neighbors. Avoid areas with standing water and ensure proper slope.
Discharge to a suitable exterior area only if local codes allow it, and make sure water flows away from your foundation.
What material should I use for the drain line?
PVC is the standard for sump pump drains due to durability and smooth interior, which minimizes clogs. Avoid flexible hoses for long runs where possible.
PVC is the recommended material for reliability and ease of maintenance.
How often should I inspect or maintain the drain line?
Inspect annually and after major storms. Look for cracks, leaks, and any loose fittings, and reseal as needed.
Check the line at least once a year and after big rains to catch problems early.
What about winter frost and freeze protection?
Ensure the line is insulated or routed away from freezing zones. In colder climates, consider a frost-proof discharge or burying the line below the frost line where allowed.
Keep the discharge line warm or buried to prevent freezing in winter.
Do I need a professional to install the drain?
This task is doable for many DIY homeowners with basic plumbing skills. If you’re unsure about code requirements or dealing with excavation, hire a licensed plumber.
If in doubt, a professional can ensure code compliance and a leak-free installation.
Watch Video
Top Takeaways
- Plan the route before cutting any pipe
- Use the correct PVC sizes and ensure proper slope
- Test the system thoroughly and confirm code compliance
- Maintain the discharge path annually to prevent clogs and leaks
