Sump Installation: A Complete DIY Guide
Learn how to plan, install, and maintain a sump installation system to protect basements from flooding. This step-by-step guide covers pit sizing, pump choices, discharge planning, and safety best practices with practical tips from Sump Pump Check.
According to Sump Pump Check, this quick guide helps you plan, install, and test a complete sump installation system to protect a basement from flooding. You’ll decide pit location, select submersible vs pedestal, assemble a discharge line, and perform a safe startup test. Adhere to local codes, use a GFCI outlet, and secure the pit lid to prevent debris.
Why Sump Installation Matters
Basements are especially vulnerable to groundwater and heavy rain. A well-executed sump installation can be the difference between a dry living space and costly flood damage. According to Sump Pump Check, proper planning, correct component selection, and reliable discharge are the three pillars of long-term effectiveness. A typical system uses a sump basin, a pump, floats or sensors to trigger operation, and a discharge path that moves water away from the foundation. A poorly designed or incorrectly installed sump can fail during a storm, allowing water to back up or breach the pit lid. When you set up your project, focus on three outcomes: reliable water removal, safe electrical connections, and minimal disruption to living areas. Your goal is a system that activates automatically, handles expected water volumes, and remains accessible for inspection and maintenance.
Planning Your Sump Installation: Site, Code, and Sizing
Before you touch tools, create a site plan. Choose a location for the sump pit near the lowest point of your basement floor, away from footings or drains, and ensure adequate clearance for service. Check with local authorities about permits and drainage requirements; some jurisdictions require inspection or backflow prevention devices. Sump Pump Check analysis shows that following established guidelines improves reliability and reduces the risk of backflow. Determine the pump capacity based on the worst-case water inflow you expect during a storm; choose a model with a slightly higher GPM rating than your estimate to avoid overloading during peak rainfall. Finally, verify that the discharge path leads to a point where water can disperse without causing erosion or basement flooding elsewhere.
Pit and Pump Type Selection: Submersible vs Pedestal
Two common pump configurations satisfy most DIY projects: submersible and pedestal pumps. Submersible units sit inside the sump basin and are typically quieter and better at blending with the pit. Pedestal pumps stand above the basin and can be easier to service but may be louder. Your choice should consider pit depth, space, noise tolerance, and the ease of replacement. Ensure the pump size fits the basin diameter and has a float switch or electronic sensor for automatic operation. Also consider a high-water alarm as a safety backup. In all cases, choose corrosion-resistant materials and verify compatibility with your discharge piping.
Pit Sizing and Pit Liner Considerations
A properly sized pit supports efficient pumping and reduces the risk of clogs. A common rule is to allow at least 16–24 inches of pit diameter and a depth that reaches below the intended water table for at least several hours of storage capacity. If your basement has poured concrete walls, you may need to cut a concrete pit or install a preformed basin. A gravel base under the basin promotes drainage and helps prevent sediment buildup. Use a rigid, sealed liner if you install an above-grade pit to protect the trench and keep overflow away from the basement edge.
Discharge Line Planning and Drainage Path
Plan the discharge path to move water away from the foundation and to a visible drainage point. Use a rigid PVC pipe or a hose rated for outdoor exposure, and include a check valve to prevent backflow. Keep elbows and joints secure with PVC cement and clamps, and slope the line slightly away from the house. The discharge should terminate above ground or into a storm drain that is approved by local authorities. Avoid connecting the discharge directly to sewer lines, which is illegal in many municipalities. Label the line clearly and avoid placing it under decks or near walkways where it could create slippery conditions.
Electrical and Safety Considerations
Electrical safety is essential for sump installations. The pump should be plugged into a GFCI-protected outlet that remains accessible for maintenance. Avoid using extension cords and ensure the power cord is out of reach of standing water. If you install a dedicated circuit, follow code requirements for wire gauge and breaker size. A battery backup can provide continued operation during a power outage, which is a common failure mode in severe storms. Ensure all wiring and outlets are weather- and water-resistant, and test the system with the water supply disconnected before final commissioning.

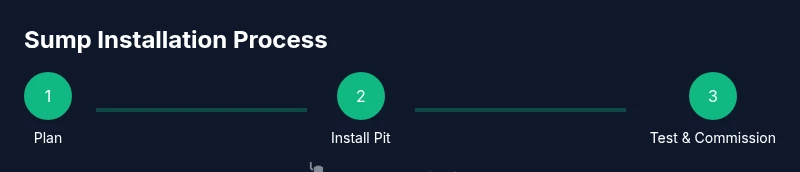

The Installation Steps Overview
This section provides an overview of the major phases: prepare the site, install the pit base and liner, set the pump and confirm float operation, install the discharge piping, connect electrical supply, and perform a test run. Each phase has specific checks and safety notes, and this overview will be reinforced in the step-by-step section. By planning ahead and working methodically, you reduce errors, protect your investment, and minimize dust and debris in living spaces. Remember to review manufacturer instructions for any model-specific steps and to confirm compatibility with local plumbing codes.
Testing, Startup, and First Run
Testing ensures the system will perform under real conditions. Fill the pit with water and watch the float or sensor trigger the pump. Listen for proper cycling and verify that the discharge line carries water away from the foundation. Check for leaks at all joints and ensure that the lid seals well to prevent debris entry. If you notice air gaps or noise, stop and reseal joints. Record the test results and schedule periodic checks every season to ensure continuous reliability.
Maintenance Plan After Installation
A maintenance routine helps ensure long-term performance. Clean the pit and screen, test the float switch, and inspect the discharge piping for cracks or clogs. Replace worn seals and lubricate moving parts if the pump model requires it. Keep a simple log of test dates, filter changes, and any symptoms of abnormal operation. A well-documented maintenance schedule reduces the chance of surprise failures and extends the life of your sump system. The maintenance mindset is a key factor in ongoing protection; as the Sump Pump Check team emphasizes, regular checks prevent costly basement damage.
Authority Sources and Further Reading
For trusted guidance on sump installation and basement drainage, consult authoritative resources. The EPA provides general information on water management and home drainage: https://www.epa.gov/. FEMA offers flood safety and preparedness guidance: https://www.fema.gov/. University extension resources give practical, code-aware advice for homeowners: https://extension.umn.edu/.
Tools & Materials
- Sump pump unit (submersible or pedestal)(Select size based on pit depth and expected water volume.)
- Discharge pipe (PVC 3/4" or 1")(Include fittings, elbows, and adapters.)
- Check valve(Prevents backflow from the discharge line.)
- Float switch (if not integrated)(Automatic activation when water rises.)
- Gravel/crushed stone for pit base(1–2 inch layer for drainage.)
- Sump pit/basin (preformed or dug)(Ensure proper diameter for pump and lid.)
- Silicone sealant or concrete sealant(Seal around pit edges and piping.)
- PVC primer and cement(Secure and seal joints.)
- PVC pipe cutter(Make clean, square cuts.)
- Hacksaw or reciprocating saw(Cut through pipe or framing when needed.)
- Adjustable wrench and channel locks(Tighten fittings and clamps.)
- Tape measure and marker(Plan lengths and locate mounting points.)
- Level and square(Ensure the pit and piping are plumb.)
- Safety gear (gloves, goggles)(Protect during drilling and cutting.)
- GFCI outlet and weatherproof cover(Critical for safe operation near water.)
Steps
Estimated time: 4-6 hours
- 1
Assess site and plan pit location
Survey the basement floor to identify the lowest, unobstructed area for the sump pit. Mark a location that is accessible for maintenance and away from foot traffic. Confirm the spot has space for the pit, pump, and discharge route.
Tip: Document measurements and check for electrical access nearby. - 2
Prepare the pit area and base
Clear debris and create a stable base with compacted soil or gravel. If you’re digging, ensure the cut is square and the bottom is level to prevent tilt or rocking of the basin.
Tip: Use a level to verify the base is flat before placing the pit. - 3
Install the sump basin and gravel base
Place the basin into the prepared area, then add a shallow layer of gravel to promote drainage and stability. Check that the basin sits level and the rim is flush with the floor surface.
Tip: Do not overfill with gravel; leave space for the pump and lid. - 4
Set the pump and connect the float switch
Position the pump inside the basin and attach the float switch per manufacturer instructions. Ensure the float has full freedom of movement without contacting the basin walls or piping.
Tip: Test float movement manually before installing piping. - 5
Attach discharge piping and check valve
Connect the discharge pipe to the pump outlet, install the check valve in the correct orientation, and body-tighten all fittings. Route the pipe to an approved exterior discharge point with a gentle slope away from the foundation.
Tip: Avoid sharp bends that can clog or restrict flow. - 6
Seal and weatherproof connections
Seal around the pit edges and pipe penetrations with silicone or appropriate sealant. Use clamps and cement on PVC connections to prevent leaks and corrosion.
Tip: Inspect seals for gaps that could allow dirt or water intrusion. - 7
Install electrical supply safely
Mount a GFCI outlet in a dry location and run a dedicated circuit if needed. Keep the power cord above standing water and away from the discharge path. Do not use extension cords for permanent installation.
Tip: Consult a licensed electrician if you’re unsure about wiring routes. - 8
Test the system with water in the pit
Fill the pit to trigger the float and observe the pump cycling. Confirm the discharge stream is clear of obstructions and that water is moving away from the foundation.
Tip: Listen for unusual noises and check for leaks at all joints. - 9
Document and plan for maintenance
Record model numbers, test dates, and maintenance steps. Schedule seasonal checks and battery tests if you have a backup unit.
Tip: Keep tools handy and accessible for quick inspections.
FAQ
Do I need a permit for sump pump installation?
Permit requirements vary by locality. Check with your municipal building department to determine if a permit is required and what inspections are needed for a sump installation. Many areas treat it as a home improvement project with plumbing and electrical considerations.
Permits vary by location; consult your city or county building department to confirm requirements and inspections.
What is the difference between submersible and pedestal sump pumps?
Submersible pumps operate beneath the water line and are typically quieter and more compact. Pedestal pumps ride above the basin and can be easier to service but are generally louder. Consider space, access, noise tolerance, and maintenance when choosing.
Submersible units sit in the water and are quieter; pedestal units stand above the basin and are easier to service but louder.
How deep should a sump pit be and how large should it be?
Pit depth and diameter depend on your basement and pump size. A common guideline is a diameter of 16–24 inches and a depth that allows several hours of water storage, but always follow the pump manufacturer's recommended pit dimensions.
Aim for a pit wide and deep enough to fit the pump and allow safe startup and maintenance.
Do I need a backflow or check valve?
Yes. A check valve prevents backflow from the discharge line into the sump, which can cause repeated cycling or flooding. Install the valve correctly and test for proper operation after installation.
A check valve prevents backflow and is an important component of a reliable sump system.
How often should I test and maintain the sump system?
Test the system at least twice a year and after major storms. Inspect the pit, seals, and discharge line for wear and corrosion, and replace worn parts promptly to avoid failures during heavy rain.
Test twice a year and after big storms; inspect regularly to prevent failures.
Can I install a sump pump myself or should I hire a pro?
If you have basic plumbing and electrical skills and are comfortable with local codes, a DIY installation is possible. For complex drivages, electrical work, or uncertain permits, hiring a licensed professional is recommended for safety and compliance.
DIY is possible for simple setups, but hire a pro for complex installs or uncertain codes.
Watch Video
Top Takeaways
- Plan site and sizing before digging.
- Choose pump type based on pit depth and noise tolerance.
- Ensure safe electrical connection with GFCI and clear access.
- Test thoroughly and maintain regularly.
