Putting in a Sump Pump: A Homeowner's Step-by-Step Guide
A comprehensive guide to installing a sump pump for reliable basement drainage. Learn planning, sizing, pit placement, piping, electrical safety, testing, and maintenance—designed for homeowners and DIY enthusiasts.
Putting in a sump pump can safeguard a basement from flooding. This guide walks you through planning the pit, choosing a pump, routing discharge, wiring safely, and testing the system. You’ll learn how to size, install, and maintain the unit with clear steps, practical tips, and safety checks so your home stays dry during heavy rain.
Why putting in a sump pump matters for basements
Basements are prone to water entry during heavy rains, thaw cycles, and storm surges. A properly installed sump pump provides automatic water removal when water levels rise, reducing hydrostatic pressure against the foundation and helping protect valuables. The right system also protects stored belongings and structural wood from prolonged moisture exposure. When you’re thinking about the task of putting in a sump pump, you should consider the type (submersible vs pedestal), pit size, discharge route, and electrical safety.
According to Sump Pump Check, taking time to plan your installation reduces the likelihood of leaks, clogs, and nuisance alarms. A well-designed layout accounts for expected water volume, soil drainage, and how the discharge will exit the building. In practice, many homes near floodplains or with high groundwater demand a backup option, such as a battery-powered unit, to maintain operation during power outages. With careful planning, you can avoid common failure points and ensure the system operates automatically when water rises.
Planning the installation: permits, codes, and site selection
Before you break ground, review local codes and permit requirements for electrical work and plumbing connections. Some municipalities require a professional electrical permit or inspection for sump pump wiring. Pick a location for the sump pit that is accessible for maintenance and has solid, level flooring. The discharge outlet should have a clear path away from the foundation, with a plan for winter ice and snow management. Considering future needs, such as a check valve or a backup pump, at this stage saves rework later.
Sump pump types and sizing: submersible vs pedestal and pit considerations
Sump pumps come in two main forms: submersible units housed inside a waterproof basin and pedestal models that mount above the pit. Submersible pumps tend to be quieter and easier to conceal, while pedestal pumps can be easier to service. When selecting a pump, consider the typical water input, the depth of the pit, and whether you want a built‑in alarm or a backup option. A larger pit can accommodate a more robust unit and longer service life, but measure carefully to avoid excess concrete modifications. Remember that right-sizing the pump helps prevent constant cycling and energy waste.
Piping, discharge, and drainage layout
Discharge piping should slope away from the building foundation, typically with a gentle 1/8–1/4 inch per foot gradient. Use a check valve to prevent backflow into the basin, and use proper primer and cement for airtight joints. Position the discharge outlet to meet local codes and avoid directing water toward sidewalks, drainage ditches, neighbors, or landscaping that could be damaged by runoff. A clean-out point near the pump or a short trap can ease future maintenance.
Electrical safety and codes
Create a dedicated GFCI‑protected circuit for the sump pump, ideally with weatherproof outlets if located in a crawl space or outdoor area. Use strain relief on the power cord and protect exposed sections with conduit or a robust cord cover. Do not run the pump on a shared or damaged circuit, and ensure the wiring meets local electrical code requirements. Consider a battery backup system to keep the pump running during power outages.

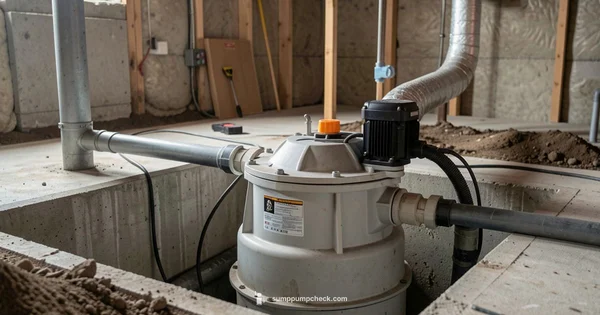

Installing the basin, pump, and mounting hardware
Place the sump basin on a prepared, level subfloor or pit base. If needed, level the basin with shims and verify it sits flat. Install the pump inside the basin, attach the discharge pipe to the pump outlet, and run the pipe toward the exterior. Install the float switch or electronic controller according to the manufacturer’s directions, then secure all connections and verify there are no leaks.
Testing the system and initial maintenance plan
Fill the basin with water or pour a test amount to actuate the float, then listen for the pump and check for leaks. Ensure the discharge line carries water away from the foundation and inspect every joint for tightness. Run multiple test cycles and verify the system resets correctly after each cycle. Establish a basic maintenance plan: monthly visual checks and quarterly function tests, with annual component inspection.
Maintenance schedule and common issues
Common issues include clogged intakes, stuck floats, or pump failure due to power outages. Regularly clean the inlet screen, check the check valve, and clear debris from the basin. If the pump runs constantly or fails to start, revisit sizing and the discharge path. The Sump Pump Check team notes that ongoing maintenance after installation is essential for long-term reliability.
Tools & Materials
- Sump basin(Ensure it fits the planned pit dimensions and allows for pump clearance)
- Sump pump (submersible or pedestal)(Choose based on pit depth and service access)
- Discharge piping (PVC, 1-1/2" to 3")(Include fittings, elbows, and a cleanout if needed)
- Check valve for discharge line(Prevents backflow into the basin)
- PVC primer and cement(For airtight, leak-free joints)
- Hacksaw or PVC cutter(To cut pipe to length)
- Measuring tape and level(Ensure pit and piping are correctly aligned)
- Cordless drill and screwdriver set(For mounting hardware and pump bracket)
- GFCI-protected outlet and weatherproof cover(Electrical safety in damp areas)
- Electrical conduit or cable protection(Keep wiring safe in wet environments)
- Shims and sealant(To level the basin and seal gaps)
- Safety gear (gloves, eye protection)(Always wear PPE during installation)

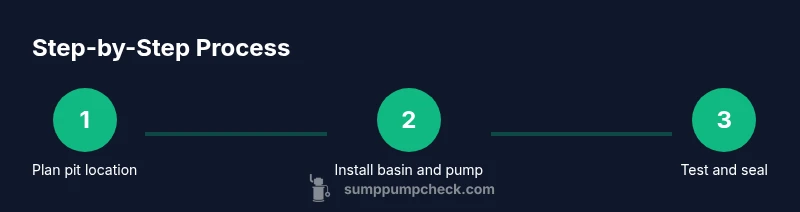

Steps
Estimated time: 2-6 hours
- 1
Plan and prepare the site
Assess where the pit will be placed and what discharge route will be used. Verify there is enough space for the basin and for maintenance access. Prepare tools and gather materials before you start.
Tip: Double-check local codes and plan for a backup pump in flood-prone areas. - 2
Dig and prepare the sump pit area
Mark the pit footprint, dig to fit the basin height with clearance for the float, and clean the area to provide a solid base. Check for a level surface to prevent wobbling.
Tip: Use a chalk line and a level to ensure vertical alignment of the pit edges. - 3
Install the sump basin and ensure level seating
Place the basin in the prepared hole, add shims as needed, and verify it sits level. Secure it so it won’t shift during backfill or operation.
Tip: Do not over-tighten mounting bolts; allow slight give for vibration absorption. - 4
Mount the pump inside the basin
Set the pump on a stable base inside the basin and connect the discharge outlet to the chosen piping. Ensure that the float or switch has full travel without obstruction.
Tip: Handle the pump by its body, not the power cord, to avoid damage. - 5
Attach discharge piping and check valve
Cut and fit the discharge pipe, install the check valve, and dry-fit fittings before applying cement. Ensure joints are clean and secure.
Tip: Apply primer and cement per manufacturer instructions for best seal. - 6
Route discharge to exterior and secure piping
Run the pipe to the exterior, avoiding sharp bends and ensuring a continuous slope away from the foundation. Use clamps or brackets to secure the line.
Tip: Keep the discharge above grade where practical to prevent backflow from surface water. - 7
Wire the pump to a GFCI-protected circuit
Install a dedicated circuit with proper strain relief and weatherproofing if exposed. Do not share the circuit with other appliances or outlets.
Tip: If you’re unsure about wiring, hire a licensed electrician; electrical safety is critical. - 8
Test the system and finalize setup
Fill the basin to actuate the float and start the pump. Check for leaks, verify water moves away from the foundation, and confirm the system resets after each cycle.
Tip: Document test results and schedule regular maintenance checks.
FAQ
Do I need a permit to install a sump pump?
Permit requirements vary by locality. Check with your city or county building department for electrical and plumbing permits, and for required inspections. If in doubt, consult a licensed professional.
Permit needs vary by location; check with your local building department, and consider professional help if required.
What size sump pump do I need for a typical basement?
Sizing depends on the expected water volume and pit dimensions. Start with a pump rated for standard residential basements and adjust based on local rainfall and groundwater conditions. A backup option improves reliability.
Sizing depends on water volume and pit size; a typical residential setup often needs a reliable primary pump plus a backup.
Can I install a sump pump myself?
It’s doable for a confident homeowner, especially the non-electrical portions. Electrical work, installing permits, and code compliance may require a licensed electrician or plumber. Always follow manufacturer instructions and local codes.
It's doable for mechanically inclined homeowners, but electrical work may require a pro and code checks should be done.
How often should I test and maintain the sump pump?
Test the pump monthly and after major storms. Inspect the intake screen, discharge path, and connections. Replace worn parts as needed and keep a simple maintenance log.
Test monthly and after heavy rain; inspect components and keep a maintenance log.
What maintenance is recommended for backup systems?
Backups require periodic battery checks, inverter testing, and ensuring the backup battery stays charged. Replace batteries according to manufacturer guidance and test the combined operation with the primary pump.
Check and charge backups regularly and test both pumps together when possible.
Watch Video
Top Takeaways
- Plan before you dig and install.
- Choose the right pump and pit size for your basement.
- Route discharge safely away from the foundation.
- Test and maintain the system regularly.
