How to Install a Sump Pump in an Existing Basement

Why Installing a Sump Pump in an Existing Basement Matters

Flooding in basements can cause extensive damage and mold growth, especially where living spaces are involved. If your basement is already finished or partially used, a sump pump becomes a critical shield against water intrusion. How to install sump pump in existing basement is a common project for homeowners who want to reduce flood risk and gain peace of mind. According to Sump Pump Check, the most reliable installations start with a clear plan, accurate pit sizing, and a well-designed discharge path. This guide explains how to install sump pump in existing basement, including selecting the right pump, preparing the pit, routing pipes, and safely wiring the unit. You’ll learn how to evaluate your space, choose components that fit your needs, and avoid common pitfalls by following a step-by-step approach. By the end, you’ll know how to reduce flood risk, protect important belongings, and keep living areas dry during heavy rain events.

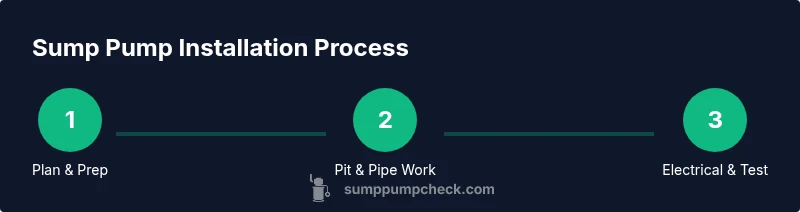

The Sump Pump Check team emphasizes that planning first saves time later. Start by confirming pit dimensions, available footprint, and access for maintenance. Then map a discharge route that exits responsibly and complies with local rules. Finally, set up reliable electrical protection and a backup option so the system can operate during power outages.

Assessing Your Basement and Sump Pit

Before you buy a pump, inspect the basement to identify potential flood paths and the viability of a sump pit. Look for signs of dampness or prior backups, measure the pit diameter, and check the floor around it for cracks. If there’s an existing pit, confirm its depth and rim height; if not, plan for a pit with a minimum volume to hold the chosen pump. The discharge location matters: ensure there is a clear path to exterior grade, away from foundations and neighbors. Check local code for required pit dimensions and venting. The first step is to verify space and access so you can work safely and avoid future rework. The process should also account for potential future upgrades, such as a battery backup or a second pump for enhanced reliability. The results from this assessment will guide both pump selection and pipe routing to minimize water pressure losses.

Sizing and Pump Selection

Select a pump with adequate capacity for your basement size and typical rainfall. In existing basements, submersible pumps are most common due to their compact size and safety. Avoid oversized pumps that cycle on/off frequently, but also avoid undersized units that struggle during heavy storms. If you’re unsure, compare flow rates and head height to determine if the pump can raise water to the exterior. Sump Pump Check Analysis, 2026, notes that choosing components that work together—pump, check valve, discharge pipe—reduces backflow and failure risk. When sizing, consider basement area, typical flood frequency, and the distance water must travel to exit the home. Remember: a well-matched system performs better and lasts longer than a mismatched setup.

Planning the Discharge Route and Pit Location

Plan a route that drains away from the foundation, into a municipal storm drain if allowed, or a dedicated yard drainage area. Use vertical and horizontal runs with appropriate fittings to minimize clogs. Maintain vertical rise that satisfies your pump's head; use check valves to prevent backflow. Ensure you won’t discharge onto sidewalks where it can cause icy patches. Confirm any permits or inspections required by local code. A good discharge plan also accounts for seasonal freezing in some climates and avoids routing water toward electrical panels or gas lines. The goal is a clean, reliable exit path that protects your basement and landscape.

Mechanical Installation: Pit, Pump, and Valve Assembly

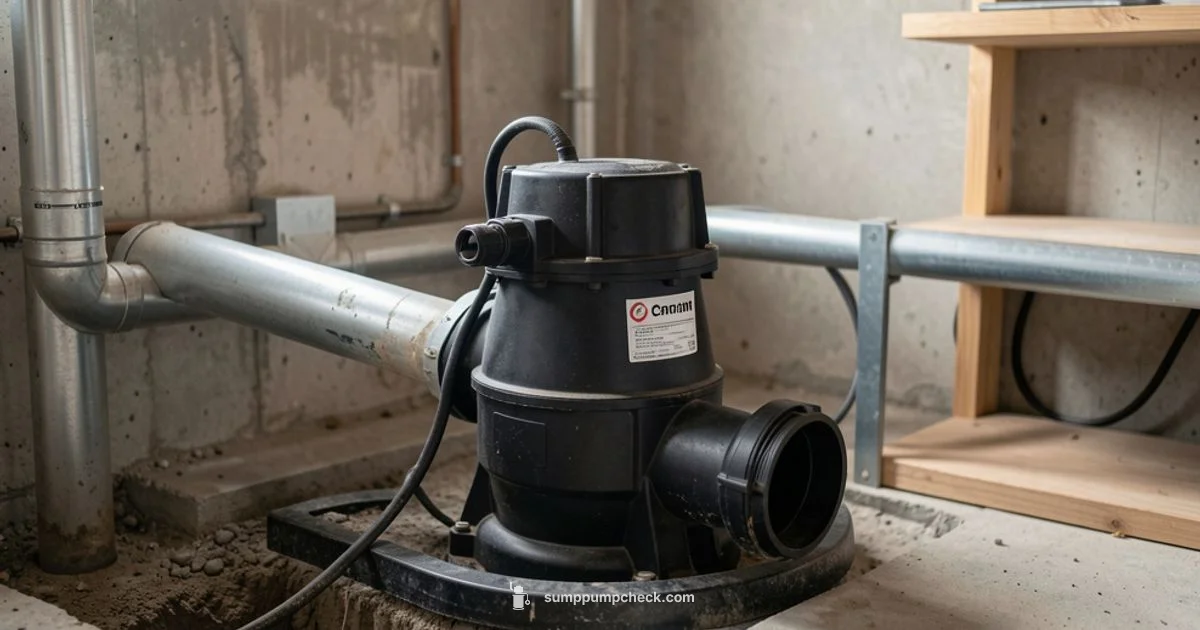

Install the basin or retrofit a pit, then place the pump in the pit with the float switch oriented for reliable rising water detection. Attach the discharge pipe to the pump, add a check valve to prevent backflow, and secure all fittings with primer and cement. Ensure a clean, dry base with gravel or padding, then seal the rim to prevent seepage. Double-check that electrical clearances won’t interfere with water lines or the pit cover. Verify the pump orientation so that the float arm can rise freely and trigger the switch at the correct water level. If you’re retrofitting, ensure the new components fit the existing footprint without crowding nearby pipes or wiring.

Electrical Connections, Safety, and Maintenance

Run a dedicated, GFCI-protected outlet or a small power circuit for the sump pump, with a simple on/off switch or a level-controlled float. Consider a battery backup or secondary pump for power outages. Keep the pump accessible for routine tests and cleaning. Schedule annual checks of the float switch, seals, and venting if present, and replace worn components before failure. Use waterproof sealant around any penetrations where the discharge pipe or wiring enters walls or the floor. Always power down before performing maintenance and never pull on the cord to reposition the unit. Regular testing is essential to catch early wear and prevent unexpected breakdowns.

Authoritative Guidelines and Local Considerations

This guide aligns with general best practices and safety standards from recognized authorities. Always verify local requirements for basement drainage, electrical installations, and plumbing fittings before you begin. For additional guidance on flood prevention and safety standards, see reputable sources from government agencies and major publications. Following these standards helps ensure your install is not only effective but compliant with codes and safety expectations. As you proceed, document the steps you take and any permits or inspections completed to simplify future maintenance or upgrades.
