Can You Add a Sump Pump to an Existing Basement? A DIY Guide
Learn how to add a sump pump to an existing basement with a safe, code-compliant plan. Step-by-step guidance from planning to testing, with maintenance tips and backup options.
Yes. You can add a sump pump to an existing basement by installing a new sump pit, selecting a suitable pump, wiring it to a dedicated circuit, and routing discharge away from the foundation. Include a check valve and a backup power option for reliability.
Assessing feasibility and planning
If you’re exploring can you add a sump pump to an existing basement, the first step is solid planning. Start with a quick risk assessment: is the basement prone to flooding or groundwater intrusion, and is there a practical location for a sump pit? According to Sump Pump Check, homeowners who map potential water entry points and identify a clear discharge path tend to achieve more reliable performance with fewer surprises. Examine existing utilities, basement height, and accessibility to the exterior for discharge. Create a simple diagram that shows where the pit will go, how water will reach it, and where the drainage will exit. Consider seasonal patterns, nearby concrete work, and whether you’ll need a trench or wall cut to accommodate piping. A well-thought-out plan reduces the chance of backing up water and helps you stay within local codes and permits.
Choosing the right site and pit location
Selecting the best spot for the sump pit is critical. Look for a low-traffic corner with the most direct route to the exterior. The pit should sit on a solid base, avoid areas with utilities beneath, and be far enough from footings. If you have a floor drain, assess whether the sump will supplement or replace it. A properly placed pit minimizes splash and improves pump efficiency. In the planning phase, check that the pit dimensions fit your chosen pump and allow for safe maintenance access. This step also includes confirming that the pit walls will be sealed to prevent radon intrusion and moisture migration when the system is active.
Electrical requirements and permits
Electrical safety is non-negotiable. A sump pump generally requires a dedicated 15-amp circuit protected by a GFCI outlet or a GFCI-protected circuit breaker. Before you begin, verify local codes and any permit requirements. Working with electricity around water demands caution: shut off power when installing components, use weatherproof conduit if needed, and ensure a clear clearance for service. If you’re unsure, consult a licensed electrician to assess your wiring plan and obtain the necessary permits. The goal is a safe, compliant installation that minimizes the risk of electrical shock or fire.
Discharge planning and routing
Discharge planning is core to effective sump pump performance. The pump pushes water through discharge piping away from the foundation. Use a solid PVC pipe with proper slope and secure fittings to prevent leaks. Decide whether you’ll route water to a storm drain, yard area, or outside surface with appropriate splash blocks and check valves. A common practice is to include a check valve to prevent backflow into the pit after a rain event, and to avoid directing water toward sidewalks or building entrances. If your discharge exits near the foundation, consider protective sleeves and anti-freeze or other seasonal considerations to maintain smooth operation year-round.
Pit installation and pit prep
Once you’ve chosen the location, prepare the pit. Clear debris and ensure a flat, level base. If you’re excavating, follow safe digging practices and verify there are no hidden lines. A concrete collar around the pit can help stabilize the unit and minimize seepage around the opening. After setting the pit, rough-in the discharge line to confirm alignment with final routing. This preparation reduces rework and helps the pump sit securely, which improves long-term reliability and reduces noise.

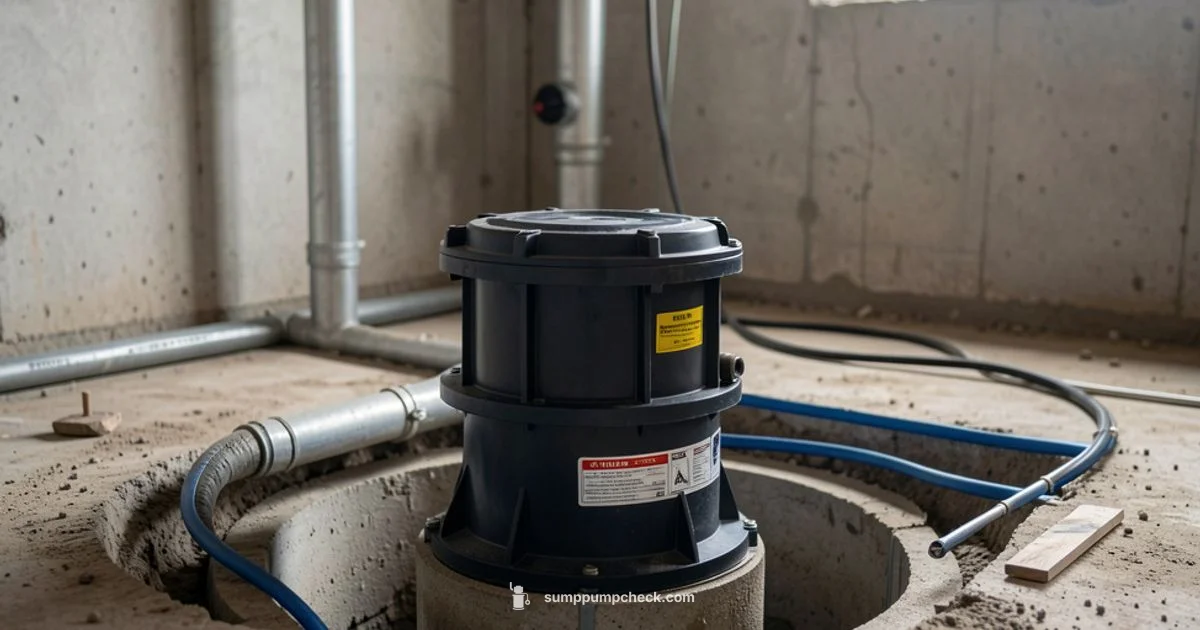

Installing the pump, wiring, and check valve
With the pit in place, install the sump pump following the manufacturer’s instructions. Position the pump so the intake aligns with the bottom of the pit for full submersion and efficient pumping. Install a check valve in the discharge line to prevent backflow. If the pit is deep, consider a stand or support to keep the pump from tipping. Secure all wiring to a protected surface and keep water away from the power connection. A grounded, dedicated outlet is essential for safety and consistent operation.
Backup power and testing procedures
Backup power is a key reliability feature, especially in power outages during heavy rain. Consider a battery backup sump pump or an automatic generator connection as part of your plan. After wiring, fill the pit with water to prime the system, then run a full test: observe intake, discharge flow, valve operation, and any leaks. If the pump cycles frequently or runs unusually long, you may need a different pump size, adjust the float settings, or inspect the impeller for obstructions. Schedule a periodic test at least once a season to ensure readiness.
Maintenance, seals, and long-term care
Maintenance is essential to maximize longevity. Regularly clean the sump pit to prevent debris buildup, inspect the float switch for smooth movement, and verify the discharge path remains unobstructed. Seal any penetrations around pipes with appropriate sealant to minimize moisture intrusion. Keep a spare gasket kit or sealant on hand for quick repairs. Finally, document all work and testing results to support future maintenance and potential resale concerns.
Tools & Materials
- Sump pump (1/3–1/2 HP typically)(Choose submersible for basements; ensure compatible with pit size)
- Sump pit/basin(Plastic or composite, sized for pump and space)
- PVC discharge pipe (1-1/2(PVC schedule 40, appropriate length to reach exterior)
- Check valve (swing-type or lift)(Prevents backflow into pit after pump stops)
- Elbows, couplings, and fittings(To align discharge routing and maintain slope)
- Concrete or sealant for pit base(Stabilizes pit and seals around edges)
- GFCI-protected outlet or dedicated circuit breaker(Electrical safety at the pump location)
- Electrical wire and conduit(Indoor-rated, moisture-resistant where needed)
- Float switch (if not included with pump)(Ensure reliable shutoff and start thresholds)
- Backup power option (battery backup or generator)(Critical for outages during floods)
- Safety gear (gloves, goggles)(Personal protection during digging and wiring)
- Shovel, trowel, and level(For pit preparation and placement)
- Sealant or hydraulic cement(Seal penetrations and joints to minimize leaks)

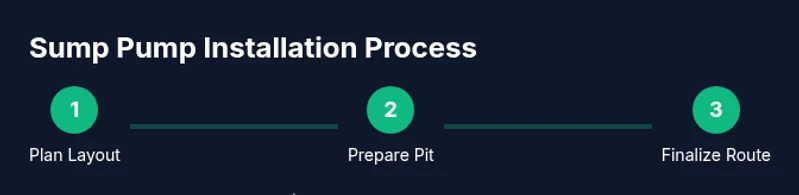

Steps
Estimated time: 6-12 hours
- 1
Survey space and plan layout
Map potential pit location, access routes, and discharge exit. Create a simple diagram showing water entry points, pit position, and discharge path. This step sets the foundation for a safe, compliant install.
Tip: Have a helper hold tools and measure twice before cutting. - 2
Choose pump size and pit dimensions
Select a pump that matches basement size and expected inflow. Verify pit diameter and depth fit the chosen pump and allow easy maintenance.
Tip: Avoid undersizing; a larger pit accommodates future growth and reduces clog risk. - 3
Check electrical needs and permits
Determine circuit requirements and obtain any local permits. Plan for a dedicated GFCI outlet or breaker and verify the wiring route is dry and protected.
Tip: If unsure, consult a licensed electrician early to prevent code violations. - 4
Dig or prepare the sump pit location
Prepare a flat, stable base for the pit. Fit the pit and rough-in the discharge line to verify alignment with exterior routing.
Tip: Maintain a clean work area to prevent debris from entering the pit. - 5
Install the pump and discharge fittings
Place the pump in the pit, connect the feed to the discharge line, and install the check valve. Ensure the pump intake is clear and that the unit sits level.
Tip: Avoid kinks in the discharge hose and secure all fittings with the appropriate solvent cement. - 6
Run electrical connections and power it up
Route wiring to the outlet, seal penetrations, and connect ground fault protection. Turn on power and test the pump operation in a controlled manner.
Tip: Keep hands dry and use a dry stand during electrical work near water. - 7
Add backup power and test operation
Install a battery backup or prepare a generator connection if available. Test the full cycle with and without power to ensure continuous operation.
Tip: Schedule routine battery checks and keep a spare battery compatible with your system. - 8
Test, seal, and finalize
Fill the pit to prime, run multiple cycles, check for leaks, and inspect seals around penetrations. Finish with radon/seepage mitigation if needed.
Tip: Document test results and photos for future maintenance.
FAQ
Can I add a sump pump to an existing basement without professional help?
Yes, for straightforward setups with accessible utilities and permits. Complex layouts or unfamiliar electrical work should be handled by a licensed professional to ensure safety and code compliance.
Yes, you can do it yourself if the space is straightforward and you handle permits and wiring safely. For more complex layouts, hire a pro.
Do I need a permit to install a sump pump in my basement?
Permit requirements vary by locality. Check with your city or county building department. Having the permit helps ensure the installation meets safety and drainage codes.
Permits vary by area. Check with your local building department to ensure you’re compliant.
What size sump pump is typical for a residential basement?
Most homes use a 1/3 to 1/2 horsepower pump, but sizing depends on floor level, expected water inflow, and pit size. A professional assessment ensures proper capacity.
In many homes, 1/3 to 1/2 HP is common, but sizing should be based on your basement’s needs.
Can I reuse an existing sump pit with a new pump?
If the pit is structurally sound, clean, and free of cracks, you can use it with a new pump. Inspect for corrosion or leaks and reseal as needed.
You can reuse a good-condition pit, but inspect it first and reseal any cracks.
What maintenance is required after installation?
Regularly clean the pit, check the float switch, test the pump, and verify the discharge path remains clear. Schedule seasonal tests and keep spare parts on hand.
Clean the pit, test the pump, and check the discharge path regularly.
Watch Video
Top Takeaways
- Plan thoroughly before cutting walls or floors.
- Choose pump size and pit dimensions to fit space and needs.
- Route discharge away from the foundation with proper slope.
- Include a backup power option for outages.
- Test and maintain the system regularly.
