How to Extend Sump Pump Discharge for Safe Basement Drainage
A beginner-friendly guide to safely extend sump pump discharge, covering planning, materials, installation steps, and maintenance to protect your basement from flooding.
To extend sump pump discharge, install a longer, properly sloped discharge pipe made from the same material, ensure it dumps water far enough from your foundation, include a backflow preventer if required, and secure the line against freezing. This guide provides a clear, safe process with essential tools, parts, and safety reminders.
Why extend sump pump discharge
Extending the discharge line is a practical way to move water farther from your foundation, reduce the risk of backflow, and prevent discharge from refreezing in colder months. A longer, correctly sloped line helps ensure water drains away from your home and into an appropriate drainage area. According to Sump Pump Check, many homeowners who extend their discharge lines report fewer basement moisture issues and less nuisance pumping during heavy storms. The decision to extend should balance local codes, groundwater conditions, and the layout of your yard. When done correctly, extending discharge can be a simple upgrade that improves long-term reliability and peace of mind. The key is to plan the length, material, and final destination before making any cuts, so you don’t end up with leaks or rework.
Assessing your current discharge setup
Before you extend, inspect the existing discharge path. Check the pipe diameter, material (PVC is common), slope, and any fittings or elbow joints. Look for signs of leakage around the joints and confirm whether a check valve or backflow preventer is already in place. Note where the water currently exits (driveway, yard, or drainage area) and measure the distance from the sump outlet to the discharge point. Understanding your starting point helps you choose the correct extension length and components, reducing the risk of misalignment or backflow after installation. Documenting your current setup also helps determine if trenching or above-ground routing is more appropriate in your yard.
Planning the extension: pipes, slope, and distance
Choose a discharge pipe diameter that matches your current line (commonly 1-1/2" or 1-1/4" PVC) and plan where the extended run will terminate. Maintain a minimum slope of about 1/4 inch per 10 feet to keep gravity flow steady and prevent standing water inside the pipe. Decide whether to bury the line or run it above ground with brackets and protective sleeves. If you’re extending outdoors in freezing climates, consider insulation or routing under cover to minimize frost risk. Include a check valve if your local code requires backflow prevention, and ensure the discharge point directs water away from the house and neighbors.
Safety and code considerations
Always check local building codes before starting. Many jurisdictions require a backflow preventer, approved piping, and a minimum distance from foundations or property lines. If you’re uncertain, contact your city or county building department for guidance. Turn off the sump pump and disconnect power before handling any piping work to avoid shock hazards. Use labeled tools and wear eye protection and gloves during cutting, cleaning, and gluing. When in doubt, consult a licensed plumber or sump pump specialist to review your plan and ensure compliance with codes and warranty terms.
Materials and hardware you’ll likely need
A successful discharge extension typically requires PVC pipe in the same diameter as your existing line, plus fittings for the new run (elbows, couplings, and a possible Fernco flexible coupling for transitions). You’ll need PVC cement and primer, pipe supports, hose clamps, and corrosion-resistant straps to secure the pipe. If you’ re extending underground, prepare a trenching tool, shovel, and pipe marking tape. Don’t forget a backflow preventer where required and a cleanout if accessible maintenance is anticipated. Finally, a rainproof access cover can help protect the end of the line and ease future inspections.
Location options: burying vs above-ground runs
Burying the extension keeps it out of sight and protects it from physical damage, but it requires trenching and potentially a frost-proof approach in cold climates. Above-ground runs are easier to install and inspect but may be more vulnerable to impact or freezing if not properly sheltered. When choosing, weigh the soil type, landscaping layout, and proximity to utilities. If the line crosses under a walkway or patio, consider protective conduit and rigid plastic sleeves to prevent damage from foot traffic.
How to avoid common mistakes
Avoid mismatched pipe diameters or using non-PVC materials that aren’t rated for outdoor drainage. Don’t skip slopes or buy cheap fittings that crack under cold temperatures. Ensure all joints are clean and prepped with primer before cementing, and never reuse old glue that has hardened. Another frequent error is terminating the discharge too close to the foundation or on a slope that directs water toward the home. Always test with water before burying any sections to catch leaks early.
Maintenance after extending discharge
Plan for periodic checks of the discharge line, especially after long dry spells or rapid temperature changes. Look for cracks, loose fittings, corrosion, or signs of backflow around the sump pit. Clear any debris that could block the end or reduce drainage capacity. If the line is buried, mark it for future excavation and avoid planting roots directly over the pipe. Regular inspection helps prevent surprises during heavy rain and reduces the chance of water damage.
Real-world example: planning a 15-foot extension
In a typical 2,000-square-foot home with a sump pump, a 15-foot extension may require a 1-1/2" PVC run with two new elbows and one coupling. Plan to bury 8–10 feet, leaving the remainder above ground beneath a protective sleeve. Ensure the end exits at least 8–10 feet from the foundation and directs away from the house. The planning phase should also confirm that there is no nearby electrical interference, and that the extension won’t conflict with gardening beds or walkways. This approach minimizes freezing risk and backflow potential while keeping the system compliant with common code practices.
Tools & Materials
- PVC pipe (schedule 40)(Choose 1-1/2" diameter if matching existing line; 1-1/4" is acceptable for tight spaces.)
- PVC primer and cement(Essential for a durable, leak-free joint.)
- PVC elbows, tees, couplings(Plan for the required run and transitions; include a Fernco flexible coupling if needed.)
- Discharge pipe supports/brackets(Secure the pipe to walls, posts, or the ground to prevent movement.)
- Backflow preventer / check valve(Check local codes; required in many areas.)
- Measuring tape and marker(Precise length planning reduces waste.)
- Hack saw or PVC cutter(Clean cuts improve joint integrity.)
- Shovel and trenching tool(Needed for burying sections if required.)
- Gloves and safety goggles(Personal protection during cutting and gluing.)
- Silicone sealant (optional)(Additional protection against small leaks at exposed joints.)
- Marker flag or tape(Mark buried sections for future maintenance.)

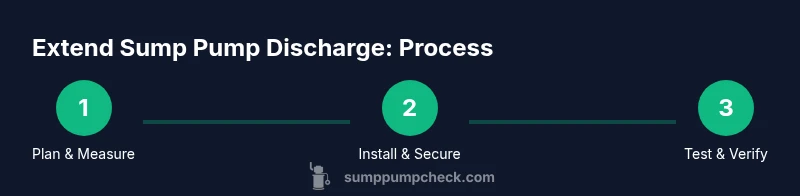

Steps
Estimated time: Estimated total time: 2-5 hours
- 1
Plan and measure extension
Assess the current discharge line and measure the total extension needed to reach a safe drainage area. Verify pipe diameter compatibility and determine if burying or above-ground routing is best for your yard. Create a simple diagram to visualize lengths and fittings.
Tip: Double-check measurements against the slope requirement to avoid standing water. - 2
Shut off power and pump
Power down the sump pump at the breaker and disconnect any automatic switches. Confirm there is no water actively pumping before handling pipes. This step prevents accidental startup during work.
Tip: Use a non-contact voltage tester to confirm no live wires nearby. - 3
Disconnect existing discharge pipe
Loosen clamps or fittings at the outlet where the current pipe ends. Gently separate the pipe from the pump outlet and lay aside the section you’ll extend. Inspect the pump outlet for any damage.
Tip: Take a photo of the existing setup for reference during reassembly. - 4
Cut new pipe sections to length
Mark and cut the PVC pieces to match your planned extension length, ensuring straight, clean cuts. Dry-fit each segment before gluing to verify alignment and slope. Adjust as needed before final assembly.
Tip: Use a miter box for precise angles at corners. - 5
Dry-fit components and plan joints
Assemble the pipe runs without cement to confirm fit and alignment. Check that all joints will be accessible for future maintenance. Verify that the end point is clear of obstructions and properly directed away from the foundation.
Tip: Avoid forcing fittings; if a joint doesn’t seat, trim slightly and re-check. - 6
Glue pipe joints securely
Apply primer to the outside of pipe ends and the inside of fittings, then press together with a gentle twist. Hold for a few seconds and repeat for each joint. Allow the cement to cure per manufacturer’s instructions before testing.
Tip: Work in a well-ventilated area and wipe excess cement promptly. - 7
Install supports and secure the extension
Attach brackets or straps to walls or posts to keep the pipe steady. If burying, backfill with soil while maintaining proper slope. Ensure the extension won’t rub against sharp edges or vehicles.
Tip: Use protective sleeves where the pipe passes through soil or concrete. - 8
Reconnect to pump and test
Reconnect the extension to the sump pump outlet and restore power. Pour water into the sump to observe the discharge flow and verify there are no leaks. Check that water exits the end away from the foundation.
Tip: Listen for air bubbles indicating leaks; fix promptly. - 9
Final check and freeze protection
Inspect the entire run for leaks after the test. If you’re in a freezing climate, insulate exposed sections and consider burying deeper to avoid frost. Document the change and note any maintenance points for future reference.
Tip: Keep an accessible shutoff or cleanout near the discharge end for inspection.
FAQ
Can I extend the discharge line beyond my property line?
Local regulations vary; many areas require the discharge to drain onto the property or into an approved drainage area. Always check with your municipal building department before extending beyond your property line.
Check with your local building department to confirm whether discharging beyond your property line is allowed.
What is the minimum recommended slope for a sump discharge pipe?
A common guideline is about a 1/4 inch drop per 10 feet of run to ensure continuous gravity flow. Slopes should be steeper if the line is long or the ground is uneven.
Aim for at least a quarter inch drop per ten feet of pipe to keep water moving.
Do I need a check valve when extending discharge?
Yes, many codes require a check valve or backflow preventer to stop water from flowing back into the pump. Verify your local rules and install accordingly.
Most areas require a backflow preventer; confirm with local codes and install one.
How deep should the discharge line be buried?
Depth varies by climate and frost depth. In freezing areas, bury below the frost line or use above-ground protection. Always consider local frost precautions and wire-free zones.
Bury below the frost line if you live in cold climates, or use above-ground protections as needed.
Will extending discharge affect my sump pump warranty?
Modifications can affect warranties. Check the pump manufacturer’s terms and consult a professional if in doubt.
Check the warranty terms from the manufacturer and consider professional input.
What if I can’t bury the extension due to landscaping?
Consider above-ground routing with protective sleeves and secure supports. Ensure the path remains clear of vegetation and foot traffic.
If you can't bury it, route above ground with protection and keep it clear of plants and paths.
Watch Video
Top Takeaways
- Plan the extension length before cutting.
- Keep slope consistent to ensure drainage.
- Follow local codes for backflow prevention.
- Test first, then bury or seal joints.
- Maintain annually to prevent future failures.
