How to Route a sump pump to floor drain
Learn how to route a sump pump to floor drain safely and code-compliant. This guide covers planning, materials, backflow protection, and maintenance for a dry basement.
You can route a sump pump discharge to a floor drain by building a code-compliant, backflow-protected line with the right adapters. Measure the distance, install a check valve, connect PVC piping to a durable hose, and ensure a continuous slope toward the drain. Always follow local codes and safety precautions.
Understanding the goal: sump pump to floor drain
In many basements, homeowners want to direct excess water from a sump pump to a floor drain to keep the living space dry. This approach can be convenient, but it also carries responsibilities: you must respect plumbing code, avoid backflow, and ensure the discharge is weatherproof and protected. The central idea of routing a sump pump to floor drain is to create a dedicated, gravity-assisted path for pumped water to exit away from living areas while maintaining access to the floor drain for maintenance. Throughout this article we will discuss layout, components, testing, and maintenance. When done correctly, the system reduces the risk of flooding and helps you maintain a dry basement. This section uses the keyword sump pump to floor drain to emphasize the install target and maintain search relevance. According to Sump Pump Check, planning ahead is essential to ensure proper slope and prevent backflow that can contaminate indoor spaces.
Planning and safety: codes, backflow, permits
Before you cut any pipe, confirm that routing to a floor drain is allowed by local plumbing codes and homeowners associations. Backflow prevention is critical: a check valve or backwater valve must be in the discharge line to stop water from re-entering the sump or basement. Permits may be required for new drainage routes, especially if you modify floor systems or external drainage. In many jurisdictions, floor drains are part of a dedicated storm or sewer line, and mixing with wastewater can create code violations. If you are unsure, contact a licensed plumber or your local building department. For reliability, document the route and the components you plan to use, and keep a clear access path to the floor drain for future maintenance. A well-designed sump pump to floor drain route reduces risk of backflow and water damage.
Materials and layout considerations
Choosing the right materials is crucial when routing a sump pump discharge to a floor drain. Use Schedule 40 PVC or similar rigid pipe for the main run, with flexible hose adapters at key junctions. Plan the route so that the discharge runs downhill toward the floor drain with no creases or dips that could trap air or create clogs. fittings should include at least one cleanout access point, a check valve to prevent backflow, and appropriate adapters to connect the pump outlet to the pipe. Keep weatherproofing and sound dampening in mind, especially if the drain is near living spaces. The goal is a reliable, low-maintenance path that minimizes odors, leaks, and blockages in a sump pump to floor drain setup.
Sizing and routing considerations
Pipe sizing should match the sump pump outlet and floor drain inlet to prevent bottlenecks. Reserve adequate clearance for future maintenance and avoid long, convoluted runs that add head pressure. Use a straight run whenever possible and minimize horizontal segments that can accumulate debris. Secure all joints with clamps and solvent cement where applicable, and test joints for leaks before burying or concealing the run. Sizing and routing play a big role in ensuring efficient water removal and reducing the risk of overflows during heavy rainfall.
Maintenance and testing after install
After installation, perform a thorough water test to confirm that the discharge reaches the floor drain without leaks or backflow. Check all joints, clamps, and adapters, then run the sump to verify flow and soundness. Keep the floor drain accessible for periodic cleaning and inspections. Document any maintenance steps and schedule annual checks to ensure the system remains functional over time. Regular maintenance minimizes the chances of unexpected failures during storms or quick melt episodes.
Tools & Materials
- PVC pipe (Schedule 40)(Select diameter to match pump outlet and floor drain inlet (e.g., 1.5" or 2"))
- PVC elbows and couplings(Include at least one 90-degree elbow for routing toward the floor drain)
- PVC primer and solvent cement(Follow safety data; allow curing as directed by product)
- Check valve (backflow preventer)(Prevent backflow into the sump and basement)
- Flexible discharge hose(Durable hose rated for outdoor use if exposed; use appropriate clamps)
- Hose clamps(Secure joints every 6–12 inches)
- Rubber coupling with gasket(Seal between hose and PVC when necessary)
- Adapters (male/female threads)(Match pump outlet to pipe/hose size)
- Silicone sealant or epoxy(Seal penetrations and prevent leaks)
- Pipe cutter or hacksaw(Clean, square cuts for tight joints)
- Adjustable wrench(For tightening fittings without damaging components)
- Safety gear (gloves, goggles)(Protect hands and eyes during cutting and gluing)
- Bucket and towels(Clean up spills and test water flow)
- Spirit level(Helpful to confirm level run and slope)

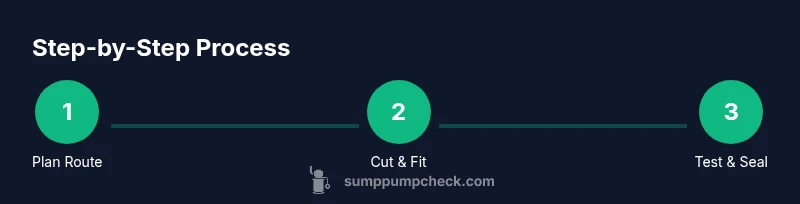

Steps
Estimated time: 2-4 hours
- 1
Plan layout and measure distance
Identify the best path from the sump discharge to the floor drain, considering obstacles and accessibility. Mark cut lines on the wall or slab and note any necessary elevations to maintain a steady slope.
Tip: Measure twice; plan for future maintenance access. - 2
Cut pipe sections to length
Using a PVC cutter, cut the pipe segments to the measured lengths. Have extra short pieces on hand for fittings and minor adjustments.
Tip: Keep cuts square for clean joints. - 3
Install the check valve and adapters
Dry-fit the check valve in the discharge line to ensure clear alignment. Attach adapters to accommodate the pump outlet and PVC segments.
Tip: Check valve must operate in the forward flow direction. - 4
Connect pump outlet to the pipe
Attach the pump outlet to the discharge assembly using the appropriate adapters and clamps. Ensure a tight, drip-free connection.
Tip: Avoid kinks in the hose close to the pump. - 5
Route toward the floor drain
Secure the run along the planned path with clamps or hangers. Maintain a continuous downward slope toward the floor drain and minimize bends.
Tip: Too many bends can reduce flow and trap debris. - 6
Seal joints and perform a water test
Apply PVC cement to joints and let cure as recommended. Run water to verify there are no leaks and that the drain captures water efficiently.
Tip: Test with a short discharge then a full pump cycle. - 7
Final inspection and clean-up
Inspect every connection, ensure access to the floor drain, and clean the work area. Document the installation for future reference.
Tip: Keep a spare set of fittings for future maintenance.
FAQ
Is it permissible to route sump pump discharge to a floor drain in my area?
Local codes vary; many jurisdictions allow it with proper backflow prevention and drainage separation. Always check with your local building department or a licensed plumber before starting.
Check with your local building department to confirm code requirements before routing to a floor drain.
What components are essential for this setup?
Key components include a discharge pipe, check valve, adapters, a secure hose, unions or couplings, and sealing material. A floor drain cleanout and proper slope improve reliability.
You’ll need a discharge pipe, a check valve, adapters, and proper sealing to prevent leaks.
How do I prevent backflow and leaks?
Install a one-way check valve in the discharge line and ensure all joints are sealed with cement or silicone. Regularly inspect for leaks and ensure the line remains sloped toward the drain.
Install a backflow valve and seal all joints; inspect periodically to prevent leaks.
What maintenance is recommended after installation?
Inspect the discharge line quarterly for cracks or clogs, clean the floor drain trap, and test the sump pump with a controlled water discharge. Keep the area dry and accessible.
Check the discharge line and drain quarterly, and test the pump discharge.
What safety precautions should I follow?
Shut off power to the sump pump before working on any connections. Wear protective gear and keep the work area dry to avoid slips and electrical hazards.
Turn off power and wear protective gear to stay safe during work.
Watch Video
Top Takeaways
- Plan your route before cutting any pipe
- Use a backflow preventer to protect living spaces
- Maintain a steady slope toward the floor drain
- Test the system thoroughly and address leaks
- Keep access points clear for maintenance
