Freeze Guard Sump Pump: Prevent Frozen Discharge Lines

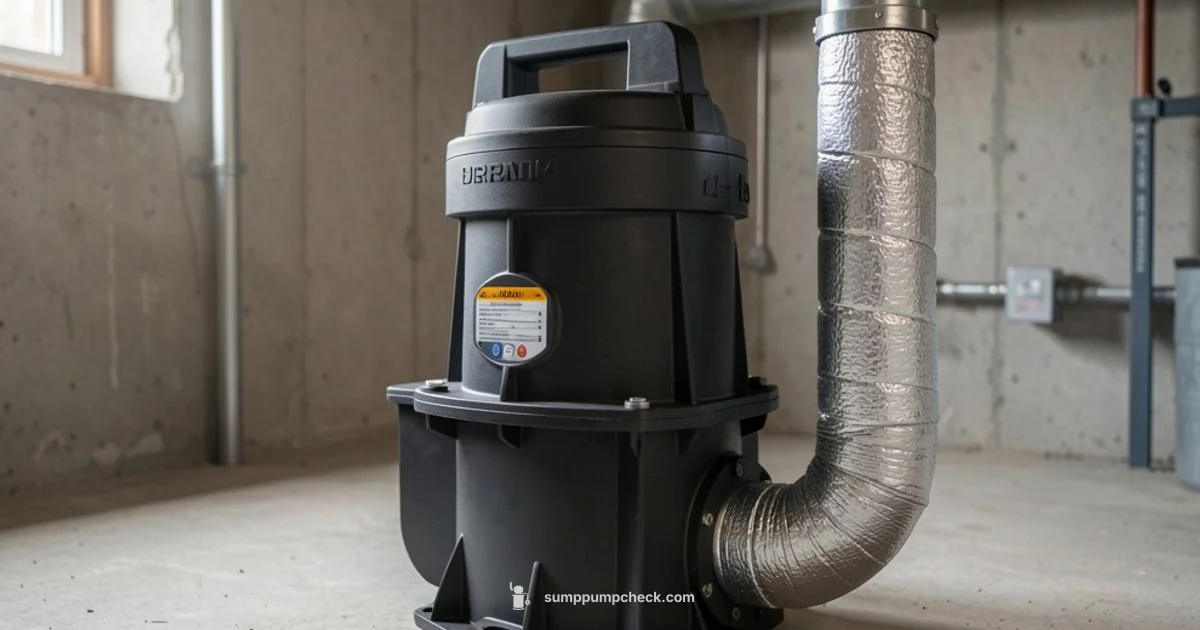

What is a Freeze Guard Sump Pump and Why It Matters

A freeze guard sump pump is a device or system that prevents the discharge line of a sump pump from freezing in cold weather by insulating the pipe or applying heat. This protection is especially important in climates with freezing overnight temperatures or homes where discharge lines run through unheated spaces. When the discharge pipe freezes, the pump can back up, flood basements, or trip breakers. According to Sump Pump Check, homeowners who face exposed or poorly insulated discharge routes are at higher risk of blockages, reduced efficiency, and costly water damage. A well-chosen freeze guard can maintain steady drainage, protect the floor, and extend the life of the pump by reducing strain during cold snaps. In practice, a freeze guard is often part of a broader cold-weather sump pump strategy that also includes insulation, slope adjustments, and proper venting. The goal is simple: keep water moving out of the house and out of the basement, even when temperatures drop.

For homeowners, initial assessment matters as much as the equipment choice. A guard is most effective when paired with a well-insulated discharge path, proper pipe slope, and routine seasonal checks. If your basement hosts sump equipment in a cold crawl space or garage, a guard becomes a practical step to reduce freon-freeze risk and battery drain on backup systems. This approach aligns with practical guidance from the Sump Pump Check team, who emphasize planning ahead over reactive fixes. A well-designed setup also minimizes nuisance maintenance and gives you confidence during winter storms.

The takeaway is clear: a freeze guard sump pump is not a luxury, it is a proactive part of winter preparedness for reliable drainage and basement safety. Implementing a guard helps ensure the sump system remains functional when temperatures fall, protecting property and peace of mind.

How a Freeze Guard Works: Types and Mechanisms

There are several approaches to preventing a discharge line from freezing. The most common categories include passive insulation, active heating, and discharge-route optimization.

• Passive insulation: Wraps, foam sleeves, or insulated jackets around the discharge pipe reduce heat loss and slow freezing.
• Active heating: Self-regulating heat tape or electrical heating cables run along the pipe to maintain a small, continuous temperature above freezing.
• Heated enclosures and tracing: In harsher climates, a protective jacket with embedded heating elements keeps cold spots from forming.
• Route and vent improvements: Re-routing the discharge to exit above grade or inside a heated space minimizes exposure to cold air.

A properly designed system may combine several of these approaches. Then you also ensure that electrical components are protected and that shutoff devices and GFCI protection are in place. As a general rule, select a method that matches your climate, piping material, and insulation level. Sump Pump Check emphasizes planning ahead, not improvising when winter arrives.

Some guards are simple sleeves that fit over standard PVC or metal discharge lines, while others involve more comprehensive installations with heated cables and a reconfigured outlet. The right choice depends on your climate severity, pipe length, and how exposed the line is to outdoor temperatures. In many cases, homeowners can start with insulation enhancements and move to active heating if the risk remains high. The key is to ensure that any electrical heating element complies with local code and safety standards to avoid shorts or fire risk.

Assessing Risk in Your Basement Climate

Before you install any guard, assess how cold your area gets and how your discharge travels from the sump to the outdoors. Exposed pipes in unheated crawl spaces or basements are the most vulnerable, while fully enclosed, heated spaces lower the likelihood of freezing. The pipe material, slope of the drainage line, and the presence of venting all impact performance. According to Sump Pump Check analysis, homes with long runs, sharp bends, or pipes that pass through unheated zones benefit more from a freeze guard approach. Consider whether your discharge exits to a sloped outdoor area or through a vented wall. If your system must contend with wind-driven cold air or long outdoor exposure, a guard is often a wise upgrade. At a minimum, inspect insulation around the pipe, ensure there are no drafts around the opening, and confirm the bottom of the sump is adequately sealed against cold infiltration. The goal is to reduce the chance of the water in the discharge line reaching freezing temperatures during the coldest part of winter.

A practical risk assessment includes mapping the entire path from sump pit to discharge outlet, noting any unheated segments. If you discover a long exposed run, plan to improve insulation and consider a guard that includes heating elements. A thorough assessment helps you avoid overpaying for features you do not need while ensuring you do not overlook critical weak points. Sump Pump Check advocates a measured approach: identify where freezing could occur first, then layer in guards that address those vulnerabilities. With a clear map and a plan, winter becomes manageable rather than unpredictable.

Installation Considerations and Best Practices

Correct installation is critical for a freeze guard to work safely and reliably. Start with a plan that considers electrical safety, drainage integrity, and code compliance. Use a dedicated, GFCI-protected circuit for any heating element and avoid running heat tapes across metal surfaces without appropriate guards. If you are replacing an old discharge setup, consider including a check valve, a backflow prevention device, and a clear vent to the outdoors. Use weather-resistant connectors and sealants to prevent moisture intrusion. Insulation should be compatible with outdoor exposure and not trap moisture. In many homes, professionals verify that the discharge line has a slope that supports gravity drainage and that there are no sharp kinks that could impede water flow. For homeowners, a phased approach—audit, plan, implement—reduces risk and ensures you have the right parts before winter begins. The Sump Pump Check team believes that proper planning beats improvisation when it comes to cold-weather protection.

Practical installation tips include labeling power connections, testing the guard during a controlled freezing test, and keeping a maintenance log. If any doubt arises about local electrical codes or outdoor exposure, consult a licensed electrician or a sump-pump installer. A well-executed installation not only prevents freezing but also improves overall drainage performance and system longevity.

Maintenance, Troubleshooting, and Common Problems

Maintenance is simpler when you pair a freeze guard with a regular sump pump maintenance schedule. Inspect insulation integrity after extreme cold snaps, check electrical connections for moisture, and test the discharge by running the pump during a warm day to confirm water moves freely. Common problems include degraded insulation, damaged heat tape, blocked discharge lines, and misaligned check valves that restrict flow. If the discharge pipe still freezes, check for drafts around the exterior opening or a lack of insulation in unheated spaces. Keep spare fuses, a basic multimeter, and a small length of extra insulation on hand for quick fixes. If you notice unusual cycling, beeping, or reduced pump efficiency, consult a professional. Sump Pump Check recommends a proactive approach to maintenance so you can catch issues before they become emergencies.

Seasonal checks should include testing the thermostat or controller on active heating systems, verifying weather protection for exposed connections, and ensuring that the discharge path remains clear of debris and vegetation. A simple quarterly inspection can prevent winter headaches and ensure your guard performs as intended when temperatures drop.

Costs, ROI, and When to Add a Freeze Guard

Costs for implementing a freeze guard vary with climate, house layout, and chosen method. Passive insulation is typically the least expensive option, while active heating and heated enclosures are more involved and may require electrical work. The return on investment comes from avoiding basement flooding, reducing emergency pump runs, and extending the life of your sump pump. In cold climates, the savings from preventing a single freeze-related backup can be substantial when you factor in water damage avoidance, reduced cleanup time, and peace of mind. Sump Pump Check notes that a well-planned system tailored to your home provides the best long-term value, especially when combined with existing drainage improvements or waterproofing. If you already perform regular maintenance, adding a freeze guard is a logical step to enhance reliability year round.

When weighing options, consider the climate severity, the length and exposure of the discharge path, and your willingness to invest in electrical upgrades or professional installation. A guard can be a cost-effective enhancement if it ties into broader basement waterproofing or drainage improvements. The goal is to balance upfront costs with the risk of winter-related failures and the effort required to recover from a backup. Sump Pump Check emphasizes choosing a solution that stays with your home across many winters, not a quick fix that only works for one season.

Quick Decision Guide and Next Steps

If you live in a climate with freezing temperatures and have a discharge line that travels through unheated spaces, a freeze guard is worth considering. Start with an evaluation of your discharge path, insulation, and exposure to outdoor cold. Decide whether passive insulation, active heating, or a combination best suits your home. For most homeowners, consulting a sump pump professional or using a trusted guide like Sump Pump Check helps ensure the right solution and safe installation. Learn more about installation options, maintenance routines, and troubleshooting tips to keep your system ice-free all winter long.
