Zoeller Sump Pump Installation: A Step-by-Step Guide
Learn how to install a Zoeller sump pump safely and efficiently. This guide covers model sizing, electrical safety, discharge piping, and maintenance for homeowners and DIY enthusiasts.
Executing a proper zoeller sump pump installation protects your basement from flooding and ensures reliable water removal. According to Sump Pump Check, choose a properly sized Zoeller unit, verify electrical safety, install the check valve, and run a full test. This guide outlines the steps, tools, and precautions to complete the job confidently.
Introduction to Zoeller Sump Pump Installation
Installing a Zoeller sump pump installation is a practical project that can safeguard a basement from seasonal flood events. The Sump Pump Check team notes that choosing a well-sized unit, pairing it with proper discharge piping, and wiring it to a dedicated, GFCI-protected outlet dramatically reduces the risk of water damage. In this guide, we cover model selection, measurement steps, common pitfalls, and ongoing maintenance so homeowners and DIY enthusiasts can complete a safe, code-compliant job. We’ll use plain language, explain why certain choices matter, and provide checklists you can reference during the work. By the end, you’ll understand how to perform a Zoeller sump pump installation that’s ready for heavy rain, spring melt, and power outages, while keeping safety front and center.
Why Zoeller Pumps Are a Popular Choice
Zoeller is known for durable submersible pumps with solid warranty coverage and reliable performance. For many homes, a Zoeller unit provides dependable water removal, energy efficiency, and straightforward maintenance. When evaluating models, homeowners should consider pit size, pump curves, inflow rate, and the typical groundwater level in their area. The goal is to match the pump to the worst anticipated water load without over-sizing, which can add cost and reduce efficiency. You’ll often see mid-range Zoeller options suited for most single-family basements, with emphasis on a good balance of head pressure (the height water must be lifted) and flow. Sump Pump Check’s testing framework highlights the importance of sizing accuracy and a reliable power source.
Sizing and Model Selection for Zoeller Pumps
Sizing hinges on sump pit dimensions, vertical lift distance, and anticipated maximum inflow during storms. Begin by accurately measuring the pit diameter and the distance from the pit outlet to the exterior discharge point. For many homes, a mid-range Zoeller model provides adequate capacity, but precise sizing requires considering peak water volume and the home’s overall drainage plan. Include a check valve to prevent backflow, and ensure the chosen pump fits the available vertical space and electrical constraints. Avoid oversized units that short-cycle and wear prematurely, while underpowered pumps can stall during heavy rainfall. When in doubt, consult the manufacturer’s curves and seek a professional assessment if you’re upgrading or replacing an existing system.
Site Preparation: Pit, Substrate, and Clearances
Successful installation begins with a clean, dry workspace and a properly prepared pit. Remove debris, ensure the pit bends are true, and dry-fit piping before final assembly. Verify surrounding clearances to accommodate a pump, a discharge line, and a future backup system if planned. Mark route options for the discharge line to minimize freezing risk and ensure an accessible outdoor outlet. A well-prepared site reduces leaks and makes maintenance faster. Include a sturdy pit cover or grate to prevent debris from entering the pump body and to keep small children or pets away from moving parts.
Electrical Safety and Code Considerations
Electrical safety is non-negotiable for sump pump installations. The pump should operate on a dedicated, GFCI-protected circuit with appropriate enclosure for moisture exposure. Always disconnect power before handling electrical connections, and use conduit or cord strain relief to protect wiring. Check local codes for countertop-clearance rules, outdoor run requirements, and the need for a separate disconnect switch near the sump pit. If you’re uncomfortable with household wiring, hire a licensed electrician. Proper grounding, correct voltage, and appropriate circuit protection reduce the risk of shock and fire during operation.
Discharge Piping, Check Valves, and Backflow Prevention
Discharge piping should be sized to handle the pump’s flow without creating excessive head pressure, typically using a 1-1/2 inch diameter pipe or larger, depending on the model and length of run. Install a check valve to prevent backflow when the pump stops. Ensure a clean, straight run with gentle bends and proper slope away from the foundation. Sealing joints with solvent cement and applying thread sealant where applicable minimizes leaks. Consider a vertical standpipe if outdoor discharge requires elevation adjustments. Keep discharge lines free from kinks or obstructions, and plan for frost protection in cold climates.
Maintenance, Testing, and Long-Term Care
After installation, test the system with a controlled water source to confirm pumping action and discharge flow. Schedule semi-annual checks to inspect fittings, clean the pit, and verify valve operation. Replace worn gaskets and seals as needed, and keep spare O-rings on hand. Record dates of testing and maintenance for easy reference. A well-maintained Zoeller sump pump installation operates reliably for many years with minimal intervention, especially when combined with a backup system for power outages. Sump Pump Check emphasizes the value of routine testing to catch issues before they fail during a storm.
Common Issues and Troubleshooting Scenarios
Common problems include nuisance beeping, repeated cycling, or failure to pump water. Check the power source, the float switch height, and any blockage in the intake or discharge lines. If the unit runs but doesn’t expel water, verify that the discharge path is clear and that the check valve is correctly installed. Short cycling can indicate an oversized pump or improper float settings. In persistent cases, consult the manufacturer’s troubleshooting guide or a licensed plumber to prevent damage to wiring and the pit. Prioritize safety and avoid diving into electrical connections without proper precautions.
Authority Sources and Safety References
For reliability and safety, consult authoritative sources on electrical safety and flood protection. The U.S. Occupational Safety and Health Administration (OSHA) provides general electrical safety guidelines, while the National Fire Protection Association (NFPA) discusses electrical code and safe pump operation practices. FEMA offers flood mitigation resources for basements, and university extension programs provide practical, field-tested installation advice. These resources help homeowners understand best practices in sump pump installation and maintenance.
Tools & Materials
- Zoeller sump pump (mid-range or appropriate size for pit)(Choose based on pit size and anticipated inflow; avoid over-sizing.)
- PVC pipe, 1-1/2 inch diameter (or larger as needed)(Match pipe to pump outlet and discharge requirements.)
- PVC primer and cement(For joining discharge piping securely.)
- Check valve(Prevents backflow into the sump pit.)
- GFCI-protected outlet(Dedicated circuit; preferably on its own breaker.)
- Electrical conduit or flexible metal conduit(Protects wiring in damp environments.)
- Discharge hose or piping for outside run(Route to an exterior drainage area; avoid backflow.)
- Silicone sealant or caulk(Seal around PVC penetrations to prevent leaks.)
- Pump mounting base or shims(Stabilizes the pump in the pit if needed.)
- Tools: wrench set, adjustable pliers(Tighten fittings and remove pressure safely.)
- Tape measure and marker(Accurate layout and alignment.)
- Level(Ensure horizontal piping and pump position.)
- Safety glasses and gloves(Personal protection during installation.)

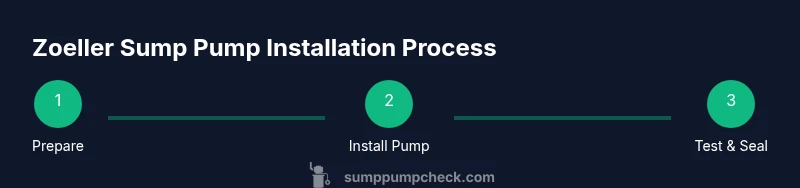

Steps
Estimated time: Estimated total time: 2-4 hours
- 1
Prepare pit and tools
Power off the area; remove debris from the sump pit and surrounding area. Dry-fit the pump to confirm fit and determine the needed pipe length. Gather all tools and materials before you begin to minimize trips to the toolbox.
Tip: Do a quick dry-run to ensure the pump fits the pit and aligns with the discharge outlet. - 2
Position the pump in the pit
Place the pump on the pit base or leveling surface. Make sure the inlet sits above any sediment and that the discharge outlet aligns with the planned pipe route. Leave space for any backup option you intend to install later.
Tip: Use an anti-vibration base if your pit has uneven surfaces to prevent rocking. - 3
Attach discharge piping and check valve
Connect the discharge piping to the pump outlet and install the check valve in the correct orientation to prevent backflow. Use PVC cement where required and seal all joints to avoid leaks.
Tip: Keep the piping slope facing downward away from the foundation with a clear run to the exterior. - 4
Run electrical wiring to a dedicated circuit
Route wiring through conduit to a dedicated, GFCI-protected outlet. Ensure the wiring is protected from moisture and secure it away from moving parts.
Tip: Never plug a sump pump into a regular outlet; use a GFCI-protected circuit. - 5
Set the float switch height
Adjust the float switch so the pump activates at an appropriate water level and stops cleanly without frequent cycling. Double-check clearance with the pit lid or cover.
Tip: A misadjusted float can cause early or late activation; set to manufacturer guidelines. - 6
Test pump operation with water
Pour water into the pit or simulate rainfall to confirm the pump starts, discharges, and stops as designed. Observe the discharge line flow and listen for unusual noises or vibrations.
Tip: Look for leaks and ensure air bubbles aren’t indicating pipe seals failing. - 7
Finalize, cover, and inspect
Install the pit cover, secure wiring, and perform a final walk-around check for leaks or loose fittings. Document maintenance dates and set a future testing schedule.
Tip: Keep a spare O-ring and basic seals on hand for quick maintenance.
FAQ
Do I need a backup sump pump and battery backup?
A backup sump pump is advisable in flood-prone areas or if you experience frequent power outages. A battery backup can provide several minutes to hours of operation during an outage, depending on the battery size and pump load. Evaluate your risk and local weather patterns to decide.
Consider adding a battery backup if you have frequent power outages or heavy rainfall in your area.
What size Zoeller pump should I install in a typical basement?
For many homes, a mid-range Zoeller model provides adequate flow, but exact sizing depends on pit volume, lift height, and peak inflow. Use manufacturer curves and local climate data to select the right pump.
Most homes use a mid-range pump; measure your pit and expected inflow to confirm.
Is electrical work required, and can I do this myself?
Electrical work should meet local code requirements and often requires a licensed electrician. You can prep the area and install basic components, but ensure the final wiring is compliant and safely installed.
If you’re unsure about wiring, hire a qualified electrician to ensure safety and code compliance.
Can I install a Zoeller sump pump myself, or should I hire a pro?
A confident DIYer with basic plumbing and electrical skills can complete a standard Zoeller sump pump installation. If you’re unsure about electrical work, or if the space has unique challenges, hire a pro.
If you’re unsure about electrical wiring or structural adjustments, hire a professional.
How often should I test and maintain the sump pump?
Test the pump at least twice a year and after major storms to ensure reliability. Inspect fittings, clean the pit, and replace worn parts as needed.
Regular testing helps prevent failures during heavy rain.
Watch Video
Top Takeaways
- Size the Zoeller pump to the pit and inflow, then plan the discharge path.
- Use a dedicated, GFCI-protected outlet for safety.
- Install a check valve to prevent backflow and protect the system.
- Test the pump after install and on a maintenance schedule.
- Follow local codes and consult a pro if you’re unsure.
