Install Zoeller Sump Pump: Step-by-Step Guide for Basements
Learn how to install a Zoeller sump pump in your basement, including model selection, pit prep, discharge piping, electrical hookup, testing, and maintenance to prevent flooding.
By following this guide, you will install a Zoeller sump pump to protect your basement from flooding. You’ll select the right model, prepare the pit, install discharge piping, and connect power for testing. Key requirements include a proper discharge path and a GFCI-protected outlet for safe operation.
Why install zoeller sump pump
According to Sump Pump Check, choosing a Zoeller sump pump combines proven reliability with quiet operation and durable construction. This section explains why homeowners decide to install zoeller sump pump and how the brand’s design supports long-term basement protection. With a steady water table or irregular rainfall, a Zoeller unit helps you avoid costly floods and mold growth. Key considerations include pit compatibility, flow rate, and installation space to ensure efficient operation and easy maintenance.
Zoeller products: what's in the lineup
Zoeller offers a range of sump pumps built for different basements and budgets. You’ll find submersible and pedestal configurations, varying flow rates, and options with or without battery backup. For many DIYers, a basic automatic sump pump with a durable cast-iron body delivers reliable performance. This section helps you understand what to look for without getting lost in technical specs.
Choosing the right Zoeller model for your basement
Selecting the right Zoeller model depends on your basement size, expected water load, and discharge requirements. Consider the pump’s flow capacity, the vertical lift (how high water must be pumped), and the availability of an appropriate power source. Battery-backup options add resilience during power outages, while cast-iron construction improves longevity in damp environments.
Site preparation and planning before installation
Before you remove soil and install the pit, map the discharge route to avoid directing water toward foundations or neighbors. Check local codes, obtain any required permits, and plan for a nearby GFCI outlet. Prepare the pit with a clean, level base and verify you have sufficient space for maintenance and check-valve installation.
Key features and benefits of Zoeller sump pumps
A Zoeller sump pump typically blends solid materials, thermal protection, and reliable float-switch mechanics. Features like cast-iron housings, vertical discharge orientation, and compatible check valves contribute to long-term performance. The design emphasizes easy servicing, standard pipe sizing, and compatibility with existing drainage systems to simplify retrofit projects.
Common install scenarios and drainage considerations
Basement layouts vary, so adapt the discharge strategy accordingly. If you have a gravity drain, run a straight, sloped line to an exterior point. If you rely on a municipal drain, confirm local backflow and permit rules. Incline, piping, and proper sealants prevent leaks and reduce maintenance.
Troubleshooting during and after installation
If the pump refuses to start, recheck the power connection, the float position, and the outlet circuit. Listen for humming or beeping sounds that indicate electrical issues or a blocked line. Leaks at joints usually stem from imperfect fittings or missing primer.
Maintenance schedule to extend pump life
Regular maintenance supports longevity. Test monthly by pouring water into the pit; clean the impeller and the screen, and replace worn check valves as needed. Annual inspection from a professional helps catch wear, corrosion, or sediment buildup before failure occurs.
Safety considerations and code compliance
Electrical safety is critical in sump pump work. Use a GFCI outlet and maintain wiring clearance away from damp surfaces. Follow local building codes for discharge, pit size, and venting. Disconnect power before service and wear gloves to protect your hands during manual work.
DIY vs professional installation: when to call a pro
DIY installation is feasible for simple pits and standard homes, but complex basements, unusual drainage, or uncertain electrical work warrants a pro. A licensed installer can handle permits, code compliance, and safety inspections, giving you peace of mind and a cleaner finish.
Tools & Materials
- Zoeller sump pump (automatic, submersible or pedestal)(Select model based on flow rate and space)
- Sump pit or preformed basin(Ensure depth suited to pump height)
- PVC piping (1-1/2" to 2" diameter) and fittings(For discharge path)
- PVC primer and cement(Seal joints securely)
- Check valve (anti-backflow)(Install on discharge line)
- GFCI-protected outlet or extension cord rated for wet locations(Power source safety)
- Hose clamps, pipe tape, silicone sealant(Leak prevention)
- Shovel, rubber mallet, tape measure(Site prep and fit)
- Adjustable wrench, screwdriver set(Hardware assembly)
- Bucket and sponge for cleanup(Optional)
- Battery-backup pump (optional)(Extra resilience during outages)
- Safety gloves and eye protection(Personal safety)

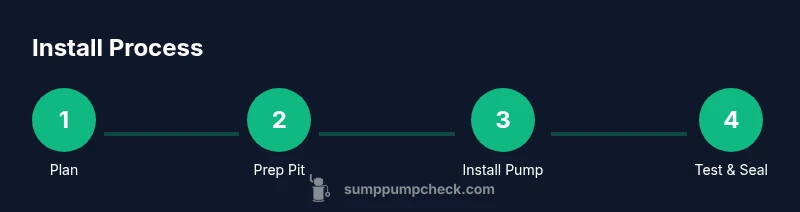

Steps
Estimated time: 2-4 hours
- 1
Check codes and plan
Identify local requirements and permits before starting. This ensures you avoid code violations and have a documented plan for maintenance and inspection.
Tip: Consult the local building department early to avoid rework. - 2
Prepare the pit location
Clear the area, verify floor level, and mark space for the sump pit. Ensure accessibility for maintenance and avoid proximity to electrical conduits.
Tip: Keep at least a few inches clearance for venting and service. - 3
Install the sump pit or basin
Place the basin on a clean, level base. Secure it per manufacturer instructions to prevent shifting during operation.
Tip: Use shims if the base isn’t perfectly level. - 4
Set discharge piping
Cut and fit relief pipe sections, ensuring a continuous slope away from the foundation. Install arrows pointing outward to indicate flow direction.
Tip: Dry-fit first to confirm alignment. - 5
Install check valve
Attach the check valve on the discharge line to prevent backflow and gurgling during pump cycles.
Tip: Seal joints with primer and cement for a watertight connection. - 6
Provide electrical connection
Run a GFCI-protected circuit to the sump area. Do not use extension cords as a permanent solution.
Tip: Keep power connection above potential water line. - 7
Test the pump
Pour water into the pit to trigger the float switch and verify the pump turns on and shuts off correctly.
Tip: Observe for continuous running or stalling. - 8
Check for leaks and secure fittings
Inspect all joints and fittings, applying silicone where needed and tightening clamps.
Tip: Address any wet spots before finalizing. - 9
Install backup power option (optional)
If using a battery backup, connect per manufacturer instructions and test outage performance.
Tip: Battery backups require cool, dry storage and periodic testing.
FAQ
Do I need a permit to install a sump pump in my home?
Permit requirements vary by location. Check with your local building department before starting to avoid fines or code violations.
Permit requirements vary by location; check with your local building department.
Can I install a Zoeller sump pump myself, or should I hire a pro?
Simple installations are feasible for knowledgeable homeowners. Complex basements, unusual drainage, or electrical work may require a licensed professional.
Simple installations can be DIY, but call a pro for complex setups.
How often should I test the sump pump?
Test monthly by adding water to the pit and listening for correct operation. Regular checks help catch problems early.
Test monthly and keep an eye on performance.
What maintenance is recommended after installation?
Keep the pit clean, inspect the check valve, and replace worn parts as needed. A yearly professional inspection is advisable.
Keep it clean and inspected regularly.
What safety precautions should I observe during installation?
Wear gloves, eye protection, and ensure power is isolated. Follow local codes for electrical and drainage work.
Wear PPE and follow codes carefully.
Can I install a backup battery for power outages?
Yes, most Zoeller pumps support an optional battery backup. Install per instructions and test outage performance.
Battery backup is a good safeguard; test it.
Watch Video
Top Takeaways
- Choose the right Zoeller model for your load
- Plan discharge path to prevent backflow
- Verify power with a GFCI outlet
- Test weekly during first month
- Schedule annual maintenance
