Installing a Sump Pump in a Dirt Floor: A Practical Guide
Learn how to install a sump pump in a dirt floor basement or crawl space. This practical guide covers pit preparation, pump selection, electrical safety, discharge routing, and ongoing maintenance to prevent basement flooding.
Installing a sump pump in a dirt floor is feasible with proper planning and the right materials. In this guide, you’ll learn to choose the right pump, prepare a dirt-floor pit, install discharge piping, and test the system. According to Sump Pump Check, a correctly installed unit reduces basement water intrusion and protects your home from moisture damage.
Why installing a sump pump in a dirt floor is common and practical
Dirt floors in basements and crawl spaces present unique moisture challenges. A sump pump installed directly on a dirt floor helps manage groundwater before it seeps into the living space. The solution requires careful pit shaping, proper sealing, and reliable discharge routing to keep moisture from migrating into walls or floors. The Sump Pump Check team notes that dirt-floor installations demand extra attention to soil stability and pit containment to avoid collapse or clogging. With the right approach, a dirt-floor sump can be as effective as a concrete pit, provided you install high-quality components and maintain the system regularly.
In addition to protection against flooding, a dirt-floor sump can be easier to install in tight or irregular spaces where pouring concrete isn’t practical. This section outlines the rationale, limits, and the planning steps needed to set up a resilient sump solution in this scenario.
Planning the layout and preparing the pit
Before you dig, map out the sump pit location away from electrical outlets, gas lines, and water pipes. Measure the available space and decide pit dimensions that accommodate the pump’s basin size and the floor’s dirt composition. A well-planned pit minimizes disturbance to the surrounding soil and reduces the risk of collapse. Prepare a clean, compacted base using a rigid tray or a level concrete block bed, so the pump remains stable once installed. Consider waterproofing the surrounding soil with a soil barrier or liner to limit erosion and keep sediment from entering the pit. You’ll also need to route the discharge line to a safe exterior area, avoiding areas where standing water can back up toward the foundation.
Incorporate a check valve on the discharge line to prevent backflow and a float switch that triggers the pump when water rises. For a dirt-floor pit, ensure the base is level and the pit walls are backfilled with compacted soil to prevent shifting that could misalign piping.
Choosing components: pump type, float switch, check valve
Selecting the right sump pump for a dirt floor involves balancing reliability, noise level, and maintenance needs. Submersible pumps are typically favored for dirt floors because they operate underwater and are better sealed against moisture. Pedestal pumps may be cheaper but tend to be louder and more exposed to dirt intrusion. A reliable float switch or electronic start is essential to prevent nuisance cycling and ensure the pump activates only when needed. Attach a durable check valve to stop backflow, which protects the pump from repeated starts and prolongs life. Pair the pump with a non-corrosive, corrosion-resistant housing to withstand soil humidity. Ensure the power cord and switch are GFCI-protected if the outlet is near damp soil or water.
When selecting a kit, verify that the pump’s capacity matches expected water flow from the dirt floor area. A system that’s too small will run constantly, while an oversized unit can cause short cycling and unnecessary wear. Label all components and keep an extra discharge gasket and replacement float switch on hand for quick maintenance.
Electrical safety, permits, and local codes
Electrical safety is non-negotiable when installing any sump pump. Use a dedicated, GFCI-protected outlet placed at a safe height to avoid flood exposure. If the circuit requires a dedicated breaker, plan for load calculations and circuit protection. In some jurisdictions, a permit is required for basement drainage installations, especially when wiring or structural changes are involved. Check with your local building department and follow NEC guidelines for outdoor-rated cords, weatherproof junction boxes, and proper grounding. Never splice or route electrical connections through wet soil or the pit itself. Consider hiring a licensed electrician if you’re unsure about wiring or compliance.
Documentation of inspections and compliance helps prevent issues during future home inspections and potential insurance claims.
Maintenance, testing, and long-term care
After installation, test the system with water near the dirt pit to trigger a pump cycle. Listen for smooth operation and verify the discharge line isn’t blocked. Periodic checks should include cleaning the inlet screen, testing the float switch, and inspecting the electrical connection for signs of corrosion. In dirt-floor pits, sediment and debris can accumulate, so plan for quarterly sediment removal and annual system checks. Consider a battery backup for reliability during power outages, especially in flood-prone areas. A well-maintained sump pump with a dirt-floor pit reduces moisture problems and helps preserve the integrity of the surrounding soil and the home foundation.
Common mistakes and how to avoid them
Rushing the pit dig without confirming pipe routing can lead to misaligned discharge, leaks, or backflow. Failing to seal the pit properly invites soil intrusion and mold growth. Skipping a check valve increases wear on the pump and raises the likelihood of backflow. Finally, ignoring electrical safety or local codes can cause dangerous situations and code violations. Take your time with measurements, secure all fasteners, and double-check every connection before powering the system.
Final thoughts: getting lasting results from a dirt-floor sump setup
A dirt-floor sump pump can be a practical solution for moisture control when installed with attention to pit integrity, component quality, and safe electrical practices. By planning the layout, selecting appropriate components, and maintaining the system regularly, homeowners can achieve dependable performance that protects belongings and structural elements. Consistent testing and timely maintenance ensure the system remains ready to handle peak wet periods without surprising you with failures.
The installation mindset: learning from common scenarios
Understanding how dirt and moisture interact with foundations helps you predict potential challenges and plan for contingencies. This mindset reduces downtime and extends the life of your pump. A properly installed dirt-floor sump is a long-term investment in home protection and peace of mind.
Tools & Materials
- Submersible sump pump (with check valve and float switch)(Choose a unit rated for the expected water flow; a 1/3 to 1/2 HP pump is common for residential basements.)
- Discharge piping (PVC or compatible material)(Minimum 1.5-2 inches in diameter; ensure slope away from foundation.)
- Check valve(Prevents backflow into the pit; install on the discharge line above the pump.)
- GFCI-protected outlet or extension cord rated for outdoor use(Keep electrical connections dry and accessible.)
- Pit liner or water barrier (optional)(Helps contain soil and sediment and improves stability.)
- Shovel or trench digs (if needed)(For hand digging or shaping the pit and trenching routing.)
- Trowel, concrete blocks or compacted base material(To create a stable base under the pump.)
- Silicone sealant or waterproof caulk(Seal around the pit edges where soil meets the liner.)
- Tape measure and marker(Accurate pit dimensions and alignment.)
- Bucket and sponge for clean-up(During installation and testing.)

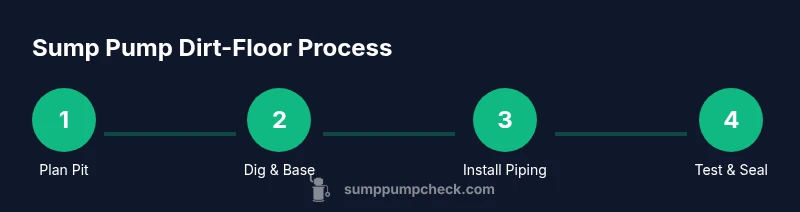

Steps
Estimated time: 4-6 hours
- 1
Assess space and locate pit
Survey the basement or crawlspace to find a dry, accessible area with enough room for the pump and piping. Mark a pit footprint that provides stability and allows for proper discharge routing. Confirm nearby electrical availability and exit point for water drainage.
Tip: Mark dimensions on the floor and use a level to ensure the pit base will be flat. - 2
Dig the pit and create a stable base
Dig a pit that accommodates the chosen pump basin with extra clearance for installation tools. Create a flat, compact base using rigid boards or a concrete block bed to prevent wobble and vibration.
Tip: Spread a thin layer of gravel under the base to improve drainage and reduce mud. - 3
Install pit walls and liner (optional)
If using a liner, place it to minimize soil wash-in and keep sediment out of the pump. Secure any liner edges with sealant or fasteners as needed.
Tip: Ensure liner does not interfere with pump installation or float operation. - 4
Set up the discharge path and check valve
Attach the discharge piping to the pit, install the check valve, and route the pipe to a safe exterior area. Ensure a steady downward slope to prevent standing water and keep the line clear of obstacles.
Tip: Test pipe alignment with a short water flow before final sealing. - 5
Position and connect the pump
Place the pump on the prepared base, align the outlet with the discharge line, and secure the unit. Connect the float switch and verify it moves freely through its range without sticking on the pit sides.
Tip: Do a dry-fit first to verify clearance and prevent future rubbing. - 6
Install electrical supply and safety devices
Install a GFCI-protected outlet or cord connection. Keep all wiring dry and away from the dirt surface; use weatherproof boxes and proper strain relief. Verify grounding and compliance with local codes.
Tip: Never co-locate electrical outlets inside the pit or directly above water surface. - 7
Test the system and adjust settings
Pour water into the pit to trigger the pump. Observe operation, listen for unusual noises, and confirm the discharge line carries water away from the foundation. Adjust float or switch settings if needed.
Tip: Run multiple test cycles to ensure reliable cycling and check for leaks. - 8
Finalize, seal, and document
Seal around the pit edges to prevent soil intrusion, tidy wiring, and label the system. Create a maintenance schedule and record model numbers, dates, and test results for future reference.
Tip: Keep a maintenance log somewhere obvious for easy annual checks.
FAQ
Do I need a permit to install a sump pump in a dirt floor?
Permits vary by location. Check with your local building department and follow local codes before starting the project.
Permits vary by location. Check with your local building department before starting.
What is the best pump type for a dirt floor pit?
Submersible pumps are typically preferred for dirt floors due to their sealed design and quieter operation, but pedestal models can work in tighter spaces.
Submersible pumps are usually best for dirt floors, though pedestals can work if space is limited.
How deep should the sump pit be in dirt floor installations?
Aim for a depth that allows full submersion of the pump and clearance for the float mechanism, typically several inches below the floor surface, depending on the pump model.
Depth should allow full submersion and float clearance, following the pump manufacturer’s guidelines.
Can I install a sump pump myself?
Yes, with careful planning, attention to electrical safety, and adherence to local codes. If in doubt, consult a professional.
You can DIY, but follow safety rules and local codes; consider a pro if unsure.
What maintenance does a dirt-floor sump require?
Regularly clean the inlet, test the float switch, check the discharge line for blockages, and inspect electrical components for moisture or corrosion.
Clean the inlet, test switches, and inspect the discharge and electricals regularly.
Should I add a battery backup to a dirt-floor sump pump?
A battery backup can improve reliability during power outages, especially in storms or high-water periods. Assess capacity needs based on local flood risk.
A battery backup improves reliability during outages. Consider local flood risk when sizing.
Watch Video
Top Takeaways
- Plan pit location and dimensions before digging.
- Choose a durable pump with a reliable float switch and check valve.
- Prioritize electrical safety and local code compliance.
- Test the system thoroughly and maintain regularly.
