Crawl Space Sump Pump Installation Near Me: DIY Guide
Learn how to plan, install, and maintain a crawl space sump pump near you. This step-by-step guide covers sizing, safety, discharge routing, tools, and maintenance for a reliable basement drainage solution.
Looking for crawl space sump pump installation near me? This quick guide gives a practical plan to size, install, and test a reliable pump. According to Sump Pump Check, start by verifying local codes, choosing a pump with adequate capacity, and preparing a safe discharge route before you begin. Also plan for a battery backup if power outages are common in your area.

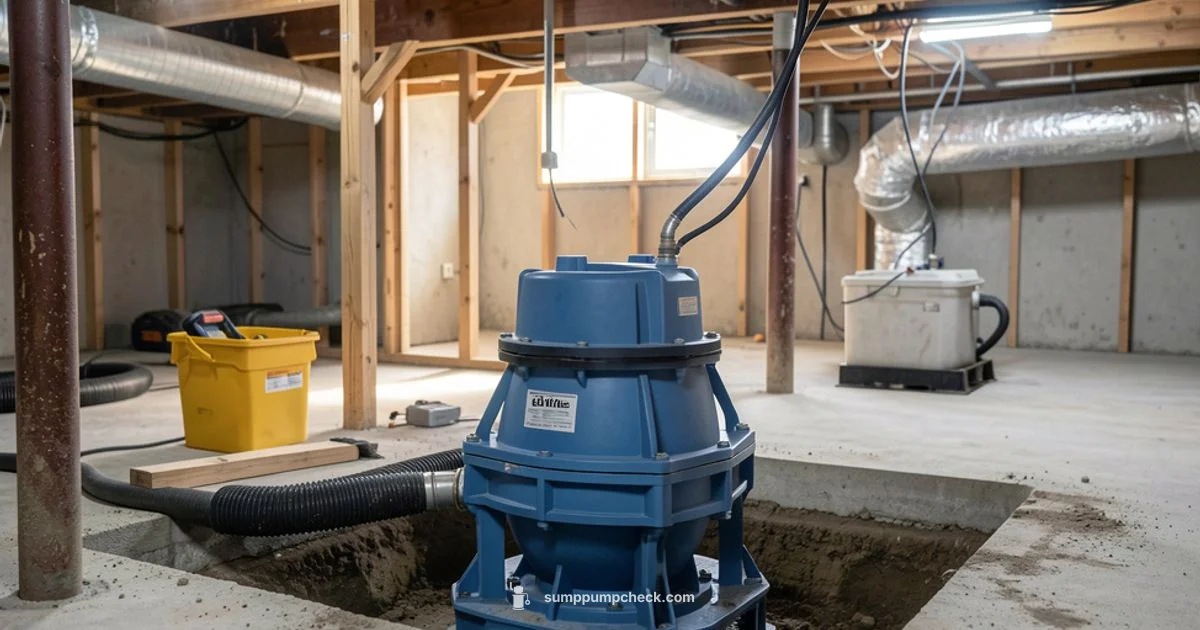

Crawl Space Sump Pump Basics
A crawl space sump pump is a compact drainage solution designed to remove groundwater that collects under a house. In tight spaces, a submersible unit is typically preferred for safety and ease of installation. When you’re looking at crawl space sump pump installation near me, focus on a model with a reliable float switch, a durable impeller, and an efficient discharge path. The goal is to keep water away from the foundation and prevent dampness, mold, and structural damage. According to Sump Pump Check, proper placement and a well-sealed sump basin reduce cycling and extend pump life. This section lays the groundwork for a safe, durable setup and emphasizes planning, not improvisation.
Pump Types and Essential Components
There are two common pump styles: submersible and pedestal. Submersible pumps live entirely in the sump pit, which keeps wiring dry and reduces noise, but requires careful sealing and maintenance. Pedestal pumps are above the pit, with the motor outside the water, which can simplify service but may be noisier. Key components include a reliable float switch, a check valve to prevent backflow, and a discharge pipe that carries water away from the home. A secure lid on the pit and a sturdy mounting surface help keep crawl spaces clean and reduce the risk of debris interfering with operation. For a crawl space installation, ensure you select a pump with a suitable flow rate for your space and climate and install a proper backflow prevention device to protect your living areas.
Planning the Discharge and Electrical Safety
Discharge planning matters as much as pump selection. Route the outlet pipe to a landscape low point or storm drain that won’t back up during heavy rain. Slope the discharge line away from the foundation, and terminate it with a splash block or yard drainage to prevent soil erosion. Electrical safety is non-negotiable: install a GFCI-protected outlet within reach of the pump’s cord, use a weatherproof enclosure for any exposed connections, and never power the pump from an extension cord. If you’re unsure, consult a licensed electrician. Sump Pump Check Analysis, 2026 notes that proper disconnects and dry installations correlate with longer pump life and fewer false alarms.
Maintenance, Testing, and Troubleshooting
Regular maintenance is essential to prevent failure during storms. Clean debris from the pit and the pump’s intake screen, and test the unit monthly by pouring water into the pit to simulate groundwater. Listen for unusual noises, check for leaks, and verify that the float switch triggers correctly. If the pump runs but doesn’t discharge, inspect the discharge line for clogs, ensure the check valve is seating properly, and confirm the power connection is secure. For the best long-term results, integrate a simple maintenance schedule into your home routine and address issues promptly.
Tools & Materials
- Sump pump (submersible recommended)(Choose a model rated for continuous operation; confirm compatibility with your outlet.)
- Sump pit/basin(Ensure it fits the available crawl space and has a secure lid.)
- Discharge pipe (PVC, 1-1/2" or 1-1/4")(Match to pump outlet and local code requirements.)
- Check valve(Prevents backflow into the pit after pump turns off.)
- PVC cement & primer(For sealing joints and ensuring leak-free connections.)
- GFCI-protected outlet(Ensure accessibility; avoid using extension cords in damp spaces.)
- Electrical conduit and waterproof sealant(Optional for added moisture protection in crawl spaces.)
- Gravel or crushed rock(Base under pit to promote drainage and stability.)
- Safety gear (gloves, goggles)(Protect hands and eyes when handling tools and materials.)
- Battery backup system (optional)(Provides power during outages to reduce flood risk.)

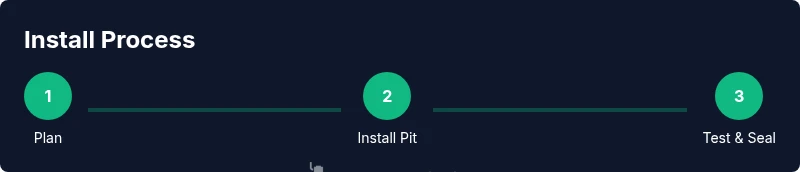

Steps
Estimated time: 3-5 hours
- 1
Prepare the site and plan
Turn off power to the crawl space area and inspect the pit location. Measure available space and confirm the pump will fit with room to service. Plan the discharge route to exit the home away from doors, vents, and soil openings.
Tip: Document measurements and sketch the discharge path to prevent late-stage changes. - 2
Assemble pit base and plumb the discharge
If using gravel, spread a shallow bed in the pit. Place the sump basin on the base and dry-fit the discharge piping to ensure alignment. Install the check valve on the discharge line to prevent backflow.
Tip: Dry-fit before gluing to avoid rework. - 3
Install pump and float switch
Lower the pump into the pit and attach the float switch according to the manufacturer’s instructions. Make sure cords are routed through a protective, moisture-resistant pathway. Secure the pump so it won’t shift during operation.
Tip: Leave enough slack on the power cord for maintenance and testing. - 4
Connect wiring and set up outlet
Run the power cord neatly to the GFCI outlet; avoid cords across damp surfaces. Install conduit if used and seal any gaps to keep moisture out of wiring. Confirm the breaker is off during initial wiring.
Tip: Have a licensed electrician review the connection if you’re unsure about wiring. - 5
Test the system
Pour water into the pit to simulate groundwater. Observe the pump turning on, the discharge flowing, and the float triggering correctly. Listen for abnormal sounds or leaks and adjust fittings as needed.
Tip: Document test results for your maintenance log. - 6
Finalize and seal the area
Seal around the pit and pipe penetrations to prevent moisture intrusion. Recheck all connections for tightness and ensure the discharge terminates away from the foundation. Reinstall the pit lid and clear the surrounding crawl space.
Tip: Keep a spare o-ring and sealant for quick maintenance.
FAQ
Do I need a permit for crawl space sump pump installation near me?
Permit requirements vary by city and state. Check with your local building department before starting to ensure compliance and avoid fines. Sump Pump Check recommends confirming any local permit needs early in planning.
Permit requirements vary by location. Check with your local building department before starting the project.
What size should I choose for a crawl space sump pump?
Choose a pump with adequate capacity for your space, water table, and climate. If in doubt, start with a mid-range model and plan for future expansion rather than oversizing.
Pick a pump sized for your space and expected water load. If unsure, choose a mid-range model.
Can I install a crawl space sump pump myself?
Yes, if you’re comfortable with household electrical work and basic plumbing. If you’re unsure about wiring or permits, hire a licensed professional.
You can DIY if you’re comfortable with electrical work; otherwise hire a pro.
How often should I test the sump pump?
Test the system periodically, especially before rainy seasons. Run a controlled test to ensure the float switch activates and the discharge runs freely.
Test regularly, especially before heavy rain, to ensure it works.
What is a battery backup sump pump and is it worth it?
A battery backup provides power during outages, increasing reliability during floods. In areas with frequent storms, a backup system is highly beneficial.
A battery backup helps during outages and is worth considering in flood-prone areas.
Watch Video
Top Takeaways
- Plan the install before drilling or cutting.
- Size and discharge planning prevent overflow and damage.
- Use a GFCI outlet and, if possible, a backup power option.
- Test and maintain regularly for reliability.
