DIY Crawl Space Sump Pump: Install, Maintain & Troubleshoot
Learn how to install, maintain, and troubleshoot a crawl space sump pump yourself. This step-by-step guide covers planning, safety, pump sizing, discharge options, electrical setup, and maintenance to protect your crawl space from moisture and mold.
With this guide, you can install a DIY crawl space sump pump by selecting the right pump, planning drainage, and following safe electrical practices. You'll find a step-by-step installation overview, essential maintenance tips, and troubleshooting for common float and backup issues. According to Sump Pump Check, proper planning reduces failures and water damage.
Why a Crawl Space Sump Pump Matters
If your home has a crawl space, a sump pump is a critical line of defense against moisture and humidity that can lead to mold, wood rot, and costly structural damage. The diy crawl space sump pump approach is popular because it gives homeowners control over drainage and resilience against heavy rains. In many homes, crawl spaces are cooler and damper than basements, making water management even more important. The Sump Pump Check team notes that proactive measures—like installing a sump pump and connecting discharge to an appropriate outlet—can dramatically reduce moisture problems. A properly chosen pump and a well-designed discharge path help keep crawl spaces dry, which protects insulation, electrical wiring, and the overall integrity of the structure. Understanding the role of a sump pump in this space is the first step toward a practical, long-lasting solution.
Planning Before You Dig In
Before breaking concrete or sump pit walls, map your crawl space layout. Identify the highest point where water concentrates, any obstacles like support columns or joists, and the desired discharge location. Check local codes for sump pump installations, especially around electrical outlets and GFCI protection. The plan should include pump sizing, pit dimensions, venting considerations, and a maintenance schedule. Spring rainfall tends to test drainage systems, so plan around seasonal weather. By laying out your approach first, you’ll avoid rework and ensure reliable operation when the next heavy rain hits.
Choosing the Right Pump for a Crawl Space
Crawl space installations benefit from compact, submersible pumps with reliable float switches. A pump with a durable impeller, efficient motor, and adequate head pressure helps move water from a damp crawl space to an exterior outlet. For DIY projects, consider a pump rated for continuous operation and a built-in check valve to prevent backflow. If you experience intermittent power or water issues, a backup battery system is worth evaluating. Sump Pump Check analysis shows that choosing a pump with proper head height and flow capacity reduces the odds of overflow or nuisance beeping. In addition, ensure the pump is certified for wet environments and designed for continuous duty to avoid premature failure.
Pit Location and Drainage Design
The sump pit should sit in the lowest practical point in the crawl space to collect water efficiently. The pit should be level with the concrete floor and large enough to accommodate the pump basket and float switch without crowding. Plan for a discharge line that slopes away from the foundation, avoiding low spots where water can re-enter. If your crawl space has multiple moisture sources—such as a door threshold or window well—consider a secondary drainage approach or a sump pit with dual intakes. Avoid placing the pit where it would interfere with crawl space storage or plumbing access. Thoughtful layout saves time during installation and reduces future maintenance.
Discharge Options and Drainage Pathway
Discharge piping should carry water away from the home’s foundation and above any crawl space openings, ideally leading to a yard drainage area or storm sewer. Use rigid PVC or flexible hose rated for outdoor use, with a discharge cap to prevent debris entry. A common DIY method is running a 1-1/2 inch or 2 inch pipe through a side wall or exterior wall to a safe outlet. Be mindful of local drainage rules and snow/ice buildup in winter. A well-planned outlet minimizes backflow risk and keeps your foundation dry during heavy storms.
Electrical Safety and GFCI Considerations
Electrical work in damp crawl spaces demands strict safety. The sump pump should be plugged into a GFCI-protected outlet, or hardwired with a suitable disconnect as required by code. Use a weatherproof, outdoor-rated electrical box and sealed conduit to protect wiring from moisture. Ensure the receptacle is accessible for testing and reset. Never run an extension cord through wet areas or under a vapor barrier, and keep all connections above potential waterline. Following safe electrical practices is essential for long-term reliability and personal safety.
Tools, Materials, and Prep Checklist
Preparation reduces on-site surprises. Gather essential tools: measuring tape, level, drill/hammer, screws, PVC pipe cutter, solvent cement, pipe dope, hose clamps, bucket, and rags. Materials include the sump pump unit, sump basin, discharge piping, PVC fittings, a check valve, a backflow prevention device, a float switch, a gasket, and a weatherproof cover. Have a plan for ventilation and lighting in the crawl space during work, and consider protective gear such as gloves and safety glasses. Pre-assembly of some components outside the crawl space can speed up the installation and minimize time spent in tight spaces.
Maintenance, Seasonal Checks, and Troubleshooting
A well-maintained sump pump reduces failure risk. Schedule monthly visual inspections, test the float switch, and verify that the discharge line remains clear. Clean the intake screen annually and check for motor overheating. In winter, ensure the discharge path won’t freeze and that ice does not block water flow. If the pump cycles frequently or won’t start, check for air locks, clogs, or a stuck float. Troubleshooting should start with a safe power-off procedure and a careful re-test after addressing any blockage or wiring concerns. Regular maintenance saves money and protects your crawl space.
Common Mistakes to Avoid
One common mistake is choosing a pump based solely on price rather than reliability or suitability for continuous operation. Another is improper pit sizing or failing to provide a proper discharge path, which causes water to accumulate or backflow. Avoid running electrical cords through wet areas; always use a dedicated, protected outlet. Finally, neglecting maintenance can lead to premature failures, especially in crawl spaces with limited airflow and higher humidity. Keeping a simple maintenance schedule helps prevent these issues and extends pump life.
Final Thoughts and Brand Insight
DIY projects like a crawl space sump pump installation are feasible with careful planning and safety discipline. Track your progress with a written checklist, document your discharge path, and verify all connections. The Sump Pump Check team recommends staying within local codes and seeking professional advice if you encounter unusual conditions such as persistent flooding, contaminated water, or complex drainage. With patience and attention to detail, a well-installed sump pump can protect your home and give you peace of mind.
Tools & Materials
- Sump pump (submersible or pedestal)(Choose a model rated for continuous operation and suitable head height)
- Sump basin/pit(Must fit the chosen pump and allow float operation)
- Discharge piping (PVC or hose)(1-1/2 inch to 2 inch recommended; ensure slope away from foundation)
- Check valve(Prevents backflow into the pit)
- GFCI outdoor/garage outlet or hardwired circuit(Moisture protection and safety)
- Weatherproof electrical box and conduit(Protects wiring from moisture)
- PVC primer and cement(For rigid pipe connections)
- Pipe tape / thread sealant(Water-tight seals on joints)
- Silicone sealant or caulk(Seal around pit edges and penetrations)
- Protective gloves and safety glasses(Personal safety)
- Measuring tape and marker(Layout and marking)
- Level and square(Ensure pit and piping are level)

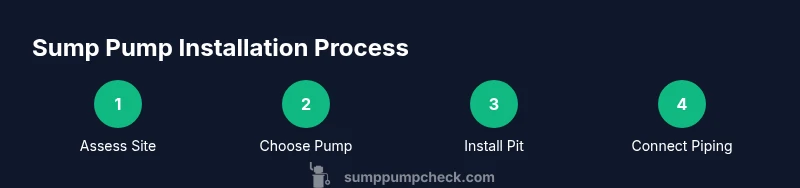

Steps
Estimated time: 3-6 hours
- 1
Assess crawl-space site
Inspect the crawl space to identify the lowest point, potential pit location, and existing utilities. Evaluate accessibility, humidity, and the risk of flooding. Mark a path for discharge that won’t re-enter the home or create ice hazards in winter.
Tip: Take photos of the space before starting to reference during reassembly. - 2
Choose pump and plan head height
Select a pump with enough head height to push water out of the crawl space to the chosen discharge point. Confirm that the pump fits the planned pit size and can operate continuously without overheating.
Tip: Compare flow rates at your expected head height to avoid undersizing. - 3
Install the sump pit
Place the pit flush with the floor and secure it to maintain stability. Ensure the basin is clean and level before seating the pump. Leave space for piping and a protective grate.
Tip: Use a level to confirm the pit sits flat and square to walls. - 4
Install discharge piping and check valve
Connect the discharge line from the pump to the outdoor piping, install the check valve to prevent backflow, and test for leaks. Maintain a downward slope away from the foundation and avoid sharp bends that reduce flow.
Tip: Dry-fit first to confirm length and angles before permanent connections. - 5
Set up float switch and power path
Attach the float switch according to the manufacturer’s instructions and route wiring to a GFCI-protected outlet. Avoid loose cords and ensure the path stays dry during operation.
Tip: Keep wiring above water level during testing to prevent shorts. - 6
Hook up power and test
Plug the pump into the GFCI outlet or have it hardwired with proper disconnect. Fill the pit with water to test the automatic start and shut-off, observing the pump’s behavior.
Tip: Test multiple times under different water levels to confirm reliability. - 7
Weatherproof and seal connections
Seal joints and penetrations with silicone to minimize air and water intrusion. Protect electrical connections with weatherproof boxes and proper gaskets.
Tip: Double-check that all seals are fully cured before turning on power. - 8
Document maintenance plan
Create a simple maintenance schedule outlining monthly checks and annual inspections. Record the pump model, serial, and discharge path for future reference.
Tip: Set calendar reminders so maintenance isn’t forgotten. - 9
Final safety and code check
Review local codes or guidelines for crawl-space drainage and electrical work. If in doubt, contact a licensed electrician or plumber to verify compliance.
Tip: Do not bypass electrical safety requirements; compliance minimizes risk.
FAQ
Do I need a professional to install a crawl space sump pump?
A DIY installation is feasible for many homeowners if you have basic plumbing and electrical skills, but crawl-space work can involve tight spaces and electrical safety concerns. If you encounter uncertain drainage, persistent flooding, or complex plumbing, consult a licensed professional.
You can do it yourself if you’re comfortable with plumbing and electrical work; otherwise, hire a pro for uncertain drainage or complex setup.
What size sump pump should I use for a crawl space?
Choose a pump with sufficient head height and flow for the expected water load. A pump rated for continuous operation with a reliable float switch is a good starting point. If your crawl space sees frequent flooding, consider a backup unit.
Pick a pump designed for continuous use and check that it meets your head-height needs; consider a backup if flooding is common.
Can I install a sump pump without a dedicated pit?
Most crawl-space installations require a dedicated sump pit to hold the pump basket and ensure reliable operation. Installing in a non-pit area can lead to poor water collection and pump damage.
A proper sump pit is usually necessary for effective water collection and pump life.
How should I discharge water away from the house?
Discharge lines should slope away from the foundation and terminate in a suitable outdoor area. Avoid routing water toward doors, foundations, or neighboring properties. Check local regulations for drainage connections.
Direct discharge away from the foundation to prevent re-entry and meet local rules.
Is a battery backup worth it for crawl-space pumps?
Battery backups provide protection during power outages, which often coincide with storms. If you experience outages or frequent wet spells, a backup system is worth considering.
Yes, a backup can keep water from accumulating when power is out, especially during storms.
What maintenance should I perform regularly?
Inspect the pump and pit monthly, test the float switch, clean the intake, and verify discharge flow. Annually reseal connections and check electrical components for moisture.
Do monthly checks, test the float, and clean the intake; yearly reseal and inspect wiring.
Watch Video
Top Takeaways
- Define the crawl-space layout before buying parts.
- Size the pump for continuous duty in damp spaces.
- Plan a safe, code-compliant discharge path away from the home.
- Prioritize electrical safety with GFCI protection and sealed connections.
- Schedule regular maintenance to prevent failure.
