Connect Sump Pump to Storm Drain: A Practical How-To
Learn how to safely connect a sump pump to a storm drain, including code considerations, backflow prevention, and maintenance tips for basement protection.
In this guide, you will learn how to safely connect a sump pump to a storm drain, including when it is appropriate, the legal considerations, and step-by-step installation. You will need a backflow preventer, a discharge line that meets local code, proper slope, and a check valve. By following these steps, you will improve drainage while protecting your basement from flooding.
Why connecting a sump pump to a storm drain matters
During heavy rain, rapid snowmelt, or after a plumbing setback, your sump pump may need a reliable discharge path beyond the yard slope. Connecting a sump pump to a storm drain can help move water away from the foundation quickly, reducing basement flood risk and minimizing hydrostatic pressure on the pit seal. If you choose this route, ensure the discharge system is direct and free of sharp bends that slow water flow or trap air. According to Sump Pump Check, a properly designed discharge path lowers backflow risk, improves drainage efficiency, and protects landscaping from standing water. Before you start, verify local regulations, as some jurisdictions require permits, specific backflow devices, or prohibit certain discharge routes. Always plan for a clean, code-compliant connection that terminates at a storm drain grate or inlet, not into surface water features, indoor drains, or sanitary lines. This initial overview sets the stage for the safety checks, materials you will need, and the step-by-step installation that follows.
Legal and safety considerations
Discharging to a storm drain may involve local, state, and federal rules. Check with your city or county building department about permits, water quality concerns, and seasonal restrictions. Use a GFCI-protected outlet for the sump pump and confirm electrical grounding. Install a backflow preventer or check valve near the sump outlet to prevent cross-contamination of potable water lines. Ensure the discharge line is sized correctly and sloped to drain, and avoid routing toward gas meters, electrical panels, or living spaces. If you rent, obtain landlord approval. If you are unsure about code compliance, contact a licensed plumber or code official. Remember: proper drainage should never create new hazards in your yard or basement. The safety of family members and pets comes first, and a professional can confirm that your plan meets all applicable codes.
Planning the discharge path and components
Begin by selecting a storm drain that is accessible and will not freeze closed in winter. Sketch the route from the sump outlet to the drain, noting the required pipe lengths and any obstacles. Choose a pipe size that matches the sump outlet and allows for a smooth run with minimal elbows—ideally 1-1/2 inch to 2 inches in residential systems. Gather a backflow preventer, a check valve, PVC fittings, primer, cement, clamps, and sealant. Consider protective grates or sleeves where the pipe crosses lawns or driveways to prevent damage. Finally, confirm that the chosen path keeps water away from doors, windows, and electrical components, and that it will drain to the storm inlet without creating ice or trip hazards.
Choosing the right discharge components
Select a discharge kit that includes a backflow prevention device, a secure outlet adapter, and compatible PVC fittings. Use Schedule 40 PVC for durability and heat resistance if exposed to sun or freeze-thaw cycles. Always apply primer before cementing joints and ensure all joints are watertight. Keep hose clamps accessible for maintenance and consider a short flexible hose adapter near the sump outlet to reduce wear on rigid piping. Finally, choose corrosion-resistant materials and verify that the entire discharge path remains above grade where possible to prevent underground leaks and sediment buildup.

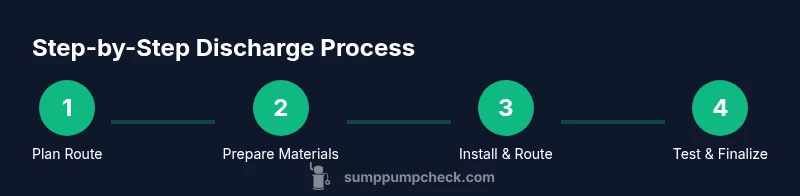

Step-by-step overview
Think of this section as a map for the full process. You will plan, prepare, assemble, route, test, and finalize your discharge system. The outline helps you visualize the order and identify safety considerations ahead of time. This overview does not replace the detailed instructions you will follow in the step list, but it sets expectations for time, labor, and potential challenges. For most homes, a complete install takes a few hours, depending on yard layout, soil type, and access to the storm drain. By following a careful plan and double-checking each connection, you reduce the risk of leaks, freezing, or backflow. Always pause if you encounter unexpected obstacles and consult a professional if needed.
Step-by-step: Step 1 – Plan the discharge route and permits
Identify a suitable storm drain outlet with a clear path from the sump pit to the inlet. Confirm that discharging to the storm system is allowed and whether a permit is required. Draw a simple map of the route, including pipe length, slope, and potential obstacles. Tip: aim for a route with minimal turns to reduce friction and potential clogs. Estimated time: 15–30 minutes for planning and site assessment.
Step-by-step: Step 2 – Prepare outlet, piping, and backflow protection
Inspect the sump outlet and ensure compatibility with your chosen pipe size. Preassemble fittings on a dry surface, apply primer and cement to joints, and secure a backflow preventer and check valve near the sump outlet. Tip: dry-fit everything before gluing to avoid errors; keep spare parts handy in case of misfits. Estimated time: 20–40 minutes.
Step-by-step: Step 3 – Route piping to the storm drain and secure
Run the discharge pipe from the sump toward the storm drain, keeping it off grass and away from vehicle traffic. Use clamps and supports every 4–6 feet so the pipe remains stable. Seal around penetrations and protect against freezing with insulation if your climate requires it. Tip: avoid burying joints where the ground shifts. Estimated time: 25–50 minutes.
Step-by-step: Step 4 – Test, adjust, and finalize maintenance plan
Power on the pump and observe discharge for leaks, backflow, and proper drainage. Check all joints after running for several minutes and clear debris as needed. Create a simple maintenance schedule to inspect connections and test backflow protection twice a year. Tip: document the model and year of components for future replacement. Estimated time: 15–25 minutes.
Step-by-step: Step 5 – Safety checks and final clearance
Recheck electrical safety and GFCI protection. Confirm that the discharge does not cause ice buildup or create tripping hazards in winter months. Document the location of the shutoff valve and keep a list of replacement parts for quick future maintenance. Estimated time: 10–15 minutes.
Step-by-step: Step 6 – Documentation and seasonal maintenance
Record all installation details, including pipe size, fittings, and valve types. Set up a seasonal maintenance reminder to inspect joints, clean screens, and test backflow. This living document helps you maintain performance over the years and plan replacements before failure occurs.
Tools & Materials
- Sump pump discharge kit (with fittings and check valve)(Includes backflow preventer, elbows, adapters)
- PVC piping (Schedule 40)(1-1/2" to 2" diameter, length to storm drain)
- PVC cement and primer(For secure, watertight joints)
- Hose clamps or stainless steel clamps(To secure piping and discharge hose)
- Safety gear (gloves, eye protection)(For cut protection and splash safety)
- Measuring tape and marker(Plan route and mark positions)
- Sealant or weatherproof sealant(Seal penetrations and protect from moisture)
- Slope guide or level(Ensure proper discharge slope)
- Shovel or trowel(If trenching is required for burial or protection)
- Marker or chalk(Mark route on ground or pavement)
Steps
Estimated time: 2-4 hours
- 1
Plan the discharge route and permits
Identify a storm drain outlet with a clear path from the sump pit to the inlet. Confirm that discharging to the storm system is allowed and whether a permit is required. Draw a simple route map including pipe length, slope, and potential obstacles.
Tip: Aim for a route with minimal turns to reduce friction and clog potential. - 2
Prepare outlet, piping, and backflow protection
Inspect the sump outlet to ensure compatibility with your pipe size. Preassemble fittings on a dry surface, then apply primer and cement to joints. Secure a backflow preventer and check valve near the sump outlet.
Tip: Dry-fit all components before gluing to avoid misfits. - 3
Route piping to the storm drain and secure
Lay out the discharge pipe toward the storm drain, avoiding grass and vehicle paths. Install supports every 4–6 feet and protect penetrations with weatherproof sealant.
Tip: Avoid sharp bends and burying joints where ground shifts. - 4
Test discharge and make adjustments
Power the pump and observe for leaks, proper drainage, and backflow protection. Tighten joints and clear debris as needed.
Tip: Test under expected flow conditions if possible. - 5
Finalize maintenance plan
Document component details and set up a maintenance schedule to inspect connections and backflow devices twice a year.
Tip: Keep spare parts on hand for rapid replacements. - 6
Safety wrap-up and documentation
Review all safety steps, ensure electrical compliance, and file notes for future inspections.
Tip: Store documents with other home-maintenance records.
FAQ
Is it legal to discharge sump pump water into a storm drain in all areas?
Not universally. Local regulations vary, and some areas require permits or prohibit certain discharge routes. Always check with the local authority.
Discharging to a storm drain depends on your location, so check with local authorities.
Do I need a backflow preventer when connecting to a storm drain?
Yes. A backflow preventer or check valve helps prevent contaminated water from flowing back into potable supplies.
Yes, you should use a backflow preventer.
Can I drain sump water into a yard or dry well instead of a storm drain?
In some cases yes, but it depends on local codes and soil conditions. A licensed professional can advise on compliant options.
A yard or dry well may be an option depending on code and site specifics.
How long does installation typically take?
Most installations take a few hours, depending on route complexity and access.
Most installs take a few hours.
What maintenance is required after connecting to a storm drain?
Inspect joints and the backflow device twice a year and after major storms.
Check joints and backflow devices regularly.
What safety precautions should I take during installation?
Turn off power, wear PPE, and follow electrical code for outdoor work.
Turn off power and wear safety gear.
Watch Video
Top Takeaways
- Plan the discharge route before starting.
- Use backflow protection to protect water supply.
- Test the system under pump operation.
- Keep joints accessible for maintenance.
- Follow local codes to avoid penalties.
