Can You Install a Sump Pump? A DIY Guide for Homeowners
Learn how to install a sump pump yourself with practical steps, safety tips, and maintenance guidance from Sump Pump Check. This comprehensive how-to covers sizing, pit placement, discharge routing, wiring basics, backups, and common pitfalls.
Yes—you can install a sump pump yourself if you follow a safe, code-compliant plan. This quick path from Sump Pump Check outlines the steps from prep to test, covering pit sizing, discharge routing, wiring basics, and backup options. You’ll learn what tools you need, common mistakes to avoid, and when it’s wiser to hire a pro. Following these steps helps reduce flood risk and protect your basement, based on guidance from Sump Pump Check.
Why a Sump Pump Matters for Basement Protection
A sump pump is a critical safeguard for homes in flood-prone areas. It helps remove groundwater that accumulates in the lowest part of your basement, reducing the risk of water damage, mold growth, and unwanted humidity. According to Sump Pump Check, properly installed systems lower the chances of basement flooding when heavy rains or rapid snowmelt overwhelm natural drainage. A well-chosen pump, installed with correct pit size and discharge routing, combines reliability with long-term savings on repairs and insurance claims. In this section, we’ll explore how a sump pump works, typical failure modes, and how to tell if your current setup needs an upgrade. We’ll also discuss code considerations and safety basics you should know before starting.
Assessing Your Home’s Needs and Choosing a Pump Type
Consider basement usage, soil drainage, and the typical water table in your area. For many homeowners, a submersible pump offers quiet operation and protection from debris, while pedestal pumps are easier to service. The key decision factors include pump capacity (in gallons per hour), efficiency, and the electrical requirements. Sump Pump Check recommends matching the pump size to the expected water load and ensuring compatibility with your discharge route. We’ll outline how to estimate your needs and compare common features, such as built-in alarms and automatic float switches.
Sizing, Pit Planning, and Location
Pit dimensions should accommodate the pump and allow for gravity drainage with a slight slope to the outlet. Position the pit away from walls and corners to simplify maintenance and reduce noise transfer. The pump should sit a finger-width above the pit bottom to ensure reliable priming, and the check valve should be installed on the discharge line to prevent backflow. Plan the discharge path to route water away from the foundation and toward a storm drain or exterior landscape.
Pit Preparation and Base Assembly
Clear the installation area and mark the pit outline using a measured template. Dig to the required depth, ensuring the base is level. Install a pre-formed sump liner or a concrete pit base, secure the liner edges, and verify that the outlet is aligned with the discharge piping. Place the pump inside, attach the discharge pipe, and install a secure lid to prevent debris entry during normal operation. Keep the area well-ventilated for any gas buildup.
Discharge Line, Check Valve, and Backflow Considerations
Run the discharge line to a suitable outdoor outlet, keeping it above grade with a gentle slope away from the house. Install a check valve to stop backflow and ensure the line remains clear of obstructions. If you have a bend or elbow, use appropriate fittings and sealants to prevent leaks. Never discharge into a sewer line or septic system without checking local codes. Consider a rainwater or storm drain connection if allowed.
Wiring, Electrical Safety, and Backup Options
Electrical work should meet local codes and ideally be performed with a GFCI-protected circuit. Use a dedicated outlet or a weatherproof receptacle, and consider an automatic standby generator or battery-powered backup pump for added protection. Install a high-quality float switch and test it regularly. Do not run multiple appliances on the same circuit, and avoid routing power through non-dedicated loads. If you’re uncomfortable with wiring, consult a licensed electrician.
Testing, Maintenance, and Common Pitfalls
After installation, fill the pit with water to prime the pump and listen for proper operation. Check that the pump turns on automatically at the correct water level and that water is discharged away from the foundation. Schedule regular maintenance: clean debris from the inlet, inspect the check valve, and test backups monthly. Common mistakes include mis-sizing the pump, poor discharge routing, and ignoring safety checks. The Sump Pump Check team recommends documenting the maintenance plan and verifying code compliance.
Tools & Materials
- Sump pump (submersible or pedestal)(Choose based on space, noise, and accessibility)
- Sump pit or liner(Ensure pit depth/diameter accommodate the pump)
- Discharge pipe (PVC, 1-1/2" recommended)(Include appropriate elbows and a check valve)
- Check valve(Prevents backflow into the pit)
- PVC cement and primer(For secure piping joints)
- GFCI-protected outlet or weatherproof circuit(Electrical safety first)
- Float switch (automatic)(Automatic operation)
- Tools: shovel, level, tape measure(Site prep and alignment)
- Silicone sealant (optional)(Sealant for leaks)
- Safety gear (gloves, goggles)(Protect yourself during installation)

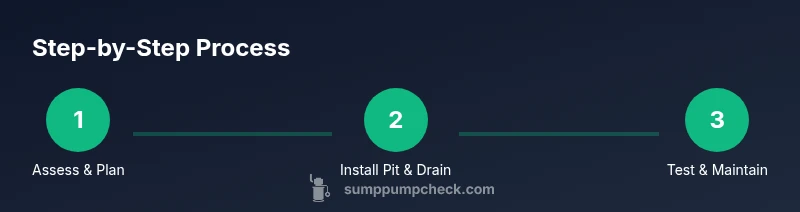

Steps
Estimated time: 3-6 hours
- 1
Assess needs and choose pump
Evaluate your space, anticipated water load, and electrical access. Decide between submersible and pedestal styles based on noise, maintenance, and access for service. This step determines pump capacity and pit sizing.
Tip: Take measurements and note power availability before purchasing. - 2
Size pit and select location
Choose a location with accessible maintenance access and connect it to a discharge route that won’t cause water intrusion elsewhere. Ensure the pit is deep and wide enough for the pump’s intake and clearance for installation.
Tip: Use a level to keep the pit edges straight. - 3
Prepare pit and install base
Install the sump liner or form the concrete pit base. Align the outlet with the planned discharge pipe and secure it before placing the pump.
Tip: Check that the liner sits flush and is stable. - 4
Run discharge line and install valve
Run piping to exterior or drain area with a proper slope. Install a check valve to prevent backflow and test for leaks.
Tip: Avoid sharp bends; use gradual slopes. - 5
Wire pump and add backup
Wire to a GFCI outlet or dedicated circuit. Install a backup system (battery or water-powered) if desired and safe under local code.
Tip: Never share a circuit with high-load devices. - 6
Test, adjust, and finalize
Fill the pit to open the pump and verify automatic activation. Confirm discharge is away from the foundation and document a maintenance schedule.
Tip: Record test results and set reminders.
FAQ
Can I install a sump pump myself, or should I hire a professional?
Many homeowners can install a sump pump themselves if they follow safety practices and local codes. Complex drainage or electrical work may require a licensed professional.
Many homeowners can install a sump pump themselves if they follow safety practices and local codes; for complex electrical work, consult a licensed pro.
What size sump pump do I need for a typical basement?
Sizing depends on expected water inflow; consult pump curves and consider your area's rainfall and groundwater patterns. Choose a unit with adequate head pressure and flow.
Sizing depends on expected water inflow; consult pump curves and your area's rainfall patterns.
Do I need a backup sump pump?
A backup pump provides protection during power outages or primary pump failure. Battery-backed or water-powered backups are common options.
Backups protect during outages or failure; consider battery or water-powered options.
Can I discharge sump water into a septic system or street sewer?
Discharge rules vary by location. Check local codes before connecting to sewers or septic systems; many areas require exterior drainage only.
Check local codes; many places require exterior drainage only and prohibit sewer connections.
What safety codes apply to sump pump installation?
Follow NEC electrical guidelines and local plumbing codes. When in doubt, hire a licensed electrician or plumber to ensure compliance.
Follow NEC and local plumbing codes; consult a pro if unsure.
What maintenance is recommended after installation?
Inspect inlet screens, test the float switch, and run the pump regularly. Replace worn parts and check for leaks at least twice a year.
Regularly inspect and test the pump; schedule semiannual checks.
Watch Video
Top Takeaways
- Install only after sizing and pit planning.
- Discharge path must slope away from the house.
- Use GFCI-protected outlets and a proper check valve.
- Test the system thoroughly and schedule maintenance.
