How to Add a Sump Pump to the Basement
Learn how to add sump pump to basement with a practical, safety-focused installation guide. This how-to covers planning, components, discharge, wiring, and maintenance to protect your home from flooding.
Goal: add sump pump to basement to prevent flooding. This guide covers pit sizing, pump selection, discharge planning, wiring, check valves, float switch setup, and post-installation maintenance. Gather the right tools, follow electrical safety, and adhere to local codes for a safe, effective installation.
Why adding a sump pump to basement is essential
According to Sump Pump Check, adding a sump pump to the basement is a practical step homeowners can take to reduce flood risk. Basements are among the most flood-prone parts of a home, and groundwater seepage can occur even during moderate rainfall. A properly installed sump pump acts as a safety valve, actively removing water before it can accumulate and threaten foundations. Beyond flood prevention, a sump pump helps regulate dampness, lowers mold risk, and supports overall indoor air quality. This section explains why a dedicated pump matters, how it protects your home's structure, and how to balance upfront costs with long-term savings. You will learn how to plan for a reliable installation that serves your family for years, with emphasis on safety and code compliance.

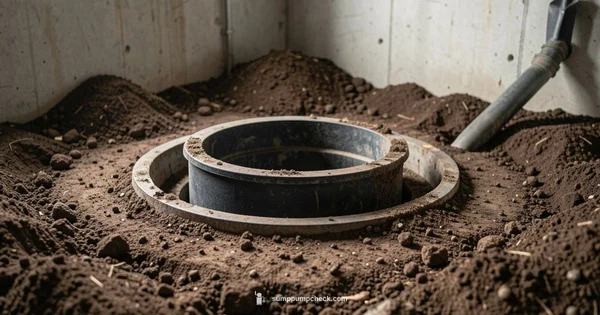

Assessing your basement and pit requirements
Before you add sump pump to basement, assess the space where water collects and determine the optimal pit size and location. Start by examining the sump well or basin and the surrounding floor to ensure the pump will sit level and drain properly. Consider floor slope, access for maintenance, and proximity to a power outlet and discharge path. Measure pit dimensions, check for obstructions, and verify that the basin is clean and free of debris. If you lack a pit, you may need to install one or use a basin kit designed for basement use. This planning step helps prevent overcrowding, ensures adequate pump performance, and reduces the likelihood of leaks or misaligned discharge piping. Finally, check local codes or HOA rules that may affect pit size, venting, or electrical requirements.
Choosing the right pump and components
When you add sump pump to basement, select a unit with enough capacity for your space while avoiding overkill. Submersible pumps are common for basements due to compact size and quieter operation; pedestal pumps can be easier to service. Look for a unit with a robust seal, a reliable float switch, and a durable impeller. Decide whether you want a basic pump, one with a built-in alarm, or a backup system powered by a battery for outages. Don’t forget accessories such as a check valve to prevent backflow, a standby battery pack, and a weatherproof power cord. For most homes, pairing a primary pump with a backup option provides resilience against power outages and heavy rainfall, ensuring the basement stays dry during intense events.
Discharge planning and code considerations
The discharge path is critical to success when you add sump pump to basement. Plan a route that carries water away from the foundation and does not drain into living spaces, crawl spaces, or neighboring properties. Many jurisdictions require a check valve on the discharge line to prevent backflow, and some regions mandate a proper outdoor discharge or drainage area. Ensure the discharge line slopes adequately to keep water moving away from the foundation and install a weatherproof outlet or GFCI-protected connection if the pump is powered outdoors. If you tie into existing plumbing, confirm permits and ensure code-compliant connections. Avoid burying discharge pipes under concrete or routing them through finished spaces to prevent leaks and ice blockages. This planning step reduces the risk of re-entry water and poor drainage during rain events.
Tools, parts, and optional upgrades
As you prepare to add sump pump to basement, gather essential tools and components to complete the job efficiently. Core items include a sump basin, a pump, discharge piping, a check valve, clamps, sealant, and a mounting kit. You may also want a level, tape measure, adjustable wrench, screwdriver set, silicone sealant, and a wet-dry vacuum for cleanup. Optional upgrades can improve resilience, such as a battery backup, an audible alarm, a secondary float switch, and an automatic shutoff. Quality fittings and corrosion-resistant pipes extend the system’s life and reduce maintenance. If you’re upgrading an older setup, consider replacing the entire kit to ensure compatibility and a reliable discharge path.
Wiring safety and electrical connections
Electrical safety is critical when you add sump pump to basement. Use a dedicated 120V circuit with a GFCI outlet or weatherproof external receptacle, and avoid running the pump on an extension cord. Route the power cord so it remains accessible for maintenance but protected from water spray. If wiring needs exist inside walls or a crawl space, use conduit and proper strain relief. Always shut off power at the main breaker before handling any connections and test the system with the sump pit dry and then full of water to verify auto-on and auto-off operations. If you’re unsure about wiring, consult a licensed electrician and follow local electrical codes.
Maintenance, backups, and seasonal checks
Once installed, the sump pump system requires routine attention to stay reliable. Schedule monthly inspections to test operation, check for debris in the pit, and verify the discharge path remains clear. Run a 1–2 gallon water test to trigger the float and ensure the pump starts and stops properly. Inspect the check valve for leaks, and clean any filters or screens as needed. Consider a backup system (battery or water-powered) to provide protection during power outages or pump failures. Document maintenance tasks so you can track performance and schedule professional service when needed.
Common mistakes and troubleshooting
Common mistakes when you add sump pump to basement include underestimating the required pump capacity, skipping a check valve, and routing discharge incorrectly (toward the foundation or into living spaces). Another frequent issue is wiring the pump to a non-GFCI outlet or using an extension cord, which creates safety hazards. If the pump won’t start, check the power source, float switch position, and the impeller for clogs. Leaks may indicate a failed seal or improper sealing of the basin. Troubleshooting steps should always begin with power safety and then verify the discharge path and backups.
Next steps and professional help options
If you’re unsure about any step of adding a sump pump to the basement, consider consulting a licensed plumber or an electrician to ensure code compliance, proper sizing, and a reliable discharge solution. For complex basements, a pro can help with pit relocation, sealing, and integration with backup power systems. After installation, establish a routine maintenance plan and keep spare parts on hand for quick repairs. In areas with frequent heavy rain or flood risk, a professional assessment can identify additional drainage improvements that complement your sump pump system.
AUTHORITY SOURCES
- https://www.fema.gov
- https://extension.illinois.edu
- https://extension.umn.edu
Tools & Materials
- Sump basin/pit kit(Diameter that fits your space; typically 10-15 inches wide.)
- Sump pump (submersible or pedestal)(Choose based on space, noise tolerance, and serviceability.)
- Discharge piping and check valve(PVC or ABS; ensure durable fittings.)
- Sealant or caulk(Silicone sealant for watertight seals at fittings.)
- GFCI outlet or weatherproof outdoor outlet(Required for safe operation near water.)
- Mounting hardware and clamps(Secure pump and piping to prevent movement.)
- Wrench set, pliers, and screwdriver(General hand tools for assembly.)
- Tape measure and level(Ensure proper alignment and pitch.)
- Battery backup (optional)(Provides operation during power outages.)

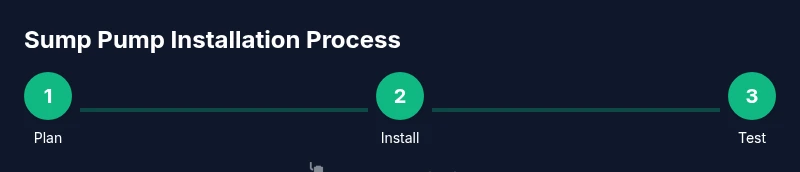

Steps
Estimated time: 2-6 hours
- 1
Assess the pit and plan
Inspect the pit and measure diameter and depth. Choose a pump type and confirm capacity that suits your space and expected water load. This upfront planning prevents fit problems and future headaches.
Tip: Take photos of pit dimensions and layout for reference. - 2
Prepare pit and surroundings
Clear debris from the pit and surrounding area. Remove any loose sediment, and ensure the pit rim is clean to seal properly with the pump base.
Tip: Wear gloves and safety glasses to protect against sharp edges. - 3
Install pump mounting and basin
Place the pump on the basin base, align with discharge port, and secure using mounting hardware. Ensure the unit sits level and test that the float can move freely without obstruction.
Tip: Check clearance to the pit wall to avoid binding the float. - 4
Attach discharge piping and check valve
Connect the discharge pipe to the pump outlet, install a check valve to prevent backflow, and route the pipe toward the exterior or appropriate drain. Ensure a gradual slope away from the foundation.
Tip: Leak-test all joints with soapy water before finalizing. - 5
Provide power and safety wiring
Run a dedicated 120V circuit to a GFCI outlet. Do not use extension cords. Use conduit if wiring through damp spaces and secure the cord away from purses of water.
Tip: Test the outlet with a moisture meter before connecting the pump. - 6
Test the system
Fill the pit with water to trigger the float and verify the pump starts. Confirm it runs steadily and shuts off when water drops. Listen for unusual sounds and check for leaks along discharge piping.
Tip: Simulate a power outage by unplugging and plugging back in to confirm reset behavior. - 7
Set backups and maintenance plan
If using a backup battery, install and test the battery pack. Create a routine maintenance schedule: monthly checks, annual checkups, and keep spare parts handy.
Tip: Document all tests and maintenance dates for future reference.
FAQ
What is the best type of sump pump for a basement?
Most basements use a submersible sump pump for space efficiency and quiet operation, but pedestal models can be easier to service in simpler layouts. Choose based on space, noise tolerance, and maintenance access.
Submersible pumps are common for quiet operation and compact space, though pedestal pumps can be easier to service in simple setups.
Do I need a backup pump?
A backup pump is recommended in areas with frequent power outages or heavy rainfall. It provides an extra layer of protection if the primary pump fails or power is interrupted.
A backup pump is a smart addition for outages or heavy rain scenarios.
Can I install a sump pump myself, or should I hire a pro?
Basic installations can be done by confident DIYers who follow safety instructions and codes. Complex installations, drainage changes, or electrical work should be done by a licensed professional.
You can DIY if you’re comfortable with mechanical and electrical work, otherwise hire a pro.
What maintenance does a sump pump require?
Regularly clean the basin, check the discharge path for blockages, test the float switch, and inspect the power connection. Schedule annual professional checks for critical components like seals and bearings.
Keep the pit clean, test the float, and inspect connections regularly.
Will adding a sump pump affect my home insurance?
Some insurers view sump pumps positively as flood mitigation, but coverage can vary. Check with your provider about any credits or requirements for disclaimers and maintenance.
Check with your insurer; some offer credits for flood-prevention systems.
How high should discharge water be directed away from the home?
Discharge should be directed to an exterior area with a clear slope away from the foundation, not into living spaces or legal drainage zones. Local codes may specify minimum distances.
Direct discharge away from the foundation to a proper exterior area.
Watch Video
Top Takeaways
- Plan pit size and pump type before purchase.
- Proper discharge and wiring are critical for reliability.
- Backup power reduces flood risk during outages.
- Regular maintenance extends pump life.
