Basement Sump Pump Installation Diagram: A Homeowner's Guide

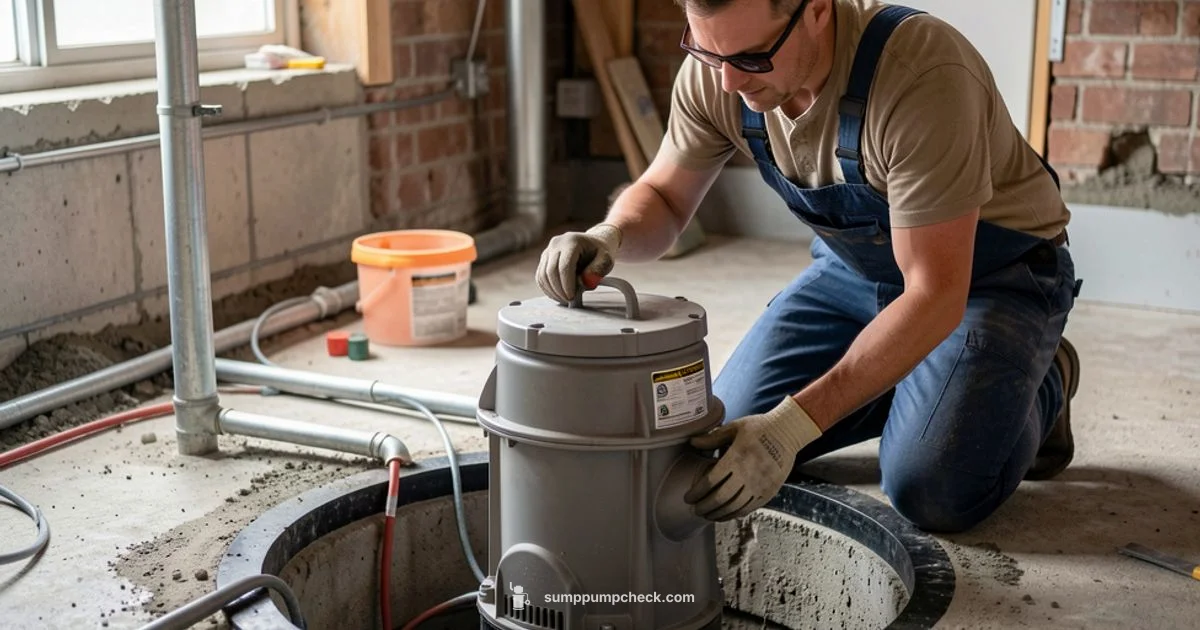

Understanding the Basement Sump Pump Installation Diagram

A well-designed diagram is a road map for your drainage plan, showing where the sump pit sits, how water flows through the system, and where power, piping, and check valves connect. According to Sump Pump Check, a clear diagram reduces installation errors by helping you communicate with helpers and inspectors. This section will orient you to common symbols, orientation markers, and the sequence of elements that keep basement flooding at bay. A good diagram also notes safety steps and maintenance checkpoints so you can verify functionality after the install is complete.

Key Symbols and What They Represent

Most diagrams use standardized icons to represent components and connections. For example, a square with rounded corners often indicates the sump pit, a circle may denote the pump body, arrows show water flow, and dashed lines can indicate electrical wiring or vent paths. It's helpful to keep a legend on the diagram itself. By learning these symbols, you can quickly scan a diagram and pinpoint where water enters, where it exits, and how backflow into the pit is prevented.

Essential Components You'll See in the Diagram

A complete diagram features the following core parts: the sump pit and its cover, the pump (submersible or pedestal), the discharge pipe, a check valve to prevent backflow, an optional vent, an electrical supply with a GFCI-protected outlet, and a drainage route to the exterior or to a drainage system. The diagram may also mark a float switch, alarm, or backup power supply. Understanding where each piece sits helps you plan space in a cramped basement and ensures code-compliant clearances.

Common Layout Scenarios and Pit Placement

Basements vary in shape, but most diagrams represent several typical layouts: wall-adjacent pits for shorter runs, corner pits for best drainage gravity paths, and central pits when space permits. The placement affects discharge routing, piping slope, and access for maintenance. A practical diagram will show the pit near the lowest point of the floor with a clear path to the exterior discharge and a nearby receptacle for power. Adjust the diagram to reflect your basement’s concrete layout and utilities.

Reading the Diagram: Reading Paths for Water, Power, and Drainage

Trace the water path from the sump pit through the discharge pipe to the exterior or drainage system. Next, follow the electrical path from the outlet to the pump switch or float mechanism, ensuring a GFCI-protected, weatherproof outlet within reach. Pay attention to venting or relief points if present, which can help manage air pressure and prevent siphoning. A good diagram also marks slope guidelines (e.g., 1/4 inch per foot) to ensure efficient drainage.

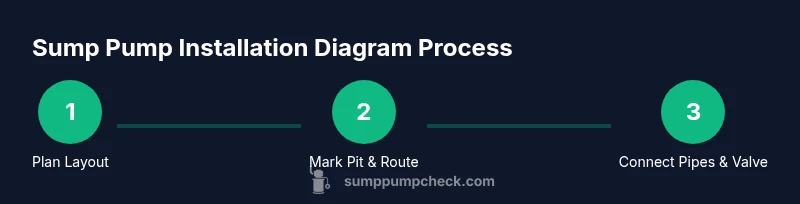

Designing Your Diagram: From Pit to Exterior

Start by marking the pit location and pit dimensions, then map the discharge route. Add the check valve near the pit outlet, followed by the vertical rise and any bends needed to reach an exterior wall or drainage point. Include a dedicated electrical line with a switch and a GFCI outlet, positioned for easy access and safety. Finally, sketch any backups or alarms and label terrain obstacles the installer should avoid.

Choosing the Right Pump and Accessories

Select a pump type based on plume size, pit dimensions, and expected flow. Submersible pumps are common for buried pits, while pedestal models offer easier servicing. Consider a model with an automatic float switch, built-in thermal overload protection, and compatibility with a check valve. Accessories like a backflow preventer, a corrosion-resistant discharge pipe, and a rainproof junction box improve reliability and longevity.

Wiring, Electrical Safety and Code Considerations

Electrical safety is non-negotiable. Ensure the pump plugs into a GFCI-protected outlet, and avoid extensions or cords in damp spaces. The diagram should indicate proper routing that keeps wiring clear of water, with weatherproof outlets and proper conduit where needed. If you’re unsure about local electrical codes, consult a licensed electrician and reference your area’s code requirements to ensure a compliant installation.

Discharge Piping, Check Valves, and Backflow Prevention

The discharge pathway must be sloped away from the building to prevent water re-entry. A check valve (often a swing or spring-loaded type) prevents water from flowing back into the sump pit. Use appropriate PVC pipe fittings, solvent cement, and clamps to ensure leak-free joints. The diagram should clearly show the check valve location, discharge slope, and any exterior piping that leads to daylight or a storm drain.

Drafting Your Own Diagram: Tools, Tips, and Best Practices

When drafting a diagram, start with a clean, to-scale layout using graph paper or a digital CAD-like tool. Label each component, add dimensions, and annotate clear flow paths. Save multiple versions: a baseline layout, a modified version for potential renovations, and a final as-built diagram. Keep a printed copy in your maintenance binder and store a digital version in cloud storage for easy sharing.

Maintenance and Troubleshooting Guided by Your Diagram

A reliable diagram includes a maintenance schedule and troubleshooting flow. Regularly test the system by flooding the pit at a safe level and observing pump activation, discharge flow, and float movement. If the pump doesn’t start, check the outlet, circuit breaker, float switch, and impeller access. Keep the discharge path free of obstructions and inspect seals and connections at least twice a year.

Quick Reference Diagram Checklist

• Pit location and dimensions marked clearly
• Pump type and float switch identified
• Discharge pipe route with slope indicated
• Check valve and vent placement shown
• Electrical route with GFCI outlet marked
• Labels for maintenance steps and intervals
• Final as-built diagram stored digitally and physically
