Basement Sump Pump Installation: A DIY Guide
A practical, step-by-step guide to installing a basement sump pump, including planning, components, electrical safety, and maintenance to prevent basement flooding.
Goal: install a basement sump pump to reliably remove groundwater and prevent flooding. Key requirements: a suitable sump basin, a pump with adequate horsepower, a check valve, a discharge line to an outdoor safe point, a dedicated power source, and a float switch. According to Sump Pump Check, plan around space, local code compliance, and potential backup options before you begin.
Why Basement Sump Pump Installation Matters
According to Sump Pump Check, a basement sump pump installation is a practical defense against basement flooding and moisture build-up. A properly configured system helps protect your foundation, reduces the risk of mold, and preserves the value of your home. The basic concept is straightforward: a sump pit is installed at the lowest point of the basement floor, a pump sits inside the pit, and a discharge line carries water away from the house. An automatic float switch turns the pump on at a set water level, and a check valve prevents water from flowing back into the pit. Real-world benefits include fewer water-related damages after heavy rain, less humidity in living spaces, and peace of mind during snowmelt. For DIY homeowners, understanding the role of each component and how they work together makes the project more predictable and increases the odds of long-term reliability. This section sets the stage for the practical steps that follow and emphasizes planning, quality parts, and code compliance.
Planning and Local Codes
Before you buy parts or dig a pit, check local codes and homeowner association rules. Some jurisdictions require a permit for sump pump installation and inspections after completion. Determine where your discharge water will go; often it must flow away from the foundation and not onto a neighbor's property or into a storm drain without approval. Consider the water load your system will handle based on historical rainfall and your home's drainage. Decide whether you want a backup pump or a dual-power setup so you aren’t left without drainage during a power outage. Finally, measure the space in the sump area to ensure a standard-size basin and pump will fit, and plan for proper access for maintenance. A clear plan saves time, prevents mistakes, and keeps the project within budget.
Choosing Components: Pit, Pump, Check Valve, Discharge, Power
Select a sump pit that fits your space and pump size. Plastic basins are common and easier to modify, while concrete pits are durable but require demolition to replace. A submersible pump is versatile for most basements, though a pedestal pump can be easier to service. For the discharge, use rigid PVC pipe with a proper slope to exterior outlets; ensure there is no risk of backflow by installing a check valve. The float switch is critical for automatic operation; there are vertical and external options, depending on your preference for visibility and maintenance. Electrical considerations matter a lot: you’ll typically need a dedicated 15- to 20-amp circuit and a GFCI outlet. If you’re unsure about wiring, hire a licensed electrician. Finally, consider a back-up pump or power source to cover outages. The right combination reduces system failures and supports peace of mind when storms arrive.
Siting and Pit Sizing: Where to Place It and How Big
Place the sump location at the lowest practical point of the basement, away from footings and near a wall for easier piping access. Avoid corners that trap debris or impede maintenance. The pit size should leave room for the pump and float to move freely; a cramped pit can cause jammed floats and unreliable cycling. Plan the suction line so it follows the natural slope toward the exit and stays clear of electrical lines. If you’re replacing an old system, reuse the existing pit if dimensions allow. Finally, ensure you have a path to clear the area for regular testing and maintenance and to service the pump without dismantling the entire setup.
Electrical Safety, Wiring, and Start-Up Testing
Electrical work requires caution; follow local codes and consider hiring a licensed electrician for the final wiring. Install a GFCI-protected outlet on a dedicated circuit; run the pump’s power cord through a protective conduit if needed. Do not run power cords through walls or under doors where they can be pinched. When you’re ready to test, fill the pit with water to trigger the float and observe that the pump starts, pumps water out, and stops when water drops. Check for leaks around the pipe joints and seals; tighten fittings as needed. Maintain a safe workspace, wear eye protection, and keep children away during testing. If a backup pump is installed, test its operation separately according to manufacturer instructions.
Maintenance, Backups, and Long-Term Care
Schedule annual tests to verify the float, switches, and discharge path operate correctly. Inspect the pit for sediment and clean it as needed to prevent clogging. If you have a battery-backed backup, test it at least twice a year and replace batteries per manufacturer recommendations. Keep the discharge area clear of snow buildup and debris to ensure water flows freely. Document maintenance events so you can spot wear over time and plan replacements proactively. A maintenance plan reduces failure risk and extends the life of your sump pump system.
Common Mistakes and Troubleshooting Basics
Rushing the digging or not sealing the pit properly can lead to leaks. Skipping a check valve or improper discharge routing can cause backflow and nuisance pumping. Using an undersized pump for a large water load results in short cycling and premature failure. If the system runs continuously, check for clogged inlet screens, stuck floats, or a blocked discharge line. For troubleshooting, start with the simplest possibilities: verify power, confirm the switch moves freely, and inspect pipes for cracks. If issues persist, consult the manual or a professional—don't force adjustments that could compromise code compliance or safety.
Tools & Materials
- Sump pit basin(Plastic or concrete; ensure interior is smooth and large enough for pump and float.)
- Sump pump (submersible or pedestal)(Match horsepower to expected water load.)
- Check valve(Prevents backflow into the pit.)
- Discharge piping (PVC/ABS)(Rigid pipe with proper slope toward exterior drainage.)
- Pipe fittings and clamps(Secure joints and prevent leaks.)
- Float switch (integrated with pump)(Automatic on/off control.)
- GFCI-protected electrical outlet(Dedicated circuit recommended; use weatherproof enclosure if outdoors.)
- Electrical conduit(Protect cords in areas prone to moisture.)
- Back-up power option (battery or water-powered)(Optional for outages.)
- Safety gear (gloves, goggles)(Personal protection during digging and assembly.)

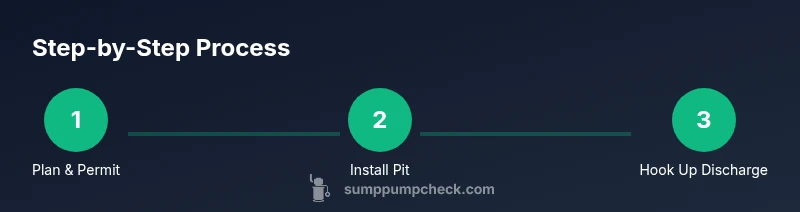

Steps
Estimated time: 4-6 hours
- 1
Assess suitability and plan layout
Review the basement layout to choose the lowest point for the pit and map a clear discharge route to the exterior. Check local codes and permit requirements before any digging. A solid plan reduces field changes and keeps the project on schedule.
Tip: Double-check discharge direction and ensure no risk of backflow into sanitary lines. - 2
Dig or prepare the sump pit
Excavate the pit area to accommodate the basin with room for the pump and float. If using a concrete pit, set forms and pour to the required depth. Ensure the interior is smooth and clean to prevent abrasion on seals.
Tip: Line the pit edges to prevent chipping during pump insertion. - 3
Install the pump in the pit
Lower the sump pump into the pit and verify the float moves freely without obstruction. Attach the discharge elbow and check valve in the correct orientation to prevent backflow. Level the pump so it sits securely on a stable base.
Tip: Avoid tilting the pump; misalignment can trigger false starts or jams. - 4
Run discharge piping and install check valve
Connect PVC pipe from the pump to the exterior discharge, ensuring a steady slope away from the foundation. Install the check valve to prevent water from returning to the pit and seal joints with appropriate adhesive. Test joints for leaks before finalizing.
Tip: Use rigid piping for durability; flexible hoses are prone to kinks in tight spaces. - 5
Set up electrical supply and plug-in
Install a GFCI outlet on a dedicated circuit for the sump pump. Route the power cord through protective conduit if needed and keep all connections dry. Do not mount the outlet directly over the pit to avoid water exposure during maintenance.
Tip: Do not modify the home's main wiring; consult a licensed electrician if wiring is uncertain. - 6
Test, adjust, and document
Fill the pit with water to trigger the float and verify the pump starts and stops correctly. Check for leaks along all joints and adjust float height if necessary. Test backup options if installed and record settings and maintenance dates for future reference.
Tip: Keep a maintenance log to catch wear and plan replacements ahead.
FAQ
Do I need a permit for basement sump pump installation?
Permit requirements vary by location. Check local building codes and HOA rules before starting. Some areas require inspection after installation to ensure safe discharge and electrical setups.
Permit requirements vary by location; check local codes and HOA rules before you start.
What is the difference between submersible and pedestal sump pumps?
Submersible pumps operate submerged in the water-filled pit and are quieter, while pedestal pumps have the motor above the pit. Choose based on space, access for maintenance, and noise tolerance.
Submersible pumps sit in water and are quieter; pedestal pumps are easier to service but may be louder.
Can I install a sump pump myself or should I hire a pro?
The core installation can be DIY if you’re comfortable with basic plumbing and electrical safety. For wiring, permits, or complex drainage, consider hiring a licensed professional to ensure code compliance and safety.
DIY work is possible for basic parts, but wiring and permits may require a pro.
Should I include a back-up power source?
A backup pump or power source adds resilience during outages, especially in regions with frequent storms. Weigh the cost against risk and local flood history when deciding.
A backup power option helps during outages; consider your flood risk and budget.
What maintenance does a sump pump require?
Perform an annual check of the float, switch, and discharge path. Clean the pit of sediment, inspect seals, and replace batteries in backups as recommended by the manufacturer.
Annual checks and cleaning keep the pump reliable year-round.
How big should the sump pit be?
Pit size depends on pump dimensions and float clearance. It should allow free float movement and fitting the pump with space for maintenance. Avoid cramming a too-small pit.
Choose a pit large enough for the pump and float to move freely.
Watch Video
Top Takeaways
- Plan first, then dig: clear layout prevents rework.
- Choose compatible components for reliable operation.
- Discharge and backflow prevention protect the home and neighbors.
- Electrical safety is critical—use GFCI and dedicated circuits.
- Regular maintenance extends pump life and reliability.
