Submerged Sump Pump Guide: Setup, Use, and Maintenance

What is a submerged sump pump and why it matters

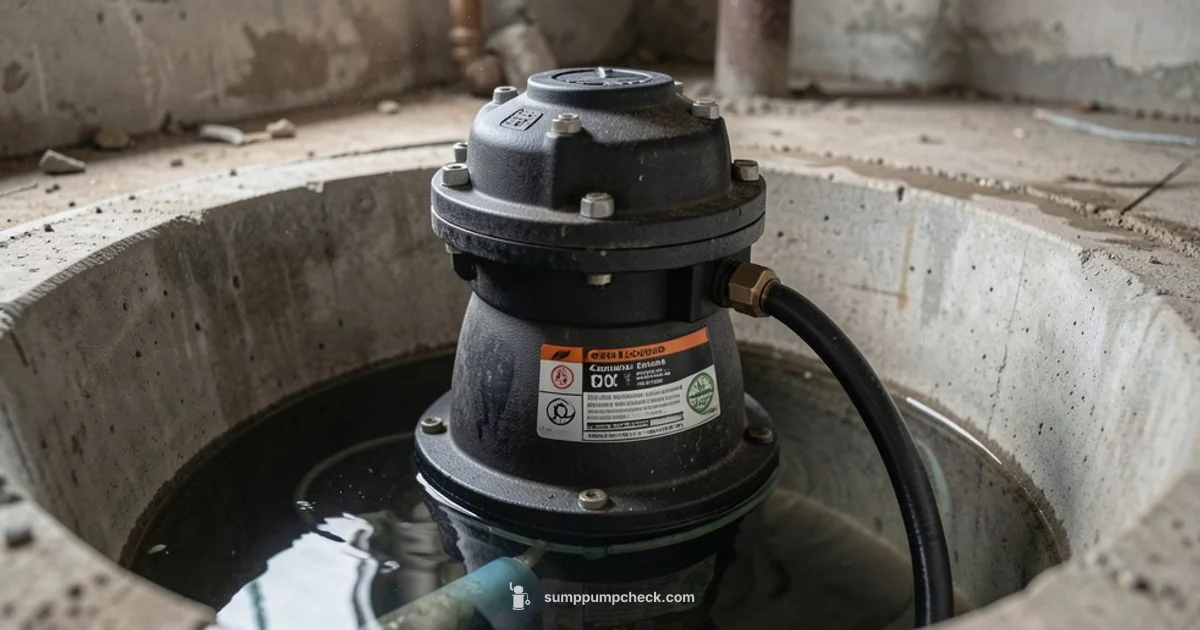

Submerged sump pumps sit at the bottom of a basement sump pit, fully submerged as water fills the basin. They are designed to move water out through a discharge pipe, helping prevent basement flooding during heavy rain, rapid snowmelt, or rising groundwater. According to Sump Pump Check, submerged units are favored for their compact design, quiet operation, and reliable cooling in tight spaces. Because the motor is immersed, the unit stays cool and lubricated, reducing heat-related wear and extending life in damp conditions. Homeowners benefit from the ability to place the pump in a small, shallow pit and still achieve strong water removal. When selecting a submerged model, focus on reliability, ease of maintenance, and compatibility with your existing discharge routing. Read on to understand how these pumps work, what to watch for during installation, and how to keep them running smoothly.

How submerged pumps work

A submerged sump pump combines a sealed motor with an efficient impeller inside a waterproof housing. When the water in the pit rises, the float switch or electronic water sensor turns the motor on. The impeller pushes water into a discharge pipe, which directs it away from the foundation. Because the motor operates underwater, manufacturers design extra moisture-proof seals and a pressure relief path to prevent flooding if seals fail. The pump is normally connected to a power source and often equipped with a check valve to prevent backflow from the discharge line. In normal operation, the pump cycles on and off as the pit fills and drains, keeping a steady water level. This continuous cycling is a big advantage in basements that experience frequent moisture intrusion.

Key components and features

• Submersible housing and seal: The outer shell protects the motor from water while allowing heat to escape through the surrounding liquid.
• Impeller and volute: The impeller generates flow; the volute directs water into the discharge pipe.
• Float switch or pressure sensor: Detects water level and triggers the pump to start.
• Discharge pipe and check valve: Moves water away from the house and prevents backflow.
• Power supply and controller: Provides reliable operation, sometimes with an auto-restart feature after a power outage.
• Overflow protection and alarms: Some models include audible alerts or LED indicators to signal failures.

Installation considerations and pit setup

Choosing the right pit size and pump type is the first step. The sump pit should be deep enough to accommodate the pump body and leave room for the float mechanism to operate without snagging on debris. Line routing matters; discharge pipes should slope away from the foundation and terminate above ground level to prevent re-entry. Install a check valve to prevent backflow and consider a backflow preventer if the line runs uphill. Electrical safety is essential: use a GFCI-protected outlet or dedicated circuit, and ensure the pump is plugged into a grounded outlet with proper strain relief. If you’re replacing an old pump, verify that the new unit’s flow rate matches the historical needs of your basement water inflow. Finally, keep the sump clean by lining the pit with a brief mesh screen to stop debris, while leaving enough room for the float to move freely.

Sizing and selecting the right submerged pump

Selecting the right submerged sump pump depends on two main factors: how much water enters the pit and how far you need to move it. Focus on pump reliability, ease of maintenance, and compatibility with your discharge route. When in doubt, choose a model with a larger impeller capacity and a robust motor that can handle frequent cycling without overheating. Consider lifecycle costs, including replacement parts and potential battery backup compatibility for power outages. For homes with intermittent water intrusion, a smaller pump used in tandem with a backup system can provide redundancy. If you live in a high-water-area or near a hillside, you may want to pair the pump with a perimeter drainage plan to reduce load on the unit.

Installation pitfalls and common mistakes to avoid

Avoid choosing a pump that fits the pit only by depth; ensure there is enough clearance above the float for free movement. Do not seal the pit with concrete or impede the discharge line, which can trap water or cause backflow. Skimping on a check valve or improper slope on the discharge line can lead to backflow and re-flooding. A common error is wiring the unit to a shared circuit with high-demand devices, which can cause nuisance tripping. Finally, failing to maintain the pump, including infrequent cleaning of the intake screen, can lead to clogs and reduced performance.

Maintenance and routine care

Develop a simple maintenance routine to extend life and keep reliability high. Check the power cord and plug for signs of wear, test the float switch monthly, and remove debris from the pit. Clean the intake screen and verify the discharge line is clear of obstructions. Listen for unusual noises or vibrations, which can indicate a failing bearing or impeller. Replace worn seals promptly to prevent water ingress. Consider adding a battery backup system for power outages for continued operation during storms. Record maintenance activities to track the pump’s performance over time.

Troubleshooting common problems

If the pump frequently runs without emptying the pit, inspect for cracks in the housing, clogged intake, or a stuck float. If the unit fails to start, check the power supply, GFCI outlet, and fuse or circuit breaker. A tripped breaker could indicate a short or an overload; reset and monitor. A wailing or grinding sound may signal a clogged impeller, which you can fix by removing the cover and clearing debris. If the pump seems to run too slowly, inspect for reduced impeller capacity or a blocked discharge line. For backflow or reentry, ensure the check valve is properly installed and the discharge line slopes away from the house.

Safety, codes, and long term considerations

Local codes may specify required discharge routing or check valve installation. Always follow manufacturer instructions when wiring and mounting a submerged sump pump, and use a GFCI-protected outlet. If you’re uncertain about electrical work, hire a licensed electrician. With ongoing severe weather and flood risks, consider combining a submerged sump pump with a backup system and a water alarm to provide early warning. Regular inspection and replacement of worn parts can extend the pump’s life and reduce unexpected failures. The Sump Pump Check team emphasizes that proper sizing, correct pit preparation, and routine maintenance give homeowners the best chance of keeping basements dry for years to come.
