Sump Pump Freeze Protection: A Homeowner's Guide
Learn practical sump pump freeze protection techniques to prevent basement flooding. Step-by-step guide, tools, maintenance, and safety tips from Sump Pump Check.
With sump pump freeze protection, you can prevent basement flooding during freezes by prepping the pump, managing discharge lines, and insulating the pit. This guide walks you through practical steps, recommended tools, and a seasonal maintenance routine to keep your system running in cold weather. Start by assessing your climate, choosing a protection method, and following a clear winterization plan.
What is sump pump freeze protection?
In cold months, the risk isn't just a frozen pipe outside; the discharge line from your sump pump can freeze, build pressure, and back up into the pit. Sump pump freeze protection is a set of strategies to keep water flowing freely regardless of subfreezing temperatures. According to Sump Pump Check, proactive winterization reduces the chance of clogs, motor strain, and costly backup pumping. The core idea is to prevent the water from freezing at or near the pump and along the discharge path. Practical protections include insulating exposed pipe, selecting heat sources for the discharge path, and ensuring the unit has a reliable power supply. This overview introduces the concept and prepares you for practical steps that reduce winter risks.
Why freeze protection matters in winter climates
In regions where temperatures routinely dip below freezing, a cold discharge line can freeze and trap wastewater in the sump and lines. A frozen discharge increases pump load, can trigger cycling, and may cause backflow or basement flooding. Implementing freeze protection lowers risk, minimizes emergency repairs, and helps you maintain a dry basement through the coldest days. Sump Pump Check analysis shows that proactive winterization leads to fewer service calls and more reliable performance during storms.
Core strategies you can implement
Start with a plan that matches your climate and home layout. Primary strategies fall into three buckets: (1) protect the discharge path with insulation or heat sources; (2) reduce cold exposure by insulating the pump pit and cover; (3) ensure reliable power and safe operation with proper electrical setup and a backup option. Select a combination that fits your budget and space. For climate zones with frequent freezes, a layered approach (insulation plus optional heat source) works best. If you’re unsure, begin with insulation and proper discharge routing, then add a controlled heat source if needed.
Insulating the sump pit and cover
Begin by sealing the sump pit from drafts. Use a rigid insulated lid or add weather stripping around the lid to minimize warm/cold exchange. Wrap exposed pit legs with closed-cell foam and apply insulation to the sides of the sump pit. A well-sealed pit reduces heat loss and helps maintain a warmer, more stable water temperature, reducing the chance of ice forming near the float switch. Ensure that any insulation does not cover vents or the float mechanism. Regularly inspect covers for cracks and reseal as needed.
Protecting the discharge line from freezing
Discharge lines that exit the foundation are the most common freeze point. Run the line with a gentle downward slope away from the house and insulate exterior sections with foam sleeves or heat tape. When using heat tape, pair it with a thermostat or temperature controller so the cable only activates above a set temperature, which conserves energy and reduces risk of overheating. Maintain a clear clearance from landscaping and sidewalks to avoid ice buildup on walkways. Keep the discharge end well away from any intake vents or windows to prevent reentry of exhaust or air.
Electrical safety and backup options
Ensure the sump pump sits on a GFCI-protected, weatherproof outlet. Use an outdoor-rated extension cord only if it is rated for cold weather and protected from moisture. Consider a battery backup system or a water-powered backup to keep operation during power outages. If you rely on heating elements or cables, install a dedicated circuit with proper wiring and a guard against short circuits. Never bypass safety devices; these protections keep you and your home safe.
Maintenance checklist for winter
Create a winter maintenance calendar and run monthly checks:
- Inspect insulation for wear and gaps; reseal as needed
- Test the float switch and pump motor with a dry-run
- Verify discharge line insulation and slope
- Inspect electrical connections, GFCI status, and backup power
- Clear the area around the sump pit of debris and ensure proper airflow
Brand note: The Sump Pump Check team emphasizes routine checks to catch issues before storms hit, helping you stay dry all season.
Quick-start installation checklist
This quick list helps you begin immediately:
- Assess current discharge route and slope
- Add insulation to exposed discharge piping and sump pit lid
- Install an outdoor-rated, thermostat-controlled heat source if needed
- Ensure a GFCI-protected outlet near the pump
- Schedule a winter test run and seasonal maintenance
The steps above align with best practices from Sump Pump Check and set you up for a dry winter.
Tools & Materials
- Sump pit insulated cover(R-value 3-5 recommended; fits your pit opening)
- Foam pipe insulation (closed-cell)(Pre-cut sleeves or wrap for discharge pipes)
- Heat tape / electric heat cable(Use with thermostat or controller; outdoor-rated if installed outside)
- Thermostat or temperature-controlled switch(Set to around 40-45°F for discharge line)
- Pipe insulation clamps/ties(Secure insulation without restricting movement)
- GFCI-protected weatherproof outlet(Required for outdoor electrical connections)
- Utility knife(To cut insulation material precisely)
- Weatherproof PVC tape(Seal seams and secure insulation)
- Discharge slope gauge or level(Confirm 1/4 inch per foot slope)
- Backup power option (battery or water-powered)(Consider for outages; follow manufacturer guidelines)
- Gloves and safety goggles(Personal protective equipment for handling insulation and wiring)

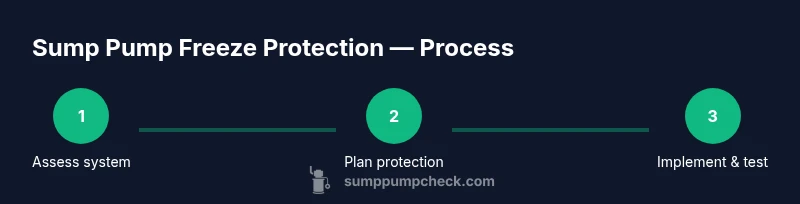

Steps
Estimated time: 60-120 minutes
- 1
Assess your sump system and climate
Inspect the sump pump, discharge route, and current winter conditions. Note any exposed pipes or outdoor sections that need insulation, and identify the closest GFCI outlet. Understanding your layout guides all following steps.
Tip: Document pit dimensions and discharge line length before buying materials. - 2
Plan the discharge path and slope
Ensure the discharge line exits away from the foundation with a consistent downward slope to prevent standing water. Mark where it passes through exterior walls and confirm no vent blocks or intake points are nearby.
Tip: A straight, sloped line reduces freezing risk compared to a high-arc run. - 3
Install insulation on discharge piping
Slip foam sleeves or wrap the discharge line with closed-cell insulation. Secure with clamps or tape in several places to prevent air gaps. Check joints for tightness after warming weather.
Tip: Avoid compressing insulation too tightly—it must still shed moisture and breathe where needed. - 4
Add a controlled heat source if needed
Install heat tape or a heated cable along exposed pipe sections and connect to a thermostat or controller. Keep cables away from sharp edges and ensure proper clearance from combustibles.
Tip: Always use a thermostat and never run heat tape continuously without control. - 5
Insulate the sump pit and cover
Secure a rigid insulated lid or add weatherstripping around the existing lid to minimize drafts into the pit. Verify there are no cracks that could admit cold air.
Tip: Check the lid fit yearly; a loose lid defeats insulation efforts. - 6
Prepare the electrical setup and backups
Verify a GFCI outlet is functioning and that wiring complies with local codes. Consider a battery backup or water-powered option to maintain operation during outages.
Tip: Test backup power monthly during winter and after any outage. - 7
Perform a cold-weather test run
With water in the sump, run the pump to observe discharge flow and listen for unusual noises. Confirm no discharge blockages and confirm cable heaters (if installed) engage correctly.
Tip: Do not run dry; ensure water is present to test proper operation. - 8
Establish a seasonal maintenance routine
Create a calendar for winter checks, including insulation integrity, outlet tests, and backup battery aging. Adjust setup if climate or house conditions change.
Tip: Treat winterization as an ongoing process, not a one-time fix.
FAQ
What is sump pump freeze protection and why is it important?
Sump pump freeze protection refers to methods that prevent water in the sump system from freezing during cold weather. It protects the pump, discharge lines, and the basement from flooding and damage.
Freeze protection keeps your sump pump from freezing and failing in winter, protecting your basement from flooding.
Should I install a heating cable on my discharge line?
A heating cable can help prevent the discharge line from freezing, especially in exposed exterior sections. Use a thermostat and follow manufacturer instructions to avoid overheating.
Heat cables can help, but only with a thermostat and proper installation.
Can a backup power source keep the sump pump running during a power outage?
Yes. A battery backup or a water-powered backup pump can maintain operation during outages, reducing flood risk when storms cut power.
Yes—consider a backup power option to stay protected during outages.
How often should I test the freeze protection setup in winter?
Test your system monthly during winter and after any weather event that affects the sump area. Regular tests catch issues early.
Test monthly and after big storms to catch problems early.
What are signs that protection isn’t working?
Frequent pump cycling, unusual noises, or discharge blockage near frost-prone areas indicate protection isn't working and needs inspection.
If you hear odd noises or see slow discharge, inspect the system for ice or blockages.
Watch Video
Top Takeaways
- Identify winter risks for your sump system.
- Insulation and controlled heat reduce freezing risk.
- Maintain safe electrical setup with GFCI and backups.
- Test and adjust protection before harsh weather.
- Follow a seasonal maintenance schedule for reliability.
