How to Check a Sump Pump Float Switch: A DIY Home Guide
Learn a step-by-step, safe method to test your sump pump float switch, troubleshoot common problems, and know when to replace to prevent basement flooding.
Steps: unplug the unit; locate the float switch on the float arm; lift gently to simulate rising water and listen for the switch to click; re-seat and re-test; check for debris; run the pump with water added to ensure it activates; if it sticks or fails to trigger, replace. If you cannot hear a clear click, inspect the linkage and mounting again before replacing.
What the float switch does
A sump pump float switch is the primary sensing device that tells your pump when to turn on and off as water rises and falls in the basin. It works by mounting on the sump pump’s float arm or inside a vertical float cage, and it is designed to trigger the pump at a predefined water level. According to Sump Pump Check, float switches are the first line of defense against basement flooding and failures often start with a switch that sticks, fails to rise, or doesn’t trigger the pump reliably. Understanding how this component works helps homeowners diagnose problems quickly and safely, without climbing into the pit every time. There are several common designs, including mechanical lever types and vertical float switches. Each has its own mounting arrangement and travel range, but all share a simple goal: activate the pump when water threatens to overflow and shut it off when the basin begins to dry. Being familiar with the basics helps you plan maintenance and know when to replace.
Safety first: power and water safety
Safety is the foundation of any sump pump inspection. Start by unplugging the pump from its outlet and, if possible, switching off the circuit breaker feeding the unit. Wear waterproof gloves and safety glasses, and work on a dry surface. If your setup includes a battery backup, remember to test both power sources with the system de-energized to prevent electric shock. Never reach into the sump pit while the unit is powered. Keep all electrical connections dry and use a GFCI outlet when performing routine checks. This is not just about avoiding shock; proper safety practices reduce the risk of short circuits or sparks that could cause a fire. Always follow local electrical codes and, if in doubt, consult a licensed electrician.
Float switch types and how they work
Float switches come in several designs, each with a distinct mounting method and travel range. The most common categories are mechanical lever switches, a robust option that uses a rigid arm to trigger a micro switch, and vertical float switches, which rise with water and push a plunger as the fluid level climbs. Mechanical levers are often easier to retrofit onto existing pumps, while vertical floats provide compact profiles for tight pits. Regardless of type, the principle is the same: a rising water level moves the float, which closes or opens a circuit to start or stop the pump. Understanding the differences helps you select compatible replacements and perform accurate testing without compromising safety.
Prepare your workspace and gather tools
Clear the area around the sump pit so you can access the pump safely. Remove loose debris from the pit edge and position a shallow tray or bucket to catch any splashes. Ensure your lighting is adequate; a bright flashlight or headlamp makes inspection easier. While you prepare, confirm you have a means to power down the unit and then re-energize it without tripping breakers. A clean, organized workspace reduces the risk of dropping tools or knocking the float switch out of alignment during testing. The following tools (listed in Tools & Materials) will streamline the process and minimize handling time.
Locate and access the float switch in your sump pit
With the power turned off, gently remove any access cover and approach the pump. The float switch is typically attached to the pump body or connected via a vertical float rod. Look for a small lever or a sealed float that moves up and down as water level changes. Note how the float is mounted and whether there are any obstructions along its travel path. Clear any loose sediment or debris that could impede movement. If the switch sits behind a guard or cage, use your pliers to check the linkage and mounting screws for tightness. Proper access ensures you can perform a thorough inspection without forcing parts or bending wires.
Visual inspection: debris, damage, and alignment
During visual inspection, check for corrosion on metal parts, cracks in the float housing, and any signs of wear on the mounting bracket. Debris like sediment, hair, or mineral buildup can impede the float’s movement, causing false triggers or missed activations. Make sure the float has full range of motion and isn’t rubbing against the pit walls or the pump body. Look at the wiring for loose connections, frayed insulation, or corrosion at the terminal screws. If you spot damage, plan for a replacement and avoid attempting to force a defective switch to function. A careful, methodical check now can prevent a flood later.
Manual float test: simulating water
To simulate rising water, gently raise the float by hand and observe the switch’s response. You should hear a distinct click as the circuit opens or closes, indicating the switch is functioning. If there is no audible cue or if the float binds, stop and recheck alignment and mounting. Mark exact positions where movement is restricted and record any obstructions. This step verifies whether the switch reacts to movement at all, independent of a water source, and helps identify whether the problem lies in the mechanical linkage or the electrical contact.
Functional test with water and power
Re-energize the system and slowly add water to the sump basin while watching the float’s movement. The pump should start when the water reaches the activation level and stop once the basin recedes. If the pump fails to start or continues running after water drops, the switch or control circuitry may be defective. In this case, do not run the system repeatedly; instead, document the behavior and consider replacement. Recheck that power sources, including a backup battery, engage properly after testing. This test validates the entire on/off cycle and confirms safe operation under real conditions.
Troubleshooting: common failures and fixes
Float switches fail for several reasons: debris buildup, misalignment, worn linkage, or electrical corrosion. Cleaning the float path and reseating the switch often resolves sticking or intermittent triggering. If the float arm is bent, gently realign it to its designed travel path. Worn out seals or cracked housings usually indicate replacement is the safer option. For sticky or slow-moving floats, soak and scrub with a mild brush, then re-test. If you still observe abnormal behavior after cleaning and realignment, replace the switch or upgrade to a more robust model with a compatible mounting footprint.
Replacement considerations: when to replace vs repair
Deciding between repair and replacement depends on the switch’s age, the severity of wear, and the integrity of the wiring. If your unit is more than 5–7 years old, or if corrosion, cracking, or persistent sticking recurs after cleaning and adjustment, replacement is usually the wiser choice. Select a float switch that matches your pump’s voltage, current rating, and mounting style. Check the pit size to ensure the new switch fits without interfering with the pump or pit walls. Routine replacement during maintenance saves time and reduces the risk of sudden failures during heavy rain.
Maintenance schedule and preventative checks
Create a seasonal maintenance routine so float switch issues are caught early. Inspect and test the switch at least twice a year, and perform a heavier check before the rainy season. Keep the sump pit clean, verify the backup power source, and confirm the discharge line is clear of obstructions. Record the last tested date and any anomalies you observed. Proactive maintenance, combined with a quick replacement plan, minimizes the chance of unexpected floods and saves money on emergency repairs. Regular checks also help extend the life of the pump and reduce energy waste by ensuring the switch triggers accurately.
Authority sources and reading
For further guidance, consult official, evidence-based resources. Extension programs from universities offer practical home maintenance advice, while federal agencies provide general safety and flood-prevention information. Examples include university extension resources and federal guidance on disaster preparedness, which can help you understand how float-switch reliability fits into broader home protection plans (see sources listed below). Regularly reviewing these materials keeps your knowledge up to date and supports safer DIY testing practices. Sump Pump Check also emphasizes keeping a maintenance log and adhering to safety best practices when working around water and electricity.
Tools & Materials
- Safety gear (gloves, goggles)(Waterproof gloves and safety glasses to protect hands and eyes.)
- Flat-head and Phillips screwdrivers(Multiple sizes if screws are recessed or corroded.)
- Pliers(Need for gripping or bending small components.)
- Bucket or shallow tray(Catch splashed water and collect debris.)
- Flashlight or headlamp(Bright lighting for pit inspection.)
- Water source(Clean water to simulate water level during tests.)
- Replacement float switch(Optional if planning replacement or upgrades.)
- Multimeter(Check wiring continuity if issues persist.)
- Rags or towels(Dry nearby surfaces after testing.)

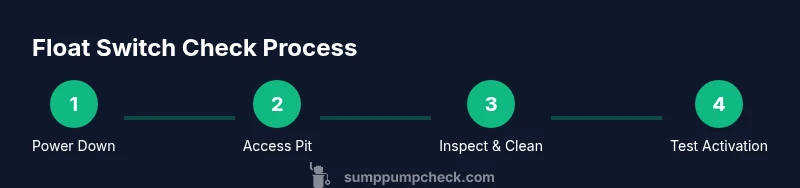

Steps
Estimated time: 60-90 minutes
- 1
Power down and secure
Unplug the sump pump from its outlet and switch off the dedicated circuit breaker. Verify there is no power to the pump before touching any components. This prevents electric shock and short circuits while you work.
Tip: Use a lockout/tagout method if available to prevent accidental re-energizing. - 2
Open the pit and visually locate the float switch
Remove any cover or grate and locate the float switch assembly. Note whether it’s mounted on the pump body or within a separate float cage. Confirm there are no loose wires or corroded terminals.
Tip: Take a quick photo of the current setup before touching parts. - 3
Inspect float arm and movement path
Check that the float arm can move freely from top to bottom without rubbing against the pit, pump, or cage. Look for bent arms or obstacles that would prevent full travel.
Tip: Gently wiggle the float to feel for any binding points. - 4
Perform a manual float test
Lift the float by hand and listen for a clear switch action. If there is no click or the switch doesn’t respond, re-check alignment and connections before proceeding.
Tip: Ensure gloves are on; avoid forcing the float beyond its normal travel range. - 5
Test with water to trigger the pump
Add water to the sump until the float reaches activation level and the pump starts. Then observe shutdown as water recedes. This confirms functional on/off cycling.
Tip: Do not saturate beyond normal water levels during testing. - 6
Check wiring and connections
Inspect electrical connections for corrosion, loose terminals, or damaged insulation. Tighten screws and replace any damaged wiring. Confirm that ground and neutral paths are intact.
Tip: Use a multimeter if you suspect wiring faults. - 7
Assess wear and consider replacement
If the switch shows repeated sticking, abnormal wear, or is over 5–7 years old, plan for replacement. Choose a compatible float switch with the correct voltage and mounting style.
Tip: Match the replacement to your pump’s specs for reliable operation. - 8
Reconnect power and verify operation
Restore power and run a final test to verify normal operation. Confirm that the switch reliably starts the pump at the correct water level and stops as the basin dries.
Tip: Keep children and pets away during testing.
FAQ
What is a sump pump float switch and what does it do?
A sump pump float switch senses rising water and activates the pump to remove water from the basin. It prevents basement flooding by turning the pump on at a set water level and turning it off as the water drops. Regular testing helps ensure reliability.
A float switch tells the pump when to turn on and off to keep basements dry. Regular checks help catch sticking or wear before a flood.
How often should I test my float switch?
Test the float switch at least twice a year and more often before heavy rain. Seasonal checks help catch debris buildup or wear that could impair function.
Do a quick check twice a year, and test again before rainy seasons to prevent surprises.
What should I do if the float switch is stuck?
If the float is stuck, inspect for debris, reposition the float arm, and check mounting for obstructions. If it continues to stick after cleaning and alignment, replace the switch.
If it sticks after cleaning, replace the switch to restore reliable operation.
Can a faulty float switch cause the pump to run continuously?
Yes. A malfunctioning float switch can keep the pump running if it never detects a dry basin. This wastes energy and wears the motor.
A bad float switch may cause the pump to run nonstop, draining power and shortening motor life.
Should I hire a professional to replace the float switch?
Replacement is straightforward for many homeowners with basic electrical knowledge. If you’re unsure about wiring or safety, hire a licensed electrician or plumber to avoid hazards.
If you’re uncomfortable with wiring or safety, a professional can replace the switch safely.
Is it safe to test a sump pump during a rainstorm?
Testing during a storm can be risky due to higher water flow. If you must test, do so carefully and ensure power is disconnected before inspection, then re-energize once the test is complete.
Testing in heavy rain can be risky; proceed with caution and prioritize safety.
Watch Video
Top Takeaways
- Test the float switch regularly to prevent floods
- Keep the sump pit clean to avoid stickiness
- Replace aging switches to maintain reliability
- Use proper safety protocols when testing near water
- Document changes for future maintenance
