How to Replace a Sump Pump Switch
Learn how to safely replace a sump pump switch, choose the right replacement, and perform a thorough test to prevent basement flooding. Includes step by step instructions, tools, safety, and maintenance tips.
This guide shows you how to replace a sump pump replacement switch and restore reliable operation. You will need basic safety gear, a compatible switch, and a small screwdriver. The process covers powering down, removing the old switch, wiring in the new unit, and performing a controlled test to verify proper cycling. According to Sump Pump Check, timely switch maintenance helps prevent basement flooding.
Understanding the need for a sump pump replacement switch
Replacing the sump pump switch is an essential maintenance task that helps keep a basement dry during heavy rain or spring melt. The switch triggers the pump when water rises to a certain level and stops the pump when the basin empties. A worn or faulty switch can cause the pump to run continuously, fail to start, or cycle on and off, risking basement flooding or unnecessary wear on the motor. Signs that you may need a replacement include erratic pump cycling, a float that sticks, or audible beeps from the control panel. According to Sump Pump Check, timely switch replacement improves reliability and reduces the chance of overflow. Before you begin, document your pump model and current wiring setup, so you select a compatible switch and avoid electrical hazards.
How a float switch works and why it fails
A sump pump float switch uses a buoyant float to sense rising water. As water level rises, the float rises and trips a switch that powers the pump. Debris, mineral buildup, a bent float arm, or a sticking mechanism can cause the float to bind or the contacts to fail. Electrical contacts can also wear out from vibration or frequent cycling. When a float switch fails, the pump may not start, may run continuously, or respond inconsistently to water level changes. Regular inspection helps catch wear before a flood occurs.
Types of sump pump replacement switches
There are two common mechanical options and a few electronic variants. The vertical float switch has a stem that rises straight up with the float, offering reliable operation in tight pits. The tethered float switch uses a float attached by a cord to a switch body, allowing more float travel in deeper pits. Electronic switches use sensors and floatless activation. Each type has pros and cons for different pits, discharge distances, and pump models. When selecting a switch, ensure compatibility with your pump’s voltage, rating, and alarm setup. The right choice minimizes nuisance trips and improves longevity.
Safety prerequisites and planning
Electrical safety is essential when servicing a sump pump. Always unplug the pump or shut off the corresponding breaker before handling wiring. If the sump is hard wired, isolate the circuit and use a lockout tag to prevent accidental re-energizing. Wear gloves and eye protection, and keep the work area dry as possible. Have a bucket, towels, and a flashlight handy. Plan the replacement during a dry spell and avoid performing work during a thunderstorm when water levels may change rapidly.
Compatibility guidance: choosing the right switch
Start by checking your sump pump model and the voltage rating on the nameplate. Confirm the current switch type and the mounting arrangement on the float arm. The new switch should match the pump load rating and wire color codes. If you are unsure, bring the old switch to a hardware store or consult the pump manual. It is critical that the replacement supports the same or higher amperage and fits the same mounting footprint to avoid clearance issues inside the pit.
Sourcing the replacement switch: what to look for
Look for a switch with a similar load rating and compatible mounting configuration. Check weather resistance if the pit is exposed to moisture, and verify lead lengths for safe routing to the junction box. Prefer switches from reputable brands with clear wiring diagrams and short installation times. Consider a switch with built in protection such as a small overload indicator or compatibility with a basic alarm, which can help you monitor performance.
Step-by-step planning before you buy
Measure the pit dimensions, mount orientation, and float arm travel to confirm compatibility. Review the wiring color codes and terminal types used by your current switch. Assess whether you need extra adapters or a new cover gasket. Plan to have replacement components, insulating tape, and appropriate connectors ready before starting work. This upfront prep reduces the chance of an unplanned trip to the store mid job.
Electrical safety basics you should not skip
Always verify that power is fully off before touching any wires. Use a non contact voltage tester to confirm no live current at the switch and pump leads. Keep tools dry and avoid standing water near the electrical junction. If you encounter damaged conduit or corroded terminals, stop and reassess. Water and electricity are a dangerous mix and require careful handling.

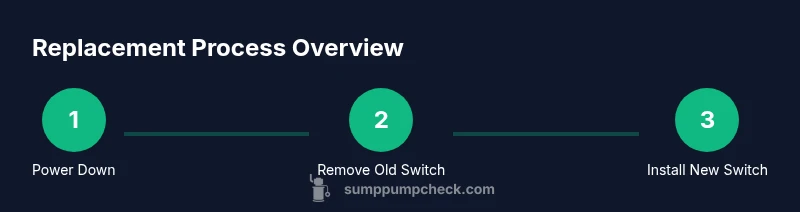

How to physically replace the switch: an overview
The replacement process includes removing the old switch from the float arm, disconnecting wires, wiring in the new switch following the color code, and reattaching the float mechanism. After that, you must reseal the setup and prepare for testing. The detailed, step by step actions are outlined in the STEP-BY-STEP section to ensure precision and safety.
Testing the new switch and preventing floods
With power restored, run a controlled test by simulating rising water in the sump basin. Confirm the pump starts when the float rises and stops as the water level falls. Look for smooth cycling with no hum or buzzing, and ensure the alarm functions or a secondary alert triggers if provided. If anything seems off, power down again and recheck wire connections and mechanical mounting.
Routine maintenance and extended life
Inspect the switch every 6 to 12 months as part of a broader sump pump maintenance plan. Clean the basin to minimize debris that can interfere with the float. Ensure the float arm moves freely and does not rub on the wall or hoses. Keep the discharge line clear and verify that the venting system is unobstructed. A well maintained switch reduces the risk of unexpected failure.
Cost, warranty, and when to call a pro
Replacement switches range in price depending on type and rating, with higher quality units typically lasting longer. If your unit is hard wired or if you encounter complex wiring or code questions, consider a licensed electrician. Warranties vary by brand and model, so review the documentation. The Sump Pump Check guidance supports evaluating both cost and reliability when planning a replacement.
Tools & Materials
- Replacement sump pump float switch(Ensure compatibility with pump model and voltage)
- Screwdriver set(Phillips #2 and flat head for terminals)
- Non-contact voltage tester(Verify power is off before touching wires)
- Wire nuts(Assorted sizes for secure splices)
- Electrical tape(Wrap and insulate connections)
- Pliers(Grip and bend wires as needed)
- Bucket or towels(Catch any residual water)
- Safety gloves(Optional for grip and protection)
- Work light(Extra illumination for tight basins)
- Marker or tape(Label wires if needed)
Steps
Estimated time: 60-90 minutes
- 1
Power down and confirm safety
At the main breaker, switch off the circuit powering the sump pump. Use the non contact tester to confirm there is no voltage at the plug or switch. If the pump is hard wired, isolate the circuit and apply a lockout tag for extra safety.
Tip: Double check with the tester before touching wires. - 2
Prepare the work area
Clear the area around the sump pit and place a bucket or towels to catch any water. Ensure lighting is sufficient so you can see all wiring clearly and prevent mistakes during removal.
Tip: Keep a clear exit path in case of unexpected water entry. - 3
Remove the old switch from the float arm
Carefully detach the old switch from the float arm or mounting bracket. Do not pull on wires; disconnect them first and note their positions. If the float arm is stiff, gently free it without bending any components.
Tip: Take a photo of the wiring before disconnecting to guide reassembly. - 4
Document and disconnect wiring
Label each lead and record the color code and terminal numbers. Use the voltage tester to confirm the absence of power on all conductors. Disconnect wires one by one, keeping them organized to ease the new switch wiring.
Tip: Work slowly and avoid mixing wires from different circuits. - 5
Prepare the new switch
Inspect the replacement switch for any shipping damage. If needed, attach mounting hardware and prepare the terminals for wiring. Compare the new switch to the old one to ensure correct terminal layout.
Tip: Dry fit first to verify mounting compatibility. - 6
Connect the new switch
Reconnect the wires to the same terminals on the new switch following the color code and terminal numbers. Use new wire nuts and secure connections with electrical tape as needed. Check that there are no loose strands.
Tip: Tug gently on each wire to confirm a solid connection. - 7
Reattach switch to float arm
Mount the new switch onto the float arm or bracket so the float movement will trigger the switch without binding. Ensure the arm has free movement and does not rub on the pit wall.
Tip: Test motion by manually lifting the float to confirm the switch engages. - 8
Restore power and perform a dry test
With the system still uncovered, restore power and observe the switch behavior without water in the pit. Confirm the pump would energize when the float rises but does not energize when there is no water.
Tip: If the pump does not respond, recheck wiring and mounting alignment. - 9
Simulate water and test cycling
Fill the basin slowly to simulate rising water. Watch for the pump turning on at the designated float level and turning off as the basin drains. Listen for smooth cycling with no buzzing and ensure any alarm triggers work.
Tip: Monitor for overheating or unusual smells during the test. - 10
Final checks and cleanup
Power down again, recheck all connections, reinstall lids, and confirm clear discharge path. Reconnect power and perform a final test. Document the date of replacement for future maintenance.
Tip: Keep a maintenance log for quick reference next season.
FAQ
Can I replace a sump pump switch myself or do I need a licensed electrician?
If you are comfortable with basic electrical work and follow safety steps, you can replace the switch. It is important to know the local codes and to use proper protective equipment. If you are unsure, consult a professional.
You can replace it yourself if you are comfortable with basic electrical work and follow safety steps. If you are unsure, contact a professional.
What are common signs of a failing sump pump switch?
Common signs include erratic cycling, the pump running constantly, failure to start, or the float sticking. Be alert for unusual noises or beeping from the control panel.
Common signs are erratic cycling, constant running, or the pump not starting when needed.
Is it safe to test the switch by pouring water into the sump pit?
Only perform tests after power is off and the pit is prepared. Use a controlled approach to simulate water rise and observe pump response. Do not splash water on wiring.
Only test after power is off and with caution. Simulate water rise slowly and watch the pump response.
How long does a sump pump switch typically last?
Lifespan varies by use and maintenance. With regular checks and clean water, a switch can last several years. If you notice frequent cycling, replace it earlier to avoid failures.
A switch lasts several years with proper care. Replace if you see signs of wear or frequent cycling.
Will a replacement switch fit all sump pumps?
Not always. Check the pump model, voltage, amperage, and mounting style. Bring the old switch or its specs to compare with the new unit.
Not always. Check model, voltage, and mounting type before buying a replacement.
What should I do if the pump still floods after replacement?
Recheck the wiring and float movement, inspect the discharge path for clogs, and verify that the pit is not filling from a separate source. If unresolved, seek professional help.
If floods continue, check the wiring and discharge path and consider professional help if needed.
Watch Video
Top Takeaways
- Verify switch compatibility before replacement
- Power off and test all wires for safety
- Follow a clear, step by step wiring plan
- Test thoroughly to prevent floods
- Document maintenance for future reliability
