How to Change a Sump Pump: A Complete Step-by-Step Guide

Why Changing a Sump Pump Might Be Necessary

A sump pump is a key line of defense against basement flooding. Over time, pumps wear out, seals degrade, and performance dips, especially after power outages or heavy rainfall. If your pump runs constantly, rattles loudly, fails to start, or loses prime, it’s a strong sign that replacement is needed. The Sump Pump Check team recommends evaluating both the unit and the related discharge plumbing when deciding to change the system. Treat each failure as a signal to plan a full replacement rather than quick fixes, which can leave you vulnerable to a flood. Regular maintenance and proactive replacement save money in the long run and protect your home’s structure.

In many homes, a replacement can be completed within a morning, depending on the pit depth and pipe layout. A modern pump with a higher efficiency rating and a properly sized backup option often reduces future service calls and water damage risk. Keeping records of pump replacements helps with future repairs and resale value. According to Sump Pump Check, a thoughtful upgrade now can pay off with lower energy use and fewer outages over the pump’s life.

Assessing Your Current System and Goals

Before buying a replacement, assess the existing setup. Note the pump’s horsepower rating, the size of the sump pit, the pipe diameter, and whether a check valve is installed. If the current unit is older than 7–10 years or frequently clogs with debris, a replacement is likely warranted. Think about your goals: increased reliability, reduced maintenance, backup power capability, or improved discharge flow. With a clear plan, you can select a model that matches your basement size, water table, and typical rainfall patterns. The Sump Pump Check analysis emphasizes aligning specifications with your home’s drainage needs to avoid undersizing or oversizing the pump.

Safety First: Planning Your Replacement

Safety is non-negotiable when changing a sump pump. Work with the power off, at the main circuit breaker, and never touch electrical components with wet hands. Verify the area around the sump pit is dry and well-lit. Create a clean workspace with towels or a small bucket to catch residual water. If you have a basement with limited clearance, measure the pit and assess access height to ensure the new pump will fit and operate freely. Planning reduces the chance of surprises during installation and minimizes downtime.

Tools and Materials You'll Need (Overview)

You’ll gather tools and parts before you start. A new sump pump should be matched to your pit size and discharge capacity. Essential materials include PVC pipe or flexible hose for discharge, a check valve, PVC cement, Teflon tape, and hose clamps. Have a wrench, adjustable pliers, screwdrivers, a level, a bucket, towels, silicone sealant, and appropriate safety gear ready. This overview helps you assemble a comprehensive toolkit so you can complete the job in one session.

Step-by-Step Replacement Overview

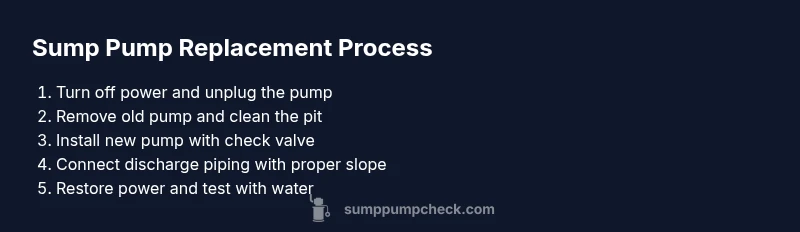

The replacement typically follows a straightforward sequence: power off, remove the old unit, clean the pit, prepare the new pump with fittings and check valve, install the new pump, connect the discharge piping, restore power, and run a test. Each stage has its own nuances depending on your pump model and pit configuration. Refer to the manufacturer’s instructions for exact torque and orientation guidance. The goal is a leak-free, properly aligned system that starts reliably when water enters the pit.

Removing the Old Pump Safely

Start by cutting power at the breaker and unplugging the unit. Detach the discharge line from the old pump, then disconnect the pump from the float switch and any mounting hardware. Gently lift the unit out of the pit, supporting it to avoid splashing. Inspect the pit for sediment buildup and wipe it clean. Safely dispose of the old unit according to local guidelines. Taking a careful approach prevents damage to the new pump and keeps the work area clean.

Installing the New Pump Correctly

Place the new pump into the pit, ensuring the intake sits level and the float switch can move freely. Attach the discharge pipe fittings, including a new check valve if required, and seal threaded connections with Teflon tape. Make sure the impeller has a clear path and that the pump will sit stably without rocking. If your kit includes a gasket or mounting bracket, install it according to the manufacturer’s directions to avoid vibrations. A proper fit reduces noise and wear over time.

Connecting the Discharge and Check Valves

Connect the discharge piping to the pump, ensuring a smooth path with minimal bends. Install the check valve in the correct orientation to prevent backflow into the pit. Use PVC cement or appropriate adapters to secure joints, then tighten clamps and verify there are no leaks. Route the pipe to the exterior per local code, maintaining a downward slope away from the foundation. This step is critical to prevent water from re-entering the pit and to ensure efficient drainage.

Reconnecting Power and Testing the System

Plug the pump back in and restore power at the breaker. Position the float so the pump starts at the desired water level. Pour a small amount of water into the pit to trigger the pump and observe that it runs smoothly and shuts off when the pit is drained. Listen for vibration and check for leaks around joints. If anything sounds off or you see leaks, power down again and recheck connections. A successful test confirms your replacement is functioning as intended.

Maintenance Tips to Extend Pump Life

Create a regular maintenance routine: inspect the unit every 3–6 months, clean the pit, and verify the float operation. Replace the check valve every few years or if you notice backflow. Keep the discharge path clear of debris, and consider a battery backup for power outages. Document maintenance dates to stay on top of service needs. A proactive approach reduces emergency calls and improves long-term reliability.

Common Pitfalls and How to Avoid Them

Avoid undersizing the pump by selecting a unit that matches your basement’s needs. Don’t skip the check valve, which can create siphoning and backflow. Ensure all connections are watertight and that the pump sits level in the pit. Finally, make sure you test the system under realistic conditions, not just with a dry pit, to validate operation before sealing the work area.
