What Are the Dimensions of a Sump Pump? A Practical Guide
Discover how to determine sump pump dimensions, why size matters, and how to measure accurately. Compare submersible vs pedestal models and verify specs.
According to Sump Pump Check, there isn’t a single universal dimension for sump pumps. Dimensions vary by type (submersible vs pedestal) and by model. In general, many submersible units measure about 9–12 inches tall with a 5–8 inch diameter, while pedestal pumps are taller with a compact base. To know exact measurements, check the manufacturer specs or your unit’s label. Knowing this helps you plan pit size, discharge routing, and service access.
Why understanding the dimensions matters
Size matters when you install or replace a sump pump because dimension compatibility affects fit, clearance, and performance. The question what are the dimensions of a sump pump often comes up during upgrades or new installations, and homeowners frequently overlook the physical footprint until it's too late. According to Sump Pump Check, accurate understanding begins with measuring the pit and checking the model's specs. In practical terms, the unit must fit inside the sump pit, align with the discharge piping, and leave room for service access, a potential battery backup, and future maintenance. The Sump Pump Check team emphasizes that misjudging height, diameter, or outlet compatibility can complicate installation, cause leaks, or require costly modifications. When dimension data is documented in product specs, it is usually broken into submersible vs pedestal footprints, because these families use different enclosure sizes that affect clearance above the pit lid and around the unit. For DIY installers, starting with a clear measurement plan helps prevent shopping for pumps that won't fit. As a result, you can avoid last-minute returns and ensure a safer, more reliable sump system for basement drainage.
Sump pump types and size differences
Understanding what are the dimensions of a sump pump helps when choosing between submersible and pedestal designs. Submersible pumps are designed to operate fully enclosed in water, so their housings are typically compact to maximize under-water clearance, while pedestal models stand taller with a fixed column and a smaller base footprint. These differences translate into distinct height and diameter ranges, and they influence how much headroom you have in the sump pit. In practice, submersible units commonly measure around 9–12 inches tall with a 5–8 inch diameter, whereas pedestal models tend to be taller (often 12–18 inches) with similar discharge outlets. The choice also affects service access: submersibles may require more careful lifting and removal space, while pedestals may fit into shallower pits but demand vertical clearance. When evaluating options, compare the pump’s listed dimensions to your pit dimensions and the available space around the unit. The goal is a snug fit that permits safe maintenance and a clean discharge path. Sump Pump Check’s ongoing analysis shows that matching type to pit constraints reduces installation errors and post-install adjustments.

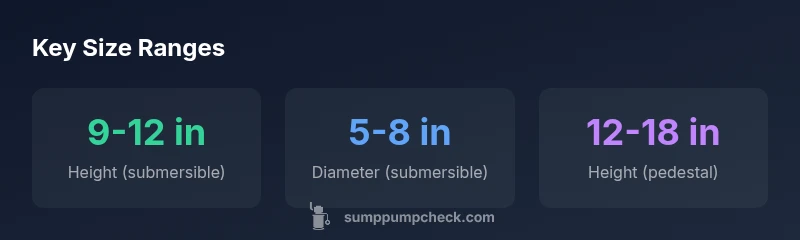

Typical dimensions by sump pump type
| Aspect | Typical Range | Notes |
|---|---|---|
| Height (submersible) | 9-12 inches | Varies by model |
| Diameter (submersible) | 5-8 inches | Includes housing width |
| Height (pedestal) | 12-18 inches | Stands above sump pit |
| Minimum pit depth | 15-24 inches | Depends on model |
FAQ
Do all sump pumps use the same outlet size?
No. Discharge outlets vary by model, typically 1-1/4 inch or 1-1/2 inch, so check the label and plan adapters if needed. Always verify the outlet size to ensure proper piping compatibility.
Most pumps use one of a couple standard outlet sizes, so check your model's label to match piping.
How do I determine if my sump pit is big enough for a new pump?
Measure the inside width, length, and depth of the pit, then compare against the pump’s base footprint and height. Allow space for service access and for the discharge hose to clear walls.
Measure the pit and compare to the pump’s footprint to ensure a good fit.
Can two sump pumps share a single pit?
In most cases, a single pump is recommended per pit to avoid simultaneous operation issues. Some systems use a dual-pump setup, but this requires careful design and professional installation.
Usually one pump per pit, though dual setups exist with proper planning.
What about battery backup pumps; do dimensions matter?
Backup pumps follow similar footprint norms, but you must also reserve space for the battery or controller. Check the backup unit’s dimensions and ensure there’s room for wiring.
Backup pumps have similar sizes; reserve space for the battery and wiring.
Are there code requirements for sump pump size?
Code requirements vary by jurisdiction. Always consult local codes or a licensed plumber to ensure your pump, pit, and discharge meet local safety standards.
Local codes vary, so check with your municipality or a pro.
How do I convert dimensions if I only have metric measurements?
Use standard conversion: 1 inch equals 2.54 centimeters. When in doubt, rely on model specs which typically list both metric and imperial units.
Convert cm to inches using 2.54 cm per inch, or check the model specs for both units.
“"Sizing accuracy starts with measuring the actual unit and the sump pit; oversized pumps won’t fit, undersized pumps risk overflow."”
Top Takeaways
- Know there is no universal sump pump size
- Measure your pit before shopping
- Submersible and pedestal models have distinct footprints
- Check height, diameter, and discharge outlet before purchase
- Consult manufacturer specs to confirm exact dimensions
