What a Sump Pump Looks Like: A Practical Visual Guide
A practical visual guide explaining what a sump pump looks like, including common designs, components, and installation cues for basements. Learn to distinguish submersible and pedestal models and how they sit in the sump pit.

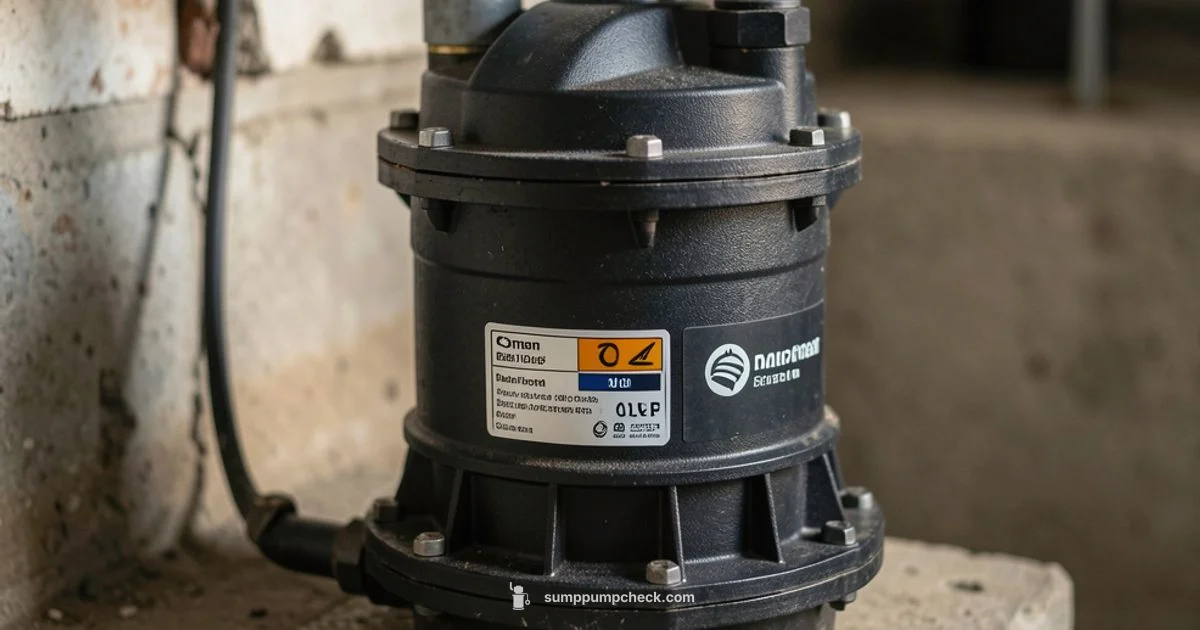

What does sump pump look like is a question about the typical appearance of a sump pump. A sump pump is a compact electric device installed in a basement sump pit, featuring a motor, a float switch, and a discharge outlet.
What does sump pump look like in practice
A sump pump sits in a dedicated basin or sump pit, usually buried in the floor or set flush with the basement slab. When someone asks what does sump pump look like, the answer focuses on a few core visual cues: a compact electric motor housed in a small body, a vertical discharge pipe, and a float mechanism that rises with water level. In residential basements you will typically see either a submersible pump completely submerged in the pit or a pedestal pump with the motor mounted above the pit. Both styles share the same purpose and many design features, but the visible parts differ. According to Sump Pump Check, the most common appearance among typical home installations is a compact, practical unit that fits in a shallow pit and connects to a discharge line. The exact shape varies by manufacturer, yet the overall silhouette — a small, boxy motor with an intake screen and a pipe for drainage — remains recognizable to homeowners and inspectors. The key takeaway is not perfection of shape but recognition of the essential components and their placement within the pit. The goal of this look is simple: reliably move water out of the pit before it can accumulate and threaten the foundation.
Types and visual design
Sump pumps come in two primary configurations that influence how they look: submersible models and pedestal models. Submersible pumps are designed to sit entirely within the sump pit and are usually compact cylinders or rounded housings that are meant to stay underwater most of the time. Pedestal pumps have a vertical structure where the motor housing sits above the pit, leaving the pump column and float visible. Both designs are built to a similar standard: a durable housing, an intake screen that protects the impeller, and a discharge outlet that channels water away from the home. The external appearance can vary by brand and material, with common options including cast iron and reinforced plastics. With age, deposits from minerals or dirt can alter color or texture, but the basic silhouette—whether you can see the top of the motor or only a small circular base—remains recognizable. When surveying appearance, look for mounting brackets, the discharge elbow, and any attached valves that help prevent return flow. Remember that the goal is to identify the basic components and how they’re arranged in the pit, not to memorize every model shape.
Visual cues you might notice in installation
In most basements, a sump pump is integrated with a short section of piping and a flexible hose, all connected to a discharge path leading away from the foundation. If you can peek into the pit, you may observe the motor housing, the float switch mechanism, and the inlet screen feeding water to the impeller. Submersible pumps will appear mostly level with the pit floor, with a sealed housing that sits just below the water surface. Pedestal pumps, by contrast, expose a column or vertical frame rising from the base, often with a visible top cover. The discharge line may terminate at a wall, a sump drain, or an exterior outlet, and some setups include a check valve to prevent backflow. The hardware around the pump—pipes, clamps, and brackets—also clues you in to its configuration. As the unit ages, you might notice mineral buildup or corrosion on metal parts, which can slightly change how the pump looks while maintaining its fundamental form.
How to identify a sump pump in your home
Locating a sump pump often means checking the lowest parts of the basement or crawl space, where a concrete pit or basin houses the device. Look for a circular or square pit with a grating or cover that lifts to reveal the pump. The top of a pedestal pump is usually visible above the pit edge, while a submersible unit hides most of its body within water. A discharge pipe will run from the pump toward a drainage area, often through a wall or toward an exterior opening. If you’re unsure whether a visible unit is a sump pump, inspect for a perforated intake screen on a circular or rectangular housing and a vertical discharge outlet—these are typical features that betray the equipment’s purpose.
Visual checklist for DIY inspection
Use this quick visual checklist to assess a sump pump’s appearance during DIY inspection: look for a compact housing, confirm the presence of a float switch, verify the discharge line is secure and directed away from the foundation, and check for a visible check valve or plumbing fittings. Note whether the unit is submersible or pedestal, as this changes which parts will be visible. Make sure any visible labels—brand, model, voltage—are readable so you can verify installation compatibility and maintenance needs. If you notice cracks, excessive corrosion, or a misaligned discharge pipe, these signals may indicate the need for maintenance or replacement.
FAQ
What does a sump pump look like?
A sump pump is a compact electric device installed in a sump pit, with a motor housing, float switch, and a discharge outlet. Submersible models sit in water, while pedestal models stand above the pit. Visual cues include the housing and the pipe work connected to the unit.
A sump pump is a compact electric device in a basement pit, either submerged or mounted above the pit, with a motor housing, float switch, and discharge pipe.
What are the main types of sump pumps?
The two primary types are submersible pumps that operate quietly inside the pit and pedestal pumps that keep the motor above the pit. Both perform the same function but look different in how much is visible above the pit edge.
The main types are submersible and pedestal sump pumps, differing mainly in how much you can see above the pit.
Can I tell a sump pump just by looking at it?
You can often tell by looking for a compact motor housing, a float mechanism, and a discharge outlet. The exact appearance varies by model, but the basic components and their arrangement are recognizable.
Yes, you can usually spot a sump pump by its motor housing, float switch, and discharge pipe, though exact shapes vary.
What should I inspect on the discharge pipe?
Check that the discharge pipe is firmly connected, leads away from the foundation, and has a path clear of obstructions. This ensures efficient water removal and reduces the risk of backflow.
Make sure the discharge pipe is hooked up correctly and directs water away from the house.
Do sump pumps sit above ground?
Most pumps sit in a pit inside the basement. Pedestal models have part of the motor above the pit, which makes some features visible above ground, while submersible models are mostly hidden in the pit.
Most sit in a pit, but pedestal models have the motor visible above the pit.
How does maintenance affect appearance?
Maintenance mainly keeps the pump functioning and the pit clean. Appearance changes come from deposits or wear on the housing, but the core look and key components remain recognizable.
Regular maintenance keeps it looking and working well, with deposits being the main visual change.
Top Takeaways
- Identify the core components: motor housing, float switch, discharge outlet
- Know the two main designs: submersible and pedestal
- Check the discharge pipe routing to keep water away from foundations
- Regular inspections help maintain appearance and function
- Recognize brand features without needing model specifics
