Sump Pump Pipe Connection: A Practical Home Guide
Learn how to connect a sump pump discharge pipe safely and effectively. This guide covers sizing, materials, routing, check valves, and maintenance for reliable basement drainage.
By the end, you will be able to connect a sump pump discharge pipe with proper sizing, routing, and backflow protection. According to Sump Pump Check, this guide covers choosing pipe material and diameter, installing a check valve, and securing connections to prevent leaks and freezing. You’ll also learn common mistakes and basic maintenance for reliable basement drainage.
Understanding Sump Pump Pipe Connections and Why Proper Discharge Matters

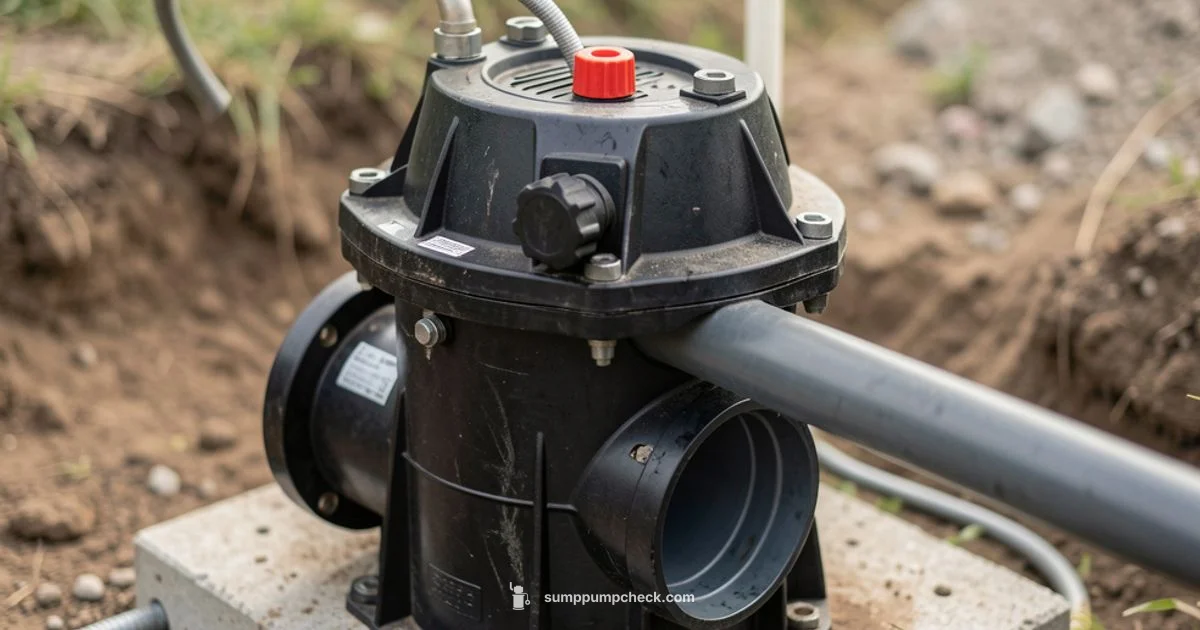

A sump pump pipe connection is the junction where the pump’s outlet meets the discharge piping that carries water away from your foundation. A well-designed connection prevents leaks, backflow, and clogs, and it helps keep your basement dry during heavy rains. Proper discharge routing ensures water is expelled to a safe location and does not re-enter the sump or accumulate near the foundation. According to Sump Pump Check, the most common failures occur where piping is undersized, poorly joined, or inadequately supported. In practice, this means choosing correct pipe size, using compatible fittings, and securing joints. The time you invest in planning can save you headaches later. Start by mapping the pump outlet, measuring the run to the exterior, and noting any corners or transitions where leaks tend to occur. This upfront planning lays the groundwork for a reliable and code-compliant discharge system.
Sizing and Material Choices for Discharge Piping
Discharge piping is not one-size-fits-all. The pipe diameter must match the sump pump outlet and the local drainage code. Common residential setups use about 1-1/4 inch to 1-1/2 inch pipes for gravity discharge, with larger pumps sometimes requiring bigger lines. PVC is favored for its smooth interior and chemical resistance, while ABS can be used in certain installations. When choosing materials, prioritize compatibility with the pump fittings, outdoor fixtures, and the type of soil in your yard. Also consider the environment—exposed outdoor runs should resist UV and temperature changes, while buried lines require proper trenching and backfill. If you expect occasional freezing, plan for insulation or routing to reduce exposure.
Essential Components for a Reliable Discharge System
A dependable discharge system combines thoughtful routing with sturdy hardware. The core components include the sump outlet adapter, discharge pipe, check valve, and appropriate fittings (couplings, elbows, and unions). A check valve is essential to prevent water from flowing back into the sump pit when the pump shuts off. Use solvent-weld joints for PVC runs and reserve rubber couplings (Fernco) to bridge mismatched sizes or materials. Secure clamps or supports every few feet to prevent sagging. Finally, keep the discharge end clear of debris and plant growth, ensuring a clear path away from the foundation.
Routing and Drainage Strategies to Prevent Freezing and Backflow
Plan your route to keep the discharge line away from walkways and building openings. Aim for a continuous, gravity-driven slope (roughly 1/4 inch per 10 feet) so water drains away without pooling. Avoid sharp bends and multiple elbows, which can trap sediment and increase head loss. Whenever possible, terminate the pipe above grade to minimize freezing risk. If parts of the run must go below grade, bury with frost-resistant materials and insulate exposed sections. Finally, ensure the discharge ends at a location that does not create nuisance water or flood neighboring areas.
Planning Your Installation: Routes, Elevation, and Codes
Start with a site survey: locate the sump outlet, map the shortest practical route to the exterior, and confirm that your chosen discharge location complies with local codes. Determine the required pipe diameter, then confirm you have compatible fittings for transitions (e.g., from square to round outlets). Consider future yard work or landscaping that could alter the route. If you live in an area with freezing winters, plan for insulation and a weep-free connection at joints. Finally, obtain any necessary permits or inspections as needed in your jurisdiction.
Common Installation Mistakes and How to Avoid Them
Common mistakes include skipping a check valve, using undersized pipe, and failing to secure the run properly. Leaks often occur at joints that were not fully cured or where cement was not applied correctly. Sagging pipe allows standing water and clogs; always support the line with brackets or straps. Routing the pipe too close to the foundation or around the house can cause erosion or water ingress. Avoid discharging into areas where people walk or where the water could pool on sidewalks. Finally, never bury a vent or drainage pipe without a proper surface break.
Maintenance, Inspection, and Troubleshooting Tips
Set a yearly reminder to inspect the discharge piping for cracks, leaks, and clogs. Look for signs of corrosion or UV damage on external runs, and ensure the check valve moves freely when the pump runs. Test the system by pouring water into the sump and watching the discharge for proper flow; listen for unusual sounds that may indicate a loose joint. Clear any debris near the outlet and ensure the drain area remains free of obstructions that could redirect flow toward the foundation. Regular maintenance reduces the risk of basement flooding.
Safety, Codes, and Permitting Considerations
Always disconnect power before working on electrical components near water. Follow manufacturer installation instructions and your local building codes. In some regions, discharge piping must terminate in a permitted drainage route or a storm sewer; in others, there are distance requirements from the foundation. If you are unsure, consult a licensed plumber or the local building department. Safe handling and proper labeling of the sump pump and its discharge line help prevent accidents.
When to Upgrade or Replace Piping Components
Age and wear are natural factors that reduce piping effectiveness. If you notice frequent leaks, brittle joints, discolored water, or reduced discharge flow, it may be time to upgrade components. Corrosion, freezing damage, and root intrusion can compromise the pipe run; upgrading to modern PVC or HDPE piping and higher-quality fittings often yields greater reliability. Consider upgrading the check valve and supports as part of a full replacement if the system has aged beyond its useful life.
Troubleshooting Quick-Reference Checklist
- Check for visible leaks along joints and fittings after operation.
- Verify the discharge path is clear and free of obstructions.
- Confirm the check valve is installed in the correct orientation and functions when the pump starts and stops.
- Ensure the pipe is properly supported and has the proper slope away from the house.
- Inspect exposed piping for UV damage or cracking, especially in sunny locations.
- Test the system with a controlled water input to verify consistent drainage.
- If freezing occurs, add insulation or reroute to reduce exposure to cold weather.
Tools & Materials
- Discharge pipe (PVC or ABS, 1-1.5 inches)(Diameter should match pump outlet and local code.)
- PVC primer and cement(For PVC joints; ensure good ventilation.)
- Check valve (1-1.5 inch)(Install close to the sump outlet; ensure orientation.)
- Flexible rubber coupling (Fernco)(Bridges mismatched sizes or materials.)
- Pipe cutter or fine-toothed saw(Cuts clean; deburr edges.)
- Measuring tape(Accurate length measurements.)
- Marker(Mark cut lines.)
- Pipe supports/clamps(Prevent sagging; spacing per code.)
- Safety gloves(Protection from sharp edges and cement.)
- Shut-off valve (optional)(Can isolate system during maintenance.)

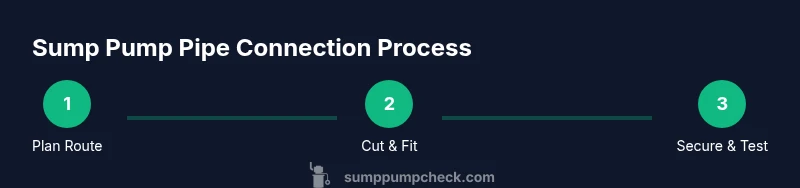

Steps
Estimated time: 1-2 hours
- 1
Plan route and measurements
Before cutting, survey the sump outlet and determine the shortest practical route to the exterior. Mark the path with a marker and measure run length, noting any obstacles. This step reduces guesswork and helps you order the correct fittings.
Tip: Use a chalk line or string to maintain a straight line and avoid unnecessary bends. - 2
Gather materials and confirm codes
Collect all required components and verify compatibility with local codes and your pump outlet. Double-check that pipe diameter, fittings, and the check valve match the manufacturer's requirements.
Tip: Check the pump’s manual for outlet size and recommended fittings. - 3
Cut discharge pipe to length
Cut the pipe to fit the planned route, leaving a little extra for adjustments. Deburr the cut edges to prevent leaks and ensure a clean fit.
Tip: Use a sharp saw and a deburring tool for smooth edges. - 4
Install check valve near outlet
Mount the check valve as close to the sump outlet as code allows, ensuring correct orientation to prevent backflow when the pump stops.
Tip: Test valve movement by manually pressing to confirm it opens and closes freely. - 5
Assemble with proper joints
Join pipes with primer and cement on PVC runs, or use rubber couplings where materials differ. Secure each joint with clamps or straps.
Tip: Avoid over-tightening to prevent cracking and leaks. - 6
Secure and slope the pipe
Support the pipe along the route at regular intervals to prevent sagging. Maintain a continuous slope away from the foundation (roughly 1/4 inch per 10 feet).
Tip: Check slope with a level or string line to ensure consistency. - 7
Test the system
Fill the sump and run the pump to observe discharge flow and joints. Look for leaks, backflow, or unusual noises and correct as needed.
Tip: Have towels handy and be prepared to shut off power if you see a leak. - 8
Finalize discharge location
Direct the outlet to a safe area away from the house, sidewalks, and foundations. If winter is a concern, consider insulating exposed runs.
Tip: Document the route for future maintenance or landscaping changes.
FAQ
What diameter pipe should I use for a sump pump discharge?
Typically, residential sump pumps use about 1-1/4 to 1-1/2 inch pipe, but always verify your pump outlet size and local code. The goal is a smooth interior for efficient flow and a proper fit with fittings.
Most pumps use around one and a quarter to one and a half inch pipe; always match the outlet size and local codes.
Is a check valve required for sump pump piping?
A check valve is highly recommended to prevent backflow into the sump pit when the pump stops. It helps maintain system efficiency and reduces wear on the pump.
Yes, a check valve is recommended to stop backflow and protect your system.
Can I discharge onto the lawn or street?
Discharge should direct water away from the foundation and into an approved drainage area. Local codes may restrict where water can be discharged, so check before routing the pipe.
Direct away from your home and follow local rules about where water can go.
How can I prevent freezing of the discharge pipe in winter?
Insulate exposed pipe sections, and if possible, route above grade or to a protected area. For long runs, consider heat tape or adding insulation to reduce freezing risk.
Insulate exposed pipes and keep the discharge above ground when you can.
How do I test the discharge system after installation?
Run the sump pump and watch for leaks or backflow. Check the discharge end to ensure water clears the area away from the foundation and there are no clogs.
Run the pump and inspect all joints for leaks and proper flow.
What safety steps should I take during installation?
Power off the pump and any related electrical circuits before working. Wear eye protection and gloves, and keep the work area dry to reduce shock risk.
Shut off power and wear protection to stay safe during installation.
Watch Video
Top Takeaways
- Plan the route before cutting to avoid waste.
- Use correct pipe size and compatible fittings.
- Install a check valve to prevent backflow.
- Secure and slope piping away from the foundation.
- Test the system and perform regular maintenance.
