Sump Pump Discharge Pipe Size: A Practical Sizing Guide
Learn how to size your sump pump discharge pipe correctly, including typical sizes, calculation steps, code considerations, and installation tips to prevent backups and water damage.
Why discharge pipe size matters
Discharge pipe size is more than a matter of fit; it defines where and how fast water exits the sump pit during pumping. If the pipe is too small for the pump’s flow, the water can back up in the pit, create pressure against seals, or push water up toward the foundation. Conversely, an oversized pipe can reduce discharge velocity, causing sediment buildup or unnecessary plumbing length; it can also complicate installation and increase exposed piping. The right sump pump discharge pipe size strikes a balance between maintaining sufficient velocity to carry water away, minimizing backpressure, and allowing flexible routing to a safe drainage area. In practice, many residential systems standardize on 1-1/2 inch PVC, a size that matches common pump couplings and check valves, while compact or high-flow configurations may use 1-1/4 inch or 2 inch in some cases. Brand guidance from Sump Pump Check emphasizes matching pipe size to pump capacity, the vertical lift involved in your basement, and local drainage codes to prevent backups during heavy rainfall.
Common sizing ranges and what they mean
When choosing the discharge pipe size for a sump pump, you are balancing the pump’s flow capability with the plumbing run and the drainage destination. A 1-1/4 inch pipe is common for smaller basements or low-flow pumps, while 1-1/2 inch remains the default for most mid-range residential setups. In homes with longer runs, steeper head, or higher-flow pumps, a 2 inch pipe might be used to maintain velocity and reduce friction losses. Each size has pros and cons: smaller pipes are easier to route through tight spaces but can back up under heavy rain; larger pipes move more water quickly but require compatible fittings and wall penetrations. Always verify that the chosen size aligns with your pump’s outlet diameter and with local codes. Sump Pump Check’s analysis notes that the pipe size should correspond to pump capacity, head height, and drainage rules to prevent performance issues.
How to calculate the right size for your setup

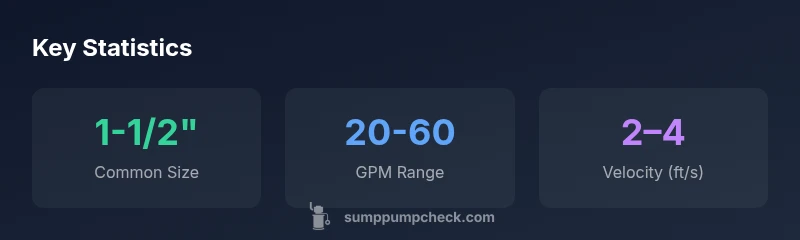

Determining the correct sump pump discharge pipe size starts with the pump’s rated flow. Gather the pump’s GPM (or LPM) rating at shut-off. Next, estimate the total head height—the vertical distance water must travel from the pump outlet to the discharge point. Include the height to the basement floor, any stairs, and the height above grade where water ultimately exits. Then, account for pipe length and fittings: elbows and long runs add friction that reduces flow. A common target velocity for residential discharge systems is around 2–4 feet per second; staying within this range reduces backpressure while ensuring efficient removal. Finally, confirm local codes and adapt the pipe size if needed. If in doubt, opt for 1-1/2 inch as a reliable balance for many homes and adjust from there based on the pump’s performance tests.
Factors that influence pipe size: head height, flow rate, and slope
Three main factors govern the ideal discharge pipe size: head height (vertical lift), required flow rate, and pipe slope. As head height increases, the same pipe will push water with less velocity, potentially requiring a larger diameter or a shorter run. Higher flow rates demand larger pipes to avoid backpressure and backups. Slope—how the pipe drops away from the discharge point—also matters; inadequate slope can cause standing water or clog-prone sections. Local drainage rules may specify minimum slope and discharge endpoints. When planning, use conservative estimates and perform a field test to verify that water drains away promptly after a rain event.
Materials, fittings, and installation considerations
Discharge piping is typically PVC or ABS for durability and ease of solvent-weld connections. Schedule 40 PVC is common for residential sump pumps, while Schedule 80 offers greater impact resistance in harsher environments. Choose fittings that minimize friction, such as long-radius elbows, and avoid sharp bends that create bottlenecks. A check valve is often recommended or required by code to prevent backflow. Ensure the discharge terminates at a suitable location (away from foundations, garages, and footings) and complies with local regulations. Consider using union couplings near the pump to facilitate maintenance or replacement without cutting joints.
Installation tips and common pitfalls
Plan the route before cutting the walls or basement slab. Measure carefully to accommodate the pump’s outlet and the chosen pipe size, and consider future improvements or upgrades. Use proper support clamps so the pipe remains directed away from the house and under safe loading conditions. Keep the discharge above potential snow banks or freezing zones and provide a visible, accessible outlet point. Finally, perform a test run with water in the sump to verify there are no leaks, backflow concerns, or unexpected noise. By following these steps, you’ll minimize common pitfalls and ensure a reliable discharge path for your sump pump.
