Pedestal Sump Pump Installation: Step-by-Step Guide
Learn to install a pedestal sump pump safely with a practical plan. This guide covers planning, essential tools, step-by-step installation, maintenance, and troubleshooting for reliable basement drainage.
This pedestal sump pump installation guide helps you install a pedestal unit safely and effectively, protecting your basement from flooding. You’ll learn required tools, planning essentials, a clear step-by-step sequence, and maintenance tips to extend life. Follow local code and safety rules, such as grounding and GFCI protection, and test the system after completion.
Why pedestal sump pump installation is a smart choice
According to Sump Pump Check, pedestal sump pumps are a practical option for many basements because the motor is mounted above the sump, making service easier and reducing water exposure to critical electrical components. Pedestal units typically offer straightforward access for annual checks and maintenance, while providing reliable pumping performance for typical residential drainage. When sized correctly for your sump pit, a pedestal pump can minimize vibration and noise, helping you maintain a quieter basement environment. In addition, pedestal designs often fit smaller pits or awkward spaces where submersible models would be bulky. This section lays the groundwork for a successful installation by outlining why many homeowners choose pedestal pumps, what to verify before buying, and how to plan for long-term reliability. It also highlights common mistakes to avoid during the sizing and selection phase, so you enter the installation with confidence. For readers of this guide, Sump Pump Check emphasizes careful measurement, compatible accessories, and adherence to local code requirements before proceeding.
Pedestal vs. submersible: Pros and cons
A pedestal sump pump sits above the sump and is easier to service, while submersible models live in the pit and are often more compact in operation. Pedestal pumps tend to be more accessible and can be more affordable upfront, but they may expose the motor to temperature fluctuations in unheated spaces. Submersibles hide the motor and typically run quieter but require removing the pump to service. The choice depends on your pit depth, space around the pit, climate, and desired maintenance frequency. Sump Pump Check analysis shows pedestal configurations excel when installation space is limited and regular inspections are planned, while submersibles are preferred for deep pits or very tight headroom. Consider your climate, pit depth, and how often you’re willing to service the pump when deciding which type fits your basement best.
Planning your installation: space, pit size, and drainage
Before purchasing a pedestal sump pump, measure your pit dimensions, the available clearance above the pit, and the path for the discharge line. Confirm that your basement floor and walls can accommodate the vertical clearance needed for the pedestal housing, and decide where the discharge line will exit to prevent backflow toward the foundation. Check local codes for plumbing connections and electrical requirements, including GFCI protection and venting considerations. Plan for a future backup pump if you live in flood-prone areas; this gives you resilience during power outages and heavy rain events. With a solid plan, you’ll minimize surprises during the install and ensure reliable operation for years. This block also covers how to confirm pit compatibility with your chosen pedestal model and how to triple-check measurements before buying.
Drainage routing and discharge considerations
Route the discharge pipe away from the foundation and toward a certified drainage area. Use a check valve to prevent backflow and seal joints with appropriate cement and tape. Ensure the pipe is sloped slightly downward away from the pit to prevent standing water, and avoid running the discharge line through walls or floors where leaks could occur. If your basement has a finished ceiling, plan for cleanouts and access panels. Sump Pump Check recommends verifying both the intake and outlet areas for any potential obstructions. This section provides diagrams and tips for choosing the right pipe diameter and fittings to simplify future maintenance.
Electrical safety and backup options
Use a dedicated GFCI-protected circuit for the sump pump, and never share the outlet with a sump or other devices. Install a weatherproof switch or a power disconnect for maintenance, and consider a battery-backed sump pump as a backup during power outages. If you choose a water-powered backup, follow the manufacturer’s installation steps closely. Avoid using extension cords; hardwired connections reduce tripping hazards. This section also explains how to verify that the outlet and circuit can handle the pump’s startup surge and how to test the backup option safely.
Maintenance and long-term care after installation
Perform regular inspections every 3-6 months, checking for leaks, corrosion, worn hoses, and the integrity of the check valve. Clean the inlet screen and verify the float switch operates smoothly through a full pump cycle. Schedule annual professional inspections or more frequent checks if groundwater intrusion is significant in your area. Keep replacement parts handy and store spare gaskets and valves in a labeled container. This block shares a simple maintenance calendar and troubleshooting checklist to help you catch issues before they cause a flood.
Authoritative sources
For additional guidance and code considerations, consult trusted sources such as the Environmental Protection Agency (EPA) and Occupational Safety and Health Administration (OSHA). These authorities provide general guidelines on water management, electrical safety, and safe plumbing practices that complement homeowner knowledge. EPA: https://www.epa.gov/ OSHA: https://www.osha.gov/ Industry extensions and university resources can provide region-specific best practices. If you need hands-on help, you can also refer to extension resources from state universities for local recommendations: https://extension.illinois.edu/
Tools & Materials
- Pedestal sump pump unit(Select a model with automatic float switch and appropriate horsepower for your pit size.)
- Discharge pipe (PVC, 1-1/2 inch)(Matches plumbing and check valve size; plan angled routing.)
- Check valve(Prevent backflow into the pit; ensure correct orientation.)
- PVC cement and primer(For watertight joints and long-term reliability.)
- Rubber gaskets, hose clamps, and PVC fittings(Secure connections and accommodate routing changes.)
- Pipe wrench and adjustable wrench(Tighten fittings safely without stripping threads.)
- Screwdriver set(Mounting hardware and hose clamps.)
- Tape measure(Accurate pit dimensions and pipe placement.)
- Teflon tape(Seal threaded connections to prevent leaks.)
- GFCI outlet and weatherproof cover(Provide dedicated, safe power supply for the pump.)
- Power cord strain relief(Use if running a cord pressurised along a wall.)
- Backup sump pump (battery or water-powered)(Optional for outages; improves resilience.)
- Personal protective equipment (gloves, eye protection)(Protect during cutting, drilling, and wiring.)

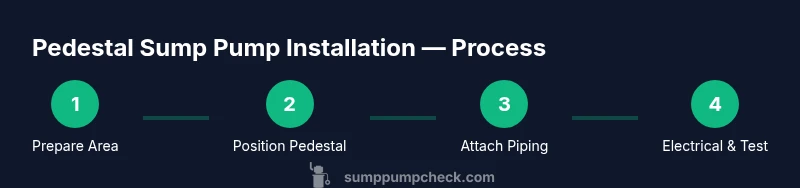

Steps
Estimated time: Total time: 2-4 hours
- 1
Prepare the work area
Shut off power to the existing sump pump line at the main panel, disconnect any power source, and remove debris from the pit. Wear PPE and ensure the area is well-ventilated. This protects you from shocks and accidental injuries during the install.
Tip: Double-check the circuit breaker with a non-contact tester before touching wires. - 2
Disconnect and remove old pump (if replacing)
If you are replacing an old unit, carefully detach it from the pit, cap or disconnect the discharge line, and pull the unit free. Photograph wiring before removing to help re-installation, and set the old pump aside for disposal.
Tip: Label electrical wires to avoid mix-ups during reassembly. - 3
Position the pedestal and confirm height
Place the new pedestal pump over the sump pit, ensuring the motor housing sits above the water line and there is adequate clearance for maintenance. Use a level to verify vertical alignment and mark mounting points.
Tip: Verify that the top of the pedestal sits at a height convenient for routine checks. - 4
Install discharge piping and check valve
Cut and assemble the discharge pipe to reach the outside exit with a slight downward slope away from the foundation. Install the check valve in the correct orientation to prevent backflow, then seal all joints with PVC cement and primer.
Tip: Avoid sharp bends; use gentle elbows to minimize head loss. - 5
Connect electrical supply and add protection
Run a dedicated, GFCI-protected circuit to the sump location. Attach the power cord, or hardwire with a proper strain relief, and install a disconnect switch for maintenance access.
Tip: Do not share the circuit with lighting or outlets that could be switched off inadvertently. - 6
Test the pump and check for leaks
Pour water into the pit to trigger the float switch and observe the pump’s operation. Check the discharge line for leaks and confirm water is exiting away from the foundation. Address any leaks promptly.
Tip: Listen for unusual noises and feel for excessive vibration during the first run. - 7
Finalize installation and plan maintenance
Secure all wiring, clean up the work area, and label the system. Create a maintenance schedule for periodic checks and keep spare parts handy.
Tip: Record install date and model information for future service.
FAQ
Do pedestal sump pumps require a pit?
Yes. A pedestal sump pump is installed in a sump pit or basin. The pit should be clean and large enough to accommodate the pedestal and float.
Yes, a sump pit is necessary for pedestal units; ensure it’s clean and sized to fit the pedestal and float.
What pit depth is recommended for pedestal pumps?
Depth depends on the model you select. Always follow the manufacturer’s installation specs for pit dimensions and clearance.
Depth varies by model—follow the manufacturer’s specs for your unit.
Can I install a pedestal sump pump myself?
If you have basic plumbing and electrical skills, you can install it yourself. For complex layouts or uncertain codes, consider hiring a professional.
If you’re comfortable with basic plumbing and electrical work, you can do it, but don’t hesitate to hire a pro if you’re unsure.
What safety steps are essential during installation?
Turn off power, use a GFCI outlet, wear PPE, and verify there are no live wires near water. Follow local code requirements for plumbing and electrical connections.
Turn off power, use a GFCI, wear PPE, and follow local codes for electrical and plumbing work.
How do I test the pedestal pump after installation?
Pour water into the pit to raise the float and trigger pumping. Observe discharge and ensure water exits away from the foundation with no leaks.
Pour water to trigger the float and test the discharge path for leaks and direction.
What maintenance is recommended yearly?
Inspect for leaks, clean the inlet, test the float, and verify the check valve. Replace worn parts as needed and keep a simple maintenance log.
Check leaks, clean the inlet, test the float, and maintain parts on a yearly schedule.
Watch Video
Top Takeaways
- Plan layout and pit compatibility before buying parts.
- Install on a dedicated, GFCI-protected circuit for safety.
- Test thoroughly after installation to verify operation.
- Consider a backup sump pump for outages.
