How to Replace a Pedestal Sump Pump: Step-by-Step Guide
Learn how to replace a pedestal sump pump with a safe, practical plan. From planning and tools to installation and testing, this comprehensive guide helps homeowners upgrade for reliability and basement dryness in 2026.
By following this guide, you’ll replace a pedestal sump pump safely and effectively. You’ll identify compatibility, shut off power, remove the old unit, install a new pedestal pump with proper discharge connections, reconnect wiring and float switch, and run a thorough test to confirm drainage and alarm functions in under a few hours.
When to replace a pedestal sump pump
A pedestal sump pump protects basements from water intrusion, but even the best units wear out. If your pump is aging, unreliable, or failing to remove water efficiently, replacement is often the best long-term fix. This decision is especially important in climates with heavy spring rains or rapidly rising groundwater. According to Sump Pump Check, older pedestal models tend to lose performance over time and may become less reliable during storms. If you notice frequent cycling, unusual grinding noises, a constant buzzing, cracks in the housing, or water leaks around the base, plan for replacement rather than costly repairs. Before you replace, verify whether the discharge line, check valve, and power supply are compatible with a new unit. A planned upgrade can improve reliability, energy efficiency, and basement dryness, reducing the chance of repeated basement flooding.
Key features to evaluate in a replacement
Choosing the right pedestal sump pump involves more than just matching horsepower. Consider the pump's pumping capacity (gallons per hour at your head height), the switch type (vertical float vs. external), energy efficiency, and the fit with your existing discharge piping. The design of the pedestal base and mounting height matter for clearance under stairs or shelves. The check valve size and piping diameter influence flow and leak prevention. Look for features like corrosion-resistant housing, robust seals, and a reliable float switch with a proven track record. Sump Pump Check analysis notes that selecting a model with adequate head pressure and a compatible discharge setup reduces the risk of backflow and short-cycling, especially if you have a long discharge run. Also consider a backup system or a battery backup for power outages in flood-prone areas.
Safety and planning before you begin
Safety first. Shut off the circuit breaker feeding the sump pump and unplug the unit before touching any wiring. If your system shares a GFCI outlet, test and reset as needed after installation. Clear the work area of clutter and place towels or a pan to catch dripping water. Have a flashlight handy for dark basements and wear protective gloves. Check local codes for sump pump venting and drainage requirements; some jurisdictions require backflow prevention devices or specific piping arrangements. Prepare the new pump on a stable work surface, confirm the power cord length and the height clearance under the sump cover, and ensure you have the correct tools and replacement parts. If you’re uncertain about wiring, consult a licensed electrician. Sump Pump Check emphasizes planning any replacement around a dry, well-lit area to minimize risk and avoid rushed mistakes.
Discharge and plumbing considerations
A pedestal sump pump relies on a proper discharge path to move water away from the foundation. Inspect the existing discharge pipe, check valve, and clamps for signs of wear. If the pipe is cracked, corroded, or too small for the new pump, plan to replace or upsize it. Align the outlet with the existing wall or floor drain and ensure the slope is correct for gravity flow. Use appropriate cement or solvent-weld fittings for PVC pipes, and avoid creating a trap that can clog. In many homes, extending the discharge line above grade reduces the risk of backflow during heavy rain. Confirm that the new check valve is compatible with your piping and that the trench or crawl space around the pipe is clear for service.
Installation and testing (high-level)
Install the new pedestal sump pump by placing it on the base, securing it with the included fasteners, and aligning the discharge outlet with the piping. Connect the power cord to a dedicated circuit or GFCI-protected outlet, and affix the float switch in the correct position so it activates at the intended water level. Attach the discharge line, check valve, and any adapters, then seal threaded joints and test for leaks. Fill the sump with a small amount of water to confirm the float rises properly and the switch triggers the pump. Finally, connect any backup system if you have one and run a full test by pouring water into the pit to simulate a normal storm scenario. If you notice leaks or improper cycling, recheck fittings and clearances.
Maintenance after replacement and expected outcomes
With a replacement pedestal sump pump, plan for routine maintenance: test monthly, clean the inlet screen, inspect the power cord and outlet, and check the discharge path for blockages. Keep replacement parts on hand and periodically test the backup battery if you have one. Document the installation date and the model so you can track service life. If you experience repeated failures, consider professional evaluation and a sump pump check-up. The goal is reliable operation during the next heavy rain, reducing the risk of basement flooding and water damage.
Tools & Materials
- New pedestal sump pump (replacement)(Select a model with compatible outlet and float switch)
- Discharge check valve (compatible with piping)(Prevent backflow into the sump pit)
- PVC piping or ABS/CPVC pipes (as needed)(Match existing diameter, typically 1-1/2" or 1-1/4")
- PVC primer and solvent cement(For secure pipe connections)
- Teflon tape and pipe sealant(Seal threaded connections)
- Hose clamps or fittings(Secure discharge line to fittings)
- Channel-lock pliers(For loosening/tightening fittings)
- Adjustable wrench(Alternative to pliers)
- Screwdriver set(Mounting hardware and clamps)
- Silicone sealant or plumbers putty(Optional sealant for extra leak protection)
- Bucket or catch pan(To catch water during removal)
- Safety gloves and eye protection(Protect hands and eyes during work)

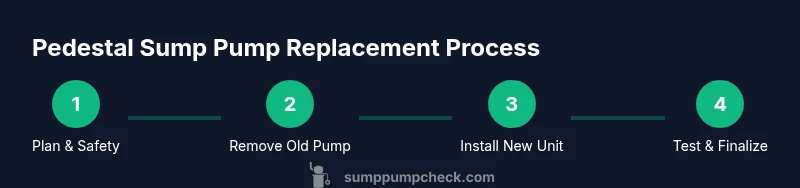

Steps
Estimated time: 2-3 hours
- 1
Shut off power and prepare workspace
Locate the sump pump circuit breaker and switch it off. Unplug the unit from its outlet. Clear the area, lay towels, and ready a bucket for potential spills. Confirm the area is dry before touching any components.
Tip: Always verify power is off by attempting a quick test with the pump housing away from water. - 2
Drain and disconnect the old pump
Remove any water from the sump pit using a bucket or wet/dry vac. Disconnect the discharge line and, if present, the float switch wiring from the old unit. Take photos of the connections for reference during reassembly.
Tip: Label wires or take multiple angles to avoid confusion during re-installation. - 3
Remove the old pedestal and clean the pit
Unbolt or lift the old pedestal from its base. Clean any sediment from the pit walls and bottom. Inspect the pit for cracks or deterioration that could affect a new seal.
Tip: Use a flashlight to inspect for cracks; address any structural issues before installing the new pump. - 4
Install mounting base and place new pedestal
Position the new pedestal on the base, ensuring level seating and proper clearance. Secure the pedestal with the provided hardware. Confirm the float switch will operate freely without obstruction.
Tip: Verify the pedestal is plumb and level before tightening screws. - 5
Attach discharge piping and check valve
Connect the discharge line to the new pump’s outlet and install the check valve in the correct orientation. Use primer and cement for PVC connections and seal threaded joints with tape or sealant.
Tip: Keep the discharge path straight and gently sloped away from the foundation. - 6
Connect power and test the float
Plug the pump into a GFCI outlet or dedicated circuit. Position the float so it rises with water and triggers the pump at the intended level. Run a test by pouring water into the pit and observe full operation.
Tip: Always test with water before finalizing the installation to confirm no leaks. - 7
Finalize and document
Secure all connections, tidy up hoses, and replace the sump cover. Note the model, installation date, and maintenance plan for future reference. Schedule periodic checks and consider a backup system if you’re in a flood-prone area.
Tip: Keep a small spare parts kit handy for quick future repairs.
FAQ
Can I replace a pedestal sump pump myself, or should I hire a professional?
If you have basic plumbing and electrical skills, you can complete a pedestal sump pump replacement by following a structured guide. However, if wiring, gas or complex drainage work is involved, or if you’re unsure, hire a licensed professional to ensure safety and code compliance.
If you’re comfortable with basic plumbing and electrical tasks, you can replace it yourself following a guide. For uncertain or complex work, consider a professional.
Should I replace the discharge piping during replacement?
Yes, inspect the discharge piping and check valve for wear. Replace damaged or undersized piping to prevent backflow and ensure optimal drainage with the new pump.
Yes—replace any worn or undersized discharge piping to ensure proper drainage with your new pump.
What maintenance should I do after replacement?
Test the pump monthly, clean the inlet, inspect the cord and outlet, and check the discharge path for blockages. Replace worn parts and keep a maintenance schedule for reliability.
Test monthly, keep it clean, and check the discharge path regularly.
What’s the difference between pedestal and submersible pumps?
Pedestal pumps stand above the pit with the motor on a column, making some maintenance easier. Submersible pumps sit underwater and can be quieter but harder to access for service.
Pedestal pumps sit above the water; submersibles are underwater, each with pros and cons.
How long does installation typically take?
A typical replacement can take several hours, depending on pit condition, piping changes, and electrical accessibility.
Most replacements take a few hours, depending on setup.
Watch Video
Top Takeaways
- Plan compatibility before buying a replacement.
- Secure a proper discharge and check valve.
- Test thoroughly to confirm operation and sealing.
- Maintain the pump regularly to extend life.
