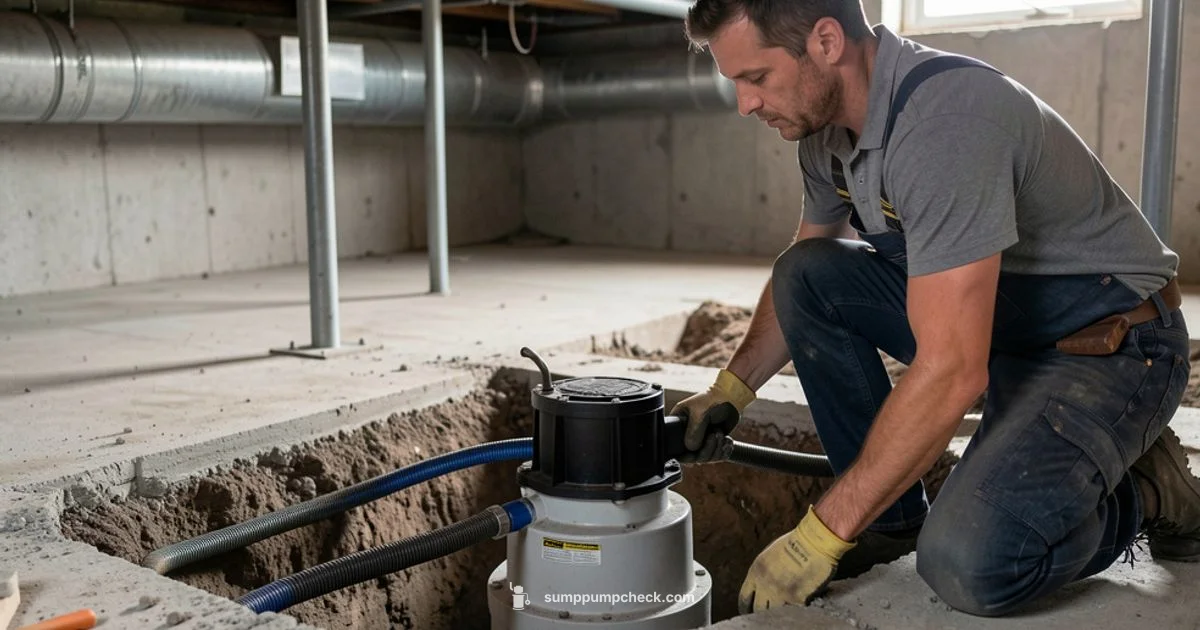

How to Put a Sump Pump in a Crawl Space
A practical, code-conscious guide to installing a sump pump in a crawl space, covering planning, material choices, discharge routing, electrical safety, testing, and maintenance to prevent moisture and flooding.
By following this guide, you’ll learn how to put a sump pump in crawl space safely and effectively. You’ll plan the layout, choose the right pump and discharge method, install a pit and pump, and test the system to prevent flooding. Expect basic tools, vented drainage, and a grounded, GFCI-protected power source.
Why installing a sump pump in a crawl space matters
Crawl spaces are often overlooked moisture hubs that can flood during heavy rain or through groundwater seepage. Without a reliable pump, moisture can condense on wooden structural elements, promote mold growth, and lead to costly repairs. A properly installed sump pump helps move water away from the foundation, reducing humidity and the risk of mold, wood rot, and basement flooding. According to Sump Pump Check, many homeowners underestimate crawl-space vulnerability, especially in areas with high rainfall or fluctuating water tables. The right strategy includes selecting an appropriately sized pump, an effective pit, a secure discharge path, and a backflow-preventing check valve. This article focuses on how to put a sump pump in crawl space safely, emphasizing pit placement, electrical safety, drainage routing, and routine maintenance. The result is a system that runs automatically, triggers when water is detected, and minimizes ongoing maintenance. Planning for power supply placement, code compliance, and an accessible layout is essential for long-term reliability. Avoiding a poorly chosen setup reduces the risk of electrical hazards and improper discharge that could damage landscaping. A thoughtful plan yields a safer, drier crawl space.
How to put sump pump in crawl space: an overview
The core idea behind putting a sump pump in crawl space is straightforward: control water before it enters living areas. Start by sizing the pump for the space and potential water volume, then install a pit, connect a discharge line that leads water away from the foundation, and wire the unit to a protected power source. You’ll want a pump with a float switch that activates automatically, a durable cover for the pit, and a check valve to prevent backflow. Safety considerations include using a GFCI outlet, securing electrical connections, and ensuring the discharge route does not cause erosion or frost damage. Local codes may require permits or inspections, so check with your jurisdiction. Proper ventilation and a clean pit are also important for reliable operation. This overview serves as a roadmap; detailed steps follow in the STEP-BY-STEP section.
Pre-installation considerations and site assessment
Before you start digging or drilling, assess the crawl space for water intrusion patterns, soil stability, and potential utilities. Identify an optimal pit location away from support beams and footings, with a clear path to the exterior or a suitable drainage line. Confirm access for pump installation and maintenance, including headroom for service and a feasible route for discharge piping. Electrical readiness matters: plan for a dedicated, grounded circuit with a GFCI outlet in a dry location. Inspect the space for moisture sources other than groundwater, such as plumbing leaks or HVAC condensate, and address those issues to reduce unnecessary pump cycling. If your home has a sump previously installed, evaluate whether upgrading or repositioning will improve performance. Document measurements and sketches to guide the actual installation.
Tools, materials, and pit preparation
Having the right tools and materials on hand reduces frustration and keeps the project on track. This section covers essential items and pit setup details that support a smooth installation. You’ll need a sump pump (submersible is common for crawl spaces), a sump basin or pit, a check valve, appropriate discharge piping (PVC), a sealant or epoxy for sealing joints, PVC primer and cement, Teflon tape, a mounting bracket, a gorilla plug or drain plug for the pit, protective covers, a GFCI-protected outlet, and basic hand tools. Pit location should accommodate the chosen pump size and provide clearance for maintenance. Create a clean, dry workspace by removing debris, and consider laying down a moisture barrier in the crawl space to reduce future dampness. The goal is to prepare a dry, accessible work zone with no trip hazards.

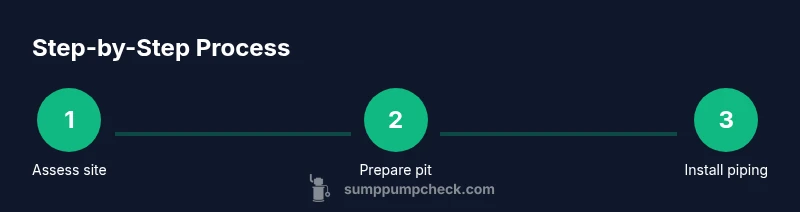

Step-by-step overview (how to put sump pump in crawl space: detailed sequence)
- Plan and verify: Confirm local code requirements, pump sizing, and discharge route. Measure the crawl space height and determine the pit dimensions. Ensure a safe power source is available nearby. Tip: Map utilities and keep a clear exit path for service.
- Choose and prepare the pit: Select a pit that fits the pump and space, then cut or create a pit cavity in the crawl space floor. Add a gravel bed to stabilize the pit bottom and promote drainage. Tip: Use a level to keep the pit aligned with piping.
- Install discharge piping: Run a discharge pipe from the pit to a suitable exterior outlet or drainage point. Install a check valve to prevent backflow, and maintain a gentle slope away from the foundation. Tip: Keep the pipe above possible freeze lines if exposed to cold weather.
- Position and connect the pump: Set the pump in the pit, connect the suction and discharge lines, and secure the pump against movement. Attach the float switch and verify operation. Tip: Mount the pump so the float rises freely without obstruction.
- Wire safely: Connect to a GFCI-protected outlet or hard-wired circuit as required by code. Use strain relief, proper cable routing, and weatherproofing if any portion is outside. Tip: Turn off power at the breaker before making connections.
- Test the system: Pour water into the pit or simulate groundwater intrusion to verify activation, discharge, and cycling behavior. Listen for abnormal noises or leaks and adjust. Tip: Check all joints for leaks and confirm the discharge path is clear of obstructions.
- Final checks and documentation: Secure all components, replace the pit cover, and note maintenance intervals. Ensure accessibility for servicing and test again after major rain events. Tip: Take photos for future reference.
Testing, maintenance, and safety reminders
Once installed, a thorough test validates performance and safety. Activate the pump with water in the pit, observe the float operation, confirm the discharge ejects water away from the foundation, and check for leaks in joints. Regular maintenance includes cleaning the pit, inspecting the check valve, and testing the float annually or after unusual rainfall. Keep electrical safety front and center: use a GFCI outlet, protect wiring from moisture, and never modify electrical components beyond manufacturer guidelines. Consider scheduling yearly inspections to catch wear, changes in moisture levels, or potential blockages in the discharge line. If you notice inconsistent pumping, clogged vents, or unusual noises, pause use and re-check connections. A well-maintained sump pump in crawl space will reduce moisture behind walls and improve indoor air quality.
Common pitfalls and troubleshooting (avoid these mistakes)
• Incorrect pump sizing for crawl space flood risk can lead to frequent cycling or failure to activate. • Skipping a check valve can cause backflow and repeated pump strain. • Placing the discharge pipe too close to the foundation or in a way that re-enters the crawl space undermines the system. • Neglecting electrical safety, such as omitting a GFCI or improper wiring, creates serious hazards. • Sealing the pit without a vent or cover can trap heat and mold. • Failing to test after rainfall means you won’t know if the system works when it’s needed.
You’ll find that careful planning, correct component selection, and deliberate installation reduce the likelihood of recurring issues. The Sump Pump Check team emphasizes following manufacturer instructions and local codes for long-term reliability. With proper care, your crawl-space sump pump will help keep moisture at bay and protect your home’s structure. The Sump Pump Check team recommends scheduling regular maintenance and annual inspections after installation to ensure continued performance.
Authority sources
- https://www.osha.gov
- https://www.epa.gov/iaq
- https://extension.illinois.edu
mainTopicQuery: crawl space sump pump
Tools & Materials
- Sump pump (submersible or pedestal)(Choose a model rated for continuous operation and suitable for crawl spaces (check wattage and head pressure).)
- Sump pit/basin(Select a pit size compatible with your pump, with a secure lid.)
- Check valve(Prevents backflow into the pit when the pump turns off.)
- Discharge piping (PVC, 1 1/2 in or 1 1/4 in)(Run to exterior or approved drainage; include proper slope.)
- PVC cement and primer(Seal joints for a leak-free system.)
- Teflon tape(Seal threaded connections on discharge and fittings.)
- GFCI-protected outlet(Install on a dry location; use weatherproof cover if needed.)
- Float switch(Ensure smooth, unobstructed float movement.)
- Pit lid and mounting hardware(Keep debris out and prevent accidental entry.)
- Sealant/foam(Seal gaps around pit and piping; use sparingly to avoid trapping moisture.)
Steps
Estimated time: 2-4 hours
- 1
Plan and site survey
Evaluate crawl-space conditions, measure available space, and identify a pit location that avoids structural members and utilities. Confirm code requirements and power access before you begin.
Tip: Document measurements and create a rough layout to guide installation. - 2
Choose pump and pit size
Select a pump with adequate head pressure and a pit that fits the space while leaving room for maintenance. Consider future water load and climate factors.
Tip: Avoid undersized pumps; better to choose a pump with some margin for peak rainfall. - 3
Prepare the pit and base
Clear debris, create a stable gravel base, and position the pit so the outlet aligns with the planned discharge route. Ensure level placement.
Tip: Use a level during placement to prevent misalignment later. - 4
Install discharge piping
Run the pipe to the exterior or designated drainage, with a consistent slope away from the foundation. Install the check valve to prevent backflow.
Tip: Keep pipe runs short and direct to minimize clogs and freezing risk. - 5
Mount the pump and connect lines
Lower the pump into the pit, connect intake and discharge lines, and secure connections. Attach the float switch per manufacturer instructions.
Tip: Test clearances to avoid impingement on the float. - 6
Electrical wiring and final test
Connect to a GFCI outlet with proper strain relief. Power up, test the system with water in the pit, and verify discharge flow.
Tip: Always cut power at the breaker before wiring and double-check ground fault protection.
FAQ
Is it safe to install a sump pump in a crawl space by myself, or should I hire a professional?
Installing a crawl-space sump pump can be done by a handy DIYer who follows electrical safety and local code requirements. If you’re unsure about wiring or permits, consult a licensed electrician or plumber.
Yes, DIY is possible for many homeowners, but electrical work may require a licensed professional.
What size sump pump do I need for a crawl space, and how do I size it?
Sizing depends on space, rainfall, and groundwater flow. A larger pit and pump handle higher water volume and reduce cycling. Reference manufacturer guidelines and consider a backup pump for severe weather.
Size depends on water volume and the crawl space area; follow the manufacturer’s sizing chart.
Where should the sump discharge go when installed in a crawl space?
Discharge water should be directed well away from the foundation, ideally to a storm drain, exterior ground, or drainage system that carries water away from footings.
Direct the water far from your home’s foundation to prevent re-entry or erosion.
What maintenance tasks are needed after installation?
Regularly clean the pit, inspect the check valve, test the float, and confirm electrical safety. Schedule annual checks or after major storms.
Keep the system clean, test it annually, and check for wear.
Do I need a backflow preventer or check valve?
Yes. A check valve prevents backflow into the pit when the pump stops, reducing wear and preventing water from re-entering the crawl space.
A check valve is important to prevent backflow and protect the crawl space.
Watch Video
Top Takeaways
- Plan the layout before digging or drilling
- Choose appropriately sized pump and pit
- Ensure safe electrical setup (GFCI)
- Test system under realistic conditions
- Maintain annually for long-term reliability
