How to Install a Sump Pump Check Valve: DIY Guide
Practical, step-by-step instructions for installing a sump pump check valve with safety tips, troubleshooting, and maintenance guidance.
Learn how to install a sump pump check valve to stop backflow and protect your basement. This guide covers valve types, sizing, and safety steps, plus tools you’ll need and common installation mistakes to avoid. Follow the step-by-step process to ensure a reliable, maintenance-friendly setup. From turning off power to testing leaks, this quick answer points you toward the full tutorial.
The purpose of a sump pump check valve
A sump pump check valve prevents backflow from the discharge line into the sump basin, protecting your pump and basement from sediment and pressure. If you're wondering how to install a sump pump check valve, understanding its function is the first step. A properly sized and oriented valve reduces backflow and helps keep the pump primed during heavy duty flows. According to Sump Pump Check, the right valve choice can cut backflow incidents by a noticeable margin in typical basement setups. The valve should be installed on the discharge pipe, downstream of the pump, and oriented so that water flow pushes the valve closed when the pump stops. There are two common types—swing check valves and spring-loaded check valves—and both must be matched to your pipe size and vibration tolerance. Always verify local code requirements before you begin, because some areas require specific valve types or mounting methods.
Types of sump pump check valves and compatibility
Sump pump check valves come in a few common varieties. Swing check valves allow water to flow in one direction and rely on gravity to close, while spring-loaded valves use a small spring to ensure rapid shut-off. The key compatibility rule is to match the valve to your discharge pipe diameter and the pump’s outlet. Most homeowners encounter 1-1/2 inch or 1-1/4 inch pipe sizes, but your system may differ. Another consideration is the placement relative to the pump and to any existing unions or elbows. Orientation matters: the valve should face downstream in the direction of water flow, with the hinge pin or spring mechanism oriented away from the pump to minimize stress. If you’re replacing an old valve, remove the old hardware carefully and clean the connection before installing the new valve.
Safety, codes, and planning before you start
Before you begin the installation, ensure electrical safety and water management best practices. Turn off power to the sump pump circuit and disconnect the plug from the outlet. If your system is in a flooded or damp basement, wait for the area to dry and ventilate. Wear gloves and eye protection, and work with the discharge line supported to prevent stress on the pump. Check with local building codes—some municipalities require a vented valve for certain sump configurations and some require a specific valve type or mounting method. If you’re in a multi-story home or in a region with freezing temperatures, consider insulation and protection against pipe freezing. For complex systems or where water lines are hard to access, consult a licensed plumber or a sump pump professional.
Practical overview of the installation steps
Installing a valve typically follows a straightforward sequence: measure the discharge pipe, cut to length, apply primer and solvent cement if you’re using PVC, and then screw the valve onto the pipe with a clocking slip fit. The valve should be placed on the discharge side of the pump and secured with clamps and protective sleeves if needed to avoid vibration. Be mindful of the valve’s orientation; the flow arrow on the body should point away from the pump. If you must add a union or coupling due to long pipe runs, ensure a clean, dry connection and test fit before applying adhesive. When in doubt, dry-fit the components first and double-check pipe alignment to minimize leaks.
Post-install checks and maintenance
After installing, restore power and run a functional test. Slowly pour water into the sump pit while watching the discharge pipe and valve; the valve should close promptly when the pump stops. Look for any leaks around the connections and ensure the valve does not backflow when the pump is off. Periodic testing is recommended—at least every six months—so you can catch wear, corrosion, or stiff springs before they fail. Use a serviceable check valve that you can inspect or replace with minimal downtime. For homes with crawl spaces or basements with extreme temperature swings, inspect the valve more frequently to catch brittleness or seal wear early.
Troubleshooting, common mistakes, and tips
Common mistakes include choosing the wrong valve size, mounting the valve upside down, or not securing the discharge line adequately. To avoid backflow issues, ensure the valve is oriented correctly and that the fittings are tight without over-tightening. If you notice repeated leakage or backflow during test runs, check the orientation, inspect the sealing surface for nicks or debris, and replace defective gaskets. Pro-tip: use Teflon tape on threaded connections and allow solvent cement to cure fully before testing. If your climate experiences freezing, drain the line during winter to prevent valve damage. Regular maintenance will extend the life of your valve and keep your sump pump working reliably.
Authoritative sources and further reading
For safety and guidance, consult established resources:
- OSHA: https://www.osha.gov
- Extension services: https://extension.illinois.edu
- NFPA: https://www.nfpa.org
Tools & Materials
- Sump pump check valve (new)(Match discharge pipe size; common sizes are 1-1/2" or 1-1/4".)
- PVC pipe cutter or saw(For cutting discharge pipe cleanly.)
- PVC primer and solvent cement (or silicone sealant)(Well-sealed joints are essential.)
- PVC pipe(Choose length to fit from pump to discharge exit.)
- Clamps or hose clamps(Secure valve to pipe, avoid leaks.)
- Teflon tape or pipe thread sealant(Seal threaded connections.)
- Marker and measuring tape(Mark cut lines and valve orientation.)
- Safety gloves and eye protection(Protect yourself during cutting and adhesive work.)
- Bucket and rags(Cleanup and containment.)
- Silicone sealant-compatible grease(Optional lubrication for O-rings.)

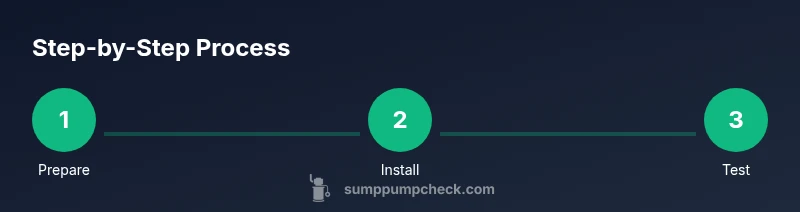

Steps
Estimated time: 60-90 minutes
- 1
Shut off power and relieve pressure
Turn off the sump pump circuit breaker and unplug the pump. If the pit contains water, wait until it’s safe to drain by opening a nearby vent or using a bucket to remove standing water. This prevents electrical shock and makes the valve installation safer.
Tip: Verify the circuit is de-energized with a non-contact tester before touching wires. - 2
Prepare and measure the discharge line
Measure the pipe length to accommodate the valve and cut a straight section on the discharge line. Dry-fit the valve first to ensure proper alignment and orientation with the water flow path.
Tip: Keep cuts square to avoid misfit joints. - 3
Cut and deburr the pipe as needed
Use a pipe cutter or saw to create a clean cut. Deburr edges so the valve seats properly and there are no burrs that could compromise the seal. Clear any chips from inside the pipe.
Tip: Lightly deburr with sandpaper or a deburring tool for a smooth edge. - 4
Install the valve onto the discharge pipe
Slide the valve onto the pipe with the flow arrow pointing away from the pump. Dry-fit and then apply primer and solvent cement (PVC) or plumber's tape and silicone sealant to threaded connections as appropriate.
Tip: Ensure valve is oriented correctly and sits parallel to the pipe. - 5
Secure and seal the joints
Attach clamps at each joint and apply sealant or cement as required. Allow adhesive to cure fully before testing the system.
Tip: Do not over-tighten clamps; this can deform the pipe. - 6
Reconnect power and test the system
Plug the pump back in and restore power. Run water into the sump pit to simulate a pump cycle and observe valve action. Check for leaks and ensure the valve closes when the pump stops.
Tip: Test with a full sump capacity to mimic real conditions. - 7
Final inspection and routine maintenance
Inspect the valve after 24 hours of operation and again during routine maintenance. Confirm there is no backflow and the discharge line remains secure. Schedule semi-annual checks.
Tip: Keep a maintenance log for the valve condition.
FAQ
Why do I need a check valve on a sump pump?
A check valve prevents backflow from the discharge line into the sump basin, protecting the pump and reducing basement flooding. It also helps maintain pump priming during cycles.
A check valve blocks backflow and protects your basement from flooding, and helps the pump stay primed.
What’s the difference between swing and spring-loaded check valves?
Swing valves allow water to flow in one direction and rely on gravity to close, while spring-loaded valves use a spring to close quickly, which can minimize backflow. Choose based on pipe size, space, and noise considerations.
Swing valves close by gravity; spring-loaded valves close fast with a spring. Choose based on your setup.
How do I know which size valve to buy?
Match the valve to your discharge pipe diameter and pump outlet. Many homes use 1-1/2 inch or 1-1/4 inch pipes, but verify with a measurement of the existing pipe.
Size the valve to match your pipe; measure diameter before purchasing.
Can I install the valve myself or should I hire a pro?
If you’re comfortable with basic plumbing and electrical safety, you can install the valve yourself. For complex configurations or uncertain codes, hire a licensed plumber or sump pump professional.
You can DIY if you’re comfortable with plumbing and safety rules; otherwise, hire a pro.
How do I test the valve after installation?
Pour water into the sump to simulate a pump cycle and observe that the valve closes when the pump stops and doesn’t leak during operation.
Test by simulating a pump cycle and watching for leaks and proper closing.
What maintenance does a check valve require?
Inspect annually for signs of wear, corrosion, or leakage. Replace the valve if the seal becomes stiff or the valve begins to leak.
Inspect annually; replace if worn or leaking.
Watch Video
Top Takeaways
- Identify the correct valve type for your pipe size
- Install with proper orientation to prevent backflow
- Test thoroughly for leaks and backflow after install
- Schedule regular maintenance checks
- Keep your setup compliant with local codes
