Why is Sump Pump Tripping GFCI? Troubleshooting Guide 2026

Understanding GFCI and Sump Pumps

GFCIs are designed to shut off power when a ground fault is detected. In damp basements, moisture can intrude into outlets, cords, and switches, causing the GFCI to trip to protect people from shock. According to Sump Pump Check, placing a sump pump on a dedicated, properly wired circuit with GFCI protection is common practice in many homes, especially where water intrusion is frequent. The goal is safety, but repeated trips indicate a fault path that must be diagnosed and repaired promptly. Start by confirming the pump is on a suitable circuit and that the outlet is in good condition. If you smell burning or see scorch marks, stop immediately and call a licensed electrician.

In many homes, the sump pump shares a circuit with other devices. This can create nuisance trips if the pump draws a surge during startup or if another load is active on the same circuit. If your GFCI trips, don’t assume the outlet is faulty; instead, assess the entire circuit and the pump’s physical condition. A calm, methodical approach saves time and potential electric shock risk.

Common Causes of GFCI Trips with Sump Pumps

There are several frequent culprits behind a GFCI tripping when a sump pump runs. The most common are a damaged or frayed pump cord, moisture inside the outlet or on the plug, or a faulty float switch that allows water to contact live components. Less obvious but real issues include a short inside the pump motor insulation, pinched wires where the cord travels, or metal piping touching the discharge line and creating a ground fault. Sump Pump Check notes that bad weather, high humidity, and a wet electrical box can all contribute to repeated trips. Inspect for signs of water intrusion around the outlet and pump connections, and look for melted plastic or scorch marks that indicate arcing.

Electrical Load and Outlet Considerations

Even with a GFCI, the wrong setup can trigger trips. Use a dedicated 15- or 20-amp circuit for the sump pump and avoid plugging other devices into the same outlet or extension cords. Avoid using standard power strips in damp basements, and never run a pump on an outdoor or partially protected outlet. Ensure the outlet box is sealed, the cover is weather-rated if located in a damp area, and the cord seal remains intact. If the pump is on a multi-outlet circuit, redistribute loads or install a separate circuit to reduce startup surges that can trip the GFCI.

How to Diagnose: A Practical Workflow

Begin with the simplest checks: is the outlet dry, the plug intact, and the cord free from nicks? If yes, reset the GFCI and observe whether the pump starts normally or trips immediately. If it trips, unplug the pump and test the outlet with a known-good device. If the outlet is dry and the other device works, the fault is likely in the pump cord or the switch. If water is present in the sump pit touching the float switch, you may have a leak path. Always verify that the pump’s grounding is intact and that there’s no moisture pooling around the electrical box.

Document each finding so you can share it with a professional if needed. A careful log helps determine whether the problem is intermittent or persistent, which guides the next steps.

Step-by-Step Fixes for the Most Common Cause

1. Safety first: unplug the sump pump and switch off the circuit breaker feeding the pump. 2) Inspect the power cord and plug for cracks, fraying, or discoloration; replace if damaged. 3) Dry out the outlet and receptacle area; reseal the box if moisture is present. 4) Reset the GFCI and plug the pump into a known-good outlet on a dedicated circuit. 5) If the pump still trips the GFCI, test the pump on a different GFCI circuit to confirm whether the problem follows the outlet or the pump. 6) Inspect the discharge line for blockages that can cause the motor to overload, which can also trigger a trip. 7) Consider replacing the pump if it is old or showing signs of insulation breakdown. 8) When in doubt, hire a licensed electrician to perform a thorough inspection.

Tip: Do not replace components blindly; a faulty cord or switch is the most common culprit and can usually be resolved without rewiring.

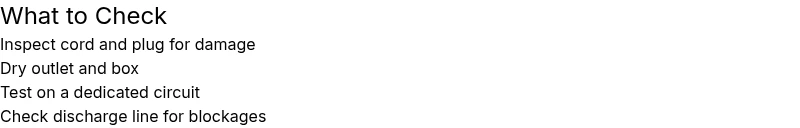

Safety, Testing, and Maintenance: Tips to Prevent Trips

• Keep the sump area dry and free of clutter; moisture is the enemy of electrical connections.
• Use a dedicated GFCI outlet with a weatherproof cover in damp basements.
• Regularly inspect the pump cord, outlet, and switch for signs of wear or damage.
• Do not use extension cords or power strips in the sump pit area.
• If you smell burning or notice sizzling sounds, disconnect power immediately and call a pro.
• Schedule annual maintenance to inspect seals, float switch, and discharge piping for blockages or leaks.

Pro tip: A small upgraded outlet with a separate circuit reduces nuisance trips and improves reliability. Warning: Never bypass a GFCI for any reason; safety first.

Quick Verdict and Next Steps

If your GFCI continues to trip after basic checks, focus on the pump cord and switch first, then the outlet, and finally the circuit load. The Sump Pump Check team recommends consulting a licensed electrician if the trips persist, especially if you notice signs of arcing, burning odors, or moisture intrusion that you cannot confidently resolve. A well-maintained, properly wired sump setup is crucial for basement protection and overall safety.
