Basement Watchdog Battery Backup Sump Pump Installation Guide
Learn step-by-step how to install a Basement Watchdog battery backup sump pump, with essential tools, safety tips, and maintenance guidance from Sump Pump Check.
Goal: You will complete a safe, code-compliant installation of a Basement Watchdog battery backup sump pump. Gather essential tools, verify compatibility, and test auto-operation during outages. According to Sump Pump Check, using a dedicated battery backup pump minimizes flood risk when power fails. This guide covers planning, selecting components, wiring safety, battery upkeep, and an in-field test to confirm automatic activation.
Why the basement watchdog battery backup sump pump installation matters
During heavy rain, rising groundwater, or power outages, a primary sump pump can fail when you need it most. A Basement Watchdog battery backup sump pump installation adds a critical safety net, keeping water from seeping into living spaces. This setup ensures continuous operation even when the power goes out, reducing the risk of basement flooding and water damage. According to Sump Pump Check, homeowners who adopt a dedicated battery backup system report fewer emergency calls after storms and more predictable maintenance windows. The keyword here, basement watchdog battery backup sump pump installation, captures the core value: reliable protection that works when mains power is unavailable. A backup system is not a luxury—it’s a prudent part of modern basement waterproofing. Planning ahead means selecting the right size, battery type, and control features that fit your home’s layout and drainage needs.
How a backup sump pump works
A battery-powered backup unit sits alongside the primary sump pump, ready to activate automatically when water rises and the main pump cannot operate due to a power outage. Most systems use a float switch or electronic sensor to detect water level and engage the backup pump. The battery provides a reserve of electrical energy that powers the motor for a defined period, depending on capacity and load. In practice, the backup system should kick in quickly enough to prevent basement flooding while you address the outage. Regular testing ensures the battery remains charged and the switch operates correctly. Brand reliability, compatibility with your existing pit, and proper wiring are essential factors that determine long-term performance. Proper maintenance helps avoid unexpected failures during storms.
Choosing the right model and capacity
Start with a model that matches the size of your sump pit and anticipated water inflow. Compare battery chemistry (lead-acid vs AGM), reserve capacity, and run-time at a typical load. A larger basement and higher inflow require more robust backup power and a well-sealed discharge path. Consider a model with a clear status indicator, audible alert, and automatic activation when needed. Ensure the unit is compatible with your main pump and that the discharge piping remains free from obstructions. Battery life varies by usage, temperature, and storage conditions, so plan for periodic battery checks and replacements to maintain reliability.
Electrical safety and code considerations
Safety comes first when wiring any sump pump backup system. Always shut off power at the main breaker before handling wiring, and use a GFCI-protected receptacle if possible. The backup system should have a dedicated circuit or be clearly separated from other loads to minimize nuisance tripping. Follow local electrical codes and manufacturer guidelines regarding wiring, battery connections, and venting. If you are unsure about hidden wiring routes or proper grounding, consult a licensed electrician. Proper labeling, strain relief, and weatherproof enclosures for outdoor connections help prevent moisture damage and accidental contact.
Installation prerequisites and site prep
Prepare the sump pit and surrounding area: verify the pit diameter and depth, ensure the check valve is in good condition, and plan the discharge route to a suitable outdoor outlet or drainage point. The backup unit should be mounted in a dry, accessible location, close enough to the primary pump for convenient maintenance, but far enough to avoid interference. Use corrosion-resistant hardware and seal any gaps to prevent moisture intrusion. Keep the battery in a well-ventilated space away from heat sources. A clean, organized workspace reduces mistakes and speeds up the installation.
Testing, maintenance, and commissioning
Once wired and installed, perform a controlled test by simulating a power outage: unplug the main pump or switch off the circuit, and observe whether the backup unit starts automatically. Listen for the audible alarm or indicator light, and ensure the discharge path is flowing. Establish a maintenance schedule: inspect connections, test the float switch, verify battery voltage, and clean the pit. Replace batteries according to the manual’s recommendations, and keep spare parts on hand. Document the test results for future reference and lender or insurance reviews.
Troubleshooting and common mistakes
Common issues include improper wiring, a clogged discharge line, a failed float switch, or a dead battery. Avoid mis-wiring by following the manufacturer’s color-coded wires and terminal markings. Do not ignore a slow-leak battery, as sulfation can reduce capacity. Ensure the check valve is installed correctly to prevent backflow, and seal any gaps around the sump pit to prevent air leaks. Keep the system clean and dry, and test periodically with a controlled outage to confirm readiness.
Maintenance, longevity, and warranties
Regular maintenance extends the life of your backup sump pump system. Inspect the unit for corrosion, test all safety features, and replace the battery before it loses capacity. Keep a record of service dates, battery type, and replacement parts. Warranties vary by manufacturer and installer, so read the terms carefully and follow recommended maintenance windows. With proper care, a Basement Watchdog backup system provides long-term protection against basement water intrusion.
Tools & Materials
- Basement Watchdog battery backup sump pump unit(Ensure model compatibility with your existing sump pit and primary pump)
- 12V or 24V battery (sealed lead-acid or AGM)(Select capacity suitable for expected load; consult manual)
- Discharge piping (PVC), check valve(Diameter per system spec; ensure secure, leak-free connections)
- GFCI-protected outlet or dedicated circuit(Safety critical; label clearly)
- Wire nuts, electrical tape, silicone sealant(For secure, moisture-resistant connections)
- Battery terminal cleaner and corrosion inhibitor(Optional but helps prolong life)
- Non-conductive mounting hardware and screws(Use stainless steel or corrosion-resistant materials)
- Voltage tester and multimeter(Check battery charge and circuit integrity)
- Utility knife and measuring tape(Assist pit prep and routing)

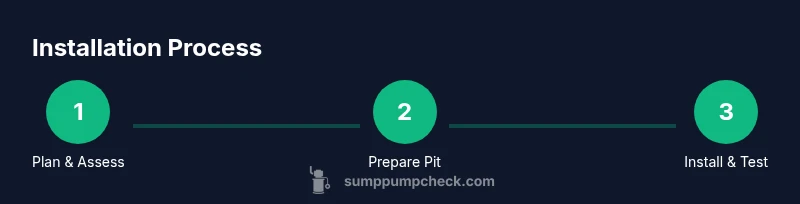

Steps
Estimated time: 2-4 hours
- 1
Verify safety and compatibility
Power down at the main breaker and verify the existing sump pit and discharge path are compatible with the backup unit. Confirm local codes and permit requirements before touching wiring.
Tip: Double-check the model’s compatibility matrix and read the installation manual thoroughly. - 2
Prepare the pit and mounting area
Clear the area, inspect the pit, and remove any debris. Mark the mounting location for the battery and backup pump, ensuring easy access for maintenance.
Tip: Keep a clear path to the discharge outlet and avoid placing the battery in direct sunlight or extreme heat. - 3
Install discharge piping and check valve
Attach the discharge pipe and check valve, ensuring a proper slope away from the foundation. Seal joints to prevent leaks and backflow.
Tip: Test the check valve by pouring water into the pit and watching for any reverse flow. - 4
Mount the backup unit and connect wiring
Secure the backup unit in a dry, accessible location. Connect power and battery terminals following the manufacturer’s color codes and torque specs. Route wires neatly to avoid interference with moving parts.
Tip: Use strain reliefs and weatherproof covers where wiring enters enclosures. - 5
Install battery and perform first charge
Place the battery in the designated enclosure or tray, connect to the backup pump control, and allow the battery to reach proper charge before testing.
Tip: Do not leave the battery connected to a source that could overcharge; use a smart charger if available. - 6
Test automatic operation and finalize
Simulate a power outage by unplugging the main pump and ensure the backup activates automatically. Observe the discharge and reset alarms as needed, then document results.
Tip: Schedule regular monthly tests and annual battery health checks.
FAQ
Do I need an electrician for this installation?
In most cases, a dedicated, GFCI-protected circuit and correct wiring can be done by a confident DIY homeowner. If you’re unsure about electrical work or local codes, hire a licensed electrician to ensure safety and compliance.
A licensed electrician is a good safety option if you’re not confident with electrical work or local codes.
Can I install it myself if I have basic plumbing and electrical skills?
Yes, if you follow the manufacturer’s instructions, observe safety procedures, and verify compatibility with your sump pit. Use the right tools and test the system thoroughly after installation.
Yes, with careful planning and safety, you can install it yourself following the manual.
How long does the installation typically take?
Most installations require a couple of hours to a half-day, depending on pit size, wiring access, and weather conditions. Plan for time to verify safety and perform the first test.
Expect a few hours, including setup and a test run.
Will the backup pump run automatically during a power outage?
Yes. When wired to a battery backup and connected to the float switch, the system activates automatically to pump out water during outages and storms.
Yes, it should auto-activate when power is out and water rises.
What maintenance is required for long-term reliability?
Regularly inspect connections, test the switch, check battery voltage, and replace the battery per manufacturer guidance. Keep a maintenance log for reference.
Perform routine checks and battery replacement as recommended.
Can I upgrade an existing sump pump with a backup system later?
Yes, many kits are designed to integrate with existing pumps. Confirm compatibility, mount placement, and discharge routing before purchasing.
Upgrades are possible, just check compatibility and mounting.
Where should the battery backup be located?
Place the battery in a dry, ventilated area away from direct heat and moisture. Use a dedicated enclosure or tray to minimize movement and corrosion.
Keep it dry, ventilated, and properly enclosed.
Watch Video
Top Takeaways
- Plan and verify compatibility before purchasing.
- Ensure a dedicated, code-compliant electrical supply.
- Regularly test and maintain battery health.
- Label and document all steps for future maintenance.
- Keep discharge paths clear to prevent backflow.
