Sump Pump Battery Backup Install: A DIY Guide
Learn how to install a sump pump battery backup to protect your basement during power outages. This guide covers prerequisites, wiring basics, step-by-step installation, safety tips, and ongoing maintenance.
Goal: Install a sump pump battery backup to keep water removal active during power outages. Core requirements include a compatible backup kit, a transfer switch or automatic switch, proper wiring, and a safe mounting location. This step-by-step guide walks you from assessment to testing and ongoing maintenance for home installers.
Why a Battery Backup Install Matters for Sump Pumps
Installing a sump pump battery backup install is a practical upgrade for homes prone to heavy storms, power outages, or failing municipal power. This solution keeps your sump pump running when electricity is out, dramatically reducing the risk of basement flooding. A battery backup is not a substitute for a robust pump or regular maintenance, but it acts as a critical safety net alongside your primary system. According to Sump Pump Check, upgrading to a backup improves resilience during outages and provides peace of mind for homeowners. In this guide we’ll explore what the backup does, common configurations, and benefits for a DIY-friendly project.
Batteries and Backup Components
A battery backup system for a sump pump typically includes a lead-acid or AGM battery, a transfer switch (automatic or manual), and interconnecting cables and safety hardware. AGM batteries are maintenance-free and often preferred for damp basements. The transfer switch isolates the sump pump from the house wiring so the pump runs on battery power during an outage without backfeeding the main panel. Ensure components are compatible with your pump’s amperage and the switch’s rating. In this setup, the backup kit should connect to the existing outlet or a dedicated circuit while remaining accessible for testing and servicing.
Assessing Your Current System Before Installing
Before you buy any components, take a clear look at your current sump-pump setup. Note the pump's horsepower or flow rating, identify the outlet it uses, and verify whether the circuit has space on the panel for a transfer switch. Check the basement environment—moisture, temperature, and accessibility all influence where you place the backup system. Confirm that your home’s wiring practices meet safety standards and local codes. This upfront assessment saves time and reduces the risk of mismatched parts during installation.
Choosing the Right Backup System for Your Home
Not all backup setups are the same. Factors include runtime goals, space availability, and your willingness to perform electrical work. Look for a kit that includes a compatible automatic transfer switch and a battery type suited to a damp indoor environment. You’ll want clear labeling, easy maintenance access, and documented compatibility with your sump pump’s voltage and amperage. The goal is a seamless fallback that starts automatically when power drops and stops cleanly when power returns, without risking feeding power back into the grid.
Planning the Installation Space and Wiring Diagram
Draft a simple wiring diagram that shows power from the main panel to the transfer switch, from the switch to the pump circuit, and from the battery to the switch. Plan routes that keep cables away from potential water exposure and avoid running wires parallel to discharge lines. Ensure there is enough space for routine maintenance and battery replacement. A well-planned layout reduces the chance of accidental disconnections and makes future upgrades straightforward.
Wiring and Electrical Safety Essentials
Turn off power at the main panel before touching any wiring. Use a properly rated transfer switch and wiring gauge matched to your pump’s needs. Keep all conductors inside a protected enclosure, use grommets where cables pass through metal, and seal outdoor entries to prevent moisture intrusion. Ground the system per local code and ensure any required GFCI protection is in place. If you’re unsure about electrical work, hire a licensed electrician.
Mounting the Backup Battery and Enclosure
Choose a dry, ventilated location with easy access for battery replacement, such as a utility closet or garage wall. Mount the enclosure securely, leaving room for cooling and air circulation. Use corrosion-resistant hardware and proper fasteners to handle indoor humidity. Keep battery terminals clean and covered, and use a tray or shelf to contain any leaks or spills. Regularly inspect the mounting to prevent loosening over time.
Integrating With The Sump Pump Outlet and Discharge
Connect the backup system to the sump pump outlet so the pump can draw power from the battery when needed. Verify that the discharge path remains clear and unobstructed and that the backup setup does not impede the pump’s drain or vent lines. If the sump has a check valve, ensure it remains functional and that the backup wiring doesn’t interfere with its operation. Label the backup circuit clearly for future service.
Testing, Commissioning, and First Run
After installation, perform a careful test to confirm the system engages automatically during a simulated outage. With the main power restored, watch the transfer switch and pump for proper operation and indicators. Observe temperature, battery voltage, and any error codes on the switch. Document the results and schedule a follow-up check after the first week of use.
Maintenance and Troubleshooting
Create a maintenance routine that includes visual inspections of battery terminals, chargers, and connections, plus periodic voltage checks. Plan to test the system monthly or quarterly and ensure the battery remains within its usable life. If the system won’t start, check the transfer switch, fuses, and wiring for loose connections or corrosion. Keep spare parts and tools on hand to minimize downtime.
Common Pitfalls and How to Avoid Them
Common mistakes include choosing the wrong battery type or capacity, skipping proper ventilation, or wiring directly into a power strip. Avoid rushing the project—read the manual, verify compatibility, and respect safety requirements. Do not mix DC battery power with AC outlets without a proper transfer switch, and never bypass safety devices to speed installation. The right preparation makes the system reliable under stress.
Sump Pump Check's Verdict: Practical Guidance
This battery backup installation guide aligns with best practices for protecting basements during outages. The Sump Pump Check team recommends planning ahead, selecting a compatible kit, and testing regularly to ensure readiness. A well-executed battery backup adds resilience and reduces the risk of flood damage when storms interrupt power.
Tools & Materials
- Backup battery (sealed lead-acid or AGM)(Battery size should match pump runtime goals; choose maintenance-free type if possible.)
- Automatic transfer switch(Select rated for your pump amperage; ensure compatibility with your panel.)
- Sump pump discharge module or outlet adapter(Use a dedicated circuit or proper adapter.)
- Electrical wiring and correct gauge cables(Use proper gauge per local code.)
- Terminal connectors and battery cables(Check polarity and corrosion resistance.)
- Battery enclosure or tray(Ventilated, accessible, weatherproof if in garage.)
- Mounting hardware and fasteners(Use corrosion-resistant bolts.)
- GFCI and grounding hardware(Required per local code.)
- Voltage tester / multimeter(Check circuit when testing.)
- Wire strippers/cutters(For clean terminations.)
- Electrical tape and dielectric grease(Protect connections.)
- Sump pump spare parts and fuses(Keep extras.)

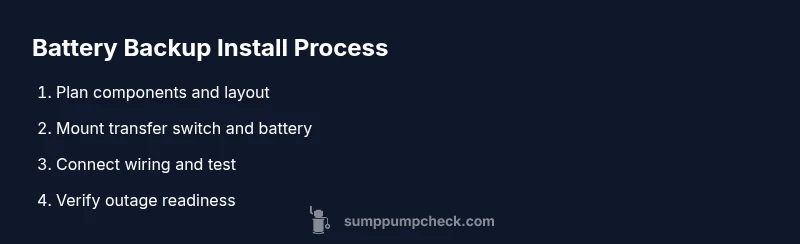

Steps
Estimated time: 3-5 hours
- 1
Verify electrical capacity and pump compatibility
Before purchasing parts, confirm your electrical panel has space for a transfer switch and that the sump pump’s amperage is compatible with the backup kit. Check outlet wiring, existing receptacles, and any local code requirements. This step prevents mismatches and costly rework.
Tip: If you’re unsure about amperage, consult a licensed electrician before proceeding. - 2
Choose backup kit and transfer switch
Select a kit that includes a compatible automatic transfer switch and a suitable battery. Ensure the switch is designed for your pump’s voltage and the panel layout. A good kit will come with clear labeling for easy maintenance.
Tip: Automatic transfer switches minimize outage time and simplify testing. - 3
Size the battery for runtime goals
Estimate how long you want the system to run during outages and choose a battery type accordingly. Favor sealed, maintenance-free options for damp basements. Confirm the battery is compatible with the switch and enclosure.
Tip: Avoid undersized batteries that drain quickly under load. - 4
Plan mounting location
Pick a dry, accessible spot with adequate ventilation and space for regular inspections. Ensure the location doesn’t block access to the sump pump or discharge path.
Tip: Create a simple wiring diagram before drilling or mounting. - 5
Mount the transfer switch
Position the transfer switch near the sump pump circuit on a stable surface. Leave space for wiring, labels, and future maintenance.
Tip: Keep the switch label visible for future service and troubleshooting. - 6
Mount the battery enclosure
Secure the battery enclosure to a wall or shelf with hardware rated for humidity. Ensure ventilation and drainage in case of leaks.
Tip: Use a tray to contain any minor leaks or spills. - 7
Run wiring and connect to the switch
Route cables from the battery to the transfer switch using proper gauge wire. Label each conductor and keep cables away from water sources.
Tip: Avoid running conductors parallel to discharge lines. - 8
Connect the pump outlet to switch output
Connect the sump pump’s power lead to the switch output or to the integrated terminal if your kit uses a hard-wired path. Ensure no backfeed paths exist.
Tip: Double-check polarity and torque requirements. - 9
Add safety grounding and GFCI where required
Ground the system per local code and install GFCI protection if the circuit requires it. Verify safe grounding connections and test through the breaker.
Tip: Use dielectric grease on terminal connections to prevent corrosion. - 10
Test with a simulated outage
Power down the main panel and observe whether the pump starts automatically from the battery. Check for error codes or unusual temperatures during the test.
Tip: Document results and perform a second test to confirm reliability. - 11
Document installation and maintenance plan
Create a record with component details, dates, and testing outcomes. Set reminders for periodic inspection and battery replacement.
Tip: Keep spare parts and a contact sheet for service calls. - 12
Schedule ongoing checks
Plan regular checks (monthly to quarterly) and replace aging battery per manufacturer guidance. Re-test after any component changes or updates.
Tip: Maintain a routine so the backup remains reliable.
FAQ
Do I need a battery backup if I already have a generator?
A generator provides a power source during outages but requires fuel management and manual start in many cases. A battery backup offers automatic operation without manual intervention. Some homeowners use both for maximum resilience, but a backup kit can be sufficient on its own.
A generator can supplement or replace a battery backup, but a battery backup can operate automatically without fuel or starting a generator.
What battery type should I choose for my backup?
Choose a sealed, maintenance-free battery such as AGM for damp spaces. Ensure compatibility with the transfer switch and pump rating, and verify that the enclosure provides ventilation and protection from moisture.
Go with an AGM or sealed lead-acid battery that fits your system and is safe for indoor use.
Can I install this myself or should I hire a professional?
If you have basic electrical experience and follow the manufacturer’s instructions, a DIY install is feasible. However, for electrical work in damp spaces or higher amperage setups, hire a licensed electrician to ensure code compliance.
If you’re unsure of electrical work, hire a pro to stay safe and compliant.
How long will the backup run on one charge?
Run time depends on battery capacity and pump load. Plan for longer outages by selecting a higher-capacity battery and considering a larger enclosure for future upgrades.
It varies; higher-capacity batteries provide longer runtime during outages.
What maintenance does it require?
Regularly inspect terminals, clean connections, and test the system. Replace aging batteries as recommended by the manufacturer and document testing results.
Keep an eye on batteries and test the system to ensure ready when needed.
What safety precautions should I follow?
Turn off power before wiring, follow manufacturer instructions, and use proper protective gear. Keep the area dry, ventilated, and free of obstructions during installation.
Work carefully, turn off power, and use protective gear to stay safe.
Watch Video
Top Takeaways
- Identify backup needs before kit selection
- Choose an automatic transfer switch for seamless switch-over
- Test the system after installation and during outages
- Maintain batteries and replace per schedule
