Basement Watchdog Sump Pump: Install, Maintain, Troubleshoot
Learn how to install, maintain, and troubleshoot a basement watchdog sump pump to protect your basement from flooding. Practical steps, safety tips, and backup options for homeowners and DIY enthusiasts.
The basement watchdog sump pump activates automatically when water rises, pumping it away to prevent floods. For DIY homeowners, ensure proper setup, a reliable check valve, and a backup power option. According to Sump Pump Check, a well-installed unit can reduce flood risk significantly.
Why Basement Watchdog Sump Pumps Matter
Water intrusion is the leading cause of basement damage in many homes. A basement watchdog sump pump helps keep your lower level dry by detecting rising groundwater and starting the pump automatically. This simple, active defense reduces the risk of mold, warped finishes, and high-repair costs. According to Sump Pump Check, homeowners who install a reliable sump pump with proper discharge and routine maintenance report fewer basement moisture issues over time. The key is a system that responds quickly, evacuates water away from the foundation, and integrates with your overall drainage strategy. In short, a well-chosen and properly installed sump pump is a cornerstone of basement waterproofing and peace of mind for DIYers.
How a Basement Watchdog Sump Pump Works
A watchdog sump pump sits in a pit and uses a float switch to sense water level. When water reaches the float, the motor activates and discharges water through a connected pipe to an exterior drainage area. A tight seal and a properly installed check valve prevent backflow and moisture from returning. Modern watchdog models may include built-in alarms, automatic restart after power loss, and compatibility with battery backups. This section explains the flow: water enters the pit, rises to lift the float, the pump starts, water gets pumped out, and the cycle resets when the pit empties.
Sizing, Placement, and Key Features to Look For
Choosing the right sump pump size depends on expected water flow and pit volume. For typical residential basements, a pump in the 1/2 HP to 1 HP range handles moderate inflow, while larger pits demand higher-capacity units. Place the pump in the center of a clean, smooth pit with a lid or grate to keep debris out. Key features include a reliable float switch, an accessible cleanout, a robust discharge connection, a durable power cord, and an audible alarm or indicator for failures. Look for a model with a covered motor to minimize water exposure and a sealant-friendly exterior for easier maintenance.
Installation Considerations and Codes
Before installing, verify local codes for sump pump drainage, discharge distance, and GFCI requirements in damp basements. Install a catch basin or sump pit with smooth sides to prevent debris buildup. Attach a discharge pipe that runs downhill and away from the foundation, ideally ending in a daylighted area or storm drain. Install a check valve near the pump outlet to prevent backflow and maintain pressure in the line. Use corrosion-resistant fasteners and weatherproof the connection if the line must pass through external walls. Finally, ensure a dedicated, accessible power source—preferably a GFCI outlet in a dry area—and consider a backup power option for power outages.
Maintenance and Troubleshooting Essentials
Regular maintenance is critical to keep a watchdog sump pump reliable. Inspect the pit monthly for debris, test the float switch by pouring water into the pit, and listen for the pump’s operation. Clean the impeller and inlet screen if you notice reduced flow. Replace worn seals or cracked hoses promptly, and confirm the check valve seals are tight. If the unit runs continuously or won’t start, check for power, clogged discharge, or a stuck float. Annual testing and a documented maintenance schedule help catch issues before they cause damage.
Backup Power and Redundancy Options
Power outages commonly coincide with floods, so a backup power solution is essential. A 12-volt battery backup pump connected to a sealed battery bank can provide several hours of pumping during an outage. For longer outages, consider a water-powered backup or a second standby pump with its own power circuit. When selecting backups, ensure compatibility with your existing piping and switch type, and plan a quick-access manual operation in case of emergency. Regularly test backups to confirm readiness.
Common Install Errors and How to Avoid Them
Rushed measurements, improper venting, and skipping the check valve are the top pitfalls. Also avoid creating low spots in the discharge line, which can trap air and reduce flow. Ensure the pit is clean and level before seating the pump, and never use metal components in damp environments unless rated for moisture resistance. Double-check the float’s range to prevent false starts or continuous running.
Quick Reference Checklist for DIY Installations
- Confirm pit size and pump horsepower match expected inflow
- Install a reliable check valve and proper discharge piping
- Use a GFCI-protected outlet in a dry area
- Test the pump with a controlled water fill
- Plan for a backup power source and test routinely
- Maintain a simple maintenance log for annual checks
Real-World Scenarios: Replacement vs Repair
If the unit fails repeatedly after basic maintenance, replacing the pump is often more cost-effective than repairing an older, inefficient model. If the motor shows signs of overheating, unusual noises, or reduced pumping capacity after a thorough cleaning, it’s time to replace the pump. In cases of frequent outages or severe basement flooding, investing in a higher-capacity unit or dual pump setup can provide greater reliability. The Sump Pump Check team recommends auditing your system every 3–5 years to decide between repair and replacement, especially in older homes.
Tools & Materials
- Sump pit/basin(Diameter 18-24 inches; depth enough for safe float travel and debris-free clearance)
- Sump pump (basement watchdog or equivalent)(Submersible type is common; verify outlet compatibility with discharge piping)
- Discharge pipe (PVC or reinforced hose)(1-1/2)
- Check valve(Prevents backflow into the pit and pump)
- Silicone sealant or gasket(Seal around fittings and pipe joints to prevent leaks)
- Power supply (GFCI outlet or dedicated circuit)(Ensure 120V supply in a dry location; consider a reminder for outages)
- Tools: adjustable wrench, pliers, screwdriver(For securing fittings and wiring connections)
- Drainage area with daylight exit(Non-essential but recommended; helps avoid backups near foundation)

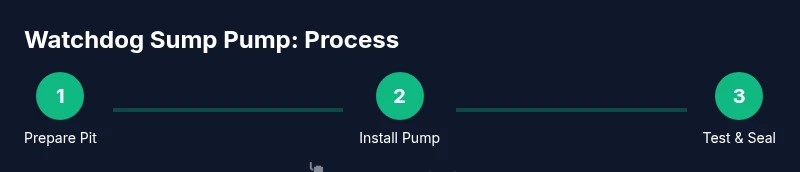

Steps
Estimated time: 1.5-3 hours
- 1
Power down and prepare the pit
Shut off the circuit feeding the sump pump and verify no electrical current. Clear the area around the pit and remove any loose debris. Inspect the pit walls for cracks and clean them as needed to ensure a smooth installation.
Tip: Tag the breaker and test with a non-contact tester before touching wires. - 2
Clean the pit and inspect the float
Remove standing water and debris from the sump pit. Inspect the float switch for smooth movement and no obstructions. Replace a sticky or corroded float if needed to avoid false triggers.
Tip: Pour a small amount of water to confirm the float rises freely. - 3
Position the sump pump in the pit
Place the pump at the center of the pit with the discharge outlet aligned to the intended pipe route. Ensure the pump sits level on a clean base and won’t rock during operation. Loosen any securing bolts to allow proper seating, then tighten once correctly positioned.
Tip: Use shims if the base is uneven to prevent vibration. - 4
Attach the discharge piping and check valve
Connect the discharge pipe to the pump outlet, then install the check valve in the correct orientation to prevent backflow. Seal joints with silicone or appropriate sealant and secure the pipe to minimize movement. Verify that the slope of the discharge line is continuous away from the foundation.
Tip: Hold the valve in the correct direction while tightening to avoid misalignment. - 5
Run and secure the power cord
Route the power cord to a nearby GFCI outlet or dedicated circuit. Keep cords away from water sources and secure them with clips to prevent pullouts. If your model requires a junction box, install it per manufacturer instructions.
Tip: Avoid draping cords over the pit edge; use a protective conduit if needed. - 6
Install a backup power option
If using a battery backup, wire it according to the manufacturer’s instructions and test for automatic switching. Consider a second pump or a water-powered backup for extended outages. Verify that both supplies integrate without interfering with the primary unit.
Tip: Test backup under load to ensure it engages during an outage. - 7
Test the system
Add water to the pit slowly to trigger the float and observe the pump cycle. Listen for the pump and ensure discharge water is moving away from the foundation. Check for leaks at fittings and verify the lid or grate is secure.
Tip: Document test results and repeat if any abnormal behavior appears. - 8
Final checks and sealing
Inspect all connections for tightness and ensure an airtight seal around the pit perimeter if required. Reinstall the pit lid or grate to prevent debris entry. Label the breaker for easy future access and ensure the area remains clean and dry.
Tip: Take a photo of the completed setup for future reference. - 9
Schedule maintenance
Create a maintenance schedule: test monthly, clean yearly, and inspect during seasonal changes. Keep a log of actions and replacements to track system health over time. Consider an annual professional check if you’re uncertain about electrical or plumbing codes.
Tip: Set calendar reminders to avoid missing yearly checks.
FAQ
What is a basement watchdog sump pump and why do I need one?
A basement watchdog sump pump is a flood-prevention device that automatically activates when water starts to rise, pumping it out to protect your basement. It’s especially valuable in homes with poor drainage or high groundwater pressure.
A watchdog sump pump automatically starts when water rises, protecting your basement from floods. It’s especially helpful if you have high groundwater or poor drainage.
How often should I test the sump pump?
Test the sump pump at least once a month by triggering the float with water. Also test after power outages or major storms to ensure the backup system works.
Test it monthly and after outages or storms to ensure it remains reliable.
Can I install a sump pump myself?
Yes, many homeowners install sump pumps themselves if they follow local codes and manufacturer instructions. If you’re unsure about electrical or plumbing aspects, consider professional help.
Yes, you can install it yourself if you follow codes, but consider professional help for electrical or plumbing parts.
What is a check valve and why is it needed?
A check valve prevents pumped water from flowing back into the sump pit. It protects pump efficiency and reduces the risk of re-flooding the pit.
A check valve stops water from coming back into the pit, keeping the pump efficient.
What size sump pump do I need for a typical basement?
For most homes, a 1/2 HP to 1 HP pump is sufficient, depending on pit size and expected water inflow. Larger basements or higher inflow may require a bigger unit or dual pumps.
Most homes use a 1/2 to 1 HP pump; bigger basements may need more.
Should I use a GFCI outlet for the sump pump?
Using a GFCI outlet helps protect against electrical shock in damp basements. If code allows, a dedicated circuit for the sump pump is ideal.
A GFCI outlet or dedicated circuit is recommended for safety.
Watch Video
Top Takeaways
- Install correct sizing and ensure proper discharge routing
- Test monthly and maintain a backup power option
- Prevent backflow with a reliable check valve
- Document maintenance for long-term reliability
