Where to Install a Sump Pump: Placement Essentials
Learn where to install a sump pump for effective basement drainage, safe discharge, and code-compliant setup. This guide covers placement, pit sizing, electrical safety, backups, and maintenance strategies.
Goal: identify the best, code-compliant locations to install a sump pump and plan the discharge route. Key requirements include a dry well or sump pit, proximity to an exterior wall for discharge, a dedicated 120V GFCI-protected outlet, and accessible space for maintenance. This guide explains placement strategies, grading, electrical safety, and backup options to prevent basement flooding.
Why the location matters
Placement matters for performance, maintenance, and safety. According to Sump Pump Check, choosing the right spot reduces flood risk and simplifies service life. A well-located sump pump works with your home's grading, helps gravity drain water away from the foundation, and minimizes the chance of freezing or clogging in the discharge line. In cold climates, the efficiency of your discharge routing can affect whether water freezes in pipes, causing backup pressure. The ideal location is near an exterior wall where the discharge can exit the building with a minimal bend, preferably above the grade line so water exits away from the footing. It should be accessible for routine inspection and maintenance, yet protected from accidental damage or heavy traffic. Consider future needs like a backup pump, a longer discharge run, or access to a cleanout. Finally, the layout should keep all electrical components dry and compliant with local codes. With careful planning, you set a solid foundation for reliable operation for years.
"According to Sump Pump Check, placement decisions dramatically affect flood prevention and maintenance ease."
Primary placement options
In basements, common options include placing the pit in a corner against an exterior wall, or along a wall where the sump can draw water from under the slab through sub-slab drainage. If space is tight, you may locate the pit near a utilities area with easy access for service. In garages or unfinished basements, a pit behind a utility cabinet or near an exterior door can simplify discharge routing. Avoid locations that trap cold air, high humidity, or heavy traffic, since vibration or damage can affect seals. For homes with finished interiors, the pit is usually placed in a recessed area or a utility room so maintenance remains unobtrusive. Regardless of location, ensure the pit edge is level with the floor or slightly recessed to prevent debris from accumulating on the lid. Plan for a clean path to the exterior discharge and a route that avoids sharp turns.
Key considerations for sump pit placement
The pit should be located where it can efficiently collect groundwater and where the water has a clear path to exit the structure. Consider floor level, existing drainage tiles, and the volume of water you expect during storms. Access is essential: you or a contractor will need space to remove the pump for service, as well as clearance for hoses and discharge piping. The pit should be lined or reinforced to prevent cracking and should be placed over a stable subfloor. If you’re installing in a concrete slab, you’ll need to cut into the slab carefully and seal edges to prevent leaks. Avoid placing the pit directly under heavy equipment or near crawl spaces where moisture can accumulate. A well-placed pit reduces the risk of sump water backing up into living spaces.
Discharge planning and drainage route
Discharge planning is as important as the pit itself. The discharge line should exit the building to a location that won’t cause water damage or erosion. Prefer a path with a gradual slope that uses gravity to move water away from the foundation. Install a check valve to prevent backflow and cap any unused piping when not in use. If the discharge exits below grade, consider a frost-free exit or a dedicated exterior outlet to prevent freezing. Label the line and ensure it is insulated in cold climates. The routing should minimize turns and avoid running alongside gas lines or electrical conduits. A well-planned discharge route reduces service calls and downstream damage.
Elevation and safety: electrical and backup power
Electrical safety is non-negotiable. Install a dedicated GFCI-protected 120V outlet nearby and ensure the circuit can handle the pump’s load. In many jurisdictions, a licensed electrician should perform the wiring and support a disconnect switch near the pump. Keep all electrical components dry, using a rainproof enclosure where needed. If you’re considering power reliability, evaluate a battery backup or water-powered backup system to keep the sump pump running during outages. A backup plan is a critical layer of protection in flood-prone areas. Finally, check local building codes for any required permits or inspection steps.
Pit sizing and pump sizing basics
Sizing the pit and pump correctly matters for performance and longevity. The pit should be large enough to accommodate the pump and any accessories, while still leaving space for maintenance and removal. The pump should be capable of moving water quickly enough to prevent basement pooling during heavy rain, yet not so large that it runs constantly. If your home has multiple downspouts or a large drainage area, you may need a higher-capacity unit or a dual-pump setup. Manufacturer guidelines provide the best sizing information, so consult the pump’s specification sheet when selecting equipment. In all cases, do not force a pump into a pit that is too small or a discharge line that is too steep or too long.
Maintenance and future-proofing
Regular maintenance keeps sump pumps reliable. Inspect the lid seal, clean the pit of sediment, and test the float switch monthly and after major storms. Replace worn hoses and cracked fittings promptly. Keep the discharge area clear of debris and ensure the outlet remains accessible. If you anticipate power outages or growth in groundwater, consider installing a battery backup or a second pump. Document maintenance dates and any unusual noises or cycling for your records. Finally, schedule a professional inspection every few years to catch issues early.
Common mistakes and how to avoid them
Avoid common mistakes like placing the pit in a low-traffic corner where maintenance is difficult, routing discharge through windows or vents, neglecting a check valve, or ignoring GFCI requirements. Don’t bury electrical components or route pipes through areas prone to freezing without proper insulation. Skimping on an air gap or vent can also cause backpressure and odors. Finally, never assume a single pump will cover all conditions; plan for backups and seasonal variations.
Authority sources and further reading
For safety and compliance guidance, refer to reputable sources:
- https://www.osha.gov
- https://www.epa.gov
- https://www.cpsc.gov These references provide general safety and installation considerations to support your project. Always cross-check with your local codes and a licensed professional.
Tools & Materials
- Sump pit(Select a pit size per manufacturer guidance and space availability)
- Submersible sump pump(Choose a pump rated for your expected water volume)
- Discharge pipe (PVC) and fittings(Include elbows and couplings for routing to exterior)
- Check valve(Prevents backflow when the pump stops)
- GFCI-protected outlet and dedicated circuit(Electrical work may require a licensed electrician)
- Sealant or liner for concrete slab (if cutting into slab)(Optional but helpful to prevent leaks)
- Shovel, level, measuring tape(For preparing the pit area and ensuring level installation)
- Backup sump pump or battery backup(Recommended for flood-prone areas)

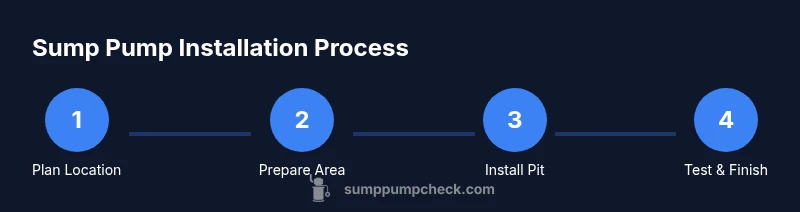

Steps
Estimated time: 2-6 hours
- 1
Choose installation location
Identify a spot near an exterior wall with a clear route to the outdoors. Confirm there is enough space for maintenance and for a backup option if desired. Mark the footprint for the pit.
Tip: Refer to the plan diagram to avoid utilities and ensure a straight discharge path. - 2
Prepare area and confirm clearances
Clear the area of debris and confirm floor clearance around the planned pit. Verify you have a dry, accessible space for the pump lid and maintenance work.
Tip: Keep access to the discharge route unobstructed for future service. - 3
Install or prepare the sump pit
If cutting into concrete, follow slab-cutting best practices and seal exposed edges. Install the pit so the rim sits flush with the floor.
Tip: Check local codes for permits and inspection requirements before cutting concrete. - 4
Place the sump pump inside the pit
Lower the pump into the pit and verify it sits upright with the float operational. Ensure the pump base is stable and not tilting.
Tip: Do not force the pump through a tight lid; ensure full submersion and float clearance. - 5
Attach discharge piping and fittings
Connect the discharge pipe to the pump outlet and route toward the exterior. Use proper sealant and clamps to prevent leaks.
Tip: Avoid sharp bends; use gradual transitions to reduce friction losses. - 6
Install check valve and ensure proper slope
Install the check valve in the discharge line to prevent backflow. Ensure the pipe has a gentle slope away from the foundation.
Tip: A professional can verify slope and valve orientation for optimal flow. - 7
Wire to a dedicated circuit (or arrange for electrician)
Connect the pump to a GFCI-protected outlet. If wiring is needed, hire a licensed electrician and install a disconnect near the pump.
Tip: Never improvise electrical connections near a wet environment. - 8
Test the system
Fill the sump to activate the float switch and observe pump operation and discharge flow. Confirm there are no leaks and that water exits away from the foundation.
Tip: Run multiple test cycles at different water levels to ensure reliability. - 9
Set up backup and final checks
If you added a backup pump or battery, install and test it. Recheck all connections, labeling, and accessibility before final use.
Tip: Keep a maintenance log and schedule annual checks.
FAQ
What is the best location to install a sump pump?
The best location is near an exterior wall with a clear discharge path away from the foundation. Choose a spot with easy access for maintenance and away from heat sources.
The best spot is near an exterior wall with a clear path for discharge and easy maintenance access.
Can I install a sump pump in a crawl space?
Yes, if the crawl space has a solid floor and enough space for the pit and pump. Ensure proper ventilation, drainage, and safe electrical connections per local codes.
Yes, in a crawl space if the floor is solid and it can be wired safely with proper ventilation.
Do I need a backup sump pump?
A backup pump provides protection during power outages and heavy rainfall. It adds cost and maintenance but is highly recommended in flood-prone areas.
A backup pump helps during outages and floods; it's strongly recommended in risky areas.
How far should the discharge run outside the home?
Discharge should move water away from the foundation and not discharge toward doors or windows. Route with a gentle slope and avoid creating erosion near walkways.
Discharge should move water away from your home and avoid doors or windows.
Is electrical work required for a sump pump?
Yes. A dedicated GFCI-protected outlet and proper wiring are required. A licensed electrician is recommended for safety and code compliance.
Electrical work should be done by a licensed professional with a GFCI outlet.
How often should I test the sump pump?
Test monthly and after major storms to confirm the float switch triggers correctly and water discharges properly.
Test it monthly and after big storms to ensure it works.
Watch Video
Top Takeaways
- Select a location with a clear discharge path away from the foundation.
- Ensure electrical safety with a GFCI outlet and dedicated circuit.
- Plan for backups to protect against outages and heavy rainfall.
- Route discharge with minimal bends and proper slope for gravity flow.
- Regularly maintain and test the system to prevent failures.
