Sump Pump Piggyback Plug Replacement: A Practical Guide
Learn how to safely replace a sump pump piggyback plug, choose a compatible unit, and test your setup. This guide covers tools, safety, and maintenance for reliable basement drainage.
Replacing a sump pump piggyback plug safely means removing the old plug, installing a compatible replacement, and testing the system. This guide covers safety steps, compatibility considerations, and a clear step-by-step process to complete the replacement with minimal risk to you or the pump. Follow the instructions closely, verify power is off, and double-check connections before returning power.
Understanding the sump pump piggyback plug replacement
Replacing a sump pump piggyback plug replacement isn’t just a quick hardware swap; it’s a safety-critical maintenance task that protects your home’s drainage system and minimizes flood risk. According to Sump Pump Check, the piggyback setup—where a single outlet powers both the pump and a connected float switch—offers convenience but also introduces potential failure points if the wrong plug is used or wear has degraded the connection. In this section, you’ll learn what a piggyback plug is, why it may fail, and when a replacement is warranted. A proper sump pump piggyback plug replacement preserves the integrity of your basement drainage and reduces nuisance trips.
Safety prerequisites and electrical considerations
Electrical work around a sump pump requires careful preparation. Always ensure power is fully off at the breaker before touching any cords or outlets, and if you’re unsure, shut off the main power to the sump pump circuit. Check that the outlet is grounded and not shared with damp devices. Use a GFCI-protected circuit when available to minimize shock risk. Keep a dry workspace and wear insulated gloves if you must handle wet components. These safety steps are essential for any sump pump piggyback plug replacement, and following them helps protect people and equipment.
Compatibility and selecting the right replacement plug
Not all piggyback plugs are created equal. When choosing a replacement, match the amperage and voltage rating to the sump pump’s specifications, and ensure the plug fits the pump’s float-switch arrangement. Look for a plug with a secure, thermal-rated housing and a reliable locking mechanism to prevent accidental disconnection. If your pump is in a damp area, prefer a moisture-resistant plug and an outlet cover designed for basement conditions. Compatibility also means confirming the plug’s prong configuration aligns with your outlet and that it can accommodate the pump’s cord diameter without pinching or loosening.
Workspace setup and initial checks
Prepare a clean, dry workspace around the sump pit. Remove any obstacles and place a bucket or towel nearby to catch incidental spills. If your pump is elevated, consider a temporary drainage plan to avoid standing water. Before removing anything, take a quick photo of the existing setup to help you replicate connections. Collect all required tools and the replacement piggyback plug, and confirm you have secure, dry hands when handling plug components. These checks help ensure a smooth, safe replacement process and reduce the chance of miswiring.
Common mistakes to avoid during replacement
Several mistakes can jeopardize a sump pump piggyback plug replacement: using an incompatible plug, failing to disconnect power, forgetting to restore a proper ground, or leaving wires exposed. Don’t tug on cords to test fit; always work with the power off. Avoid crimping or bending wire strands excessively, which can cause poor contact and heat buildup. Finally, never operate the pump with a damaged cord or a housing that isn’t sealed against moisture. Awareness of these pitfalls reduces the likelihood of future failures.
Aftercare: testing, maintenance, and best practices
After installation, perform a careful test: fill the sump to trigger the float switch and observe the pump’s response. Listen for unusual noises or beeping and verify that the piggyback plug remains securely seated during operation. For ongoing reliability, schedule periodic inspections of the plug, cord, and outlet for signs of wear, corrosion, or moisture intrusion. Document the replacement date and keep spare parts on hand. Regular maintenance is the best defense against unexpected pump failure.
Troubleshooting and when to contact a professional
If the pump fails to start after replacement, recheck all connections, verify the outlet has power, and test with a known-good device to confirm the circuit is operative. If water continues to accumulate or if the outlet shows scorch marks, turn off power and call a licensed electrician or sump-pump technician. Complex issues—such as damaged internal wiring, improper grounding, or persistent moisture behind the plug housing—often require professional assessment to prevent safety risks.
Tools & Materials
- Replacement sump pump piggyback plug (compatible with your pump’s rating)(Match amperage, voltage, and plug type to your pump and outlet.)
- Flathead screwdriver(For opening covers or securing components.)
- Phillips screwdriver(Screwdriver for any screws on the plug or outlet.)
- Voltage tester or multimeter(Verify power is off and test wiring after installation.)
- Electrical tape(Insulate and secure wire connections.)
- Wire nuts (insulated connectors)(Cap and protect any exposed conductors.)
- Wire stripper(Optional for clean wire prep.)
- Moisture-resistant outlet cover(Use in damp basement areas.)
- Safety gloves(Keep hands dry and protected.)

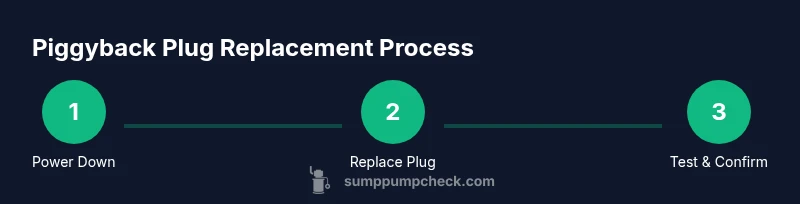

Steps
Estimated time: Total time: 30-60 minutes
- 1
Power down and confirm no voltage
Turn off the sump-pump circuit at the breaker. Use a voltage tester to double-check that the outlet is without power before touching the plug. This step eliminates the primary risk of electric shock while handling live wires.
Tip: Always assume the circuit is live until you verify with a tester. - 2
Remove the old piggyback plug
Carefully unplug and remove the old piggyback plug from the pump’s outlet. Inspect the outlet for signs of wear, moisture, or damage to the receptacle and note how the plug was oriented.
Tip: Take a photo of the original arrangement to guide the replacement. - 3
Inspect the pump cord and outlet
Check the pump’s power cord for cracks or nicks, and inspect the outlet for corrosion or water intrusion. If damage is present, address it before continuing to avoid hidden hazards.
Tip: Do not reuse damaged cords or outlets. - 4
Prepare the new piggyback plug
Assemble the new plug and inspect its housing for tight fit. If wiring is needed, strip ends cleanly and prepare connectors. Ensure the replacement matches the pump’s connector type.
Tip: Do not force components; use the correct plug size. - 5
Connect the new plug to the pump
Attach the new plug according to the manufacturer’s instructions, ensuring secure and clean connections. Keep conductors neatly arranged and prevent any contact with moisture.
Tip: Secure with appropriate wire nuts and insulate uncovered conductors. - 6
Secure the plug and outlet
Re-seat the new piggyback plug into the outlet, then install any moisture-resistant cover if used. Check that the plug cannot be easily pulled out and that the housing remains dry during operation.
Tip: Use a cover that protects against basement moisture. - 7
Restore power and test the system
Turn the breaker back on and run a test by initiating a controlled water rise or using the pump’s built-in test mode. Observe the float switch and listen for normal operation without unusual sounds.
Tip: If it doesn’t start, recheck connections and power. - 8
Document and maintain
Record the replacement date and part numbers for future maintenance. Schedule regular inspections of the plug, outlet, and pump cord to catch wear early.
Tip: Keep a spare piggyback plug on hand for faster future maintenance.
FAQ
How do I know if my piggyback plug needs replacement?
Look for signs of wear, corrosion, or looseness in the plug or outlet. If the plug feels hot, is discolored, or the pump trips frequently, replacement is advisable.
Check for wear or heat, and replace if you notice damage or frequent tripping.
Can I replace a piggyback plug myself, or should I hire a pro?
If you are comfortable with basic electrical work and the power can be safely cut, you can replace the plug following safety steps. For any signs of damage to the outlet, wiring, or breaker, hire a licensed electrician.
You can DIY if you follow safety steps, but call a professional if you’re unsure.
Is a piggyback plug replacement different from installing a new sump pump?
Replacement focuses on the plug and outlet interface, not the pump itself. Installation of a new sump pump involves additional piping, check valves, and power considerations.
Replacement is simpler than full installation, but still requires care.
What safety codes apply to sump pump plugs?
Codes emphasize grounded outlets, moisture protection, and proper wiring. Always follow local electrical codes and manufacturer instructions.
Follow local codes and the manufacturer’s guidelines.
Will replacing the plug affect my warranty?
Replacing a plug with a compatible, correctly installed part typically does not void warranties, but always verify terms with the pump manufacturer.
Check your warranty terms to be sure.
What should I do if the pump still doesn’t operate after replacement?
Recheck all connections, confirm power at the breaker, and test with a known-good outlet. If the issue persists, consult a professional.
Double-check connections and power; call a pro if needed.
Watch Video
Top Takeaways
- Verify power is off before touching any wires
- Choose a replacement plug that matches your pump’s rating
- Test the system after replacement to confirm proper operation
- Document the replacement and inspect for moisture regularly
