Sewage Ejector Pump Installation: A Step-by-Step Guide
Comprehensive, code-aware guide to sewage ejector pump installation: planning, pit prep, wiring, testing, and maintenance for a safe, reliable basement wastewater system. Designed for homeowners and DIY enthusiasts.
According to Sump Pump Check, installing a sewage ejector pump correctly reduces basement sewer gas risks and protects your plumbing. This guide outlines a code-compliant, safe installation with essential prerequisites: a dedicated pit, a discharge line, and proper venting. By following these steps, homeowners can achieve a reliable, long-lasting system while avoiding common mistakes.
Understanding Sewage Ejector Pumps
A sewage ejector pump, sometimes called a wastewater ejector, handles waste from bathrooms or laundry rooms located below the municipal sewer line. Because wastewater cannot flow upward on its own, the ejector pump moves blackwater and graywater through a sealed pit to the building sewer or septic line. This section explains how these systems work, the components involved, and why proper installation matters for odor control, hygiene, and code compliance. The pump, valve, vent, and electrical connections work together to prevent backflow, keep the pit sealed, and extend the system’s life. Good installation also minimizes odor and prevents basement flooding, which can occur after heavy rainfall or high groundwater levels.
Planning and Codes You Need to Know
Before you begin, understand that local codes, permits, and inspections govern sewage ejector pump installations. This section covers typical requirements: choosing a location accessible for service, ensuring a vent path, and mapping an approved discharge route. Keep the permit process organized and maintain a copy of your plan in the project file. The key to success is alignment with local building dept guidelines, which vary by city and state. By validating these elements early, you reduce surprises during inspection and avoid costly rework later.
Pit Sizing and Placement Considerations
The ejector pit must accommodate the pump and a stable float mechanism while leaving room for you to work around the unit. Select a pit depth and width that suit the pump’s dimensions and the ceiling clearance in your space. A well-sealed lid and a watertight enclosure are essential for odor control and hygiene. Once positioned, ensure there is a solid, level base and adequate space for maintenance access. This placement also influences the path of the discharge line and venting, so plan around the nearest wall or corner for clean routing.
Discharge, Venting, and Backflow Prevention
A proper discharge path takes wastewater from the pit to the municipal sewer or septic line with a gradual slope and a visible check valve to prevent backflow. Install the check valve on the discharge line after the pump outlet; ensure all fittings are rated for wastewater and glued with PVC cement. A dedicated vent line helps equalize pressure and reduces trap odors; terminate the vent outside the structure above the foundation. Remember that backflow prevention protects your home from sewage backups during heavy rains or sewer surges. Sump Pump Check analysis shows that proper venting and backflow prevention significantly reduce odor and sewer gas risks.
Electrical Requirements and Safety
Most installations require a dedicated, grounded power supply with a GFCI-protected outlet. Do not run power cords through wet basements or pits; use weatherproof, moisture-rated enclosures and conduit as required by code. Wire the pump using appropriately sized conductors and secure connections to prevent short circuits. If you are not experienced with electrical work, hire a licensed electrician to complete the connection and obtain the necessary inspections. Safety first protects you, your family, and your home’s plumbing.
Permits, Inspections, and Scheduling
Start by checking with your local building department to determine which permits are needed and what inspections will be required. Submit your plans with a schematic showing the pit, discharge route, venting, and electrical connections. During installation, schedule a rough-in inspection for the plumbing and electrical work, followed by a final inspection after activation. Having a clear timeline helps coordinate contractor schedules and ensures you meet all regulatory milestones.
Testing, Start-up, and Maintenance
When assembly is complete, run the pump in a dry test to confirm the float and switching logic operate properly. Then add a known amount of water to verify predictable pump activation and discharge flow. Watch for leaks and verify the vent remains clear. Create a simple maintenance plan that includes annual checks on seals, wiring, and vent integrity. Document alarm tests and keep a log of any service actions for future reference.
Common Mistakes and Troubleshooting
Common errors include undersizing the pit, skipping venting, or omitting a check valve, which can lead to odors, leaks, and sewer gas. Ensure you’re using a submersible pump rated for wastewater; never use a sump pump designed for clean water in a dirty-water pit. If the system runs continuously or fails to start, recheck electrical connections and float alignment. For persistent issues, consult a professional plumber or sump pump technician.
Authority Sources
This section provides credible references for further reading and safety guidance:
- U.S. Environmental Protection Agency (EPA): https://www.epa.gov/septic
- Occupational Safety and Health Administration (OSHA): https://www.osha.gov
- National Fire Protection Association (NFPA): https://www.nfpa.org/codes-and-standards
Tools & Materials
- Sewage ejector pump(Submersible, with built-in float switch; match to pit size and expected wastewater load)
- Ejector pit/basin(Watertight, wastewater-rated; secure lid with gasket)
- Discharge piping (PVC, 3-4 inches)(Schedule 40 PVC; ensure proper slope away from foundation)
- Check valve(Prevents backflow on discharge line; install after pump outlet)
- Vent piping and vent cap(PVC or ABS; terminate outside above grade to vent air safely)
- Fittings (tees, elbows)(Appropriate DWV fittings for wastewater plumbing)
- Electrical supply (GFCI-protected outlet)(Dedicated circuit; weatherproof outlet; correct conduit/wiring size)
- Conduit, strain relief, and waterproof connectors(Code-compliant electrical routing to pump location)
- PVC cement and primer(For secure, watertight pipe joints)
- Tools: Pipe wrench, hacksaw, level, marker(Essential hand tools for precise installation)
- Safety PPE: gloves, goggles(Protective gear for handling concrete and tools)
- Backfill material: clean fill(Compact around the pit to secure it and prevent movement)

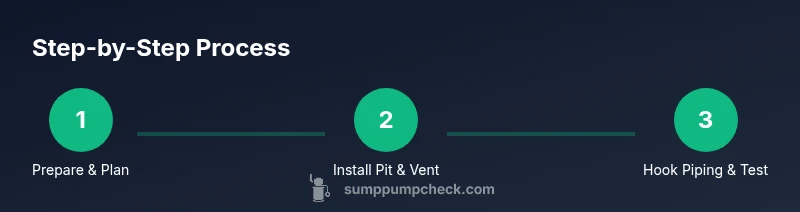

Steps
Estimated time: 4-6 hours
- 1
Verify codes and obtain permits
Check with your local building department to confirm required permits and inspections. Prepare a plan showing the pit location, discharge route, venting, and electrical connections. Ensure you have all approvals before starting any work to avoid costly rework.
Tip: Call the building department ahead of time to confirm permit requirements and inspection timelines. - 2
Choose installation location
Select a space with adequate access for maintenance, a nearby vent, and a clear discharge path away from the foundation. Mark the pit location and verify there is a solid base to support the unit and piping. Poor placement can complicate maintenance and cause drainage issues.
Tip: Prefer a location that minimizes long pipe runs and reduces risk of freezing or backflow. - 3
Prepare pit and pit base
Excavate and clean the pit area, ensuring a stable base and a watertight enclosure. Install a sealable pit area that keeps sewer gases contained while allowing easy pump access for service. Verify dimensions accommodate the pump and float mechanism.
Tip: Double-check clearance for service and removal of the pump without disassembly. - 4
Install discharge piping and check valve
Plan a discharge route with a steady slope to the exterior or sewer line. Install the check valve on the discharge line after the pump outlet and glue joints with PVC cement. Ensure fittings are rated for wastewater and avoid sharp bends.
Tip: Keep the discharge line fire-safe and dimensioned to handle expected flow. - 5
Install pump and set float
Place the pump inside the pit, connect the float switch, and confirm the float moves freely with minimal resistance. Ensure the pump sits level and there is access space for removal or replacement. Attach power supply and label the circuit.
Tip: Test float by gently lifting it to simulate water rise and confirm a clean shutdown. - 6
Wire power supply
Run a dedicated, grounded circuit to the pump on a GFCI-protected outlet. Use appropriate conduit or wiring method per code and secure all connections to prevent moisture exposure. If you’re not experienced with electrical work, hire a licensed electrician.
Tip: Never splice or run flexible cords in wet areas; protect connections from moisture. - 7
Seal, vent, and finalize installation
Backfill around the pit with clean material, seal the lid, and install the vent line. Ensure the vent terminates outdoors and above grade to avoid condensation issues. Check all connections for leaks and confirm the system is stable before testing.
Tip: Seal gaps to minimize gas leakage and prevent pest entry. - 8
Test, inspect, and maintain
Run a test cycle and observe the discharge, venting, and alarms (if installed). Note any leaks or abnormal noises and address promptly. Schedule regular maintenance checks and keep records for future inspections.
Tip: Document tests and service actions for warranty and code compliance.
FAQ
What is a sewage ejector pump and when is it needed?
A sewage ejector pump moves wastewater from below-grade bathrooms or laundry areas to the sewer line. It’s needed when gravity flow cannot reach the sewer due to depth or layout. The system helps prevent backups and odors by keeping the waste moving away from living spaces.
A sewage ejector pump moves wastewater from below-grade spaces to the sewer line, preventing backups when gravity flow isn’t possible.
Do I need a permit for installation?
Most jurisdictions require a permit for plumbing installations that involve a wastewater ejector pit and electrical work. Check with your local building department and follow their inspection schedule. Having permits ensures compliance and protects your home.
Yes, check with your local building department and secure the required permits before starting.
Can I install this myself, or should I hire a pro?
Basic installations can be DIY for experienced homeowners, but portions involving electrical work and code compliance are best handled by licensed professionals. When in doubt, consult a plumber or electrician to avoid safety risks.
You can do it if you’re experienced, but for safety and codes, hiring a pro is wise.
What maintenance does it require?
Regular maintenance includes testing alarms, inspecting seals, checking for leaks, and ensuring venting remains clear. Schedule annual checks or after heavy usage to maintain reliability.
Test the alarm, inspect seals, and check for leaks at least once a year.
How long does an ejector pump last?
Lifespan varies by usage and maintenance, typically several years with proper care. Regular maintenance helps extend the life and reduces the chance of unexpected failures.
A well-maintained pump can last several years, but it depends on usage and upkeep.
Watch Video
Top Takeaways
- Plan permits before starting work
- Size and position the pit correctly
- Install venting and a check valve
- Use GFCI-protected power and test thoroughly
- The Sump Pump Check team recommends professional installation for complex setups
