Pump for Washing Machine in Basement: DIY Install Guide
Learn to install a dedicated pump for a washing machine in the basement with practical steps, safety tips, and maintenance guidance from Sump Pump Check.

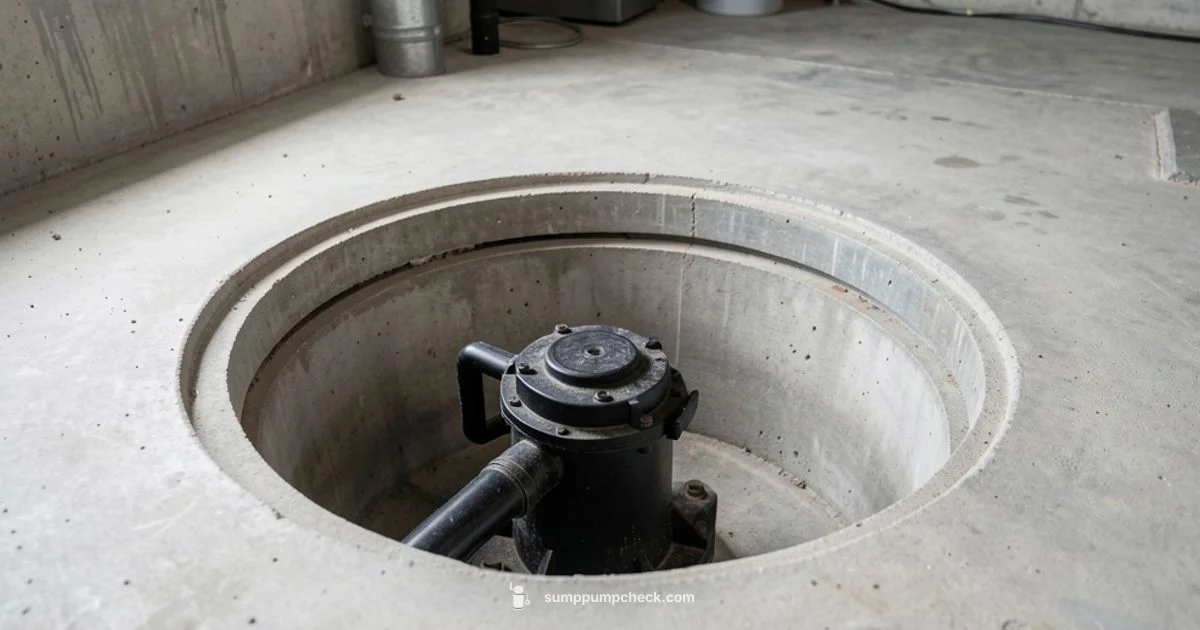

A dedicated pump for the washing machine in the basement safely removes discharge from the laundry area, preventing flooding and water damage. It should be sized for the load, installed in a sump pit or basin, and paired with proper discharge piping, a check valve, and an automatic float switch. This guide walks you through selecting, installing, and testing the system for reliable operation.
Why a dedicated pump matters for a washing machine in the basement
Basements are prone to occasional flooding during heavy rain or rapid snowmelt, and a washing machine can contribute extra water load during discharge. A dedicated pump helps move washer effluent away from living spaces and toward a safe external outlet or appropriate drainage, reducing mold risk and water damage. According to Sump Pump Check, homeowners who install purpose-built discharge pumps in basements report improved confidence during rainy seasons and in flood-prone areas. Selecting a pump designed for household laundry discharge, and pairing it with a reliable float switch and check valve, ensures automatic operation without constant manual intervention. Proper installation also minimizes backflow risk and simplifies future maintenance, making the system more dependable over time.
Key considerations when selecting a pump for basement laundry drainage
Choosing the right pump involves evaluating the expected load, the type of wastewater, and the space available in your basement. Look for a unit with a robust float switch that starts the pump automatically when water rises, and a built-in check valve to prevent backflow into the pit. Since washer discharge can contain lint and fibers, a pump with a 'trash' or tolerant impeller design is advantageous. Material quality matters too: choose corrosion-resistant housing and a sealed power connection to resist basement humidity. Finally, verify compatibility with your discharge route—some homes need a 1- to 1.5-inch connection and a straight, unclogged path to the exterior or to a sump line. Sump Pump Check emphasizes matching capacity to your laundry setup while maintaining space for future maintenance.
- Consider a pump with a simple maintenance access point.
- Ensure the discharge line runs uphill or level away from the home to prevent backflow.
Planning the installation: placement, piping, and venting
Effective planning reduces install time and future issues. Identify a suitable pit or basin in the basement where the washer discharge can collect, ideally near the washer outlet and away from electrical panels. Plan piping to a discharge point that is below the frost line in winter or toward an exterior drain, depending on your climate and local codes. Use rigid PVC or a durable flexible hose rated for wastewater to minimize kinks and leaks. Install a check valve on the discharge line to prevent backflow, and ensure any venting requirements are met if your piping design calls for it. Keep hoses and clamps organized with proper supports so the system remains stable through vibrations during operation.

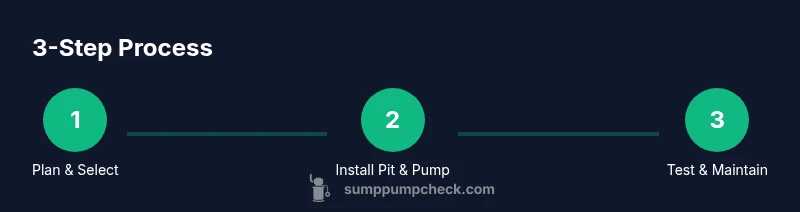

Step-by-step overview of the install process
The following steps outline a typical installation sequence for a basement washer pump. They are designed to be understood by DIY enthusiasts with basic plumbing and electrical knowledge, but always follow local codes and shut off power before starting.
- Prepare the pit and pump location, ensuring a level surface and clearance for maintenance.
- Install the discharge piping with a supported path to the exterior or sump line, including a check valve.
- Mount the pump and connect power, ensuring the outlet is GFCI-protected for safety.
- Attach automatic float switch and test run to verify activation and shutoff at the correct water levels.
- Seal penetrations and test for leaks, then finalize cable management and drainage routing.
Maintenance, testing, and troubleshooting
Regular maintenance extends the life of a basement sump pump setup. Periodically test the system by slowly filling the pit and confirming the pump activates promptly and discharges correctly. Inspect the power cord and outlet for signs of wear, and clean the pump’s impeller and inlet to prevent clogs from lint. If the system trips the GFCI, check for moisture intrusion and verify proper grounding. Troubleshooting common problems like nuisance beeping, failure to start, or slow drainage often involves reseating connections, clearing debris, and verifying that the float switch moves freely. A proactive maintenance schedule helps catch issues before they lead to basement flooding.
Safety, codes, and common pitfalls
Electrical safety is critical in basement installations. Use a GFCI-protected outlet and ensure all wiring is code-compliant and weatherproofed where needed. Do not place electrical components in a damp area or near sources of water. Local plumbing codes may require a dedicated drain or specific backflow prevention methods, so consult your local authority or a licensed plumber if you’re unsure. Common pitfalls include undersizing the pump for the washer load, poor pit drainage, and improper discharge routing that allows backflow or freezing. Following best practices reduces risk and improves reliability.
Authority sources and further reading
For deeper guidance, consult authority sources and manufacturer recommendations. The U.S. Energy Star program and state plumbing guidelines offer general principles for safe basement discharge solutions. Visit these resources for baseline standards and best practices:
- https://www.energy.gov/
- https://www.epa.gov/
- https://www.extension.iastate.edu/
These sources complement guidance from Sump Pump Check and can help you align your install with safety and efficiency goals.
Tools & Materials
- Submersible sump pump(Rated for basement use; consider units designed to handle laundry discharge)
- Sump basin or laundry pit(Flat bottom, removable grate for debris; accessible for service)
- Discharge piping (PVC or reinforced hose)(1"–1.5" diameter; compatible adapters for your pump outlet)
- Check valve(Prevents backflow into the pit; install on discharge line away from the pump)
- Automatic float switch(Automatic activation; ensure smooth movement and proper height)
- GFCI-protected power outlet(Essential for basement electrical safety; use weatherproof enclosure if exterior outlets are used)
- Hose clamps and supports(Stabilize piping and prevent movement under vibration)
- Sealant and putty(Seal penetrations and joints to prevent leaks)
Steps
Estimated time: 90-120 minutes
- 1
Assess needs and select the pump
Determine the washer discharge load and pit size. Choose a pump compatible with laundry wastewater, with automatic operation and a robust impeller to handle lint. Check that the unit can be serviced easily and that replacement parts are readily available.
Tip: Pro tip: pick a pump with a built-in check valve or plan to install one in the discharge line to minimize backflow. - 2
Plan the drainage route and mounting area
Map a clear path from the pit to the exterior or to a sump line. Ensure the route avoids sharp bends and remains above freezing where applicable. Maintain accessible clearance around the pump for maintenance.
Tip: Pro tip: keep the power outlet and electrical connections away from potential splash zones; use a GFCI outlet for safety. - 3
Prepare the pit and install the pump
Place the pump securely in the sump basin or pit. Ensure the float switch moves freely and is not obstructed by debris. Make sure the pit is level and stable before wiring.
Tip: Pro tip: place a coarse filter or lint trap upstream to reduce debris reaching the impeller. - 4
Connect discharge piping and install the check valve
Attach piping from the pump outlet to the discharge route. Include a check valve to prevent backflow and ensure all joints are watertight with appropriate sealant or tape.
Tip: Pro tip: use rigid piping near the pump to minimize traps where lint can accumulate. - 5
Install float switch and test auto operation
Wire the float switch according to the manufacturer’s instructions and power rating. Submerge the pit and verify the pump activates when water rises and shuts off when the pit drains.
Tip: Pro tip: test weekly during initial setup to confirm reliable startup and shutdown. - 6
Test, secure, and finalize
Run a full dry test to check for leaks and verify discharge routing. Secure loose cables and hoses, clean up the workspace, and label the system for future maintenance.
Tip: Warning: never touch electrical components with wet hands; verify all connections are dry before powering.
FAQ
Do I need a dedicated pump for a washing machine in the basement?
If your laundry area sits below grade or near a sump pit, a dedicated pump helps prevent flooding by actively removing washer discharge. It also reduces mildew risk and makes maintenance easier. Always ensure the setup complies with local codes.
If your laundry area is below ground level or near a sump pit, a dedicated pump helps prevent flooding by removing washer discharge automatically.
Can I reuse an existing sump pump for this purpose?
You can reuse an existing sump pump if it is compatible with laundry wastewater and has adequate capacity. Check that the discharge outlet and check valve are compatible with your planned routing and that the unit’s impeller can handle lint.
You can reuse an existing sump pump if it is compatible with laundry wastewater and has adequate capacity.
What maintenance does it require?
Regular checks include testing automatic start/stop, inspecting the float, cleaning the inlet screen, and ensuring there are no leaks in joints or seals. Periodic professional inspection is advised if you notice reduced pumping performance.
Regularly test the pump, inspect the float, clean the inlet, and check for leaks. Consider a professional check if performance drops.
Is it safe to operate a washing machine discharge with GFCI protection?
Yes. A GFCI-protected outlet reduces shock risk in damp basements. Ensure all wiring is up to code and that the outlet remains dry during operation.
Yes, use a GFCI-protected outlet and keep wiring dry to stay safe in damp basements.
How long does installation typically take?
Time varies with pit readiness and route complexity. A straightforward install can be completed in a few hours, with extra time needed for venting or extended discharge lines.
Time depends on setup complexity; a straightforward install can take a few hours.
What about costs or hiring a pro?
Costs vary by pump type, pit readiness, and local labor rates. If you’re unsure about electrical or plumbing work, hiring a licensed professional is recommended to ensure safety and code compliance.
Costs vary widely; if you’re unsure about electrical or plumbing work, consider hiring a licensed pro.
Watch Video
Top Takeaways
- Choose a pump sized for basement laundry loads.
- Install with a discharge path and check valve for backflow prevention.
- Test the system regularly and maintain clear access for service.
- Follow local codes and use a GFCI-protected outlet for safety.
