What Size Sump Pump for Washing Machine: A Practical Guide
Learn how to size a sump pump for washing machine drainage, including typical horsepower ranges, pit measurements, discharge considerations, and installation tips to prevent basement floods.
According to Sump Pump Check, sizing a sump pump for a washing machine means selecting a unit that can safely handle typical basement discharge without overworking. For most homes, a pump in the 1/3 to 1/2 HP range is suitable; if you have a larger pit or higher inflow, consider up to 3/4 HP. Ensure your pit fits the outlet flow and meets local codes.
Why size matters for a washing machine discharge
Sizing a sump pump for a washing machine is about ensuring reliable drainage without overtaxing the pump or wasting energy. A pump that is too small can run excessively, leading to premature wear or nuisance cycling, while an oversized pump may be inefficient for small inflows and could cause unnecessary power usage. In basement settings, where space is limited and the pit has to handle spikes from clothes washing cycles, getting the right range is essential. According to Sump Pump Check, the goal is to match the pump’s capacity to the expected inflow from the washing machine and any concurrent basement drainage. This alignment helps prevent overflow, reduces noise, and extends pump life.
Understanding typical horsepower ranges for laundry drainage
Most homes with a single washing machine use a mid-range sump pump. A 1/3 HP to 1/2 HP pump is commonly sufficient for standard basement pits and normal laundry cycles. If your basin is larger, or if there is frequent heavy rainfall or other water sources entering the pit, upgrading to a 3/4 HP pump can provide a more robust margin. The key is not to oversize so much that the pump runs at low efficiency, but to avoid undersizing that leads to frequent cycling and potential failure. When evaluating HP, also consider the pump’s flow rate at your expected head pressure (the vertical distance the water must rise).
Pit size, plumbing, and discharge considerations
A pump’s fit is only part of the equation. The pit must be large enough to accommodate the impeller and float mechanism without jamming. Discharge piping should be able to handle the pump’s outlet without friction losses that slow drainage. Check the pit diameter and depth, and confirm that the discharge line diameter matches the pump outlet (commonly 1-1/2 inch in residential setups). For laundry-related drains, you may also need a check valve to prevent backflow and a cleanout to simplify maintenance. Proper venting and a secure hose connection minimize leaks and odors in the basement.
How to measure your pit and estimate needed capacity
Begin by measuring the pit diameter and depth, then note the available space for the pump plus any attachment plumbing. Measure the vertical rise (head) from the pit to the point where water is discharged outside or to the storm drain. Use these measurements to estimate whether a 1/3 HP, 1/2 HP, or 3/4 HP unit will meet your needs, consulting the pump’s performance curve to verify flow at your head height. If you have multiple sources feeding the same pit, or if the pit is used for additional drainage during heavy rain, you’ll want a pump with a higher flow capacity and possibly a secondary backup.
Installation prerequisites: electrical, safety, and codes
Electrical safety is non-negotiable. Ensure a GFCI-protected outlet within code distance of the pit, and use proper strain relief on all cables. Sump pump installations should comply with local plumbing and electrical codes; many jurisdictions require a dedicated circuit and proper grounding. Before sealing the pit, verify that the fitting sizes, pipe materials, and sealants are compatible with your pump model. Finally, plan for a should-be-easy maintenance routine that won’t require you to drain the pit entirely every time.
Maintenance and testing for reliability
After installation, test the system with a controlled water source to verify that the float switch activates correctly and the discharge line carries water away as designed. Schedule regular inspections—at least semi-annually—to check for leaks, worn bearings, and gasket integrity. Clean debris from the pit and check the check valve for proper sealing. Keeping a simple log of maintenance can extend the life of the pump and prevent unexpected failures.
Common mistakes and how to avoid them
Don’t oversize your pump at the expense of efficiency, and avoid underestimating the head height required to reach the discharge point. Never bury the vent or outlet lines; ensure clear routing and proper slope to avoid standing water. Finally, don’t skip electrical safety steps: no bare wires, no extension cords, and always use a GFCI outlet for a device in damp areas.
Tools & Materials
- Measuring tape(At least 6 feet; measure pit diameter and depth accurately)
- Sump pump with appropriate HP range(Typically 1/3–1/2 HP for standard setups; upgrade to 3/4 HP for bigger pits or higher inflow)
- PVC pipe cutter(For the discharge line (commonly 1-1/2 inch or 2 inch))
- PVC primer and cement(To create leak-proof connections)
- PVC discharge pipe (1-1/2" or 2")(Sized to match pump outlet and drainage path)
- Silicone sealant(Extra sealing at joints or around the pit edge)
- Safety gear (gloves, eye protection)(Protect during heavy cutting and handling of pipes)
- GFCI-protected outlet and tester(Ensure correct rating and proximity to the pit)
- Backup float switches or a backup pump (optional)(Adds reliability for power outages or pump failure)

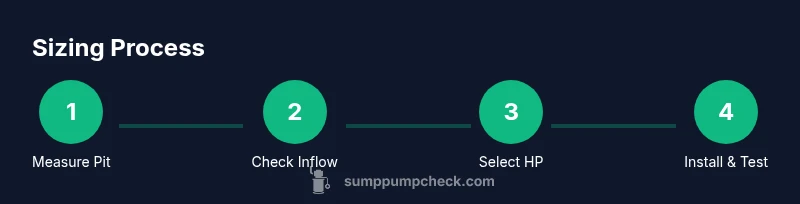

Steps
Estimated time: 3-6 hours including measurement, fitting, and initial test
- 1
Assess pit size and location
Measure the pit diameter and depth, noting clearance for the pump and outlet plumbing. Confirm that the pit location aligns with the planned discharge route and electrical access. This helps prevent later rework.
Tip: Take photos of measurements from multiple angles for reference. - 2
Check discharge capabilities
Count the anticipated inflow and decide if 1-1/2" or 2" discharge piping is appropriate. Verify head height by tracing the route to where water exits the home.
Tip: If multiple fixtures feed the pit, plan for a higher-capacity pump. - 3
Choose horsepower within range
Select a pump in the 1/3–1/2 HP range for standard basements. Move to 3/4 HP if the pit is large or you expect higher inflow. Check the manufacturer’s curve for flow at your head height.
Tip: Avoid undersizing; it causes premature wear and frequent cycling. - 4
Prepare electrical and drain connections
Install a dedicated GFCI-protected outlet near the pit. Cut and fit the discharge pipe, ensuring a clean slope away from the foundation and a secure connection to the pump outlet.
Tip: Use strain relief on the cord and avoid running cords through water paths. - 5
Install pump and seal pit
Set the pump in the pit, secure it, and seal around the top edge with silicone if needed. Attach discharge piping, check valves, and cleanouts as per code. Ensure float switch movement is unobstructed.
Tip: Test the float by lifting it manually to confirm it triggers the pump. - 6
System test and final checks
Run water into the pit to simulate a washer discharge. Confirm water exits properly and that there are no leaks. Label the reset switch and schedule regular maintenance.
Tip: Record the test results and date for maintenance tracking.
FAQ
Do I need a specific horsepower rating for a washing machine sump pump?
For a typical laundry setup, a 1/3 to 1/2 HP pump is usually sufficient. Larger pits or higher inflow may justify a 3/4 HP unit. Always verify performance curves for your head height and space.
A typical washing machine setup uses a 1/3 to 1/2 HP pump, with 3/4 HP for larger pits. Check the pump’s performance at your head height.
Can I connect a washing machine drain to a standard sump pit?
Yes, many homes drain a washing machine into a dedicated sump pit, provided the discharge line and pit are sized correctly and codes are followed. Use a proper check valve and ensure the outlet pipe matches the pump.
Yes, you can, as long as the pit and pipes are sized correctly and meet code requirements.
What size discharge pipe should I use?
Common residential discharge sizes are 1-1/2 inches or 2 inches. Choose based on your pump outlet and the distance to the exterior drainage path, ensuring minimal friction and a proper slope.
Most setups use 1-1/2 to 2 inch pipe; pick the size that matches your pump outlet and route.
Is a backup pump necessary for a washing machine sump?
A backup pump or battery backup is advisable in flood-prone areas or where power outages are common. It provides extra protection during storms or outages.
A backup pump is wise if you’re in a flood zone or have frequent outages.
How often should I test the sump pump after installation?
Test the pump at least twice a year and after major storms. Verify the float switch, discharge path, and power supply during each test.
Test it twice a year and after big storms to be sure it works when you need it.
What are signs my pump is undersized?
If the pump runs continuously, frequently trips on overload, or cannot keep up with inflow during laundry cycles, it may be undersized. Consider a higher HP or backup system.
If it runs constantly or can’t keep up during laundry, you might need a bigger pump.
Can I install a sump pump myself for a washing machine?
Basic installation is feasible for capable DIYers, but ensure compliance with local codes and electrical safety. When in doubt, consult a licensed plumber or electrician.
DIY can work, but follow code and safety rules; consider professional help if unsure.
What maintenance should I perform regularly?
Keep the pit clean, test the float switch, inspect seals, and check the discharge line for clogs. Schedule semi-annual checks to extend pump life.
Clean the pit, test the switch, and inspect seals twice a year.
Watch Video
Top Takeaways
- Size matters: match pump HP to pit and inflow
- Verify discharge path and head height before installation
- Prioritize safety with electrical and plumbing codes
- Plan for maintenance to reduce failures
