Can You Put a Sump Pump in a Crawl Space? A Practical Guide
Discover whether you can install a sump pump in a crawl space, with step-by-step guidance, safety reminders, and maintenance tips from Sump Pump Check.
Can you put a sump pump in a crawl space? Yes—installing a crawl-space sump pump helps control groundwater, humidity, and mold risk. The setup requires a sealed discharge line, a drainage pit, a dependable pump, a check valve, and proper venting, plus adherence to local codes. According to Sump Pump Check, crawl-space installations are feasible when you plan drainage, access, and power safely.
Why crawl-space sump pumps matter
A crawl space presents a unique moisture challenge. Groundwater, damp soil, and humidity can lead to wood rot, mold, and higher energy costs if not managed. A properly installed crawl-space sump pump helps move water away from the foundation and reduce humidity levels, making living areas drier and healthier. A lot of homeowners ask what to do about crawl-space moisture. According to Sump Pump Check analysis, addressing crawl-space moisture with a dedicated pump is a prudent part of a broader basement drainage strategy. In practice, a well-sized pump paired with a sealed pit, reliable discharge, and a clear maintenance plan dramatically lowers the risk of long-term damage to your home. When you plan for crawl-space installation, consider how the system will interact with drainage tiles, vapor barriers, and any existing sump systems in adjoining spaces.
Key considerations for crawl space sump pump placement
Select the lowest accessible point in the crawl space to maximize water removal and minimize pumping effort. The pump location should allow a straight discharge path to the exterior, be protected from flooding, and be reachable for maintenance. Plan for a sealed, water-tight sump pit and a discharge line that slopes away from the foundation. Ensure a proper venting and a check valve to prevent backflow. Local codes often require a GFCI-protected outlet and electrical shutoff near the pump, so plan your electrical layout early. These considerations help prevent nuisance trips, backflow, and sewer gas concerns while keeping the crawl space accessible for future service.
Sump pump options for crawl spaces
There are several pump configurations suitable for crawl spaces. Submersible pumps sit inside the pit and are generally quieter and less visible, while pedestal pumps mount above the pit and can be easier to service. For crawl spaces, many homeowners prefer a pump with an adjustable float switch and a reliable impeller design to handle sediment from damp soil. Consider a backup option, such as a battery-powered pump or a waterless storage system, to protect against power outages. Evaluate hose and discharge options, aiming to minimize backflow and ensure the water is directed well away from the foundation. When selecting a model, prioritize durability, ease of maintenance, and compatibility with any existing drainage systems in the home. The Sump Pump Check team notes that reliable backups dramatically improve resilience during outages.
Essential components and installation layout
A typical crawl-space sump installation includes a properly sized sump pit, a pump with an attached float switch, a discharge pipe with a check valve, and a vent/air admittance path as required by code. Sealant and gaskets around the pit prevent crawl-space infiltration, while a sturdy, accessible panel provides service access. The discharge line should exit above grade and slope away from the house, ideally running through a clear path to prevent tripping hazards. A simple alarm or indicator light helps you know when the pump is cycling, and a backup pump increases resilience during outages. Plan a neat, accessible routing that avoids high-traffic zones and preserves crawl-space insulation.
Common installation scenarios and code considerations
In many homes, the crawl space shares drainage with the basement or needs its own independent line. If possible, route discharge to an exterior sump-out or storm drainage area that won’t flood indoor spaces. Check local regulations regarding discharge into storm drains or sanitary lines. A backflow preventer and a check valve prevent water from re-entering the system. Some jurisdictions require GFCI outlets and dedicated circuits for sump pumps. Keep electrical connections dry and protected, and maintain a clear path for inspection and maintenance.
Maintenance, testing, and troubleshooting for crawl-space pumps
Regular maintenance is key to reliable operation. Test the pump monthly by pouring water into the pit and listening for the pump cycle, checking the outlet for clogs, and inspecting the discharge line for leaks. Keep the sump area clean and dry, monitor the float switch for sticking, and replace batteries in backup systems before storms or outages. A yearly professional inspection can catch wear, wiring issues, or a failing check valve before they become major problems. Maintain a simple log of tests, maintenance tasks, and any replacements. The Sump Pump Check team emphasizes documenting tests to catch issues early.
Tools & Materials
- Sump pump (submersible or pedestal)(Choose a model rated for crawl-space use with adequate GPH and head height)
- Sump pit/basin(Install at the lowest point; ensure size fits your space)
- Discharge pipe (PVC, 1.5–2 inch)(Run to exterior with proper slope)
- Check valve(Prevents backflow into the pit)
- Float switch or auto-control(Ensures automatic cycling)
- Backup pump (battery or water-powered)(For outages)
- Sealant or epoxy for pit sealing(Prevents crawl-space leaks around pit)
- GFCI-protected outlet or dedicated circuit(Safety in damp spaces)
- PVC glue, primer, and fittings(Secure discharge line)
- Hose clamps and pipe supports(Keep line secure and leak-free)
- Slope/rubber couplings and cleanout access(Maintenance access)
- Safety gear (gloves, goggles)(Personal protection)

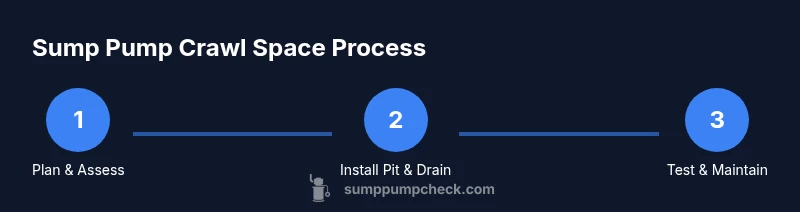

Steps
Estimated time: 2-6 hours
- 1
Assess crawl space and plan drainage
Survey the space to identify the lowest point and any moisture hotspots. Mark a path for the discharge that won’t interfere with utilities or future storage. Confirm that there is a clear route to the exterior for water removal.
Tip: Measure the water flow path with a simple water test to confirm gravity-assisted drainage. - 2
Size the pump and select the model
Choose a pump with adequate head height and flow rate for your crawl space, considering humidity and typical water entry. If in doubt, select a model with a higher tolerance for sediment and a robust impeller. Decide whether a backup pump is part of your plan.
Tip: Prioritize a model with a good warranty and service network. - 3
Install the sump pit and seal the area
Set the pit at the marked lowest point, ensuring a tight seal with the surrounding concrete or floor. Install gaskets and sealant to minimize seepage around the pit. Verify the pit is level and stable before proceeding.
Tip: Use a vibration pad under the pump to reduce noise and movement. - 4
Run discharge line and install check valve
Lay out the PVC discharge line with a consistent slope away from the foundation. Install a check valve close to the pump to prevent backflow. Secure the line and minimize bends to reduce head loss.
Tip: Keep the line above grade where possible and protect it from physical damage. - 5
Install float switch and connect power
Mount the float switch so it moves freely without obstruction. Connect the pump to a safe, GFCI-protected outlet or dedicated circuit. Test the float by manually lifting it to ensure the pump starts reliably.
Tip: Check for any trapped air in the line that could affect priming. - 6
Add backup options and safety features
Install a backup pump or a battery backup if power outages are common. Add an audible alarm or LED indicator to signal pump activity. Confirm a simple shutoff method in case of a fault.
Tip: Recharge or replace backup batteries ahead of storm season. - 7
Test the system and adjust as needed
Pour water into the pit to simulate a flood event. Observe pump operation, discharge flow, and any leaks. Adjust float settings, check valve position, and discharge routing as needed for reliable operation.
Tip: Document test results and update your maintenance log. - 8
Document and schedule maintenance
Create a simple maintenance log: dates of tests, parts replaced, and any issues observed. Schedule monthly checks and annual professional inspection if possible. Keep access routes clear for future service.
Tip: Set calendar reminders for regular checks and battery backups.
FAQ
Can you install a sump pump in a crawl space yourself?
Yes, you can, if you have basic plumbing and electrical skills and follow safety guidelines. If you’re unsure about wiring or code requirements, consider hiring a professional.
Yes, you can DIY if you’re comfortable with plumbing and electrical work, but you should hire a pro if you’re unsure about codes.
What is the best pump type for a crawl space?
Submersible pumps are common for crawl spaces due to their compact design and quiet operation, but choose the one that fits your space and maintenance needs.
Submersible pumps are typically preferred for crawl spaces, but pick what suits your setup.
Do crawl-space sump pumps require a backup?
A backup system is highly recommended to protect against power outages and severe weather. Battery backups are common and effective.
Yes—backup power is highly recommended to handle outages.
Where should the discharge water go from a crawl-space sump pump?
Discharge should exit outside away from the foundation and not back into the crawl space or indoor drains, following local regulations.
Take the water outside, away from the foundation, and follow local rules.
Are there code requirements for crawl-space sump pump installation?
Yes. Most areas require a GFCI outlet, proper venting, and a dedicated circuit. Always check local codes before installing.
Expect GFCI protection and dedicated circuits; confirm local codes before starting.
How often should I test and maintain a crawl-space sump pump?
Test monthly by simulating a flood and inspect for clogs or leaks. Schedule an annual professional check if possible.
Test monthly and inspect for clogs; consider an annual professional check.
Watch Video
Top Takeaways
- Plan drainage before digging or placing the pit.
- Choose a pump size that matches the crawl-space conditions.
- Route the discharge away from the foundation with a proper check valve.
- Test and maintain the system regularly to prevent failures.
