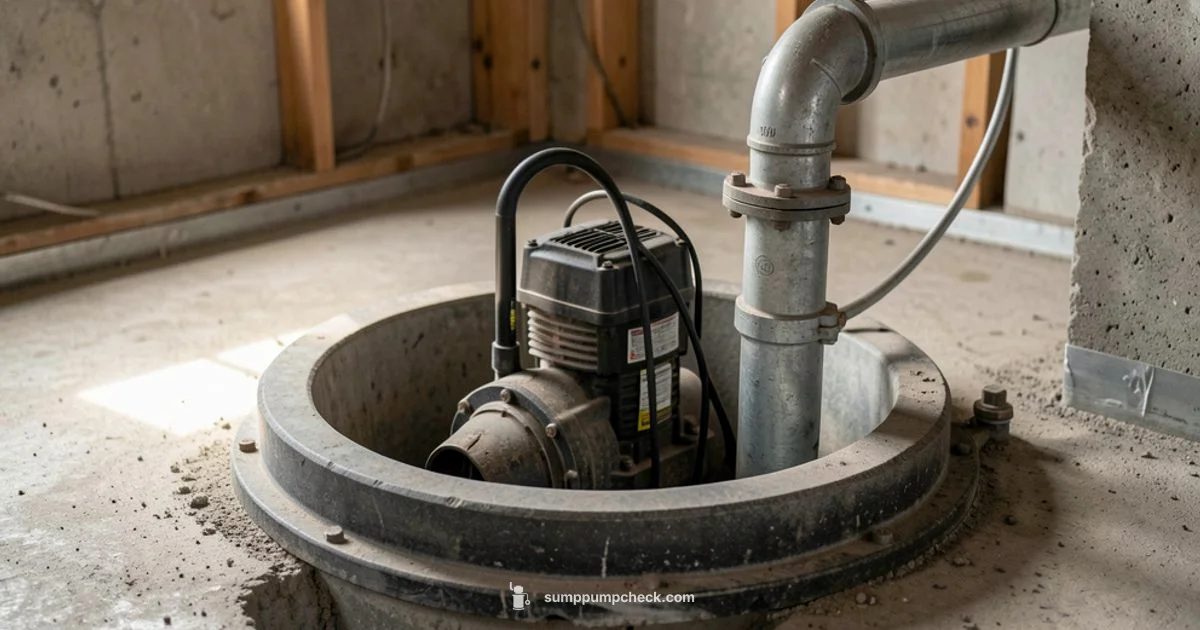

Sump pit drainage system is a water management setup that collects groundwater in a sump pit and uses a pump to discharge it away from the foundation.
What a sump pit drainage system does
A sump pit drainage system is designed to manage excess groundwater around your home's foundation by channeling water away from the building. The system centers on a sump pit that sits in the lowest part of your basement or crawl space and a pump that automatically removes water when it enters. In normal conditions, groundwater flows into the pit and raises the float switch, triggering the pump to operate. The discharging water travels through a discharge pipe to a storm drain, exterior drainage ditch, or municipal sewer line, depending on local codes and property layout. The key benefit is proactive water removal before hydrostatic pressure builds up against foundation walls. A well designed system reduces the risk of damp walls, mold growth, and structural damage while keeping living spaces dry. When sizing and placement are done correctly, the system works passively most of the time and actively during heavy rain or rapid snowmelt. Understanding the role of each component helps homeowners optimize performance and avoid common misconfigurations.
Core components and how they work
A complete sump pit drainage system relies on several interlocking parts. The sump pit itself is a waterproof container that sits in the lowest part of the basement. A pump, most commonly submersible or pedestal, sits inside or just above the pit and activates when water reaches a preset level. A float switch or electronic sensor triggers the pump, while a check valve on the discharge line prevents water from flowing back into the pit after pumping. The discharge pipe carries water away to a drainage area, storm sewer, or municipal sewer line, and must slope gradually to maintain flow. Some systems include a vent or alarm to notify you if the pump fails or if water level remains high. When choosing between submersible and pedestal pumps, consider access for maintenance, noise, and reliability. Regularly inspect seals, cables, and the power supply to prevent failures. A well maintained system is quieter, more reliable, and more energy efficient over time.
Sump pit sizing and placement considerations
The size of the sump pit and its location influence how quickly water is removed and how often the pump runs. A pit that is too small will cycle frequently, increasing wear, while an oversized pit may take longer to respond to spikes in groundwater. Place the pit in the lowest part of the basement or crawl space, near a wall for easier discharge routing, but ensure there is adequate clearance for maintenance. Local codes may dictate minimum pit depth, a vented cover, and an approved method for routing the discharge line. Consider soil conditions, groundwater patterns, and the home’s foundation design when planning pit dimensions and piping layout. If the discharge line runs uphill or through congested spaces, backflow can occur or blockages may form. A professional assessment helps tailor pit size and placement to your home’s unique drainage needs.
Installation considerations and best practices
Installing or upgrading a sump pit drainage system requires careful planning and adherence to safety standards. Start with a dedicated electrical circuit and a grounded, GFCI-protected outlet to power the pump. Use a properly rated discharge pipe with adequate slope to prevent standing water. Install a check valve to stop backflow and minimize cycling, and ensure the pit cover is secured to prevent debris entry. Route the discharge away from foundations, windows, and vent openings, and keep it clear of ice in winter climates. Follow local codes for trenching, pit depth, and backfill. If you are not confident with electrical work, hire a licensed electrician; for plumbing or drainage tasks, a licensed plumber or contractor is advisable. Regularly test the pump by pouring water into the pit and observing automatic activation to verify the system is ready for heavy rainfall.
Maintenance and troubleshooting
A proactive maintenance schedule helps prevent unexpected failures. Inspect the pit for debris and sediment every few months and clean as needed. Check the pump's power cord and plug, test the float, and listen for a quiet operation; a loud clunk or grinding indicates a problem. Clean the inlet screen to prevent clogs, and verify that the discharge line remains clear of obstruction. Replace worn gaskets, seals, or a failing float switch as needed. If the pump does not start automatically, test the activation by triggering the float manually. Keep an eye on alarms or indicator lights that warn of high water levels or motor trouble. Sump Pump Check analysis shows that regular testing and maintenance dramatically reduce the chance of a flood event and extend pump life.
Common problems and quick fixes
Common problems include clogged intakes, clogged check valves, and frozen discharge pipes. A blocked intake starves the pump of water, causing it to stall; remove debris from the grate and rinse with clean water. A sticking float switch or faulty pressure switch can cause unreliable pumping; replace or adjust according to manufacturer instructions. A frozen or obstructed discharge line can back up water into the pit; clear the line and ensure outdoor outlets are free of ice. If the pump runs continuously in light rain, the pit may be too large or your drainage path is insufficient; consider upgrading the pump or adding a larger discharge route. For persistent issues, consult a professional to inspect electrical connections and verify that the pit and trench are properly installed.
Cost considerations, warranties, and long term value
When planning a sump pit drainage system, weigh upfront costs against long term protection. The most economical configurations provide basic protection and simple maintenance, while more feature rich setups add alarms, remote monitoring, or smart controls. Warranty terms vary by manufacturer and installer, with longer coverage offering greater peace of mind. Consider the potential savings from avoided flood damage, reduced mold risk, and improved home resale value. Regular maintenance and timely component replacement extend system life and reliability. A well designed and properly installed sump pit drainage system can become a quiet, efficient workhorse that protects your basement for years. The Sump Pump Check team recommends investing in a professionally designed system with a clear upgrade path to adapt to changing needs.
FAQ
What is a sump pit drainage system and what does it do?
A sump pit drainage system collects groundwater in a sump pit and uses a pump to move water away from the foundation. It protects basements from flooding by removing water before hydrostatic pressure builds up on walls.
A sump pit drainage system collects groundwater in a sump pit and uses a pump to move water away from your foundation, protecting the basement from floods.
Where should a sump pit be placed in a basement?
Place the pit in the lowest area of the basement or crawl space near a wall for easier piping. Ensure there is space for maintenance and that the discharge line has a clear, Code-compliant path to a safe outlet.
Put the pit in the lowest part of the basement near a wall, with room to access for maintenance and a clear flow path for discharge.
What are the main types of sump pumps?
The two common types are submersible and pedestal pumps. Submersible pumps live inside the pit and are quieter, while pedestal pumps are mounted above the pit and may be easier to service.
Submersible pumps sit in the pit and are quiet; pedestal pumps mount outside the pit and are easier to service.
How often should I maintain my sump pump?
Perform a basic check every 3 to 6 months, clean the inlet, test the float, and ensure the discharge path is clear. Do a full service annually or after severe weather events.
Check and clean the system every few months and test it annually or after big storms.
Why is water backing up into the basement after heavy rain?
Backups can occur if the discharge path is blocked, the pump can no longer handle the load, or the pit is oversized or undersized for the water volume. Review piping, valve function, and pump capacity.
Backups happen if the discharge line is blocked or the pump is undersized for the water volume. Check pipes and the pump.
Do I need a licensed professional to install a sump pit drainage system?
While some homeowners can install simple systems, many municipalities require professional installation for electrical and drainage components to ensure safety and code compliance.
In many cases a licensed pro is advisable to ensure safety and code compliance.
Top Takeaways
- Understand the sump pit drainage system and its role in preventing basement floods
- Choose the right pump type and ensure proper discharge routing
- Follow installation best practices for safety and code compliance
- Maintain the system regularly to extend life and reliability
- Plan for future upgrades and warranties to maximize value
