Sump Pump Float Adjustment Diagram: A Step-by-Step Guide
A complete, practical guide to reading and using a sump pump float adjustment diagram. Learn components, safety, testing, and maintenance to keep your system reliable during heavy rainfall.
Within this guide, you will learn how to interpret and apply a sump pump float adjustment diagram to ensure reliable pump activation and shutoff. According to Sump Pump Check, correct float positioning reduces nuisance cycling and extends pump life. This task requires basic tools, power-off safety, and careful observation of water level cues.
Why a float adjustment diagram matters
A clear float adjustment diagram acts as a roadmap for safe, reliable operation of a sump pump. It translates the physical layout of the float switch, pivots, and activator into measurable water levels, so you know exactly when the pump should start and stop. According to Sump Pump Check, using a diagram reduces unnecessary cycling, protects your pump from short-cycling wear, and helps you diagnose why a pump might run intermittently. A well-mapped diagram also aids in maintenance, because anyone in the household can follow it to verify settings during storms or after repair. This upfront clarity saves time during emergencies and helps DIYers avoid guesswork in tight spaces like a basement pit.
Understanding sump pump float components
Most sump pumps use a mechanical float switch or a pressure/air chamber to sense water height. The float rises with the incoming water and actuates a switch that powers the pump. Key parts include the float, the switch lever or arm, the micro-switch or magnetic switch, and the mounting rod. Some models use tethered floats, others vertical floats; each design has a different travel path and activation point. The diagram highlights critical measurements—activation depth, shutoff depth, and travel clearance—so you can set safe margins and avoid false triggers. Knowing these components helps in choosing the correct diagram for your unit and makes adjustments safer. For households, a reliable diagram is a practical asset for ongoing basement drainage health.
Reading the diagram: symbols and conventions
A typical diagram uses symbols to show water levels, switch states (on/off), and the travel path of the float. Look for solid lines representing physical linkage, dashed lines for travel range, and color codes indicating safe vs. risk zones. The activation point is where the switch changes state as the float crosses the threshold. The shutoff point shows where the pump stops, allowing water to rise again to the next cycle. If the diagram includes a tolerance band, use it to set a small safety margin—especially in basements where water levels can change quickly. A well-annotated diagram makes it easier to translate theoretical depths into real-world adjustments.
Preparing for adjustments: safety and setup
Before touching equipment, switch off power at the breaker and unplug the pump if accessible. Wear safety goggles and gloves, and keep the work area dry. Remove any debris from the sump pit that could interfere with the float, and clean the mounting area. If you must drain part of the pit to access the float, use a bucket or siphon to prevent splashing. Note the water level in a marked container so you can compare it to the diagram’s thresholds after adjustments. This is a critical step to avoid electric shock and ensure precise measurements. Proper preparation reduces the risk of injury and ensures accurate results when you adjust the float diagram.
The brand-informed perspective: practical tips from Sump Pump Check
Sump Pump Check emphasizes documenting your current settings before making changes. Take photos of the float position and take measurements with the diagram handy. Compare your unit’s travel to the diagram’s activation and shutoff levels. If you hit resistance or suspect a faulty switch, consult the diagram and your manual; misalignment can cause short-cycling or pumping dry. By keeping a log, you’ll track improvements across storms and seasons. This disciplined approach makes future fixes quicker and helps you share reliable information with neighbors or friends who rely on your setup.
Step-by-step reading of the diagram
Step-by-step reading of the diagram helps you translate what you see on paper into physical adjustments. Start by identifying the baseline water line in the drawing and comparing it to your sump pit height. Next, locate the activation point; measure from baseline to activation using the scale shown. Then identify the shutoff point and ensure the distance between activation and shutoff is appropriate (commonly 1-2 inches). Finally, verify any travel clearance and mounting constraints. If you notice a gap between the diagram and your actual setup, re-check mounting positions or switch types and adjust accordingly. This careful reading makes adjustments precise and repeatable.

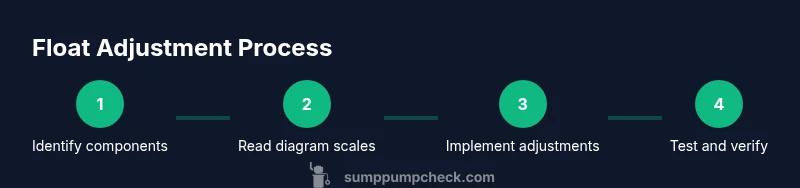

Step-by-step: perform a float adjustment using the diagram
Performing a float adjustment using the diagram involves translating the target activation and shutoff depths into physical changes. 1) Remove the cover to access the float and switch. 2) Loosen mounting screws slightly to allow movement; 3) reposition the float or actuating lever to the diagram’s activation depth; 4) re-tighten mounting screws and ensure lever clearance; 5) recheck the diagram’s measurements against your physical setup. 6) If the unit uses a tether, adjust the tether length to match the diagram. 7) Avoid touching live wires and ensure dry hands during handling. 8) Reconnect power after confirming all parts sit properly. A slow, methodical approach reduces the chance of misalignment.
Testing after adjustment: pump cycle and water level test
With the power restored, slowly fill the sump pit with water to approach the activation depth shown on the diagram. Observe the float as it rises and the pump starts; confirm the shutoff occurs at the diagram’s indicated level. If the pump cycles too quickly or not at all, re-check the activation and shutoff distances. Perform a second test with a larger water inflow to simulate a heavy rain event. If the behavior still diverges from the diagram, consider loosening the float mount slightly or replacing a worn switch. Document the results for future reference.
Common pitfalls and troubleshooting
Common pitfalls include misreading the activation depth, over-tightening the float arm, and failing to account for float binding near the pit walls. The diagram helps you spot binding by showing travel clearance; if the float contacts the pit wall, adjust mounting height or switch orientation. In cases of frequent cycling, verify that the basin volume and discharge line are adequate; inadequate drainage can mimic a misadjusted float. If the diagram shows a wide travel range but the actual pump produces short cycles, the switch may be sticking or the float arm is bent. Re-check wiring and consult the diagram for correct alignment.
Maintenance schedule and record-keeping
Maintain a simple maintenance log that records the activation and shutoff depths, the date of the last adjustment, and the results of test runs. Include notes about any weather events that prompted the check. Schedule a quarterly review of the diagram during spring and fall to account for seasonal changes in groundwater. Keep the diagram accessible near the sump or in the home maintenance folder. Regular reminders help you catch drift or wear before a failure occurs.
Adapting the diagram to different pump models
While the basic principles of a float adjustment diagram are universal, some models use different activation mechanics. Review your model’s manual for any model-specific terms, such as lever angle or tether length. If the diagram you’re using was created for a different unit, map the activation and shutoff points to your unit’s travel range, and adjust the margins accordingly. When in doubt, compare several diagrams for similar models and cross-check with the manufacturer’s guidelines. This approach ensures you use the diagram effectively across multiple devices.
Tools & Materials
- Sump pump float adjustment diagram (reference)(Keep a copy accessible for quick reference during maintenance)
- Gloves and safety goggles(Wear when working in the pit and handling components)
- Phillips and flat-head screwdriver set(For loosening/tightening mounting screws)
- Needle-nose pliers(Useful for small clips or lever adjustments)
- Adjustable wrench(Optional if fittings are tight or threaded components need adjustment)
- Bucket or siphon(For safe water removal if access is blocked)
- Marker or tape(Mark original positions before making changes)
- Dry, non-conductive surface area(Keep tools and hands dry to prevent shock risk)
Steps
Estimated time: Total time: 60-90 minutes
- 1
Power down and safety check
Turn off the sump pump circuit at the breaker and unplug the unit if accessible. Confirm the area is dry and remove any standing water. This prevents electric shock and allows accurate measurements during the adjustment.
Tip: Always test that the power remains off before touching the device. - 2
Inspect the float and path
Examine the float for freedom of movement and check that the travel path is clear of debris. Look for bent arms or binding that would mimic incorrect activation.
Tip: Take a close-up photo of the float position before moving anything. - 3
Locate activation and shutoff points on the diagram
Identify the activation and shutoff depths on the diagram and compare them to your sump pit height. Ensure the diagram’s scales match your unit’s water level indicators.
Tip: If scales don’t align, use a ruler to map points clearly onto the unit. - 4
Loosen the mounting screws
Gently loosen mounting screws to allow minor adjustment of the float or lever without removing components. Do not remove screws completely unless necessary.
Tip: Loosen only enough to move the float or arm fractionally at first. - 5
reposition the float according to the diagram
Move the float so the activation depth matches the diagram. Check that the lever or tether length aligns with the diagram’s travel range.
Tip: Aim for the smallest safe margin beyond activation depth to reduce false starts. - 6
Tighten and recheck
Retighten screws and manually move the float through its full travel to confirm it clears walls and avoids binding.
Tip: Do a final check by manually triggering the switch with the float in the mid-range. - 7
Reconnect power and test a dry cycle
Plug the unit back in and run a dry test to ensure the pump remains off when there is no water and starts when the float rises.
Tip: If the pump starts with no water, re-check for stuck switches or incorrect alignment. - 8
Test with simulated water
Introduce water gradually to approach the activation depth and observe the pump cycle. Verify that the pump switches off at the diagram’s shutoff level.
Tip: Record the water level at the moment of activation and shutoff for future comparisons. - 9
Document settings and schedule future checks
Write down activation and shutdown depths, the date of adjustment, and any notes. Establish a quarterly check cadence.
Tip: Keep a log in a home maintenance notebook or digital document for quick reference.
FAQ
What is a sump pump float adjustment diagram?
A diagram shows how the float moves with water height and where the activation and shutoff points are. It guides safe, precise adjustments to prevent nuisance cycling.
A diagram shows float movement and the activation and shutoff points to guide precise adjustments.
Can I adjust the float without removing the pump?
In many cases you can adjust the float or lever without removing the unit, using the mounting screws and, if needed, tether length. Follow the diagram for safe movement limits.
Yes, often you can adjust without removal by using the mounting screws; follow the diagram for limits.
What safety steps should I follow before adjusting?
Always cut power to the pump, unplug if possible, wear protective gear, and keep the area dry. Do not work in a wet sump pit.
Cut power, wear safety gear, and keep the area dry before adjusting.
How often should I test the float after adjustments?
Test after adjustments, then schedule quarterly checks, especially before seasons with heavy rainfall.
Test after adjustments and then quarterly checks.
What if the diagram doesn’t match my pump model?
Consult the manufacturer manual for your model and compare with similar diagrams. If in doubt, use the closest model’s diagram as a reference.
If unclear, check the manufacturer manual or use a similar model’s diagram as a reference.
Where can I find the official float diagram for my unit?
Check the manufacturer’s website or the model’s technical manual; you can also ask a professional for the correct diagram.
Look on the manufacturer’s site or in the model manual for the correct diagram.
Watch Video
Top Takeaways
- Know your activation and shutoff depths on the diagram
- Test carefully after adjustments before heavy rainfall
- Document changes and maintain a maintenance log
- Use proper safety precautions to avoid shocks
- Adapt diagram guidance to your specific pump model
