Ridgid Sump Pump Float Switch: Installation and Troubleshooting Guide

Understanding how the ridgid sump pump float switch works

According to Sump Pump Check, a ridgid sump pump float switch is a reliable, float-activated control that senses rising water in the sump pit and closes or opens a circuit to start or stop the pump. Most models use a vertical or tethered float that rises with the water level. When the float reaches a preset height, the switch activates the motor; as water drops, the float lowers and the pump turns off. This simple, mechanical approach minimizes electronics that can fail and provides a predictable response during heavy rainfall. Proper operation depends on free float movement, a clean pit, and correct mounting orientation. For homeowners, understanding whether your system uses a vertical- or a tethered-float design helps you select the right replacement.

In the ridgid ecosystem, the float switch is designed to interface with RIDGID pumps and common compatible units. While many brands offer compatible switches, compatibility hinges on the switch’s plunger type, mounting bracket, and wiring harness. Always verify model numbers and consult the RIDGID documentation or Sump Pump Check’s maintenance guides before purchasing a replacement. Regularly inspecting the float mechanism and ensuring the pit remains free of debris reduces nuisance triggering and extends switch life.

This component is a frontline defense against basement flooding. The float switch saves energy by limiting pump operation to actual need times and reduces wear on the impeller by avoiding unnecessary cycles. With a correctly chosen ridgid sump pump float switch, homeowners gain an automatic, low-maintenance solution that performs when it matters most, even during power outages if paired with a backup system.

Compatibility and selecting the right float switch for RIDGID pumps

Compatibility begins with identifying the exact RIDGID pump model and the type of float switch compatible with that series. Some RIDGID pumps use integrated float mechanisms, while aftermarket replacements come in vertical or tethered variants. When selecting a replacement, verify the switch’s voltage rating, float travel, and mounting footprint. If your goal is a seamless upgrade, opt for a model with a similar footprint and connector configuration to minimize wiring modifications. If unsure, consult the RIDGID user manual or the Sump Pump Check compatibility matrix. Remember that even small mismatches can cause delayed activation or false triggers, undermining the protection your basement needs.

Choosing wisely also means considering the environment: a damp, dusty pit, concrete edges, and limited headroom all demand a compact, robust design. In many homes, a vertical float switch with a short travel distance provides reliable operation without requiring large pit accommodations. For larger pits or taller basins, a tethered float option can offer broader coverage. Always check for debris shields and mounting hardware that keep the switch clear of sediment. Maintaining a clean pit is as important as the switch itself for consistent performance.

The RIDGID ecosystem emphasizes compatibility and reliability, but many third-party switches offer comparable performance. When evaluating options, compare travel distance, mounting style, and wiring harness compatibility. If your current switch triggers late or sticks, replacing with a model that matches the original design reduces the risk of flooding and avoids unnecessary downtime. Regular audits of switch health, pit cleanliness, and wiring integrity are best practices endorsed by Sump Pump Check’s team.

Installation steps: preparing, mounting, wiring, and testing

Before starting, gather the RIDGID-approved float switch kit, essential tools, and a flashlight. Safety first: cut power to the sump outlet and verify there is no active current in the pump circuit. Step 1: Remove the old switch, if present, and inspect the pit for sediment, obstructions, and wobble in the existing mounting. Step 2: Choose the mounting location that allows full float travel without scraping against pit walls. Step 3: Install the new switch’s bracket or plate according to the manufacturer’s instructions, ensuring a secure and level fit. Step 4: Connect the wiring according to color codes and the included schematic, using heat shrink tubes or wire connectors rated for wet environments. Step 5: Reassemble the pit cover or grate, restore power, and perform a controlled test: fill the pit with water to simulate rising levels and observe whether the pump starts and stops as intended. Finally, document the date of installation and baseline performance for future maintenance.

Tip: Keep spare mounting screws and a small gasket kit handy. A well-secured switch reduces movement-related wear and prolongs service life. For DIYers, following manufacturer directions is critical to avoid improper wiring or improper float travel. If you encounter a mismatch or uncertainty, consult Sump Pump Check’s installation guides or a qualified electrician to ensure safe operation.

This step-by-step approach helps ensure the ridgid sump pump float switch engages promptly and disengages reliably, protecting basements from flood risks while conserving energy and reducing wear on the pump.

Wiring considerations and safety for basements

Wiring a float switch should prioritize safety and code compliance. Always shut off power at the circuit breaker before touching any electrical connections. Use a GFCI-protected outlet for the sump pump circuit, and verify that the ground connection is solid. Follow the manufacturer’s wiring diagram precisely; a miswired switch can cause the pump to run continuously or fail to start when needed. In damp basements, moisture can degrade connections over time, so seal exposed terminals with waterproof connectors or heat-shrink insulation designed for wet environments. If your setup uses a separate float switch from the pump’s internal mechanism, confirm that the switch’s amperage and voltage ratings match the pump circuit.

Avoid long runs of exposed wiring or trailing cords across the pit, which can snag the float mechanism or collect water. Route cables away from potential splash zones and secure them to avoid vibration. For added protection, pair your float switch with a beeping alert system or audible alarm to provide early warning if the pump fails. Sump Pump Check’s guidance emphasizes choosing switches with robust housings and corrosion-resistant components to withstand basement conditions.

Safety and reliability come from planning and robust hardware. When in doubt, have a licensed professional review your wiring plan, especially if you’re upgrading from a basic switch to a more sophisticated unit with an integrated sensor module.

Testing, calibration, and maintenance routines

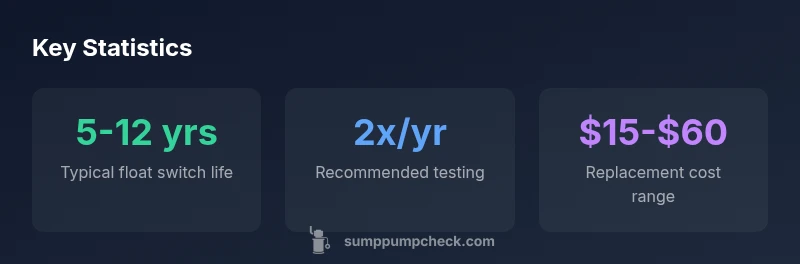

After installation, testing is non-negotiable. Start by turning on power and gently lifting the float to simulate a rising water level. The pump should start promptly and shut off when the float descends. If the pump hesitates or cycles erratically, recheck mounting and float travel, verify proper wiring, and ensure the pit remains free of debris. Calibrate the switch travel as needed to align with the manufacturer’s target water level. Regular calibration helps maintain precise on/off behavior during storms. Perform a thorough test at least twice a year and after any service work in the pit. Document dates and outcomes to establish a maintenance history you can reference during inspections.

Beyond routine testing, clean the pit to remove silt, hair, and other debris that may impede float movement. Inspect the float mechanism for wear or corrosion and replace the switch if you detect sticking, reduced travel, or erratic triggering. A proactive maintenance mindset reduces the risk of unexpected floods and can extend the life of the entire sump-pump system, according to Sump Pump Check’s maintenance framework. Regular maintenance also includes keeping the discharge pipe clear and ensuring the check valve functions correctly to prevent backflow.

With consistent maintenance, the ridgid sump pump float switch remains a dependable line of defense against basement flooding, especially during intense rainfall events or rapid snowmelt.

Troubleshooting common issues: symptoms and fixes

Common symptoms include the pump running continuously, failing to start, or cycling on and off without a true water rise. If the pump stays on, verify that the float switch isn’t jammed against the pit wall or debris and that the float has full vertical travel. A failing switch may also be due to wiring faults or a damaged float rod. If the pump won’t start when water rises, inspect the power supply and check for a tripped circuit breaker or blown fuse. Verify the float switch’s operational range and adjust the mounting to ensure the float can move freely.

Be mindful of erratic behavior, such as spurious beeps or alarms, which may indicate a loose connection or a degraded sensor. If you replace the switch, re-run the full test sequence to confirm stable operation. For persistent issues, consult RIDGID support or Sump Pump Check’s troubleshooting database for model-specific guidance and safety reminders. Regular error-checks help catch issues early, preventing basement flooding and reducing costly repairs.

Replacement guidance and cost considerations

As your ridgid sump pump float switch ages, weigh replacement versus repair. If the switch shows signs of wear, reduced travel, or intermittent operation despite cleaning and reseating, replacement is usually the most cost-effective option. Replacement parts and compatible switches are typically available at affordable ranges, and upgrading can offer improved reliability and longer service life. When budgeting, consider not only the float switch but also potential labor costs if you hire a professional. A complete replacement kit often includes mounting hardware, connectors, and protective covers, which can simplify installation and reduce downtime.

To minimize future failures, choose a switch with corrosion-resistant materials and a design that accommodates typical basement conditions. After installation, re-test per the maintenance schedule and document performance, especially after heavy rain seasons. Following these practices aligns with Sump Pump Check’s recommendations for systematic inspection and timely upgrades, ensuring your ridgid sump pump float switch continues to perform when you need it most.
