How to Replace a Float Switch on a Sump Pump
Learn how to replace a float switch on a sump pump with step-by-step instructions, safety tips, and maintenance guidance to prevent basement flooding. Perfect for homeowners and DIY enthusiasts seeking practical, reliable guidance.
Learn how to replace float switch on sump pump and restore automatic water control. This guide covers identifying the right switch, safely shutting off power, draining the basin, disconnecting wiring, installing the new switch, and testing the system to prevent basement flooding. Follow safety steps and verify all connections after completion.
What a Float Switch Does and Why Replacement Matters
A float switch is a tiny, critical sensor that tells your sump pump when to start or stop based on the water level. When the basin rises, the float lifts a switch and triggers the pump; when water level drops, the switch resets. Over time, switches wear out due to moisture exposure, sediment, or wiring fatigue. Replacing a worn float switch is a practical, DIY-friendly fix that can prevent basement flooding and extend the life of your pump. This section explains common failure indicators, compatibility considerations, and how a faulty switch impacts overall drainage performance. Understanding these factors helps you decide when replacement is the right move and what to look for in a compatible replacement part. As always, follow the safety steps outlined in this guide, and consult your pump’s manual for specific instructions.
According to Sump Pump Check, replacing a worn float switch is a practical, DIY-friendly fix that can prevent basement flooding. Sump pumps rely on reliable sensing to operate correctly; when the float switch fails, the pump may fail to start, run continuously, or cycle unpredictably. By recognizing early signs and planning ahead, homeowners can avoid emergency calls and costly water damage.
Typical warning signals include erratic pump cycling, the pump running without water, or the float getting stuck. If you notice any of these issues, prepare for a replacement. In all cases, prioritize safety first: disconnect power, drain the basin if needed, and verify that your new switch is compatible with your existing sump pump model.
note_id_1: null],
Tools & Materials
- New float switch compatible with your sump pump(Select a float switch that matches your pump’s operating voltage and mounting style (vertical or cage/diaphragm type) and fits the existing sump pit opening.)
- Screwdriver (Phillips and flat-head)(Phillips #2 is common for mounting screws; have flat-head for any prying or prying-safe adjustments.)
- Pliers (needle-nose)(Use for gripping small wires and securing connections.)
- Wire stripper/ cutter(Prepare wires cleanly and lengthen connections if needed.)
- Wire nuts and electrical tape(Secure and insulate splices; use heat shrink if available.)
- Voltage tester(Verify that power is off before touching any wiring.)
- Bucket or basin for residual water(May be needed to catch drainage while draining sump pit.)
- Rags or towels(Cleanup and dry the area after replacement.)
- Zip ties or cable clamps(Organize and secure wiring neatly.)
- Safety gloves and eye protection(Protect hands and eyes from sharp edges or splashes.)
- User manual or model-specific guide(Helpful to confirm mounting and wiring specifics.)

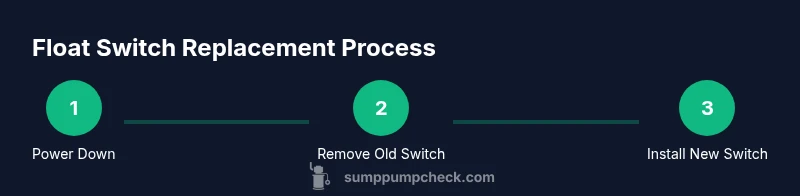

Steps
Estimated time: 45-60 minutes
- 1
Power down and verify absence of current
Locate and switch off the sump pump circuit at the main panel. Unplug the unit if it has a plug, and use a voltage tester to confirm there’s no live current at the outlet. This ensures your safety before handling any wiring or components.
Tip: Always double-check with a tester even if you turned off a breaker—a floating neutrals can still carry voltage. - 2
Drain or reduce water in the sump pit
If the pit contains water, use a bucket or siphon to remove enough water to access the float assembly without splashing. Reducing water minimizes spill risk when you remove the existing switch and frees space for working.
Tip: Aim to leave a small water level to avoid a total dry pit that could stress the pump housing during replacement. - 3
Disconnect and remove the old float switch
Carefully detach the float switch from its mounting, noting how it’s positioned. If there are wires, gently disconnect them one by one and label them for reference. Keep the mounting hardware intact for easier installation of the new switch.
Tip: Take a photo of the wiring before removing anything in case you need a reference during reassembly. - 4
Prepare the new float switch
Inspect the new switch for any shipping damage. Compare mounting type and wiring color codes with the old unit. If needed, trim wires to a working length and strip insulation to expose clean conductors.
Tip: Do not bend or crimp wires aggressively; ensure clean, straight contact surfaces for secure connections. - 5
Mount the new switch and align wiring
Attach the new switch to its mounting bracket as per the manufacturer’s instructions. Route wires neatly and avoid pinching. If your setup uses clamps or a cage, secure them firmly to prevent movement.
Tip: Keep wires away from moving parts and ensure there’s slack to accommodate pump vibrations. - 6
Reconnect wiring and insulate
Reconnect each wire to the corresponding terminal on the new switch. Use wire nuts and electrical tape or heat shrink to insulate exposed conductors. Confirm there are no loose strands that could short circuit.
Tip: Make sure connections are tight and that insulation fully covers exposed metal. - 7
Restore power and test the system
Plug the sump pump back in or re-energize the circuit. Gently lift the float to confirm the pump starts, then lower it to verify it shuts off. Listen for smooth operation and monitor the pit for leaks or drips.
Tip: If the pump doesn’t respond, re-check wiring and mounting orientation before retracing steps. - 8
Final checks and cleanup
Run the pump through a full cycle and observe for consistent operation. Check for leaks around the pit and confirm the discharge hose is clear. Clean up tools and store the old switch as a reference for warranty or disposal.
Tip: Take a photo of the installed switch and keep it with your home maintenance records.
FAQ
What is a float switch and how does it work?
A float switch is a buoyant sensor that shapes the sump pump’s start/stop behavior by detecting water level. When water rises, the float lifts and activates the pump; when water recedes, it shuts off. A faulty switch can cause the pump to fail to start or run constantly.
A float switch tells the pump when to turn on and off. If it fails, your basement is at risk because the pump may not run when needed.
What are the signs that a float switch needs replacement?
Signs include erratic pump cycles, the pump running without water, failure to start, or the float sticking. If you notice frequent cycling or dead zones, inspect or replace the switch.
Look for odd pump behavior, like it running too often or not starting at all—those are common indicators the switch is worn.
Can I replace the float switch myself, or should I hire a professional?
Replacing a float switch is a feasible DIY task for homeowners with basic electrical safety awareness. If you’re uncomfortable with wiring or if your sump setup involves complex configurations or a nonstandard switch, consider hiring a professional.
If you’re comfortable with basic electrical work, you can do it yourself. If in doubt, a pro can ensure safe, code-compliant installation.
What’s the difference between vertical and diaphragm float switches?
Vertical switches use a float that rises vertically to trigger the pump, while diaphragm switches use a pressure-sensitive diaphragm. The choice affects mounting, response speed, and compatibility with your sump pit.
Vertical and diaphragm switches work differently—they have different mounting styles and sensing mechanisms, so check your pump’s requirements.
Will replacing the float switch fix a failing sump pump?
Replacing the float switch can resolve many pump operation problems caused by sensing failures. If the pump itself is damaged or has a clogged impeller, further repairs may be needed.
Often a faulty float switch is the culprit, but if the pump is old or damaged, you may need a broader fix.
How often should a float switch be replaced?
There’s no universal interval; inspect annually and replace when signs of wear appear or if performance becomes unreliable. Keeping a spare switch on hand can minimize downtime.
Inspect once a year and replace if you see wear or erratic performance. Having a spare on hand is smart.
Watch Video
Top Takeaways
- Learn the signs that a float switch needs replacement
- Choose a compatible switch type and mounting style
- Follow step-by-step safety procedures when working with electricity and water
- Test the new switch thoroughly before declaring the job complete
