Sump Pump 1/3 HP Submersible: Install, Use, and Maintain

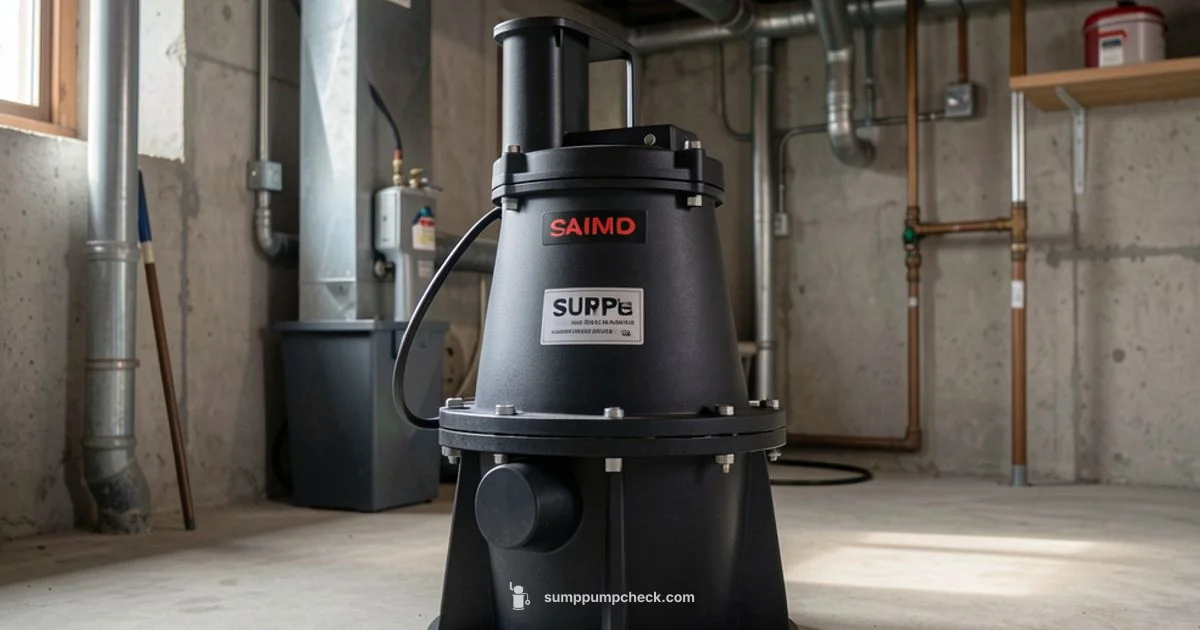

What is a Sump Pump 1/3 hp Submersible?

According to Sump Pump Check, a sump pump 1/3 hp submersible is a compact, energy efficient pump designed to sit in a sump pit and move water out to a discharge line. This model uses a 1/3 horsepower motor and is fully submerged in the pit, which helps cool the unit and dampen noise. The integrated float switch starts and stops the pump automatically as water rises and falls, making it a convenient choice for basements prone to flooding.

The submersible design means the entire motor assembly is submerged in liquid, which helps keep the motor cooler and reduces vibration and noise compared with pedestal designs. In many homes, this makes it the preferred option for living spaces adjacent to basements doors, laundry rooms, or storage areas.

A typical 1/3 hp submersible sump pump includes a sealed housing, a discharge outlet compatible with standard piping, built in thermal overload protection, and a screen or grate to prevent debris from entering the impeller. When installed correctly, it provides reliable water removal during storms, rapid snowmelt, or ongoing groundwater seepage.

Key advantages of a 1/3 hp submersible model

For small to moderate basements, a 1/3 hp submersible sump pump offers a balanced combination of performance, efficiency, and cost. The compact size fits most standard pits, leaving room for proper drainage and a backup pump if needed. Because the motor is fully submerged, operation tends to be quieter and cooler, which helps protect the pump from overheating and extends service life. The sealed design also reduces exposure to moisture and corrosion, an important consideration in damp basement environments.

Other benefits include relatively easy installation, fewer exposed moving parts, and a broad ecosystem of compatible accessories such as check valves, float-switch options, and battery backup kits. Many models ship with a factory tested cord, integrated auto start on water rise, and protective covers that keep debris out of the impeller.

Installation basics for a 1/3 hp submersible sump pump

Getting a 1/3 hp submersible sump pump up and running starts with a clean, intact sump pit. Remove debris, ensure the pit is deep enough to accommodate the pump, and verify the discharge point is clear. Position the pump so the float switch can freely rise and fall with water level. Attach discharge piping and a check valve to prevent backflow, and route the line to a suitable exterior location away from your foundation.

Power should come from a GFCI protected outlet to reduce shock risk in damp basements. Use either a dedicated circuit or a protected multi-outlet strip designed for sump pumps, and secure the piping so it cannot be pulled or knocked loose. Finally, test the system by pouring water into the pit until the pump cycles and then runs continuously if water remains at the bottom of the pit.

Sizing and performance considerations

Sizing a 1/3 hp submersible sump pump involves matching the pump to your basement inflow and discharge distance. In general, this horsepower class is well suited for homes with moderate water entry and shorter discharge runs. If levels rise quickly during heavy rain or rapid snowmelt, you may experience more frequent cycling; in those cases, consider scaling up or adding a backup pump.

Head pressure, distance to discharge, and vertical lift all affect how much water the pump can remove per hour. Heavier head reduces flow, so long vertical runs or distant discharge points may justify a larger unit. For consistent reliability, consider combining a 1/3 hp submersible with a battery backup system to cover power outages and storms. Sump Pump Check Analysis, 2026 supports planning and sizing to reduce nuisance pumping and wear.

When in doubt, use a sizing calculator, consult a licensed plumber, or compare model curves from reputable manufacturers. Always select a unit with the appropriate float switch configuration and corrosion resistant materials for your environment.

Maintenance and troubleshooting tips

Maintenance keeps a 1/3 hp submersible sump pump operating reliably for years. Schedule a monthly check of the pump and pit: listen for unusual noises, verify the float moves freely, and inspect the intake screen for debris. Clean the screen and remove sediment to maintain good flow, and inspect the discharge line for kinks or blockages that could reduce efficiency.

Test the auto start function by filling the pit with water and observing that the pump activates and then shuts off as the water level falls. Check the power cord for wear, inspect the housing for cracks, and ensure the check valve seals properly to prevent backflow. If you notice overheating, frequent cycling, or loss of prime, consult a professional.

If your area experiences frequent storms or power outages, consider a backup solution such as a battery powered backup pump to provide added protection, especially during critical events.

Choosing the right model features and backup options

When selecting a 1/3 hp submersible sump pump, look for a robust cast iron or corrosion resistant housing, a reliable float switch (vertical or tether), and efficient thermal protection. A model with an integral check valve and a bundled discharge elbow makes installation simpler and reduces the chance of backflow.

Evaluate backup options such as a battery powered backup pump or a water powered backup device for power outages. A back up can save you from basement flooding during storms when the main pump is temporarily offline. For new installations, plan for an external alarm or indicator to alert you if water is rising while the main pump is inactive.

The Sump Pump Check team recommends verifying the discharge path, ensuring a proper vented or protected outlet, and pairing the main pump with a backup system for maximum protection against basement flooding.

Getting started with your 1/3 hp submersible sump pump

If you are a homeowner or DIY enthusiast, this guide helps you understand how a sump pump 1/3 hp submersible works and how to install, size, and maintain it. Start by checking your sump pit, selecting a pump with the right features, and planning a reliable discharge route. Use a back up strategy for power outages to safeguard your basement. The Sump Pump Check team recommends consulting local codes and hiring a pro for complex installations to ensure safety and compliance. By following these steps, you can minimize water damage and keep your basement dry during soggy seasons.
