Small Sump Pump: Installation, Use, and Maintenance Guide
Learn how to pick, install, and maintain a small sump pump. This concise guide from Sump Pump Check covers sizing, space needs, maintenance, and backup options for basements.

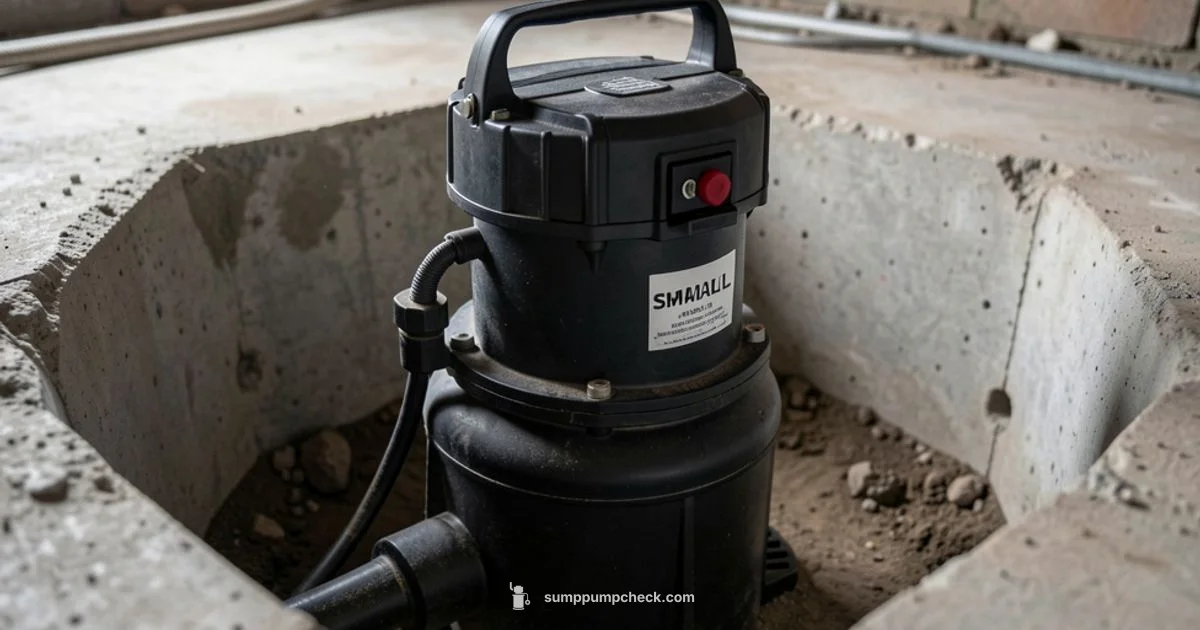

A small sump pump is a compact pump designed to remove groundwater from a sump pit in basements or crawl spaces. It’s a type of submersible or pedestal pump suitable for tight spaces and smaller flows.
What qualifies as a small sump pump
A small sump pump is a compact water removal device designed for basements, crawl spaces, and other tight spaces. It is typically powered by a motor in the 0.25 to 0.5 horsepower range and can be either submersible or pedestal mounted. This size choice is ideal for homeowners who anticipate modest water inflow or limited space. According to Sump Pump Check, the key differentiator is the space available for the pump and the expected volume of water to move. For most homes, a compact unit provides enough lift to keep water away from the foundation while fitting inside a shallow pit. When evaluating options, focus on head height, drain distance, and the pump’s ability to turn on automatically when water rises.
Space and layout considerations
Choosing a small sump pump also means planning the space around the pit. Ensure the pit dimensions leave at least a few inches of clearance above and around the unit for cooling and maintenance. Plan a discharge path that leads water away from the foundation without re-entering the home. Install a check valve to prevent backflow and ensure the power outlet is GFCI protected. If possible, use a dedicated outlet and keep the area dry during maintenance. Remember to select a unit compatible with your existing drain line and to verify local code requirements for basement drainage.
Features that boost reliability in small pumps
Look for automatic operation with a reliable float switch, solid thermal protection, and corrosion-resistant materials for longevity. A quiet motor helps keep living spaces comfortable, especially in tight basements. A built‑in alarm or indicator light for high water levels can save you from unnoticed flooding. Optional features like a built‑in secondary float or an external UPS backup can further improve reliability, particularly in areas prone to power outages. Always review the pump’s efficiency and warranty terms before buying.
Installation steps for tight spaces
Start by turning off power and confirming the pit is clean and dry. Place the pump at the bottom of the pit and connect the discharge pipe, keeping it straight and avoiding sharp bends. Install a check valve above the pump to prevent backflow, then run the discharge line to a location where water won’t re-enter the basement. Attach a power cord or hardwire the unit according to local codes, and test the system with water to verify automatic operation and proper drainage. If you’re unsure about electrical work, hire a licensed electrician to ensure a compliant setup.
Sizing and selecting the right unit
Size matters for the long term. Start by estimating your expected water inflow and the lift height needed to reach the exterior drainage point. In general, smaller units are suitable for limited basements with modest inflows, while larger spaces or higher water events require more capable models. Consider the space you have for pit dimensions, ensure compatibility with your piping, and check compatibility with any existing backup systems. Compare horsepower options (typically 0.25–0.5 HP for small units) and choose a model with a reliable float mechanism and good warranty terms. Budget for installation costs and potential upgrades later if your drainage needs change.
Maintenance and troubleshooting for ongoing reliability
Regular maintenance is key to a long‑lasting pump. Inspect the pit for debris, clean the intake screen, and test the float switch monthly. Run the pump during dry season so you know it will operate when wet conditions arrive. If the pump trips or fails to start, check the power supply, outlet, and circuit breaker, then inspect the float for obstructions. Make sure the discharge line is free of blockages and that the check valve seals properly. Replace worn seals or corroded parts promptly to avoid leaks.
Backup options and upgrade paths
A back‑up option keeps water from overwhelming the system during power failures or heavy storms. A battery backup sump pump can run when the main unit is down, while a water‑powered backup uses city water pressure to move water when electricity is unavailable. For extra protection, pair a small sump pump with a battery backup system and consider an alarm to alert you during outages. Upgrading to a larger unit or adding a secondary pump can reduce response time during peak flows and provide greater peace of mind for critical spaces.
Real world scenarios and cost considerations
In many homes, a small sump pump is a cost‑effective part of a broader drainage plan. Prices vary with features, brand, and warranty, but anticipate a range that reflects your chosen horsepower, the presence of backup options, and installation complexity. In addition to the pump itself, budget for necessary accessories such as a check valve, discharge piping, and a protective cover. If you already have a pit, a compact unit can often be installed with minimal disruption. Always factor in potential professional installation costs if you prefer a contractor managed setup.
FAQ
What is a small sump pump
A small sump pump is a compact water removal device designed for tight spaces like basements. It moves groundwater away from the home to prevent flooding and is usually either submersible or pedestal mounted.
A small sump pump is a compact water remover for tight spaces like basements. It helps keep your home dry by moving groundwater away from the foundation.
How to size small sump pump
Sizing depends on the expected water inflow and the lift height needed to reach the drainage point. For compact spaces, a pump in the 0.25 to 0.5 horsepower range is common, but always match to your specific pit and drainage path.
Size the pump based on how much water you expect and how far it must travel to exit. Most small units are 0.25 to 0.5 horsepower.
Backup pump needed
A backup pump is not always required, but it’s highly recommended in flood-prone areas or during power outages. Battery or water-powered backups provide protection when the primary unit is down.
If you’re in a flood risk area or worry about outages, a backup pump is a smart addition for protection.
Maintenance needs
Regular maintenance includes monthly visual checks, debris removal, testing the float, and annual inspections of seals and discharge components. Keeping the pit clean helps prevent clogs and ensures reliable operation.
Check the pump monthly, clean debris, test the float, and inspect seals yearly to keep it reliable.
When to replace
Replace when the pump shows repeated failure, excessive noise, slow drainage, or difficulty starting. Older units may lose efficiency and protective features, increasing flood risk.
If it keeps failing or cannot drain effectively, it’s time to replace the unit.
DIY installation
Basic installation is feasible for many homeowners, but electrical work should follow local codes. If you’re unsure, hire a licensed electrician for safe, compliant setup and to ensure proper venting and outlet protection.
DIY is possible for simple setups, but get a pro for electrical and code compliance.
Top Takeaways
- Choose a unit sized for your space and expected water inflow
- Plan a proper discharge path and backflow prevention
- Prioritize automatic operation and reliable float switches
- Add a backup option for power outages and extreme events
