Liberty Submersible Pump: Installation, Maintenance, and Troubleshooting
A practical guide to Liberty submersible pumps covering installation, maintenance, troubleshooting, and selecting the right model for basement sump tasks. Learn practical steps, safety tips, and troubleshooting advice for homeowners and DIYers.

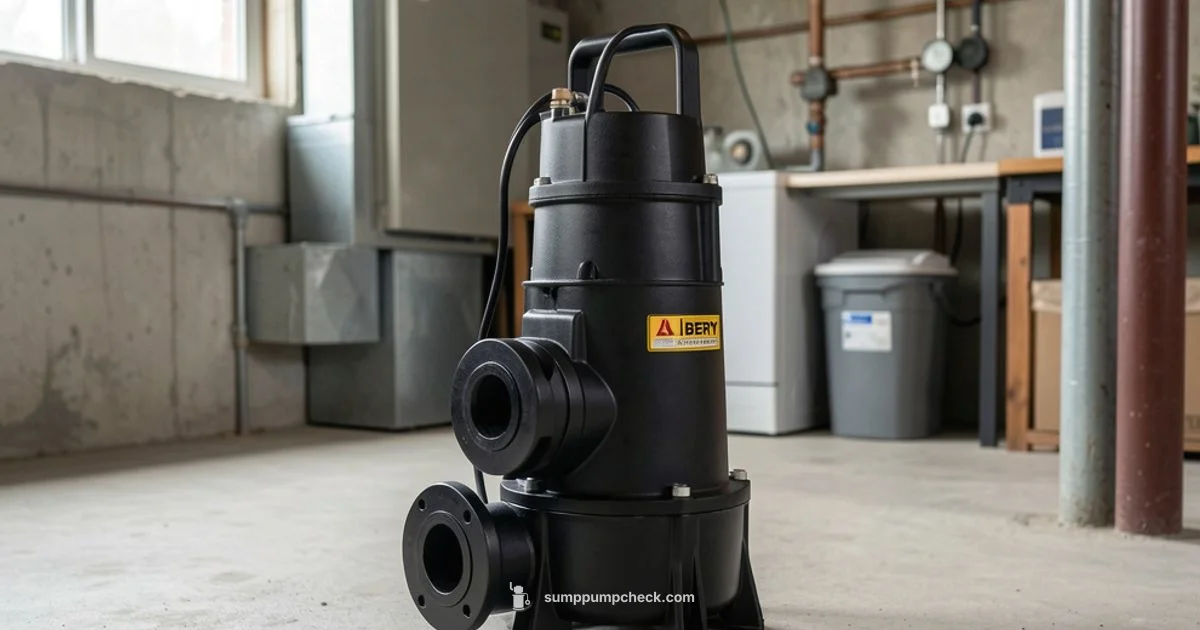

liberty submersible pump is a type of electric submersible pump designed to operate underwater in a sump or flooded space to move water away from a property.
What is a Liberty submersible pump?
A liberty submersible pump is a submerged electric pump designed for use in sump pits or flooded spaces around the home. It is commonly supplied by Liberty Pumps, a brand known for basement drainage solutions. The unit sits in the liquid, with the motor sealed to resist water ingress. These pumps are chosen for their quiet operation, robust construction, and the ability to move groundwater away from foundations efficiently. When installed correctly, they help prevent basement flooding, protect stored goods, and reduce water damage risk. In residential settings, a typical setup features a discharge line that carries water to a storm drain, yard, or municipal drainage system, and a control switch that starts the pump when water rises to a preset level.
How Liberty submersible pumps operate
Liberty submersible pumps operate with the motor and impeller submerged in the liquid they pump. As water enters through a screened intake, the impeller imparts energy to move water up and out through the discharge line. The motor is sealed, often with a water-lubricated bearing system, to withstand continuous submersion. A float switch or electronic sensor detects rising water levels and activates the motor. When water recedes, the switch allows the motor to stop. A discharge check valve prevents backflow, helping maintain line pressure and reducing nuisance cycling. Overall, these pumps are designed to run reliably under wet conditions, provided their installation follows manufacturer guidance and local plumbing codes.
Key features to consider when choosing a Liberty model
Choosing the right Liberty model involves matching performance with your sump needs. Start with the flow rate measured in gallons per minute (GPM) and the head height, which is the maximum vertical distance water must be pumped. Higher head requirements or longer discharge runs typically need a pump with greater head capability. Review horsepower and voltage requirements to ensure your electrical circuit can safely supply the unit. Material choices matter: cast iron bodies offer durability in dirty water, while thermoplastic housings resist corrosion in mildly aggressive environments. Float switch design matters too—tethered floats are simple and affordable, while vertical or electronic switches can provide more precise control and fewer false triggers. Look for features such as built‑in thermal protection, a corrosion‑resistant impeller, and a robust shaft seal. Ideally, choose a model with a factory‑installed check valve or the option to add one to protect against backflow.
Safe installation and discharge considerations
A proper installation is essential to protect both the pump and your home. Begin with a clean, appropriately sized sump pit that allows room for service. The discharge line should slope away from the foundation and terminate in a suitable outdoor area or drain. Install a check valve on the discharge to prevent backflow and reduce short cycling. Ensure the pump is connected to a grounded, GFCI‑protected outlet in accordance with local codes. Consider adding an audible or visual alarm for outages, and plan a backup power option if you live in a flood‑prone area. Never discharge into a sanitary sewer unless permitted by local regulations, and avoid routing discharge through living spaces. Regularly inspect mounting hardware and seals for signs of wear, and maintain clear pit conditions to avoid debris buildup.
Maintenance routines and preventive care
Proactive maintenance extends the life of a Liberty submersible pump. Schedule a full check at least once a year, ideally before peak rain seasons. Power down the system, remove the pump from the pit, and inspect all electrical connections for corrosion or looseness. Clean the inlet screen and impeller area to remove sediment, sand, or debris that can reduce performance. Test the float switch by manually raising and lowering it to ensure reliable activation and shutdown. Verify that the discharge line is clear and that the check valve seals properly against backflow. If the unit uses a battery backup or alarm system, test these as well. Keep a simple maintenance log and note any unusual sounds, leaks, or changes in performance for future service.
Troubleshooting common issues and quick fixes
Even well‑installed Liberty submersible pumps can encounter problems. If the pump does not start, check for power at the outlet, confirm the GFCI has not tripped, and verify the float switch is free of obstructions. If water remains in the pit despite operation, inspect the inlet screen and discharge line for clogs. A loud hum or grinding sound may indicate a jammed impeller or dry bearings requiring inspection and possible service. Visible leaks around seals near the motor indicate wear that may need seal replacement or unit replacement. For alarm beeps, consult the user manual for codes and reset procedures. When in doubt, contact Liberty Pumps support or a qualified plumber, especially if the installation involves complicated electrical work or potential pit resealing.
Protecting your investment with proper usage
To maximize the lifespan of a Liberty submersible pump, avoid running it dry and ensure the pit is not exposed to corrosive environments. Keep the discharge path clear and protect the unit from power surges with a surge protector if recommended by the manufacturer. Regularly check for wear and corrosion on seals and fasteners, and replace worn components as soon as they are detected. Consider pairing the pump with a backup system for power outages. By adhering to manufacturer guidelines and local codes, homeowners can ensure reliable operation and minimize costly failures.
FAQ
What is a Liberty submersible pump?
A Liberty submersible pump is a brand of submerged sump pump designed for basement drainage. It operates while immersed in the sump pit and moves water away from the foundation to prevent flooding.
A Liberty submersible pump is a submerged sump pump used to move water away from your basement and protect against floods.
Do I need professional installation for Liberty submersible pumps?
DIY installation is possible if you follow the manufacturer instructions and local codes. If you lack electrical or plumbing experience, or if your pit or discharge path is complex, hire a professional.
DIY is possible if you’re comfortable with electrical and plumbing tasks; otherwise hire a professional.
What maintenance does it require?
Regularly clean the inlet screen, check the float switch, and test the unit’s operation. Inspect electrical connections and seals, and replace worn parts per the manufacturer’s recommendations.
Clean the screen, check the float switch, and test operation at least once a year.
What are common problems with Liberty pumps?
Clogs in the intake, a stuck float switch, electrical outlet issues, and seal leaks are typical. Troubleshooting often involves cleaning, clearing the discharge path, and verifying power.
Common issues include clogs, float switch jams, and electrical problems.
How long can a Liberty submersible pump last?
Lifespan depends on use and maintenance. With proper care, these pumps provide reliable service for several years.
With good maintenance, you can expect several years of service.
Is a Liberty submersible pump energy efficient?
Energy use depends on the model, head, and flow. Choose a model sized for your needs and avoid oversized pumps to maximize efficiency.
Energy use depends on model and usage; selecting the right size helps with efficiency.
Top Takeaways
- Match pump head and flow to your sump needs.
- Install a discharge check valve to prevent backflow.
- Use a GFCI‑protected outlet for electrical safety.
- Schedule annual maintenance before heavy rainfall.
- Inspect float switch and discharge line for optimal performance
