Dual Sump Pump Installation: A Step-by-Step Guide

What dual sump pump installation means for your home

A dual sump pump installation provides redundancy for basement drainage, reducing the risk of flooding when one pump fails or becomes overwhelmed. According to Sump Pump Check, homeowners who implement a two-pump setup with properly sized pumps, dedicated discharge lines, and a reliable backup option experience significantly lower risk of enduring a wet basement during heavy rain events. This approach is not a simple duplicate of a single-pump system; it requires careful planning to ensure pumps do not fight each other and that the discharge path remains compliant with local codes.

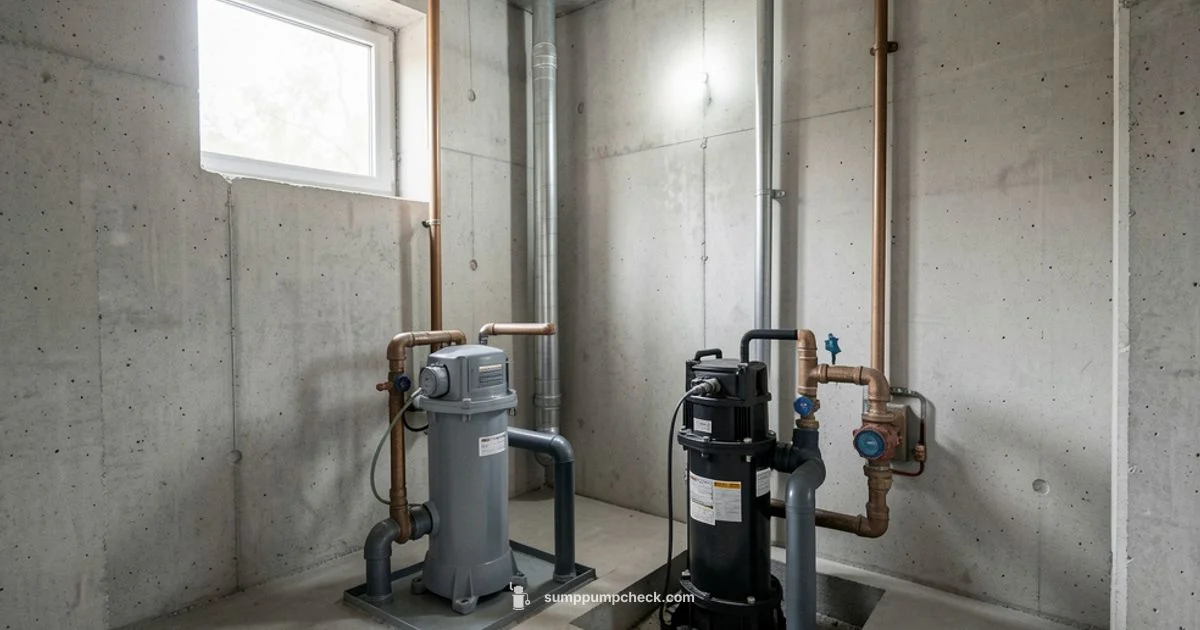

In practice, a dual-pump system includes two pumps installed in the same sump basin or in two adjacent basins, each with its own float switch and power connection. A common arrangement is to wire the pumps so they can alternate based on water level while a third backup path, such as a battery-backed pump or a separate backup pump, kicks in if both primary units fail. The core benefits go beyond redundancy: faster pumping capacity during peak inflow, even load sharing to extend the life of each pump, and easier isolation for maintenance. You’ll also want to plan for alarms or indicators that alert you when one pump is active, or if a fault occurs. When assessing suitability, consider your basement elevation, typical rainfall, and the presence of a proper drain tile or sump pit.

Throughout this guide, you’ll see practical steps, safety notes, and design considerations that help you execute a reliable dual sump pump installation without unnecessary risk.

Why redundancy matters and common failure points

Redundancy matters because a single pump can fail due to mechanical wear, electrical issues, or power outages. The most common failure points are the impeller jam, motor burnout, clogged intake, and failed float switches. With dual sump pumps, you gain a built-in failover, ensuring water continues to be removed even if one unit stops working. A well-designed dual system also reduces cycling and heat buildup, extending the lifespan of both pumps. Sump Pump Check’s analysis highlights how proper setup—separate discharge lines, independent float controls, and a reliable backup path—minimizes downtime after heavy rain or spring thaws. In addition to mechanical redundancy, you should plan for an audible or visual alarm so you know when pumping activity changes or a fault occurs.

The key is to design a system that can share load without fighting each other. This means selecting pumps with compatible performance curves, providing correctly sized basins, and routing discharge pipes to prevent backflow. Finally, consider local codes and permit requirements; some jurisdictions require backflow prevention devices or specific venting for sump discharge. With these safeguards, redundancy becomes a practical, durable solution rather than a theoretical benefit.

Sizing, pump selection, and placement layout

Sizing is about matching pump capacity to your home’s needs and the basin geometry. Start by reviewing the pump’s flow rate (gallons per hour) at a typical lift height and compare it to the expected inflow during peak rainfall. For most homes, dual pumps with 1/2 to 1 HP motors, paired with dependable float switches, provide ample capacity and reserve. Place pumps so they share the same basin space or occupy adjacent basins with synchronized alarms. Ensure there is enough clearance around each pump for maintenance, wiring, and two separate check valves to prevent backflow. If your pit is shallow or narrow, you may need a compact dual-pump arrangement or to extend the pit with a compatible insert. Keep in mind that battery backup pumps require additional space and access for service.

From a layout perspective, plan the discharge path to a level that avoids steep vertical drops, which can create air pockets and back-siphoning. Use two independent discharge lines with their own check valves, then combine them toward the exterior to minimize pressure on any single line. Finally, confirm that the chosen locations allow for easy inspection, testing, and replacement without disturbing permanent fixtures or utilities. A well-planned layout reduces future maintenance and ensures smoother operation during emergencies.

Plumbing connections and drainage layout

The plumbing backbone of a dual sump pump installation is the discharge piping and backflow protection. Each pump should have its own discharge line with a dedicated check valve to prevent backflow into the basin. Use PVC pipe of the appropriate diameter (typically 1-1/2

2

depending on pump specifications) with clean, accessible joints and a gradual slope away from the home. In some installations, the discharge lines from both pumps are joined after the check valves, but only if the joint is designed to prevent backpressure from one pump into the other. Seal all joints with PVC cement and push-fit adaptors rated for water handling. For added safety, incorporate a manual shut-off valve near the point where lines exit the basement to isolate the system for maintenance.

In addition to discharge lines, consider installing a drain pit vent or an air admittance valve if the discharge runs through enclosed spaces. This helps prevent vacuum locking and reduces stress on the pumps during rapid changes in water level. Finally, ensure that the exterior discharge point is below the frost line in cold climates or well insulated to prevent freezing, particularly in unheated basements.

During this phase, document each connection as a reference for future inspections. Label lines clearly and keep a spare kit of fittings on hand for quick repairs.

Electrical requirements, power backup, and safety

Electrical safety is non-negotiable in sump pump installations. Each pump should be on its own dedicated circuit with GFCI protection where possible, and all wiring should be rated for wet environments. Use outdoor-rated or submersible-rated cables and install strain relief where the power cord enters the basin lid or a junction box. If you plan a battery backup or a secondary power source, ensure the backup system has its own circuit and automatic transfer operation, so power outages don’t require manual intervention. Ground fault protection and proper enclosure ratings help prevent corrosion and short circuits over time.

Before powering anything, verify that the main panel is accessible and that a qualified electrician approves all wiring, especially if you introduce a backup pump or additional alarms. Also, plan for a reliable alarm or alert system that notifies you when a pump is active or when an electrical fault occurs. Regular testing of the backup power source ensures readiness during storms and outages. Finally, keep emergency contact information and a simple one-page schematic visible near the sump pit for quick reference during emergencies.

Pre-installation checklist and risk assessment

Before you lift a single tool, complete a pre-installation checklist. Confirm the sump pit is clean, dry, and free of debris. Verify that the basin can accommodate two pumps with adequate clearance for maintenance. Inspect electrical availability, confirm the presence of a GFCI outlet, and verify that the main panel has space for the new circuit. Evaluate the basement’s typical water inflow patterns, climate, and existing drainage to tailor the layout. Identify potential hazards such as limited access, tight spaces, or water exposure to electrical components. Document a clear plan for installation, including a timeline and required permits. If any part of the plan seems ambiguous, consult a qualified professional to prevent dangerous mistakes.

Always wear protective gear and ensure children and pets are kept away from the installation area during work. After planning, proceed with the STEP-BY-STEP installation to minimize risk and ensure a safer outcome.

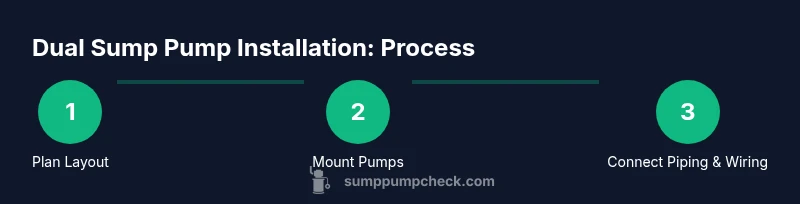

Installation steps overview before you start

With the planning complete, you’ll follow a structured sequence to assemble the dual sump pump system. Start by confirming the pit dimensions and selecting two compatible pumps. Prepare the discharge piping with check valves, install the basins, and route power and backup power to their respective circuits. Attach floats, verify level-sensing is responsive, and connect wiring with proper strain relief. Finally, perform a staged test to verify that the automatic switch-over works correctly and that alarms trigger as intended. This overview helps you understand the flow of activities before you begin the hands-on work.

Maintenance and testing plan for long-term reliability

Regular maintenance is essential for dual sump pump systems. Schedule monthly checks of pump activity, float operation, and audible indicators. Inspect discharge lines for leaks or blockages, and clean the sump pit as needed. Replace batteries according to the manufacturer’s guidelines and monitor backup performance with a supervised test run. Keep a maintenance log with dates and observations to track wear and plan replacements proactively. A proactive approach reduces the likelihood of unexpected failures during storms.

Post-installation: testing, maintenance, and troubleshooting

After assembly, test the system in stages: add water to the pit to trigger auto-switching, simulate a pump failure to ensure the backup engages, and confirm alarms are audible or visible. Check for leaks at every joint, ensure proper drainage away from the home, and verify that both pumps operate without creating backpressure. If you encounter erratic behavior, inspect float switches for obstruction, confirm wiring integrity, and review the electrical circuit. Maintain clear labeling for all components, and schedule annual professional inspections to catch issues beyond routine checks.
