Above Floor Sump Pump Guide: Installation, Maintenance, and Troubleshooting
Learn how an above floor sump pump works, where to install it, maintenance steps, and how it compares to below floor models for basement drainage.

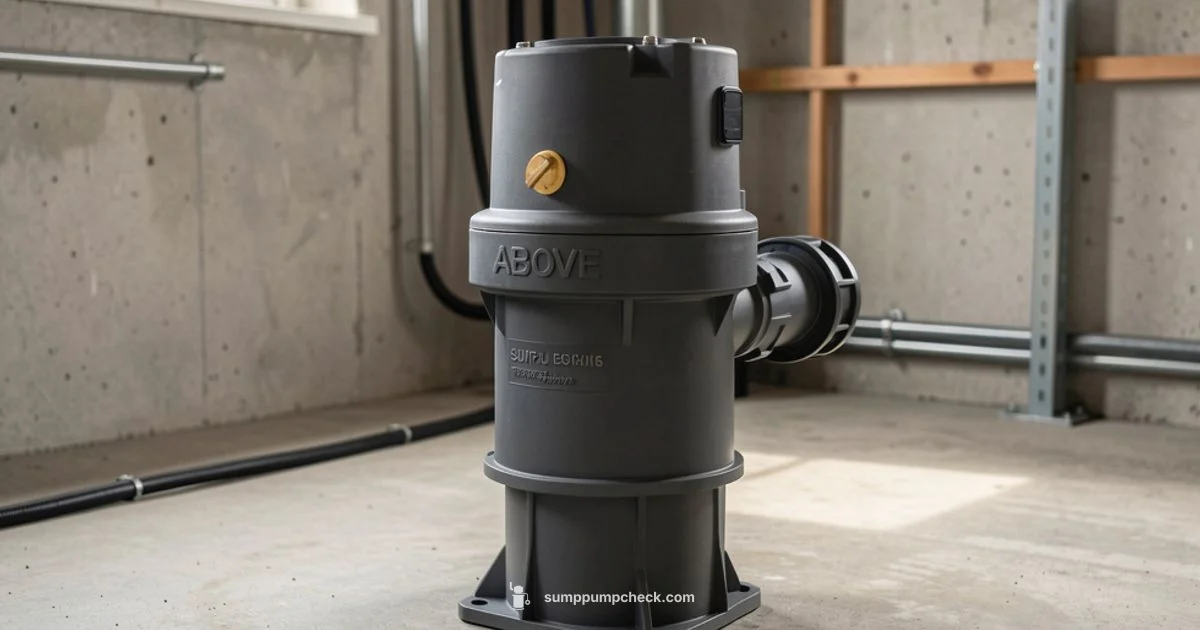

Above floor sump pump is a type of sump pump installed at or near the floor surface to remove water from basements or crawl spaces, often in a visible pit or pedestal housing. It contrasts with submersible models installed below floor level.
What is an above floor sump pump and when to use it
An above floor sump pump is a pump installed at or near floor level to remove water from basements or crawl spaces, usually in a pedestal or shallow pit. It is favored when there isn’t a practical below-floor basin or when you want quick access for maintenance. This setup can simplify servicing and reduce the risk of trapping air or debris in deep pits. Homeowners often choose this option in tight spaces, finished basements, or areas where a traditional pit would be visually intrusive. The Sump Pump Check team notes that the above floor configuration can provide reliable drainage while keeping important components accessible for testing and replacement. In addition, above floor pumps can be paired with modern alarms and backup power options, which is helpful in areas prone to power outages or heavy rainfall. If you value serviceability and a less invasive footprint, this approach is worth considering during any basement drainage project.
Key design features of above floor sump pumps
Most above floor sump pumps use a pedestal or shallow housing that sits on the floor, with a vertical float switch signaling when to start and stop. The discharge piping must slope away from the pit and connect to a properly vented drain. A coupled check valve helps prevent backflow, while an accessible power cord allows quick unplugging for service. Materials are typically corrosion resistant for basement humidity, and some models include integrated alarms or battery backup options. In addition, the pump chamber often features an easy access lid or removable cover to simplify cleaning and impeller inspection. The motors are commonly rated for damp basements, and many units offer multiple stages or adjustable flow for different water loads. Noise levels vary by motor type and installation, but mounting on a solid base and using rubber feet or isolation pads can reduce vibration. Overall, the design prioritizes accessibility, straightforward maintenance, and reliable water removal without requiring a buried pit.
Installation considerations for above floor sump pumps
Placement matters. Choose a dry, accessible corner of the basement or utility room with a nearby drain and an electrical outlet protected by a GFCI. Ensure the pit or pedestal is level, stable, and sealed to prevent water from seeping under the base. Verify the discharge path is clear, includes a proper trap or check valve, and terminates above potential flood levels. Local codes may require permits or inspections for sump pump work, so check with authorities before installing. If you are replacing an old unit, plan for ducting or venting and consider a backflow preventer in line with the discharge pipe. Electrical considerations include using a dedicated circuit or a GFCI-protected outlet located within reach, and ensuring the cord is secured away from standing water. After installation, test the unit with a controlled water supply to confirm automatic start and shutoff behavior.
Maintenance and troubleshooting for above floor sump pumps
Create a simple maintenance schedule: test run the pump monthly, inspect the float assembly for smooth operation, clean the intake screen, and examine the discharge path for blockages. Replace worn impellers and seals as needed, and confirm the check valve seals properly to avoid backflow. Listen for unusual grinding noises or excessive vibration, which can indicate a worn bearing or clogged impeller. If the alarm sounds or the unit trips, identify the cause and reset after clearing debris. Regular checks reduce the risk of a basement flood during heavy rain or rapid snowmelt. Keep an eye on electrical connections for signs of corrosion, and test any battery backup with a simulated outage to verify it will engage during a real event.
Common mistakes with above floor sump pumps
Installing the wrong size pump for the anticipated water load can lead to inadequate drainage. Skipping a proper check valve or misrouting the discharge pipe can cause backflow or leaks. Neglecting routine maintenance, ignoring alarm indicators, or failing to secure electrical connections near damp environments increases risk. Finally, failing to seal the pedestal or pit can allow groundwater intrusion and mold growth. Many DIY installations overlook slope and drainage requirements, which can cause standing water near the unit or backflow into living spaces. Planning for future water load increases, such as heavier rainfall or climate-driven changes, helps avoid premature failures.
Above floor sump pumps vs below floor submersible units
Above floor models offer easier access for repairs and less costly excavation in retrofit situations. They tend to be more visible, which some homeowners appreciate for monitoring. Submersible units installed below the floor are typically quieter and may fit a finished pit aesthetic, but service requires accessing a buried basin. Your choice depends on space, budget, and how comfortable you are with ongoing maintenance. For homes with finished basements, the visibility of above floor units can be a benefit or a drawback depending on how the space is used. In wet climates, a robust backup and alarm system can compensate for any perceived downsides.
Cost considerations and value of choosing above floor sump pump
Cost considerations for above floor sump pumps are influenced by installation complexity, labor rates, and peripheral components such as alarms and backup power. Because every basement layout is different, expect wide variation in overall expense. This guide emphasizes long term value: easier maintenance, quicker replacements, and reliable drainage can reduce flood risk and insurance concerns. When budgeting, add the potential for upgrading to a dual pump system, a battery backup, and properly sized discharge piping to minimize failure risk over time.
Best practices for installation, maintenance, and long term care
Commit to a maintenance schedule, use manufacturer recommended parts, and document service visits. Keep spare fuses and a backup pump option accessible. Store critical tools nearby and label discharge lines for easy inspection. Finally, align with local codes and pursue a professional inspection if in doubt. The Sump Pump Check team recommends considering above floor sump pumps when space and serviceability matter, especially in basements with finished living spaces. By treating the setup as an ongoing project rather than a one time install, homeowners can reduce flood risk and extend pump life.
FAQ
What is an above floor sump pump and where is it typically installed?
An above floor sump pump is a pump installed at floor level to remove water from basements or crawl spaces. It uses a pedestal or shallow pit, offering easier access for maintenance compared with buried pits.
An above floor sump pump sits at floor level to move water out of basements or crawl spaces and is designed for easy service.
How does an above floor sump pump differ from a submersible sump pump?
Above floor pumps are easier to access for maintenance and replacement, while submersible pumps sit below the floor and are often quieter. The choice depends on space, budget, and service needs.
Above floor pumps are easier to service; submersibles are usually quieter but harder to reach.
Can I install an above floor sump pump myself?
DIY installation is possible for experienced homeowners who follow electrical code requirements and local permits. If you’re unsure about wiring, safety, or drainage, hire a licensed professional.
You can install it yourself if you’re comfortable with electrical work and building codes; otherwise, hire a pro.
What maintenance does an above floor sump pump require?
Regularly inspect the float, clean the intake screen, check the discharge path, and test the backup system if you have one. Schedule periodic professional inspections for optimal reliability.
Keep the float clean, test the unit every month, and check the backup option if you have one.
Do above floor sump pumps need a backup power source?
A backup power source is recommended, especially in areas with frequent outages or heavy rainfall. A battery backup or a secondary pump can help prevent floods.
Yes, a backup power source helps ensure drainage during outages.
Where is the best place to install an above floor sump pump in a basement?
Choose a dry, accessible corner with a nearby drain and a GFCI outlet. Ensure proper clearance for servicing and a clear discharge path to the exterior or gravity drain.
Place it in a dry, accessible corner with an outlet nearby for easy service.
